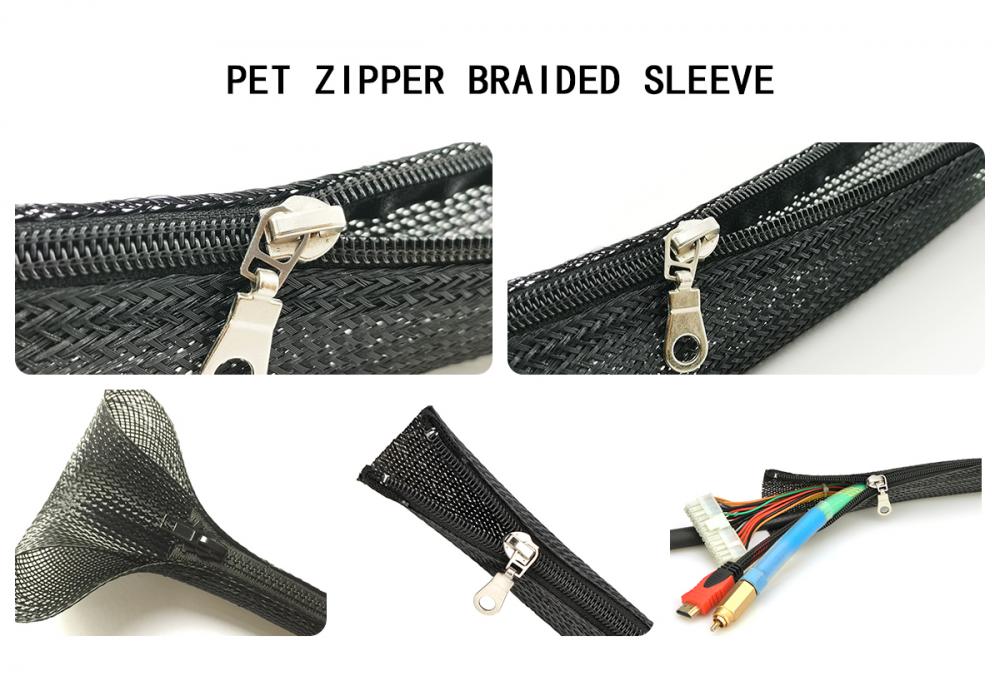

The Braided sleeve has good abradability, expansibility, smoothness, flame retardant grade and breathability and heat removal characteristics. The Open type braided sleeve is widely used in the maintenance and beautification of computer power lines, speaker monitoring video lines, lighting decorations, refrigerators, automatic washing machines and other electrical products as well as optical cables, motorcycles, cars, aircraft and other routes. PET zipper braided sleeve is made of PET single-layer mesh and zipper. It has good heat dissipation, expandability, fire resistance, simple and convenient operation, etc.
Technique Data-Sheet
Material:
PET、Tetoron
Working Temperature:
-50℃---150℃
Melting Point:
250℃
Flammability:
VW-1
Certified:
RoHS、REACH
Standard Colors:
Black,Grey
Application:
The products are widely used in the harness protection of A/V cables, power cables, external connecting wires of computer and TV, mechanical equipment, high-speed railway, industrial equipment, automobile and other industries.

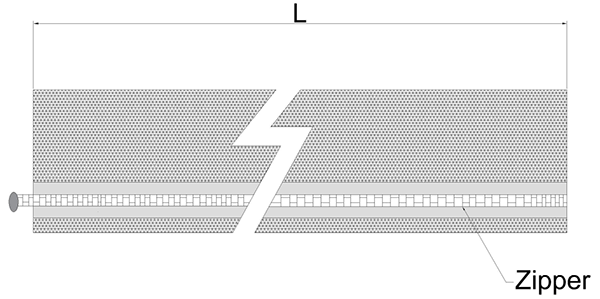

Product Drawing
Size specification
Model No.
Natural Width（W）
Max wire harness diameter
Packing(L)
ZW-12
12
8
Packaging according to customer requirements.
ZW-20
20
15
ZW-30
30
20
ZW-50
50
35
ZW-64
64
45
Unit：mm
Remarks:
1. Inner diameter refers to the circular diameter of the sleeve, not the folded diameter.
2. Special packaging, special colors, etc. can be customized according to customer requirements.
3. Please make the confirmation refer to the sample acknowledgement for detailed product parameters.
