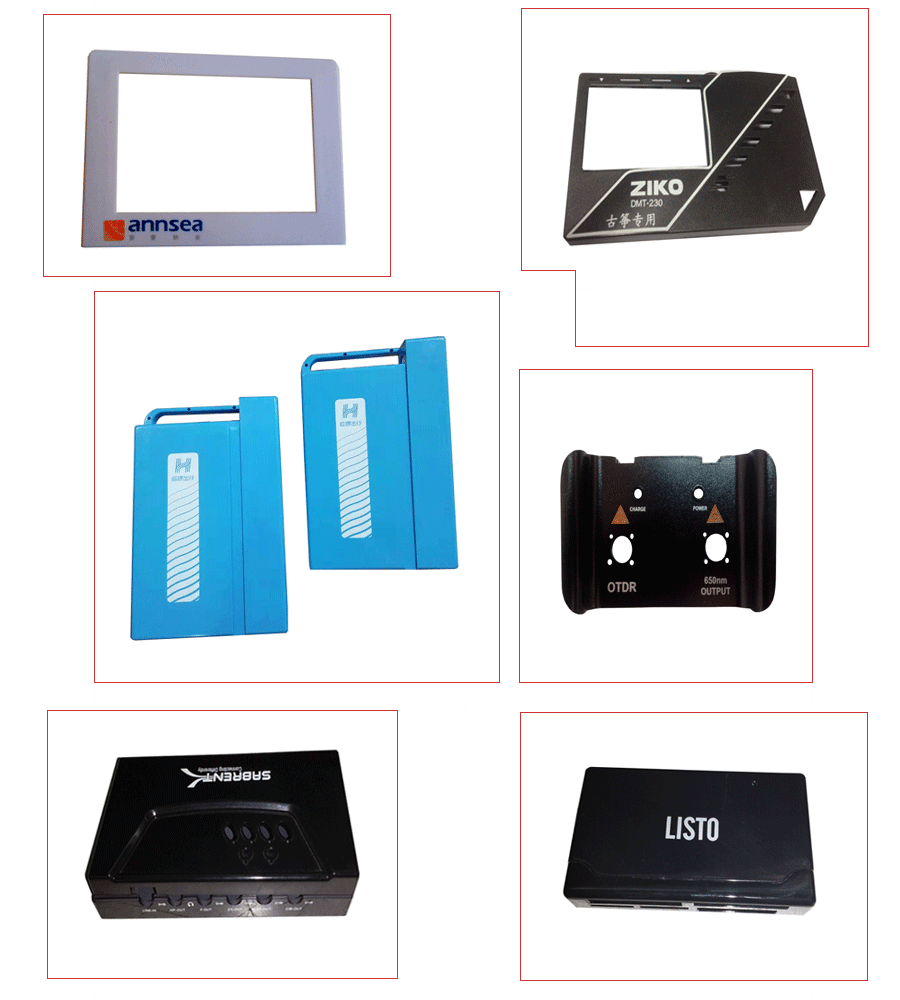

Samples

The desktop screen printer is a screen printer that can be placed on a table for operation. It is inexpensive and occupies a small area. The turntable screen printer is a screen printer equipped with a four-station turntable. Its printing efficiency is further improved. Four identical fixtures can be installed on the station to place the same product, making the screen printing process of the product continuous. After printing, the unloading robot can be customized to automatically remove the product to optimize the production process.

The desktop turntable screen printer is controlled by PLC and touch screen, which can realize the standardization and dataization of printing parameters. The rapid adjustment of the machine after changing the product becomes simple and easy.

The main movement of the machine is pneumatically controlled, and the pneumatic components such as solenoid valves and cylinders are all from well-known brands.

Machine details

ST-50D tabletop Screen printer with turntable

1. Max printing thickness: 150 mm

2. Air consumption: 60Litre/Min

3. Diameter of working table: 500mm

4. Max printing areas: 190*290mm

5. Max printing speed: 1000Pcs/H

6. Max frame dimension: 320*470mm

7. Compress air: 5-7 bar

8. Stroke of cylinder up and down:125mm

9. Stroke of Squeegee: 300mm.

10. Table Precision: 0.05mm;

11. Rang adjustment of table: 10mm

Advantages:

Controled by microcomputer ,Famous Electronics element assembly.
Rise from up-down of screen frame make running stabilization.
Flat printing function , Automaticoil scrabbing, oil return and lifting table ;
Adjustability of Printing stroke and speeds ;
Self-poise scraper to balance printing pressure;
Adjustable table and netting easel (fluctuation & both sides) ;
1.5mm diameter small hole evenly distributed on working table , High precision stainless steel table with accurate grinding . Micro-adjustment screw design -High precision and easy & quick adjustability
With vacuum working table to fit for thin and soft products. Coin Aluminium alloy beam, singkang and blading driven by famous brand rodless cylinders , Make printing process stationary;
High precision Steel axis to controll Squeegee move from right to left and driven
High Precision round Guiding-axis to controll frame from up to down.
Voluntarily swirl-type vacuum pump make object absorbed onto table Tightness.
Table can Turn when printing and product easily take off.

Operation panel
