Plain UV tunnel

2 week ago

2 0

KC Printing Machine (Group) Limited

 9 year year

Product details

Solution

Data

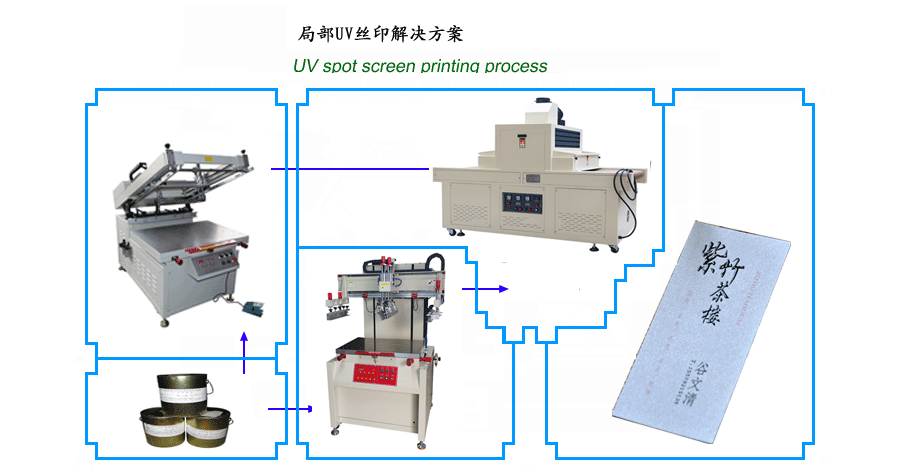

There are many drying methods for ink printed on the product, and UV drying is a common one: Photosensitive resin is used as a binder in UV ink, which will cause a cross-linking reaction under the irradiation of ultraviolet rays, thereby triggering the curing of the ink. UV curing needs to use As for the UV curing machine, a separate UV curing machine can be used with a screen printing machine and an offset printing machine. There are also quite a few UV curing systems installed on the automatic screen printing machine. The UV curing machine is mainly divided into a light source system and a conveyor belt. The product will enter the light source irradiation unit through the conveyor belt to complete the curing process. UV curing machine is mainly divided into surface UV curing machine and flat UV curing machine

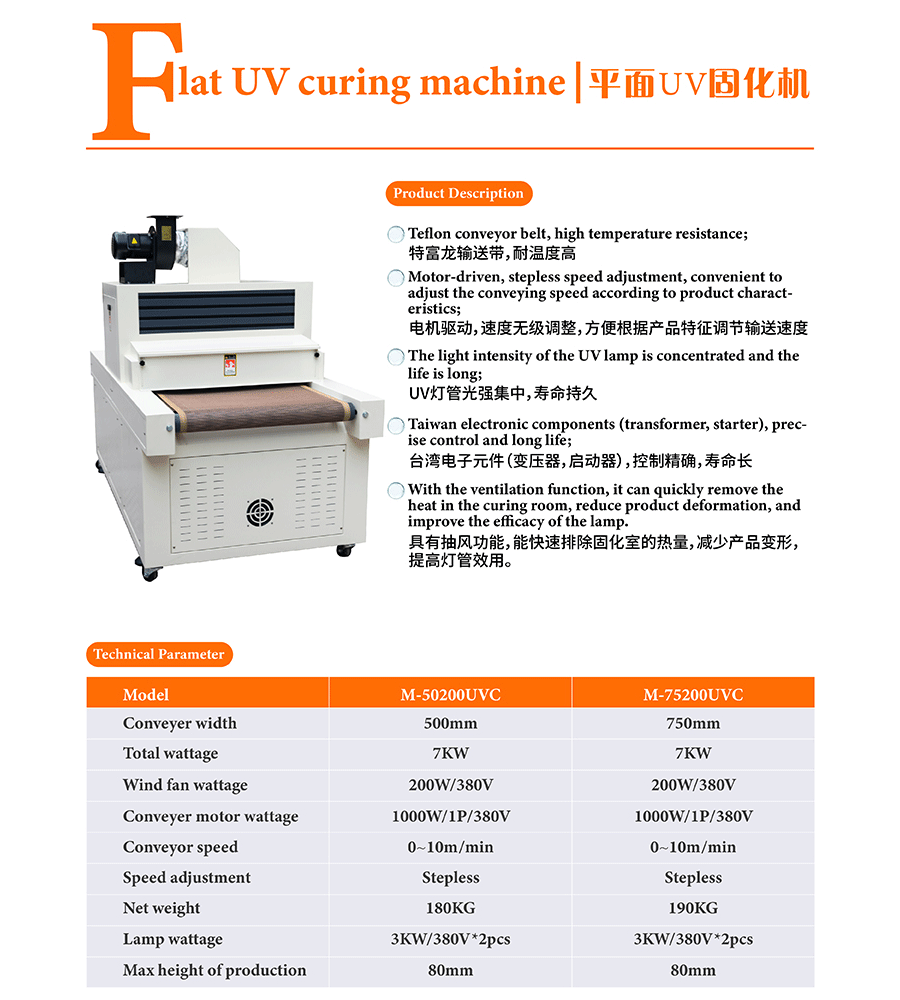

Flat UV Drying Machine//Parameter
Technical parameters	M-50200UVC Conveyer width:500mm; Total wattage:7KW; Wind fan wattage:200W/380V; Conveyer motor wattage:1000W/1P/380V; Conveyor speed:0~10m/min; Speed adjustment:Stepless; Outer dimension:2000×660×680mm(l×w×h); Net weight:180KG; Lamp wattage:3KW/380V×2pcs; Max height of production: 80mm.	M-75200UVC Conveyor width: 750mm Max curing Objects:750×60mm(W×H); Total Wattage:7KW; Fan Motor Wattage:1000W/380V; Transport Motor wattage:1000W/1P/380V; Conveyer speed:0~10m/min; Speed adjustment mode:stepless; Lamp wattage:3KW/380V×2pcs; Max objects height: 80mm Net weight: 190kg
Works supply	Power: 3 phase 380V.
Package list	Package Dimension: 2.170×1.150×1.420m; Gross weight: 326KG; CBM:3.54361
H.S.Code	8443198000
Certificate	CE
Flat UV Curing Machine//Advantage
Function	The conveyer speed can adjustment according to the products drying condition; Conveyer belt mabe by materials; Famous brand UV lamp installed ; Cooling fan installed on the side to remove the heat in curing chamber; Worked on Table, save the space; conveyer belt and resist high temperature. function. Electrical components and control systems using Famous brand to ensure stable Curing quality.

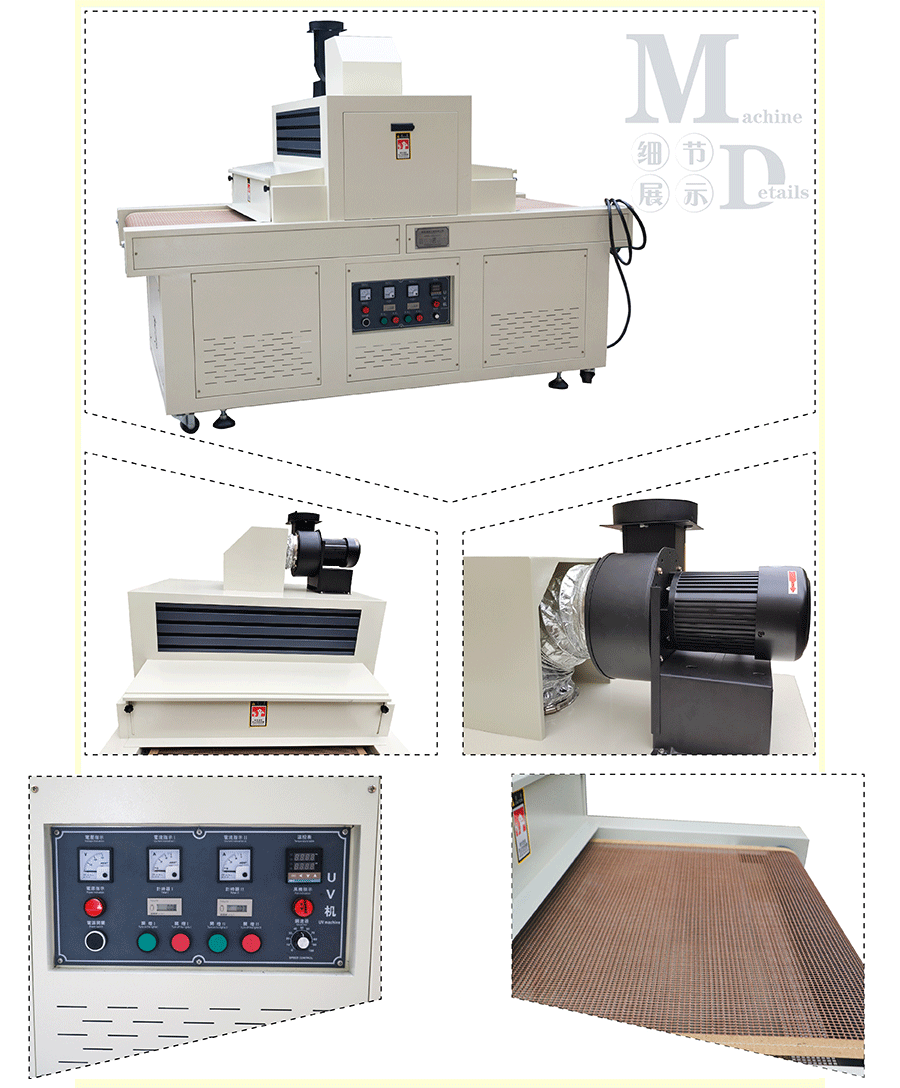

Details
