Machine application

The ruler, triangle and protractor set is a common combination of drawing and measuring tools, and is a must-have stationery in students' mathematics learning courses: these stationery are generally supplied in sets, and most stationery is made of transparent plexiglass injection molding.

Rulers, triangles and protractors are generally printed with scale information and manufacturer's brand information. At present, screen printers are the most commonly used printing equipment.

The use of a single screen printer, UV curing machine and tunnel drying furnace was the original printing process, but this process was inefficient. Now the use of automatic screen printers for complete sets of products has become the mainstream. That is, a screen printer is used to print a whole set of rulers, protractors and triangles at the same time, and the whole set is packaged and shipped, and the delivery cycle is significantly shortened.

This automatic screen printer uses a rotary workbench, generally with 4-8 stations, and the fixture installed at each station can place rulers, triangles and protractors at the same time, so a set of stationery can be completed in one printing. Place the stationery on the workbench and operate the machine. The workbench will take the fixture and product to the next station for surface treatment, screen printing, automatic unloading, and UV curing.

Data

Usage

Precision rotary screen printing machine, suitable size 200mm * 300mm below the ruler, triangle, protractor, plastic panels, CD boxes and other plane monochromatic UV printing products;
Smooth operation, high efficiency, intelligence, suitable for flat screen a variety of plastic products, such as injection molding;
High precision indexing disk control, portable and reliable, greatly reducing operator employees work intensity;
Suitable UV ink, ink thickness, bright colors;
Precision screen printing equipment, high precision screen printing;
Brand pneumatic components, ensure that the machine life.
Ruler, triangle, protractor , Plastics panel, CD case, Mobile cover

Technical parameters

Max printing thickness:0-20 MM;
Max printing area:200X300mm
Size of working table: 450×650mm;
Max printing speed:2500cs/H.
Printing number: 1;
Drying mode: UV;
Max height of screen frame: 100mm;
Max size of screen frame: 500*700mm;
Wattage of UV lamp : 4KW.
3 Phase 380V Power supply;
5-7 Bar compress air
Gross weight: 1010kg
Wooden case dimension:2430×2430×1850mm;
10.9241CBM

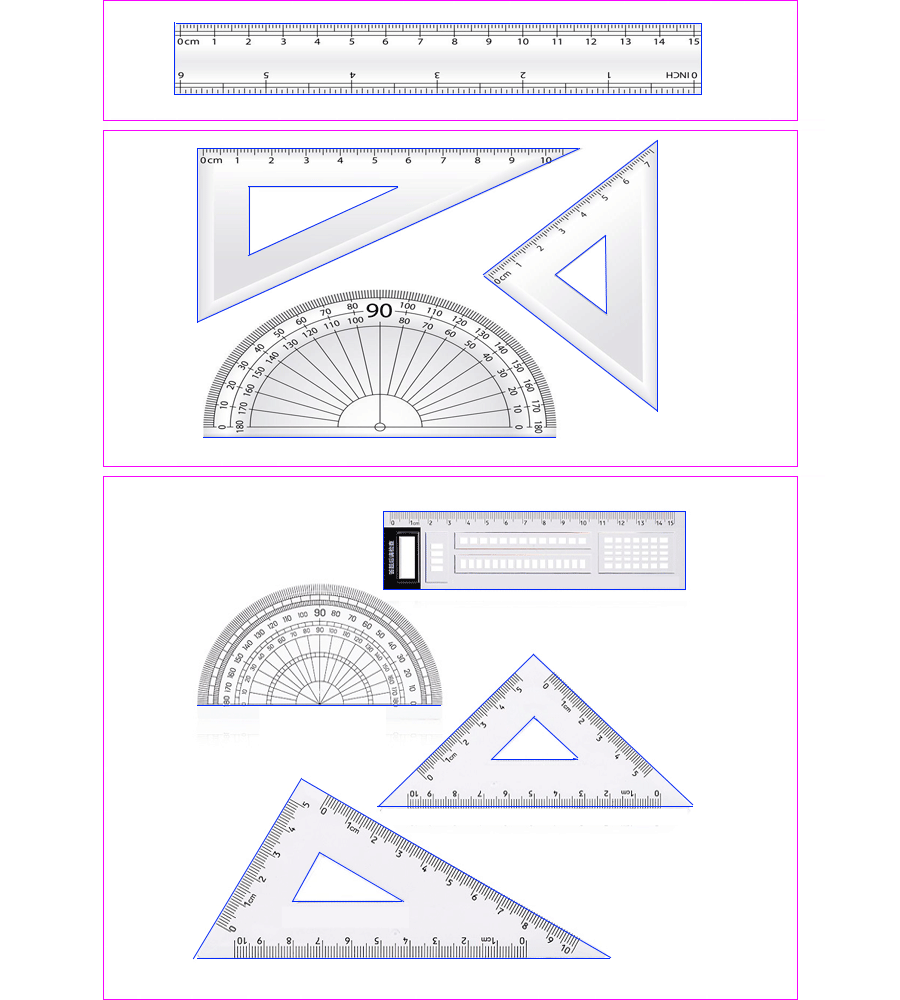

Application-printed samples

239

Machine advantage

Automatic programmed procedures operating techniques;
Precision indexing plate to ensure smooth rotation, flexible and comfortable;
High strength column to ensure the machine is more stable;
Monochrome printing, auto-rotation, high printing efficiency;
Screen can be flexibly adjusted according to different printing size;
Lift the stencil can be flexible, easy to check the print quality;
High stability bench, to ensure that no shaking when printing;
UV drying device drying efficiency;
PLC control system; easy to operate.

Machine structure

Rotary screen printer

The main screen printer adopts a rotary structure, generally with 4-8 stations. The rotary is controlled by a precision divider, and the up and down movement of the screen and the scraper are pneumatically controlled. If there are higher requirements for precision, servo motor control can be used

Automatic unloading structure

The automatic unloading structure is generally a robotic arm. The stationery set after silk screen printing is grabbed by a robotic arm and transferred to the UVLED conveyor belt.

UVLED curing structure

It consists of a UVLED curing device, a cooling system and a conveyor belt. The stationery set unloaded on the conveyor belt enters the UV curing unit for ink drying.
