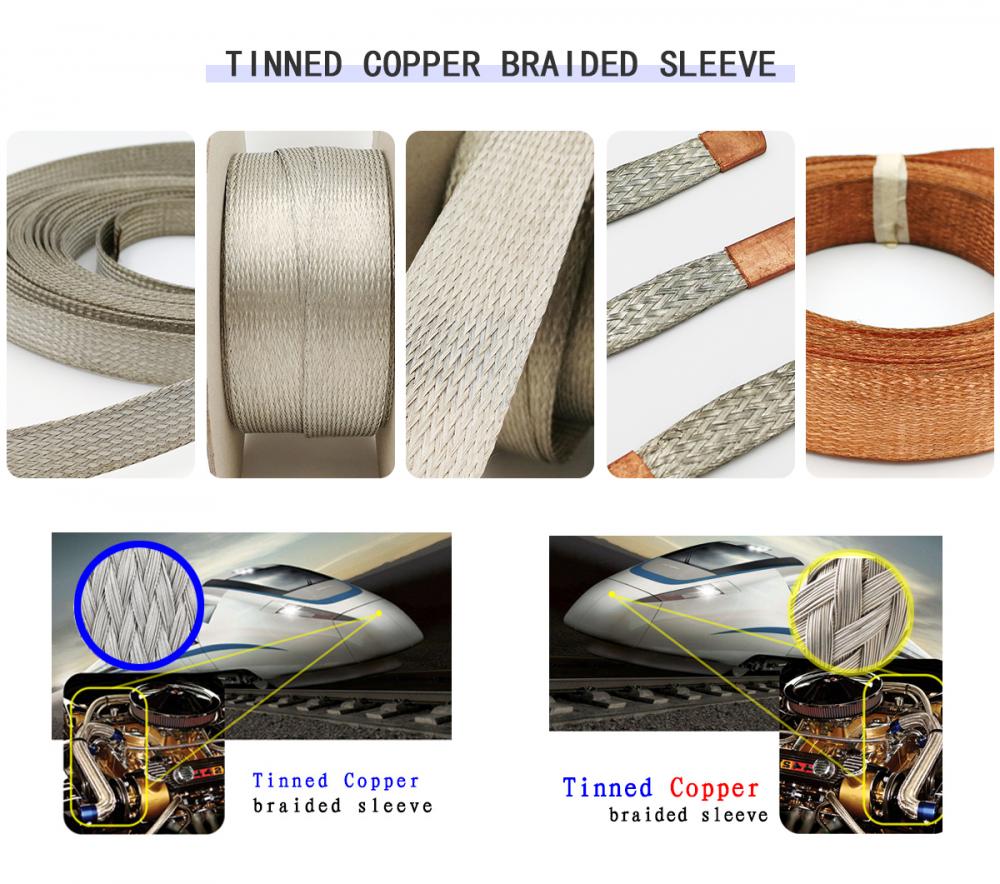

As for Braided sleeve, Tinned Copper braided sleeve is braided by tinned copper wire, which can pass the tests of artificial sweat, gasoline, battery electrolyte, gearbox oil, kerosene, hydraulic oil, engine oil, sulfur dioxide, calcium chloride and other chemicals. As a Special material braided sleeve for soft connection has the advantages of good flame retardancy, high temperature resistance above 1200 ℃, compression and friction resistance, signal shielding, light weight, etc. It will not kink or crack even when used in sharp turns. It is particularly suitable for wire harness applications that have limited space or need to be moved.
Technique Data-Sheet
Material:
Tinned Copper、bare copper
Working Temperature:
-50℃---200℃
Certificates:
RoHS、 REACH
Standard Colors:
Copper or silver
Cutting Tool:
Cutting knife or scissors
Application:
The products are widely used in the wire harness management, protection,signal shielding and so on. It Used for the wire harnesses in precision instruments,aerospace, high-speed railway, subway, automobile, electrification industry and other high-tech fields.

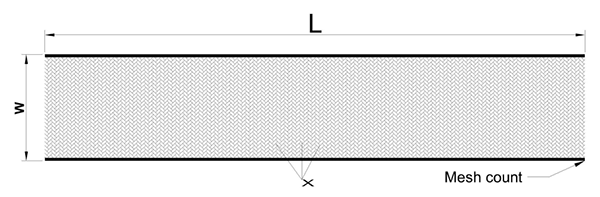

Product Drawing
Size specification
Model No.
Natural Width（W）
Radio of expandable
Packing(L)
Inch
MM
Min（I）
Max(O)
TS-002
1/16″
2
2
4
1000m/Roll
TS-003
1/8″
3
3
6
1000m/Roll
TS-005
3/16″
5
5
10
1000m/Roll
TS-006
1/4″
6
6
12
500m/Roll
TS-008
5/16″
8
8
16
500m/Roll
TS-010
3/8″
10
10
20
500m/Roll
TS-012
1/2″
12
12
24
350m/Roll
TS-014
9/16″
14
14
28
350m/Roll
TS-016
5/8″
16
16
32
350m/Roll
TS-019
3/4″
19
19
38
250m/Roll
TS-022
7/8″
22
22
44
250m/Roll
TS-025
1″
25
25
50
100m/Roll
TS-030
19/16″
30
30
60
100m/Roll
TS-035
11/8″
35
35
70
100m/Roll
TS-040
25/16″
40
40
80
100m/Roll
TS-050
2″
50
50
100
100m/Roll
TS-060
19/8″
60
60
120
50m/Roll
TS-070
11/4″
70
70
140
50m/Roll
TS-080
25/8″
80
80
160
50m/Roll
TS-090
7/2″
90
90
180
50m/Roll
TS-100
31/8″
100
100
200
50m/Roll
Unit：mm
Remark:
1.W means natural and flat width
2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。
And so on, the greater the width. The larger the tolerance allowable.
3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.
4.Please refer to the sample acknowledgement for detailed product parameters.
