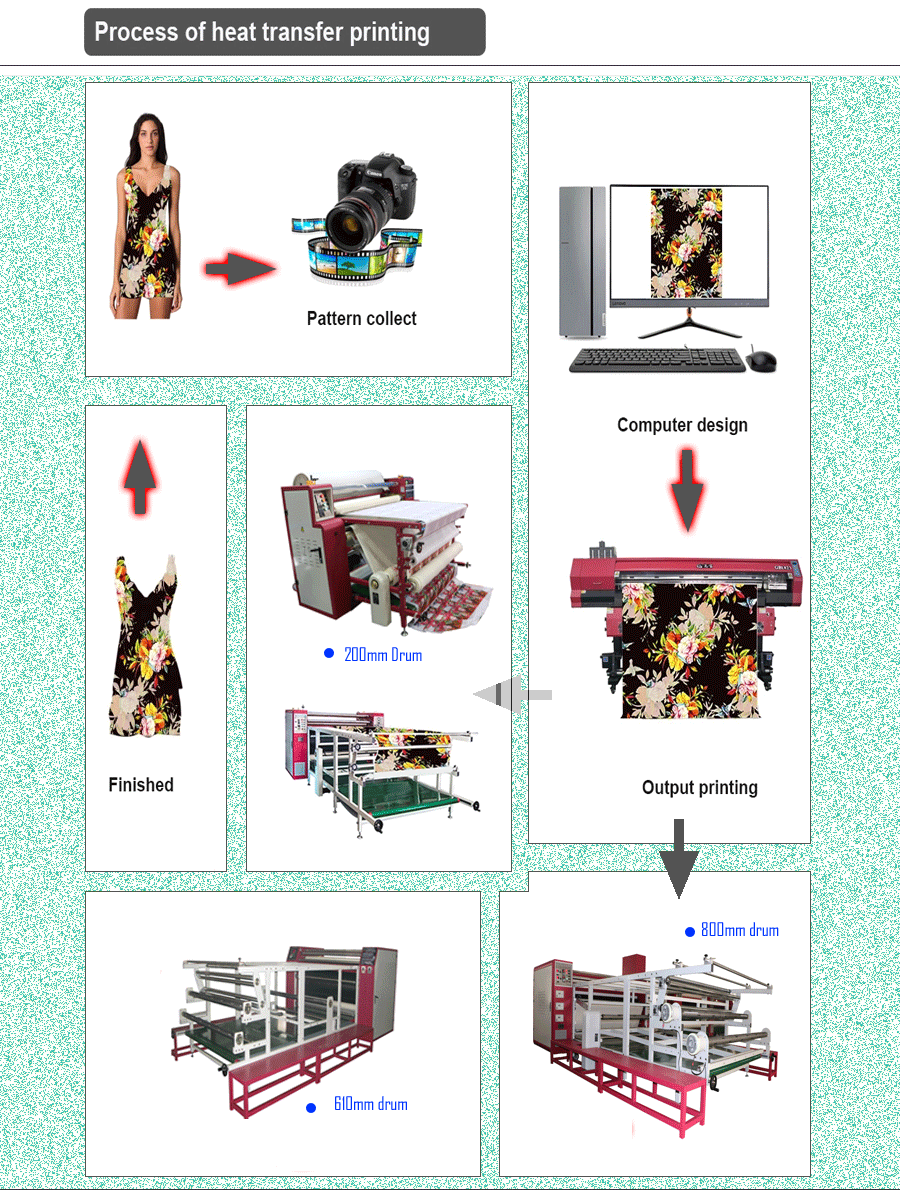

Multi-color printing on the roll cloth, the most common is the roller transfer technology, first print the pattern to be transferred on the coated sublimation transfer paper with an inkjet printer, and then cover the sublimation transfer paper on the roll The top of the cloth is put together on the working table of the roller transfer printing machine. The main structure of the roller printing machine is composed of a rotatable roller filled with heat transfer oil and a blanket pressed tightly on the surface of the roller.
The dye-sublimation paper and roll cloth enter between the roller and the felt, and under the action of heat and pressure, the pattern on the dye-sublimation paper will be transferred to the surface of the roll cloth. This is the popular dye-sublimation transfer technology in the market. It has the advantages of rich color transfer, high printing efficiency, environmental protection, and low skin damage. It is widely used in clothing, shoes and hats, bedding, household items, curtains and other household products industries.
The main parameters of the roller printing machine are the diameter and width of the roller, which determine the efficiency and width of the product that can be transferred. For the diameter of the roller, the larger the diameter, the higher the efficiency. Currently, 1500mm machines have appeared on the market. The larger the width, the larger the width of the transferred cloth, and now there are machines with a width of 3500mm on the market.

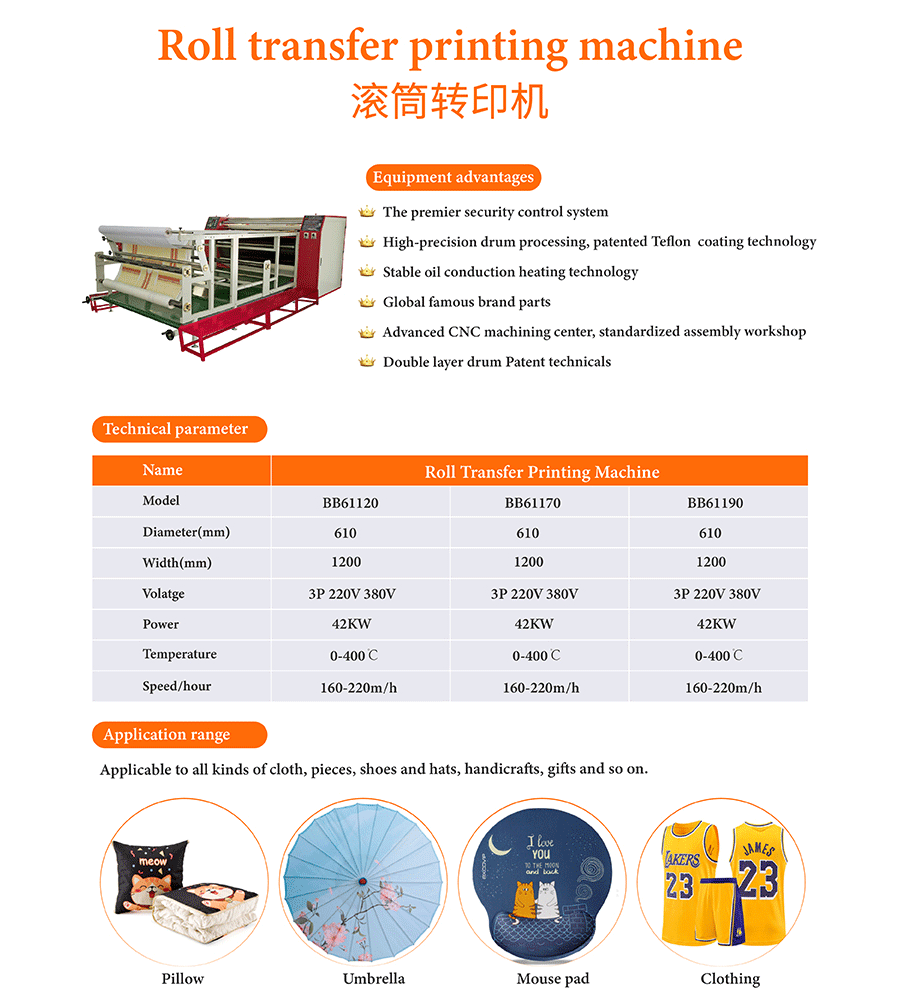

Digital Roll to roll heat sublimation machine |
||
| Model | BB61170 | BB61190 |
| Roller size | Diameter 610*1860 mm | Diameter 610*2050 mm |
| Roller surface | coated | coated |
| Transfer width | 1700mm | 1900mm |
| Transfer speed | 150 m/h | 150 m/h |
| The main machine dimension | 2520*1150*1500 | 2820*1150*1500 |
| The work table dimension | 3500*1880*1200 | 3500*2050*1200 |
| installed dimension | 2520*4650*1500 | 2820*4650*1500 |
| Blanket separation method | Manual | Manual |
| power supply | 3-phase 380V | 3-phase 380V |
| Heating temperature | 260℃ | 260℃ |
| Conveyor belt material | PVC | PVC |
|

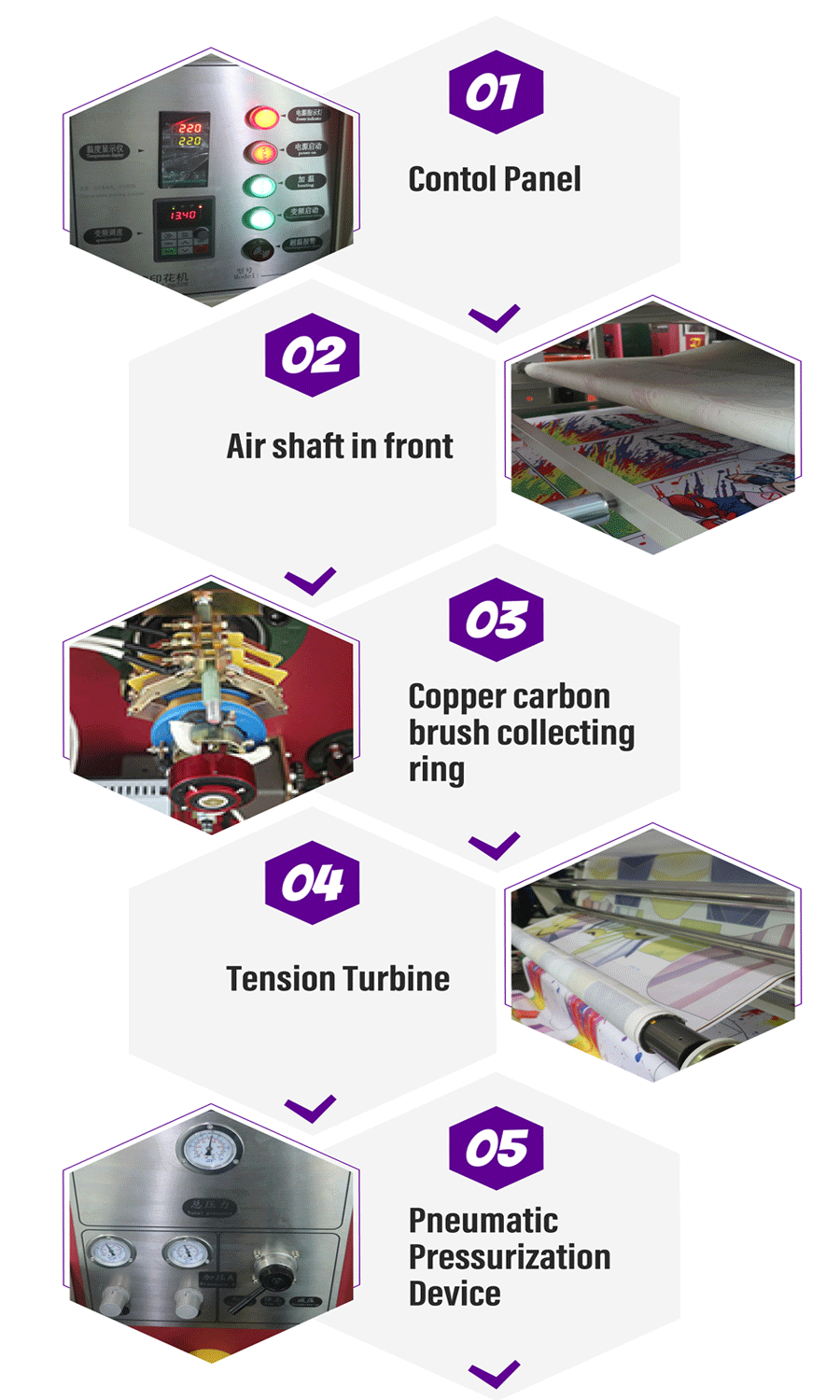

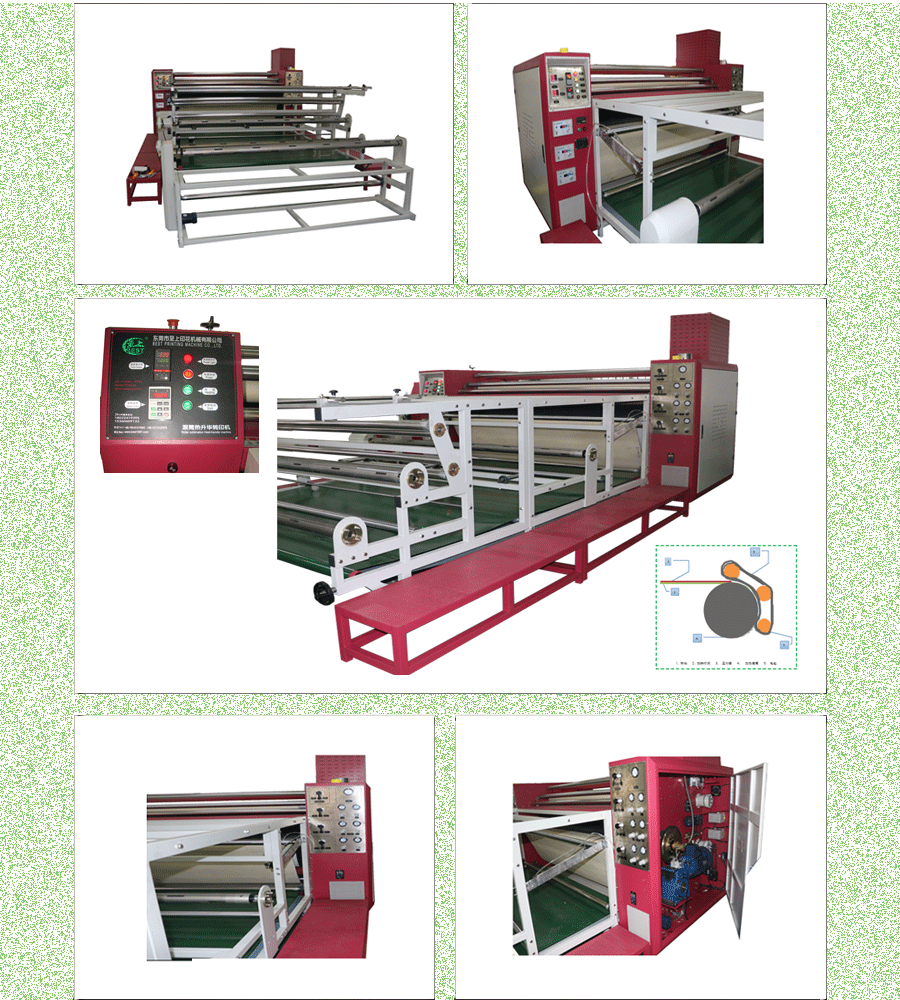

1.Drum 3. Air Swelling Shaft Best Printing Machine Co., LTD used air swelling shaft, improve work efficiency.Short inflatable operation time, easy to operation, carrying a large weight. Winding more tightly.Every machine has two air swelling shaft, winding used sublimation paper and protective paper. 4.PVC Conveyor |
