Product details

Crates Hydraulic hot foil stamping machine //Usage and characters

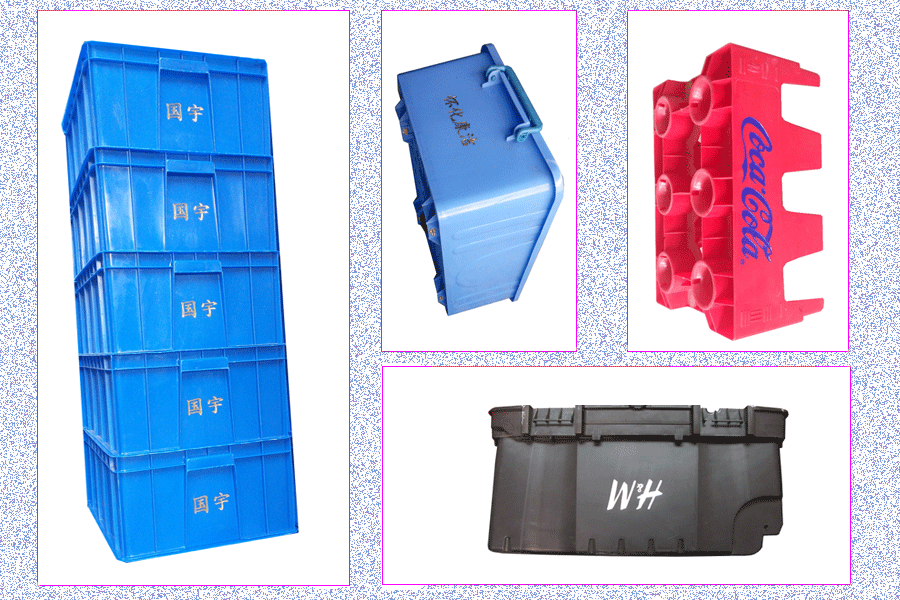

Samples

The hydraulic hot stamping machine for beer crates is a device used for hot stamping on beer crates. It uses the hydraulic system to generate pressure, and pushes the pressure plate and other components downward through the hydraulic cylinder to tightly press the hot stamping foil and the beer crate. At the same time, the heating device of the hot stamping machine makes the hot stamping plate reach a certain temperature. Under the combined action of heat and pressure, the hot-melt dyeing resin layer and adhesive of the metal foil or pigment foil on the hot stamping paper melt, and the aluminum layer and the electrochemical aluminum base film are peeled off and transferred to the surface of the beer basket. After the pressure is removed, the adhesive cools and solidifies, and the aluminum layer is firmly attached to complete the hot stamping. It is mainly composed of a hydraulic system: including a hydraulic pump, a hydraulic cylinder, a hydraulic valve, a fuel tank, etc., which provides power for the equipment and generates stable pressure; a heating system: composed of a heating tube, a temperature controller, etc., which can accurately control the temperature of the hot stamping plate. Hot stamping mechanism: mainly includes a hot stamping plate, a pressure plate, etc. The hot stamping plate is engraved with a pattern or text to be hot stamped, and the pressure plate drives the hot stamping plate to contact the beer basket under the action of hydraulic pressure. Foil feeding mechanism: responsible for conveying hot stamping paper to ensure that the hot stamping paper is accurately delivered to the hot stamping position. Control system: It is composed of buttons, touch screens, relays, etc., and can set and control parameters such as temperature, pressure, and hot stamping time. It is mainly used in beer production companies, beer packaging companies, etc. to perform hot stamping on plastic beer baskets, and to print brand logos, patterns, texts, etc., to enhance the aesthetics and brand recognition of beer crates .

Description

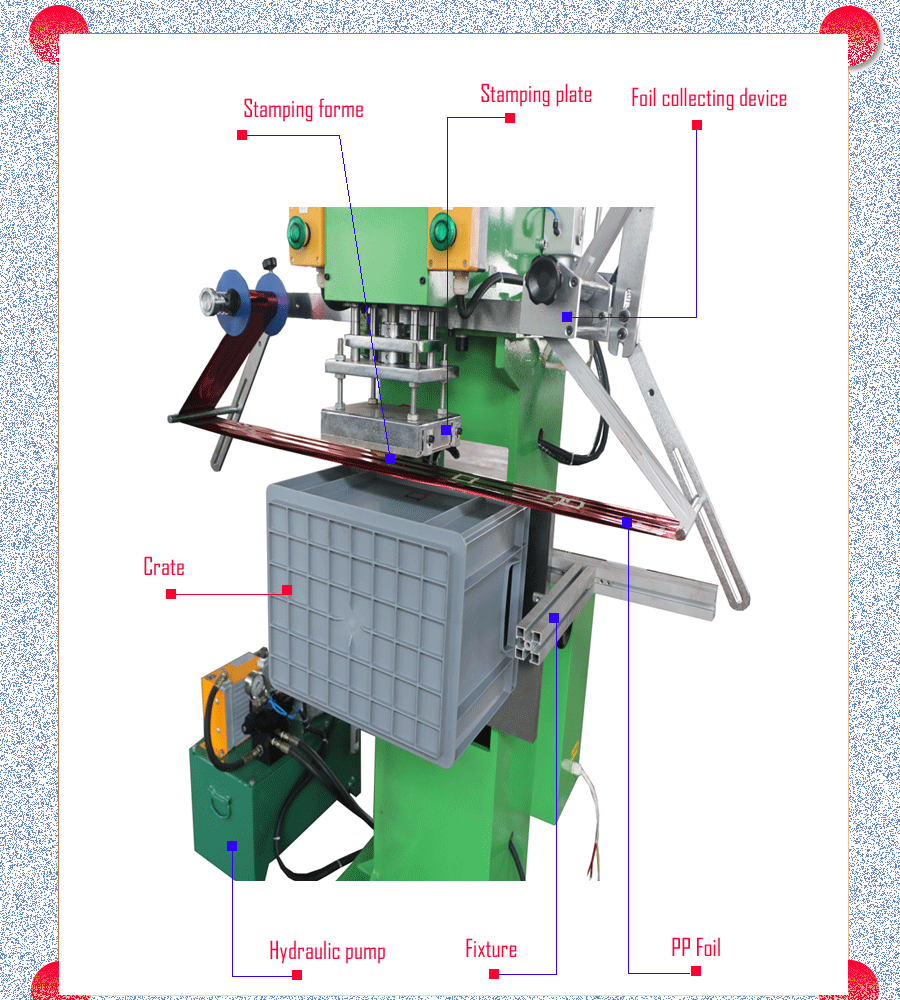

Hydraulic Gold foil stamping Machine for crate //Structure
Working table	High strength Steel plate , size: 480*600mm.
Stamping Head drive	Hydraulic drive
Foil collecting method	Motor-drive , Collecting time adjustable
Press adjustment	Up-down of working table
Temperature control	Heating tube heat up，Automatically temperature controlling, temperature free setting
Foil collecting	Motor drive, Automatically collecting
Max Pressure	20T
Hydraulic Crate hot stamping machine //Usage and characters
Application fields	Paper Gilding, Leather Impression, Wood ware Baking Paper Concave-convex embossing， Cloth hot stamping, Plastics Bronzing Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing. Woodiness objects baking-burns and Impress; Leather bronzing and Molding; Paper products concavo indentation. Graduated disc of clock bronzing. Die-cutting.
Hydraulic hot foil stamping Machine for beer crate //Parameter
Technical parameters	HH-TC1520LPB	HH-TC2129LPB
	Hot plate area:150 ×200 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC	Hot plate area:210 × 290 mm Working table area:480 ×600mm Max printing pressure:20,000 Kg Up and down distance:100mm Heat wattage: 6×500W Foil in feed: Motor Drive Temperature adjustment:0-300oC 。
Works supply	110V-220VPower supply； 46# Hydraulic oil
Package list	Package size: 1.31.12.0m Gross weight: 800kg; CBM: 3.23	Package size:1.31.12.0m Gross weight: 800kg; CBM: 3.23
H.S.Code	8443198000
Certificate	CE

Test factors

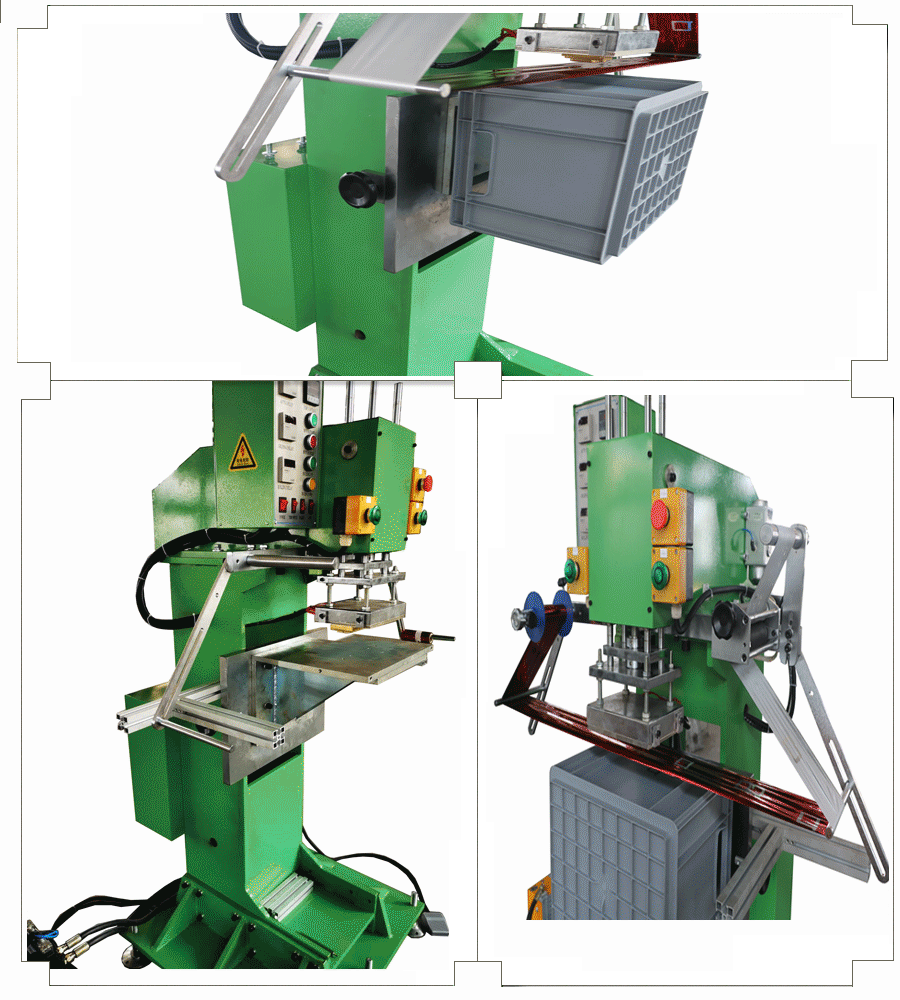

Details description

Bench made of high strength cast steel forging, has a very high flatness and stability;
Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
Relay control program is running, easy operation, easy maintenance;
Pairs of buttons control the stamping head up and down, security is greatly enhanced;
Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
Heating pipe heating, rapid heating, replacement is simple and convenient;
Heating plate can be removed to facilitate installation and replacement gilt template;
Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.

How to choose Beer crate hot stamping machine?

Choosing a hot stamping machine should be based on matching production needs (volume, material, precision) with budget:

1. Hydraulic hot stamping machine: Suitable for high-volume, high-precision, high-hardness/large-area applications.

Hydraulic hot stamping machines offer extremely strong pressure and optimal pressure/temperature uniformity. They can handle large areas and ultra-hard/thick materials, offering high efficiency. They are suitable for medium-sized and larger factories that mass-produce high-demand products such as metal nameplates, hot stamping of solid wood furniture, and large packaging. Hydraulic hot stamping machines are the most expensive, bulky, and require professional installation.

2. Manual hot stamping machine: Suitable for small batches, low budgets, and simple needs.

This machine offers the lowest price, compact size, and flexible operation, requiring no external power supply. It's ideal for individual handmade projects, trial runs in small workshops, small stamping areas (such as business cards and small labels), and infrequent use. Manual hot stamping machines cannot handle large areas or hard materials.

3. Pneumatic hot stamping machine: Suitable for small to medium batches, medium precision, and common materials.

This machine uses automatic air pressure, providing stable pressure and high efficiency. It's priced in the mid-range (around 10,000 yuan) and is suitable for most common materials (paper, leather, and plastic). It's ideal for small factories and graphic arts shops, medium stamping areas, and those requiring consistent quality (such as packaging and album covers), without the need for ultra-high pressure. Pneumatic hot stamping machines rely on compressed air and cannot handle ultra-thick or ultra-hard materials (such as solid wood and sheet metal). They can also easily experience uneven pressure when hot stamping large areas.
