H-TC20RR ribbon hot stamping machine//Usage and characters

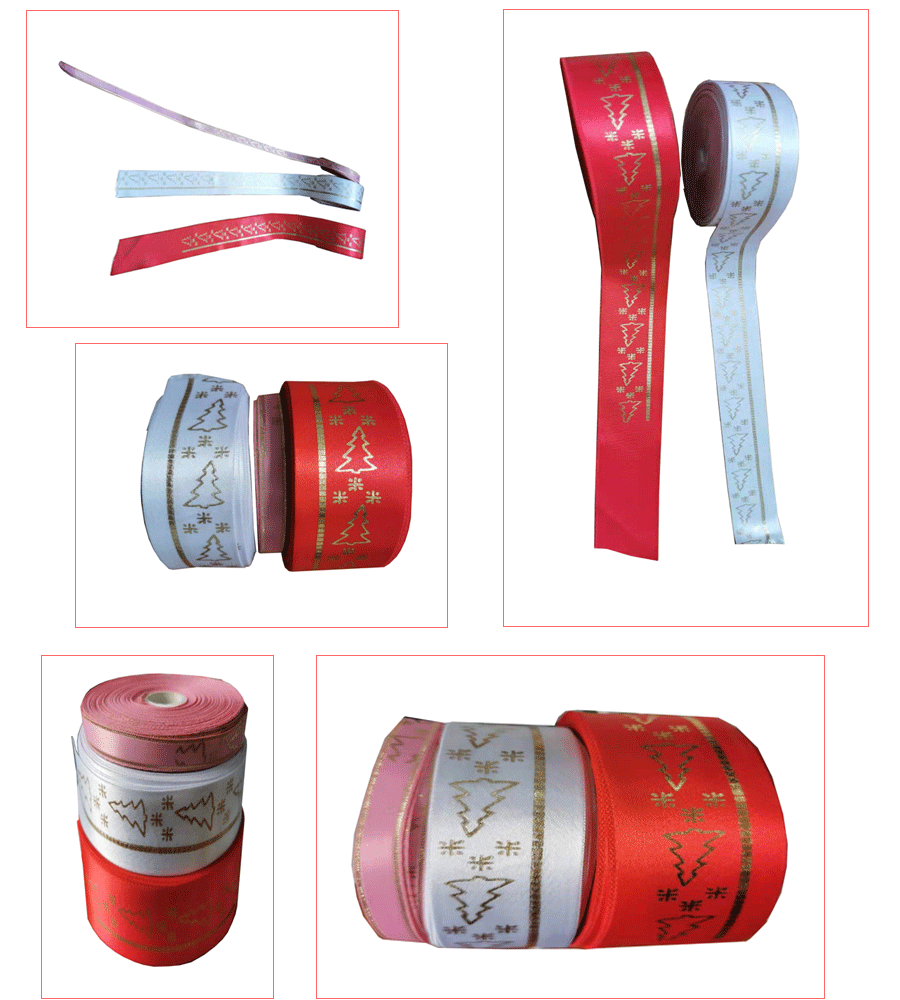

Printed Samples

There are two ways to stamp ribbons. One is direct stamping, which is to press the stamping paper directly on the surface of the ribbon, and the stamping pattern is engraved on the roller stamping plate or the flat stamping plate. The cost of the ribbon printed in this way is low, but because the fabric has poor tolerance for the stamping foil, the adhesion is poor, and the stamping foil will fall off. The other is indirect stamping, first print the stamping glue on the part that needs to be stamped, and then use a silicone roller or a flat silicone plate to press the stamping foil on the surface of the ribbon. In this way, the part with the stamping glue will retain the stamping foil. The quality of the ribbon with indirect stamping is better. However, a screen printing machine is required, and the investment cost will increase.

112

Solution

110

Machine description

Machine introduce

H-TC20RR is designed for roll-like PVC, ribbon or other materials such as stickers gilt surface heat transfer machine, it has two sets of feeding roll, a set of installation tipping paper, a set of installation need gilt roll material. It is widely used in ribbon, stickers, PVC film, ribbon, rubber stamping and other products.
Indirect stamping process: First, in gilt plasma screen above the ribbon, followed by then H-TC20RR heat transfer machine transfer. For the indirect process, logo screen spacing depends on the spacing.
Direct stamping process: the silicone roller replacement rollers for the prototype model of the copper can be achieved directly bronzing. For the direct process, logo copperplate roller spacing depends on the diameter.

108

H-TC20RR Ribbon foil hot stamping machine//Parameters

Size of Roller:120mm
Max roller width: 100 mm
Max pressure:100 Kg
Up-and down distance: 75 mm
Heat wattage: 4×400 W
Foil feed: Motor Drive
Temperature range: 0 - 400oC
Net Weight :310 Kg
Outer dimension:1300 x 620 x 1430 mm .
Works supply : 110V-220V Power supply.
Pakcage dimension:970×700×900mm;
Gross weight: 95.5KG;
CBM: 0.6111
H.S.CODE : 8443192190
Certificate : CE

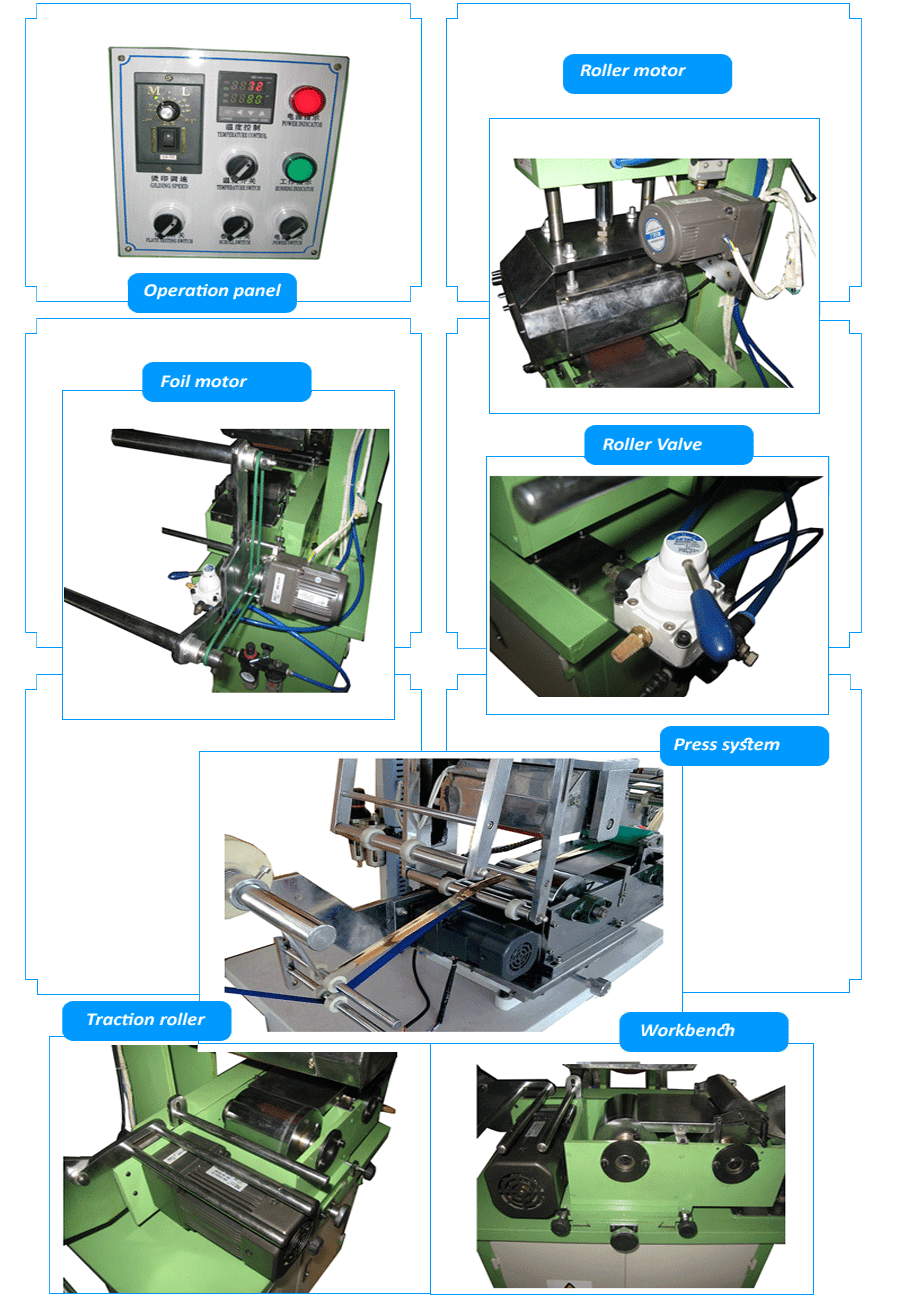

Machine details description-Advantage

1, Table settings embossing roller, can be tightly foil paper or transfer film pressure in the ribbon surface;
2 Rubber rollers rotating heat transfer uniformity, suitable for ribbon continuous stamping;
3, Workbench can adjust the position of the front and rear direction, to ensure the best stamping position of the ribbon;
4, The transfer pressure, temperature, speed can be based on different material for the flexible adjustment;
5, The nose height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products;
6. Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor;
7. Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect.
