The tunnel drying line is suitable for drying solvent-based inks after pad printing and screen printing. The printed products are placed on the conveyor belt, which will drive the products into the drying system. The infrared rays generated by the drying system generate heat, which is radiated to the ink surface, accelerating the volatilization of the solvent in the ink, so that the ink quickly adheres to the surface of the product.

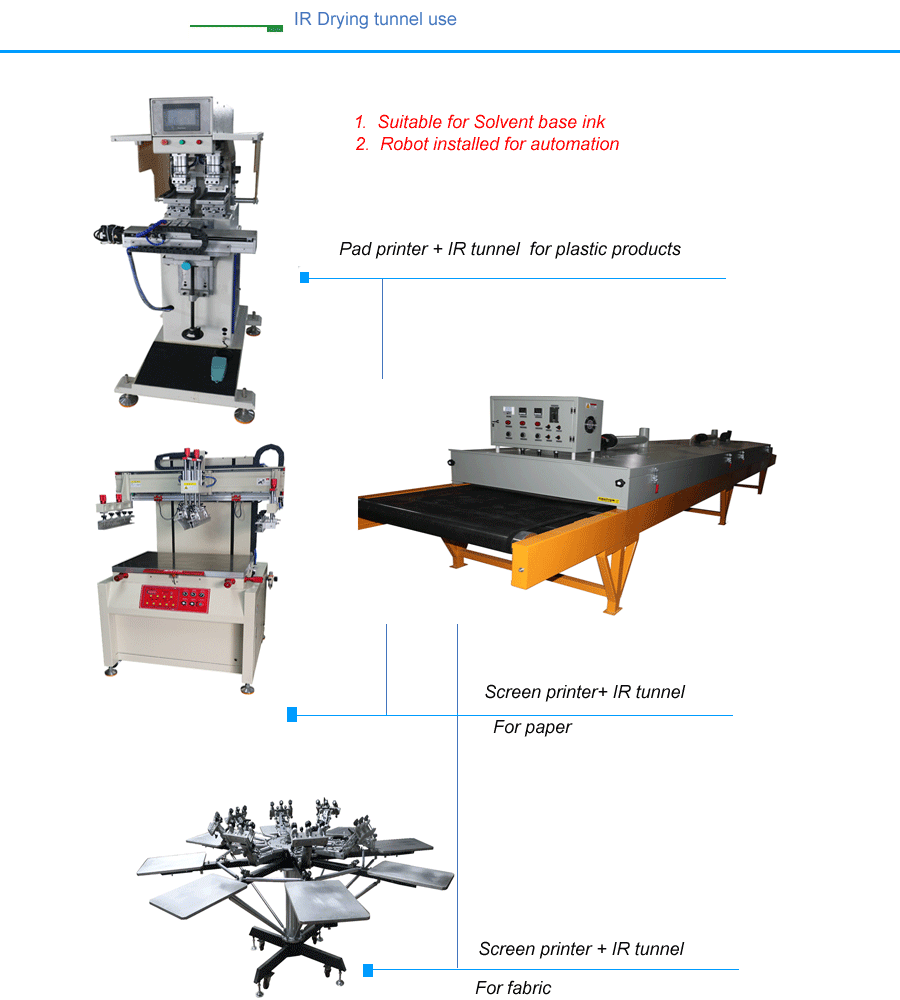

The tunnel drying line can be used alone, and the products can be placed on the conveyor belt manually, or the products on the pad printer or screen printer can be automatically transferred to the conveyor belt using a robot.

The temperature and speed of the tunnel drying line can be set to suit different products and printing processes. Generally, the tunnel drying line is not a standard product. It must be customized according to the user's requirements. The customized parameters include the width and length of the conveyor belt, the material of the conveyor belt, the number and power of the heating tubes, etc.

211

Data

IR Drying Machine//Usage and characters
Guide	Used in the field of curing heat-solid ink printed on clothes; This machine is suitable for T shirt and most of fabric ; Curing some soft materials after coating by roller ; Entering mouth adjustable make different objects curing; Temperature controlled automatically ensure Objects drying on lower temperature; High efficient dryer which is heated by far-infrared and hot wind.; Temperature is controllable. speed coated conveyor can be adjusted steplessly. Suitable for drying printed garment, printed textile, Printed paper and printed film, etc; Also use in many occasions of drying or pre-drying printed or unprinted objects.
Application fields	Cloth , fabric , Garment Electron, Hardware, Auto, Toys, Gifts, Plastics parts, Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus . suitable for solvent-base and heat-set ink.
IR Drying tunnel //Parameter
Technical parameters	M-100660XIR	M-100750XIR
	Conveyer width:1000mm; Total wattage:22KW; Wind fan wattage:45W/220V*3; Conveyer motor wattage:90W/1P/220V; Conveyor speed:0~10m/min; Speed adjustment:Stepless; Heater Lamp wattage:1000W/220V×22pcs; Max height of production: 100mm; Total Length:6600mm, Heat length: 4800mm; Entering length: 750mm Exit length: 450mm.	Conveyer width:1000mm; Total wattage:30KW; Wind fan wattage:45W/220V*2; Conveyer motor wattage:90W/1P/220V; Conveyor speed:0~10m/min; Speed adjustment:Stepless; Heater Lamp wattage:1000W/220V×30pcs; Max height of production: 100mm; Total Length:7500mm, Heat length: 6000mm; Entering length: 750mm Exit length: 750mm.
Works supply	Power: 3 phase 380V.
Package list	Pacakge size: 25001320770mm/2pc (320KG); Package size: 13201050650mm/1pc(180kg)
H.S.Code	8443198000
Certificate	CE
IR Drying tunnel //Advantage
Function	Made by high temperature conveyer belt; Famous brand motor drive,stepless speed adjustment; High quality FIR lamp to ensure stabilization temperature; Taiwan electron circult controlling and operation simply; High percision Pulling roll and running Smoothly; Temperature can be adjustable according to different requirments. High Drying Efficient- heated with far-infrared ceramic heating rod and hot wind circuit make printed object dry evenly in the shortest time. Thus save power; Heatproof conveyor belt- coated conveyor belt can work properly and durable in high temperature. Conveyor speed controllable- The conveyor is driven by stepless change speed motor. Therefore, running speed of conveyor can be set arbitrary, Thus, The dryer can dry different thickness object. Cover openableheating room- openable covers on both side of heating room. Ceramic heating rod can be easily replaced by simply opening the cover of heating room. Wide range and precision temperature control- Heating temperature can be set to any temperature between roon temperature to 300 degree. Tolerance of temperature is in +/-5 degree.
