Product details

Manual Flat Hot Stamping Machine

The manual hot stamping machine is a hot stamping machine with a relatively simple structure, and it uses human power as the power source. Although the market share is shrinking day by day, it is still widely used in the proofing workshop of some factories and the testing of bronzing paper, the production of gifts with small orders, the production of fake baits in fishing sports, and the inspection of some paper packaging industries.
The manual hot stamping machine and the pneumatic hot stamping machine use the same heating device and temperature control device, and the automatic hot stamping paper winding device. The hot stamping process uses human power to push the hot plate down and touch the product to achieve hot stamping, and the operation and adjustment are more convenient.

250

Manual flat hot stamping machine HM-TC8 serials are mainly for plain and thin products like paper.

Automatic temperature control, automatic hot stamping paper delivery, manual hot stamping operation, with easy operation, the advantage is that it is easy to change the heating plate.

Manual Flat Hot Stamping Machine//Usage

- - Gilding - paper, leather, wood, plastic, glass,
  - Baked - wood products, baked painting, gift box packaging;
  - Embossing - paper, leather, cloth.
  - Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  - Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  - Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.

Manual Hot Stamping Machine

Manual Flat Hot Stamping Machine//Application filed

- - Paper Gilding, Leather Impression, Wood ware Baking
  - Paper Concave-convex embossing, Cloth hot stamping,
  - Plastics Bronzing ,Glass and metal Heat transfer.

Manual Flat Hot Stamping Machine//Technical Parameters

ITEM	HM-TC811	HM-TC821	HM-TC831	HM-TC841	HM-TC851
Size of Hot Plate(mm)	130×190	190×270	300×150	210×190	300×250
Work Table Size(mm)	320×400	320×400	320×400	320×400	320×400
Max. Pressure(mm)	4000	4000	4000	4000	4000
Max. Head Stroke(mm)	40	40	40	40	40
Heater Capacity(W)	1200	1200	1200	1200	1200
Temperature adjustment	0-300℃	0-300℃	0-300℃	0-300℃	0-300℃
Gross weight (Kg)	160 kg	180 kg	200 kg	220 kg	260 kg
Package(mm)	750×670×960
Works supply	1 phase 220V power supply

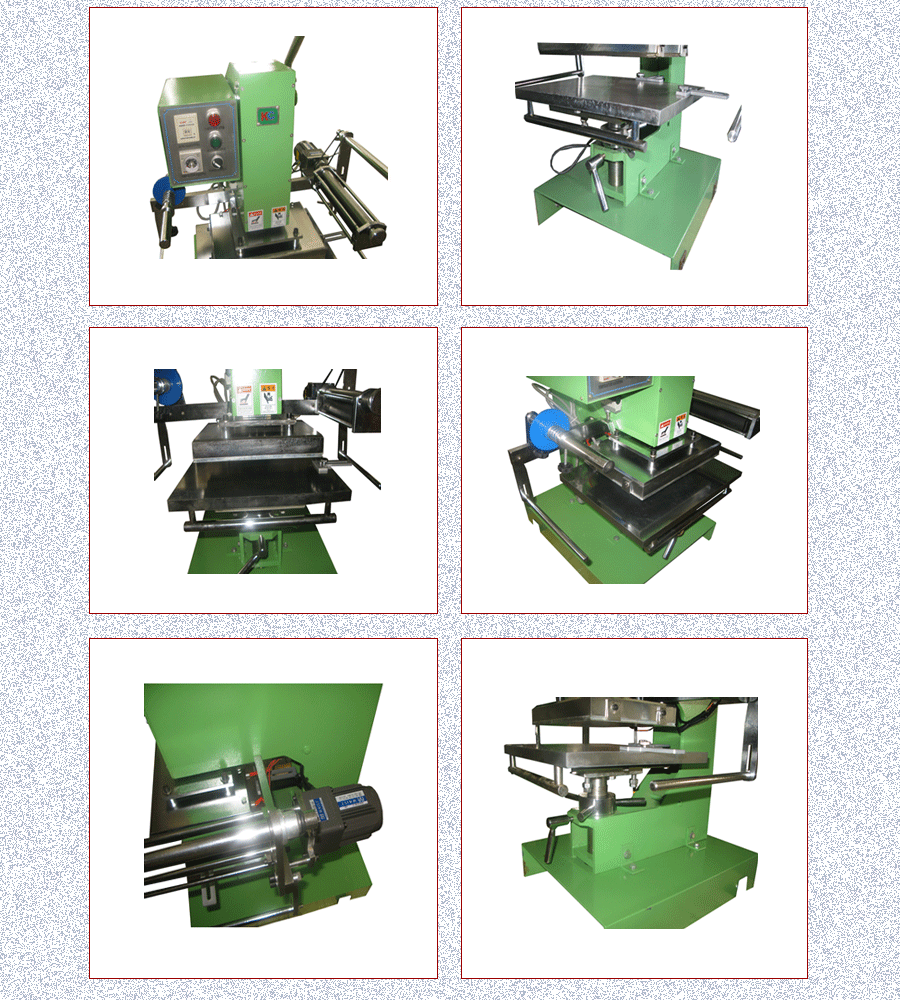

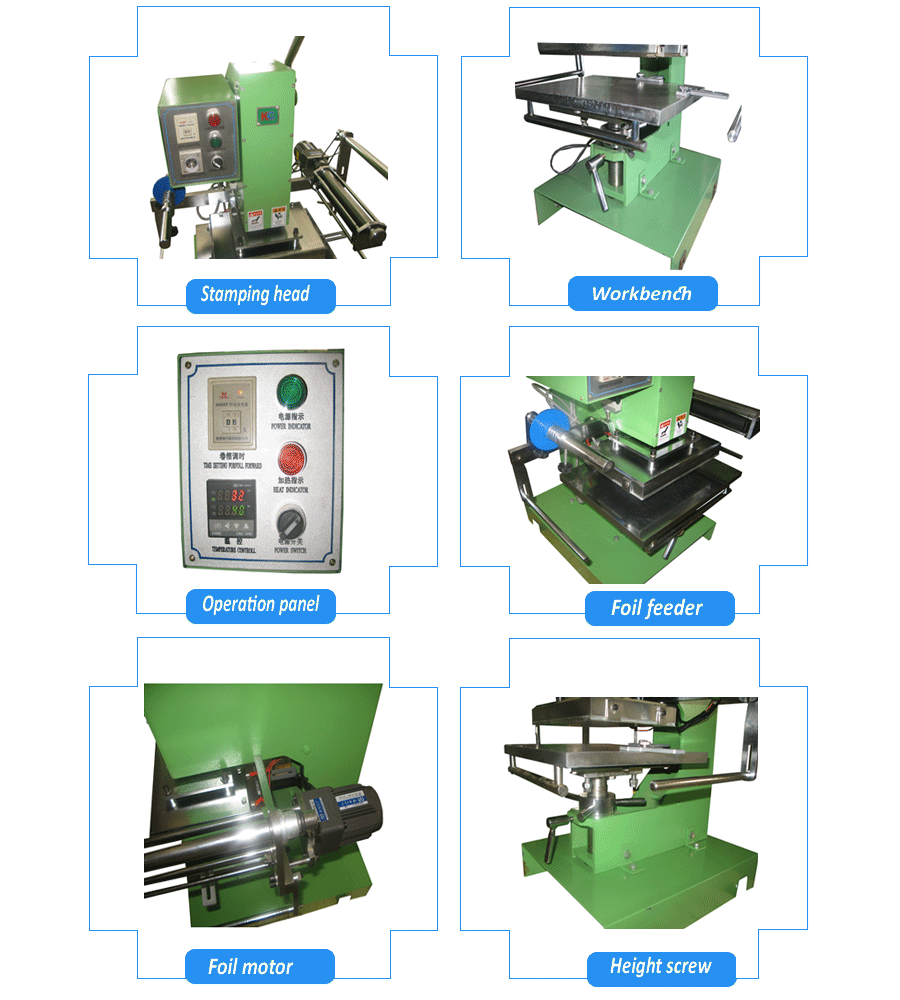

Manual hot stamping machine //Details

Manual hot stamping machine //Advantage

- Table can be manually pulled out for easy product to take on and off;
- Table can be back-front, rotate adjustment, quick easy safe operation;
- Stamping plate with screw height adjustment control, precision and stability;
- Automatic temperature control system, temperature can be set freely;
- Stamping time can be adjusted;
- Automatic Stamping foil feeding, Foil collection, foil collection time can be adjusted;
- Heating pipe heating systems, long life, easy to replace;
- Manual stamping operation, self-locking mechanism Pressing constant pressure;
- High-strength steel plate and cast gilt table, flatness

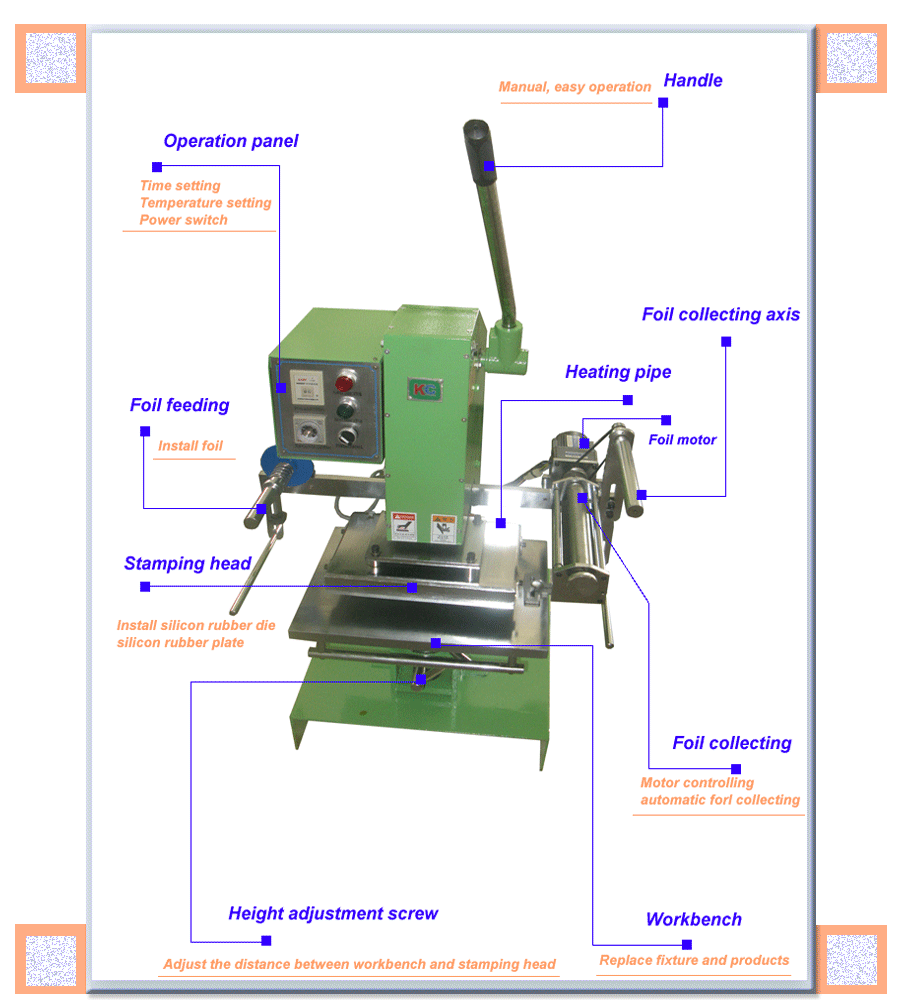

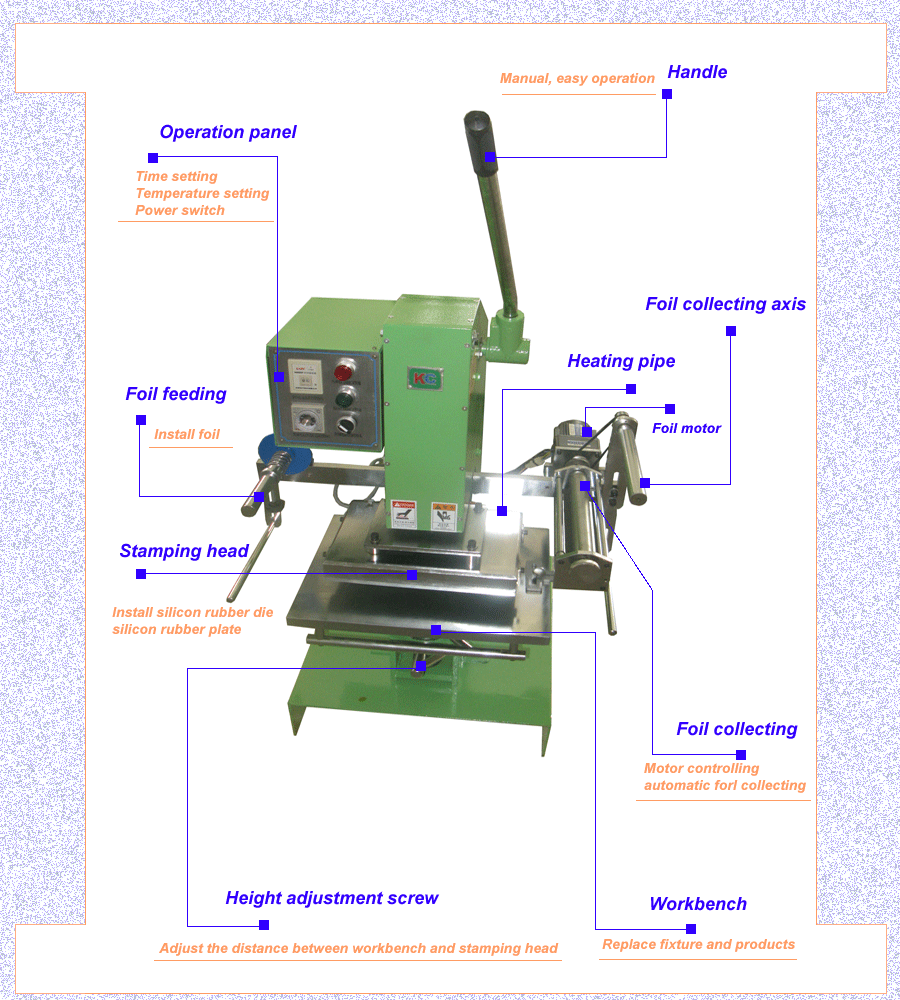

Machine structure
