AC3010-02 SMC Type Air FRL Filter Regulator Lubricator
FRL – Filter Regulator Lubricator - guarantee the efficiency and durability of pneumatic tools. Including an FRL unit in your air system is vital to running an efficient air line set-up and key to achieving a good return on investment. Adding an FRL unit in close proximity to the power tool will ensure the required airflow pressure, as well as good air quality by reducing the risk of moisture and dust in the air line. The FRL unit also helps maintain your air line by providing lubrication.
Specification of AC series Filter Regulator Lubricator:
| Model | AC1010 | AC2010 | AC3010 | AC4010 | AC4010-06 | |
|
Combination Equipment |
Filter Regulator | AW1000 | AW2000 | AW3000 | AW4000 | AW4000-06 |
| Lubricator | AL1000 | AL2000 | AL3000 | AL4000 | AL4000-06 | |
| Port Size | M5 |
1/8'' 1/4'' |
1/4'' 3/8'' |
1/4'' 3/8'' 1/2'' |
3/4'' | |
| Gauge Port Size | 1/16'' | 1/8'' | 1/8'' | 1/4'' | 1/4'' | |
| Fluid | Air | |||||
| Proof Pressure | 1.5 MPa | |||||
| Max Operating Pressure | 1.0 MPa | |||||
| Set pressure range | 0.05 to 0.7 MPa | 0.05 to 0.85 MPa | ||||
| Flow (L/MinANR)) | 90 | 500 | 1700 | 3000 | 3000 | |
| Ambient And Fluid Temperature | -5 to 60 ℃ (Non-freezing) | |||||
| Filtration | 5μm | |||||
| Recommand Lubricant | Turbin oil class (ISO BG32) | |||||
| Bowl Material | Polycarbonate | |||||
| Construction/Regulator | Relieving style | |||||

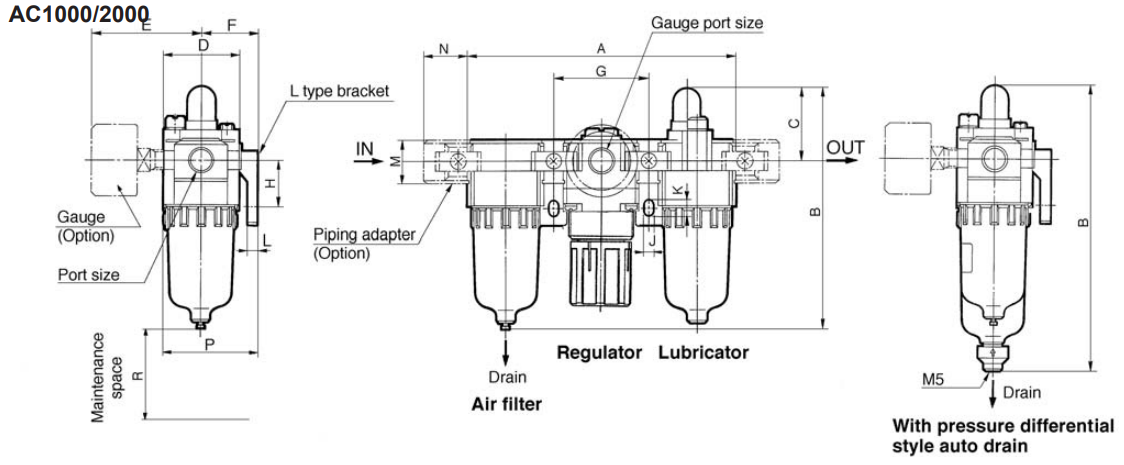

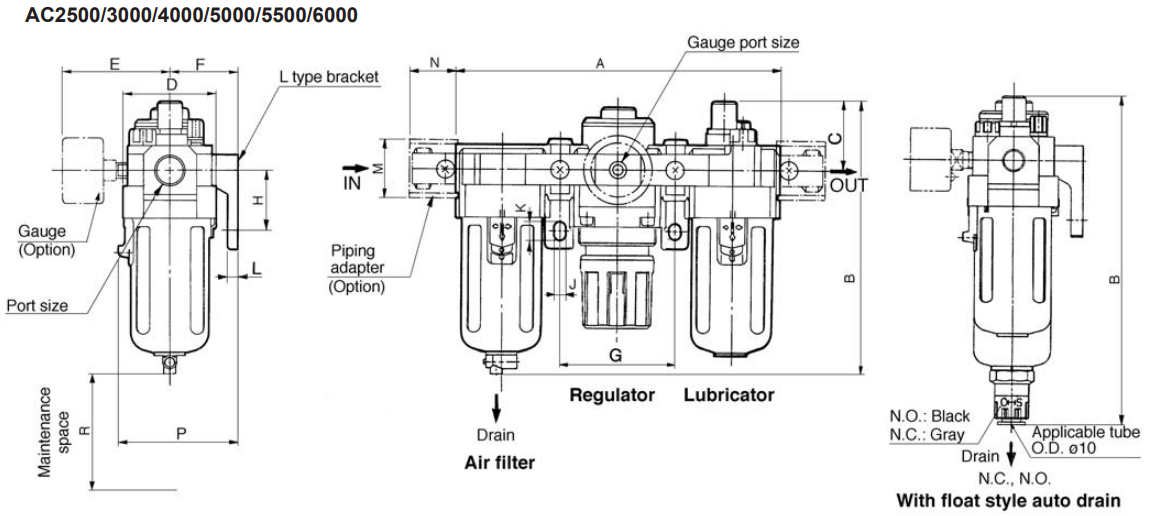

Dimension of AC series Filter Regulator Lubricator:

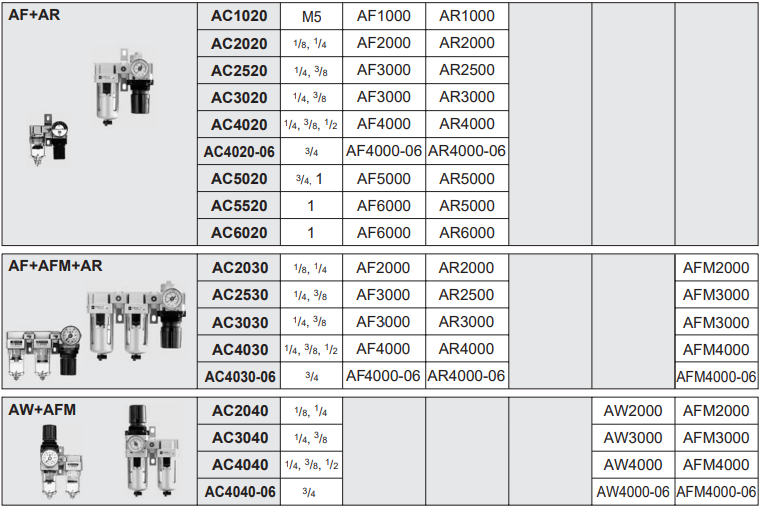

Combinations of AC series Filter Regulator Lubricator:
