 Compressed Air Filter YD017 for Refrigerated Air Dryer


YUKA as one of the famous manufacturers in the world, we are contributed to supply high quality compressed air filtration and separation equipment for air compressors and other pneumatic products.


Here, we are pleased to recommend one model YD017 compressed air filter for you, inlet/out  Rc1/2", air flow rate 1.0m3/min, designed to remove oil mist and odor in compressed air system, installed in the back of refrigerated air dryers, protecting the whole compressed air system and other pneumatic equipment to be polluted .It is ideal solution for removing pollutants in compressed air systems and saving energy.


Air Filter YD017 tested by Germany Devices according to ISO 8573.1: 2009 air quality standards, ensure high-quality compressed air quality and lower operating costs.

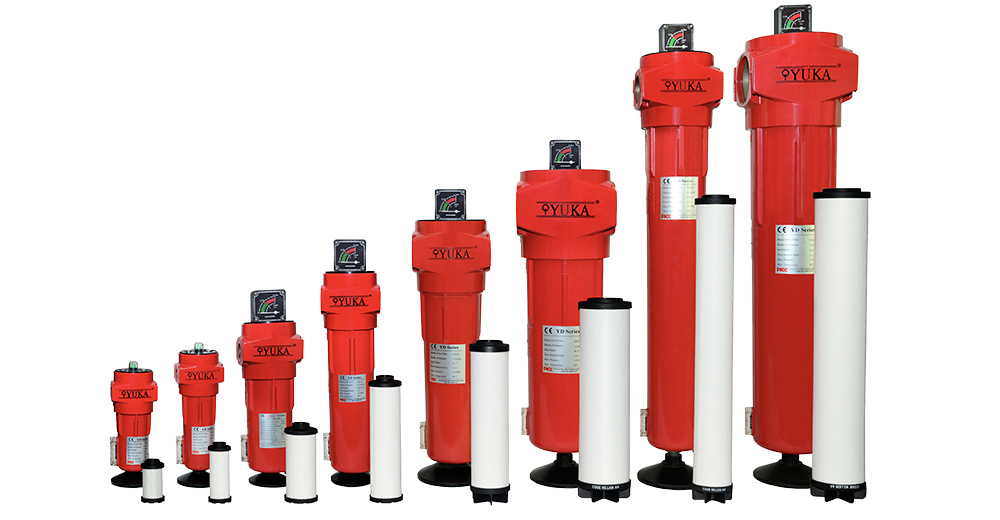

     YD Series
Product Advantages:

a. The filter housing is made of aluminum alloy by die-casting and has a compact structure to ensure safe use.
b. All housings are cleaned, degreased and specially anti-corrosion treated before spraying to improve durability and can be applied to offshore platform operations.
c. The precise threaded interface makes installation and maintenance easier and more convenient.
d. All housings are tested under working pressure 32bar for 96 hours, and the maximum burst pressure is 105bar.
e. Under the working condition of 1.5-80 ºC and pressure 16 bar, the body is guaranteed 15 years
and the service life of the filter element

 is 6000-8000 hours.


Technical Specification:
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 bar g (100 psi g). For the application in other working pressure, please refer to the correction factors.

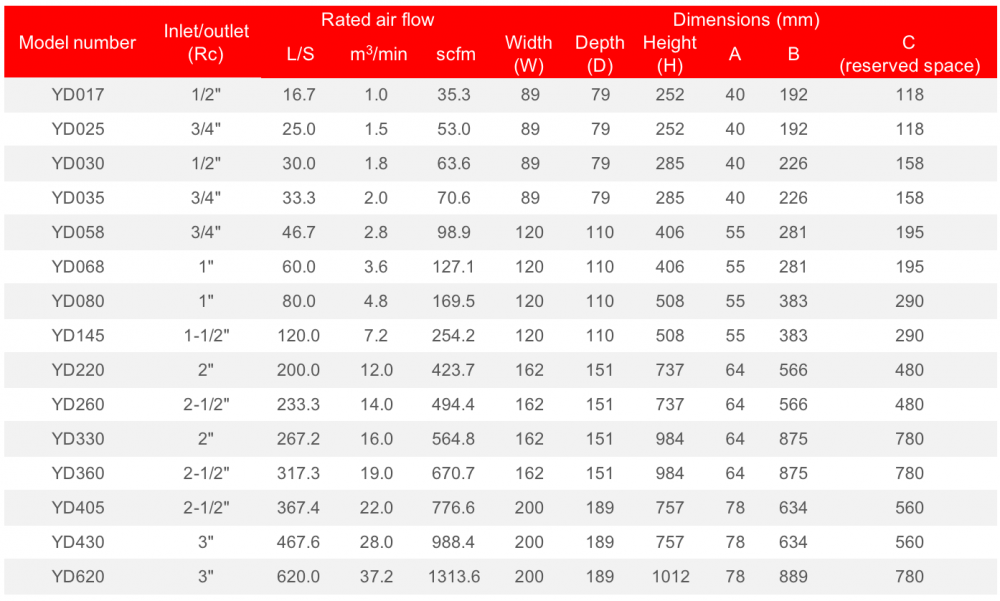

YD series air filter product selection



Pressure Correction Factor02

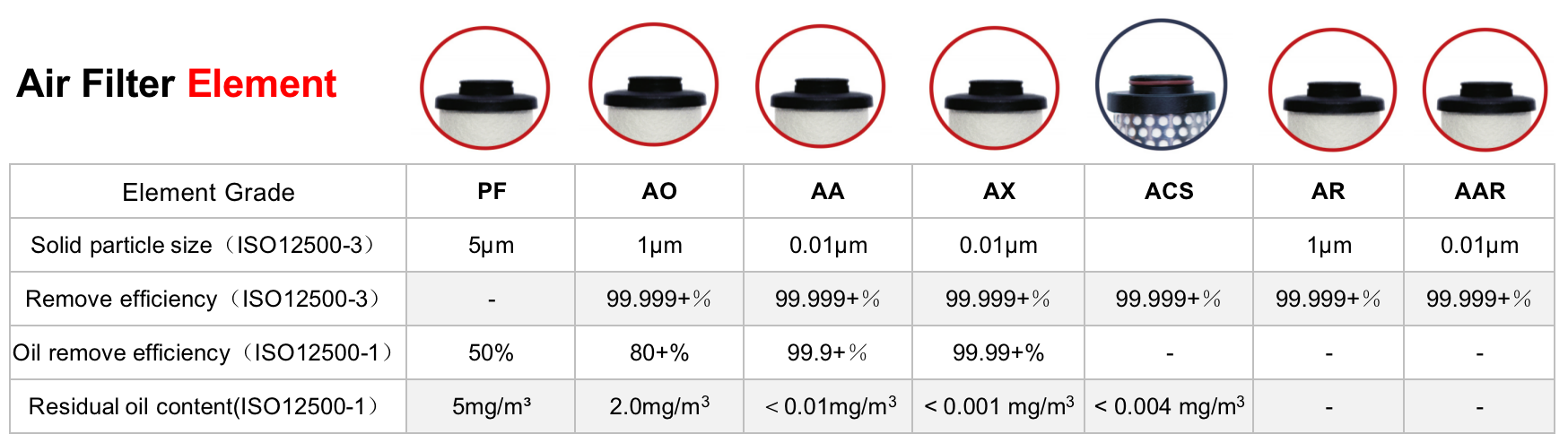

Air filter element grades


Frequently Asked Questions?

Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?

Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
Q6. Usually what kind of transportation mode you supply?
A: By sea, by air , by train and express.
Q7. Could you Calculate the shipping cost for me?
Yes, we are honored to do that for you! Before the freight , please well let us know which seaport or airport near your place.
