When to Replace Your Air Filters Element?
In order filters to work efficiently and provide the best purification possible, they require maintenance and replacement in regularly. Below general guidelines tips for you, but no specific designated operational period, as your replacement schedule should be tailored depending on several factors.
Routine of checking, draining and replacing filters based on use. The more compressors for long periods daily, the more frequent maintenance schedule it should be, with daily checks and regular cleanings. It’s also best to line up filter draining and replacements with cleaning the compressor parts and applying oil in areas that need lubrication.
By providing ongoing and thorough maintenance to the compressor and filters, you can prevent premature wear and damage. Your operators will know best when it’s time to replace their pipeline air filters. Two of the most significant signs are changes in air output and signs of wear or oversaturation. Checking them regularly will help them determine how much longer their filters will last and when it’s time to order a new one.
YF Series Compressed Air Condensate Filter
Model
Pipe size
Flow rates
Dimension (mm)
L/S
m³/min
scfm
W(Width)
D(Depth)
H(Height)
A
B
C(clearance for housing)
YF010
RC1/2"
16.7
1.0
35.3
96
79
261
29
198
118
YF020
RC3/4"
25.0
1.5
53.0
96
79
261
29
198
118
YF030
RC3/4"
30.0
1.8
63.6
96
79
295
29
233
153
YF040
RC1"
33.3
2.0
71.0
96
79
295
29
233
153
YF060
RC1"
60.0
3.6
127.0
138
111
403
37
296
208
YF070
RC1"
83.3
5.0
177.0
138
111
503
37
396
303
YF080
RC1-1/2"
125.0
7.5
265.0
138
111
503
37
396
303
YF090
RC2"
166.7
10.0
353.1
174
142
736
58
607
469
YF100
RC2-1/2"
216.7
13.0
459.0
174
142
736
58
607
469
YF110
RC2"
283.3
17.0
600.0
174
142
1016
58
887
794
YF120
RC2-1/2"
316.7
19.0
671.0
174
142
1016
58
887
794
YF130
RC3"
416.7
25.0
883.0
220
184
793
74
649
514
YF140
RC4"
466.7
28.0
989.0
220
184
793
74
649
514
YF150
RC3"
683.3
41.0
1448.0
220
184
1050
74
906
764
YF160
RC4"
800.0
48.0
1695.0
220
184
1050
74
906
764
Technical requirements
Maximum operating pressure: 10 barg Operating temperature: 1.5°C~80°C.
Pressure
Barg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Psig
15
29
44
59
73
87
100
116
131
145
160
174
189
203
219
232
Correction factor
0.38
0.53
0.65
0.76
0.85
0.93
1.00
1.07
1.13
1.19
1.23
1.31
1.36
1.41
1.46
1.51

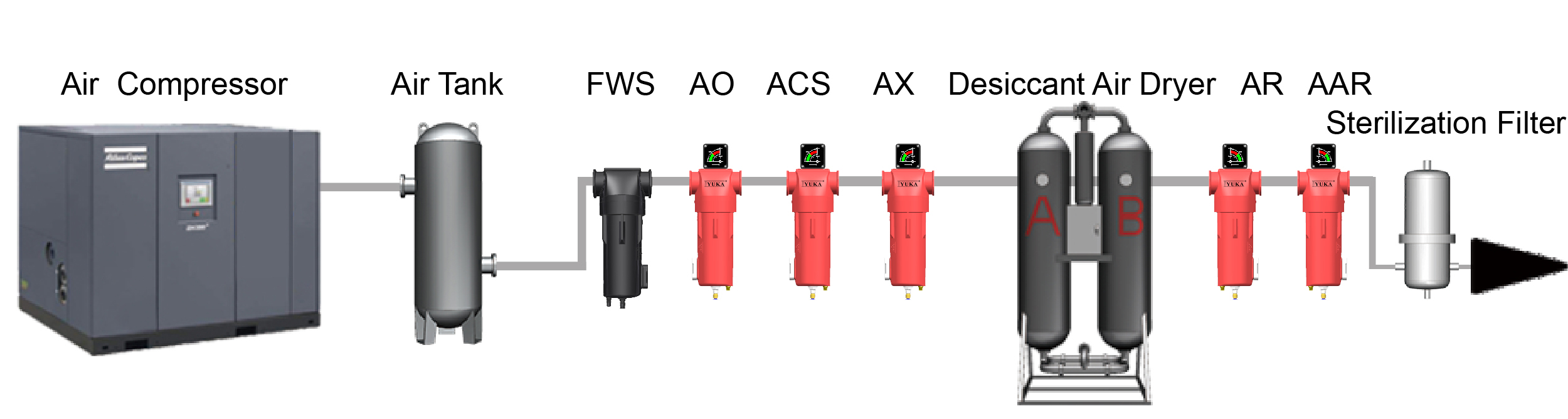

Compressed Air Filter Suggestion Solution for Food & Medical Industries

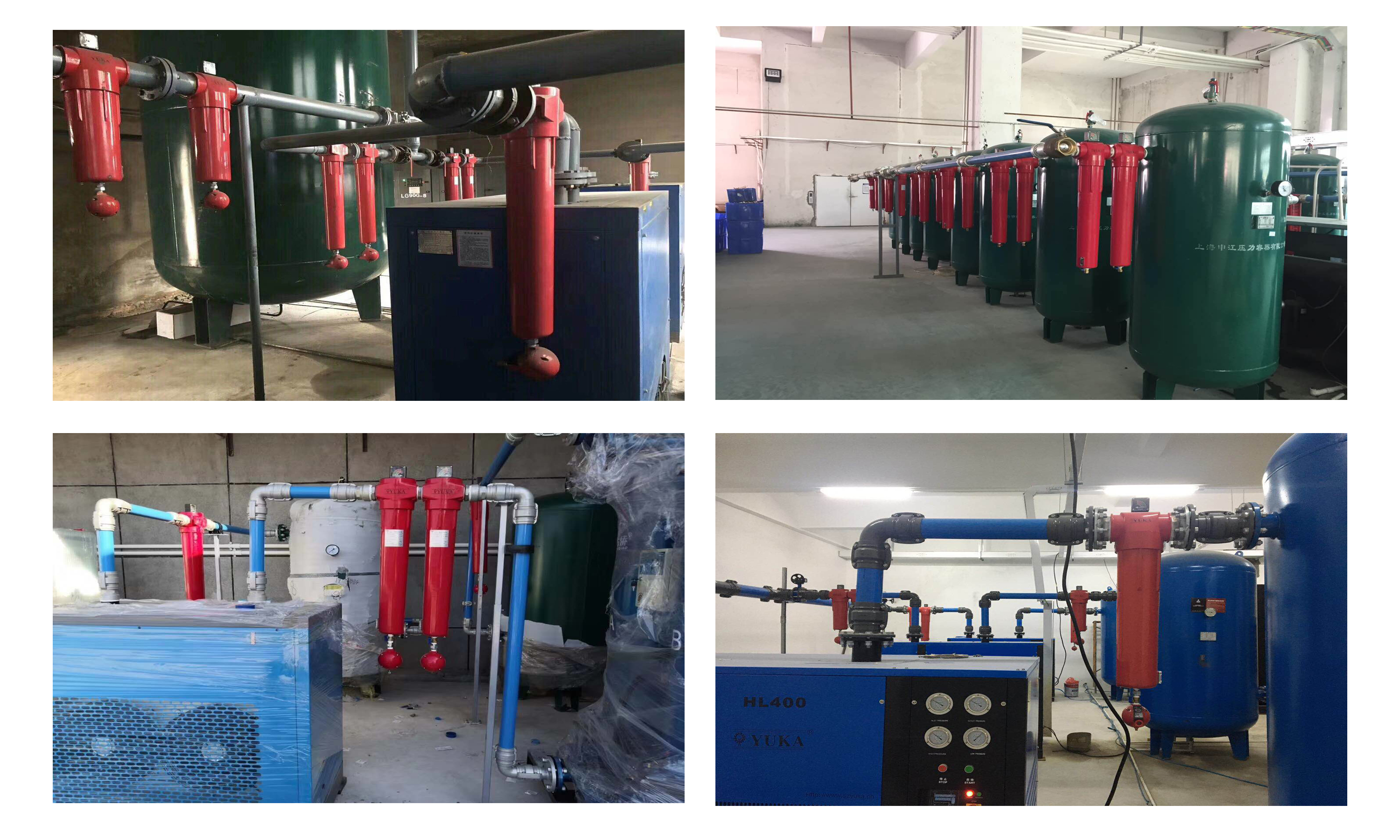

Success Cases Share
