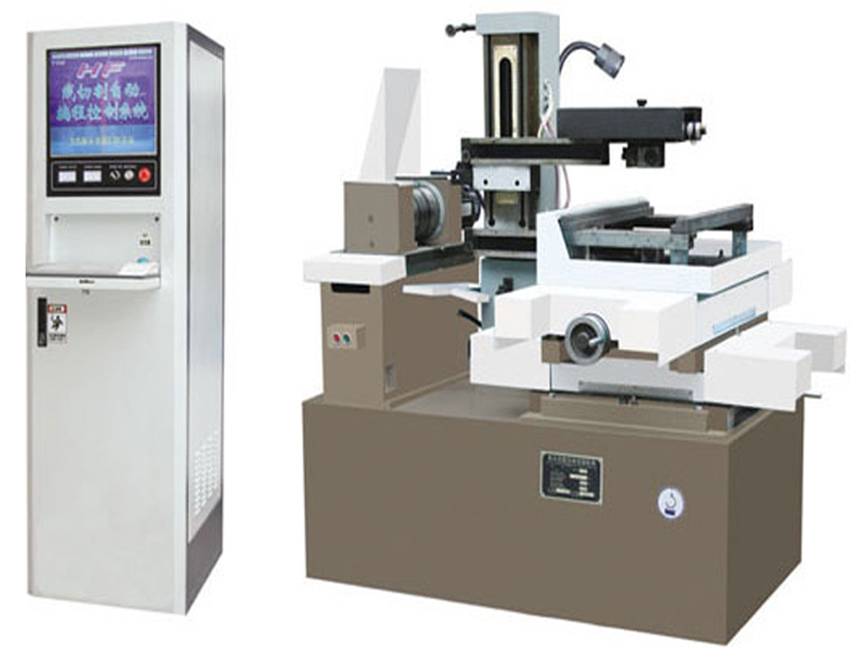

One-Pass Taper Wire EDM Cutting Machine
Product Characteristic
① DK7745B adopts AC power supply, which can be easily matched with any wire cutting machine tool.
② Save the current processing state: If the work piece being cut is large and cannot be completed at one time, you can save it at any step in the cutting process, and you can continue cutting at the "stop point" of the last cutting after the next startup.
③Simulated cutting: It can simulate the actual cutting state of the machine tool, including the simulation detection of the machine tool motion track.
Technical Parameters
|
Technical Parameters |
Unit |
DK7745B |
|
Travel of X and Y Axes |
mm |
450x550 |
|
Maximum cutting thickness |
mm |
460 |
|
Maximum Work piece weight |
kg |
450 |
|
Wire diameter |
mm |
Standard 0.18 mm; Optional: 0.12-0.2 mm. |
|
Cutting Taper |
°/mm |
6°/ 80 mm |
|
Work Table Size (LxWxH) |
mm |
500x750x460 |
|
Surface Roughness /Ra |
u.m |
Ra≤2.5 |
|
Numerical Control System |
# |
X8, HF SYSTEM or HL SYSTEM |
|
Display |
# |
Latest |
|
Serial Interfaces (V.24) |
# |
RS 232C, Ethernet port, USB |
|
Remote control |
# |
Including |
|
3-D Graphical Preview |
# |
Including |
|
Total machine power |
KV |
1.8 |
|
Precision |
mm |
0.015 |
|
Maximum cutting speed |
mm2/min |
150 |
|
Wire speed |
m/s |
11 |
|
Minimum feed increment |
mm |
0.001 |
|
Pulse width adjustable range |
us |
15-150 |
|
Maximum power consumption |
KVA |
≤2 |
|
Machine size (LxWxH) |
mm |
1865x1520x1500 |
|
Machine weight |
kg |
1650 |
|
Machine control cabinet size (LxWxH) |
mm |
1200x800x800 |
|
Machine control cabinet weight |
kg |
150 |
Standard configuration:
※AC Power Supply:220 or 380V, 50 Hz, 3 phase
※Molybdenum Wire:200 M
※Remote Control:1 Piece
※Wire Tensioner:1 Piece
※Coolant Filter:1 Piece
※Coolant:1 Piece
※Work Lamp:Including
※Work Piece Fixture:1 Set
If you are interested in the product, contact 2bvideo.com for more information for more information
