3527RGB LED with clear lens

3527RGB LED with clear lens

2 year ago

2 0

Shenzhen Best LED Opto-electronic Co.,Ltd / BESTSMD CO LIMITED(HK)

 8 year year

Product details

- 3528 RGB LED -

3528RGB-100

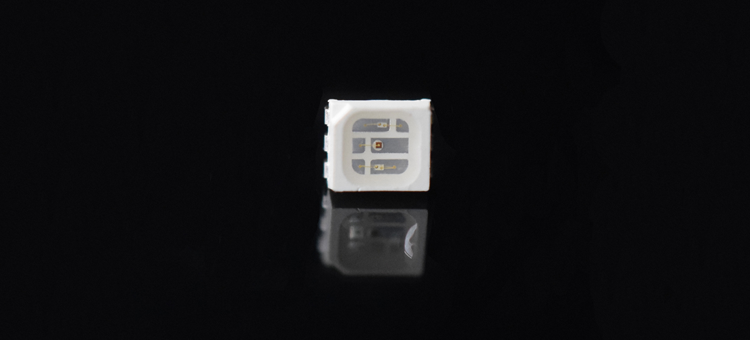

For 3528 SMD LED, there have 3528 PLCC2, PLCC4 and even PLCC6. As you can see the picture in follow, this 3528RGB-100 are the one that have 6 pins. We produce this 3528 RGB LED with six pins and white SMD LED 3528 case. So that this RGB LED will be more easy to control by different pins and white case will help this LED got higher brightness when it's working. In this SMD 3528 RGB LED, there have three chips inside the package and each chip can handle 60mA operation current. When we using this LED, we can us the current to control the brightness, if you put just a little small current to it, such as 10mA, you might cannot get that much bright. But when you drive it as 50mA or 60mA, the brightness will be the brightness that it can emits. Contact us for more detail about the RGB LED.

3528 rgb led

- Size: 3.5*2.8*1.9mm

- Chip Number: 3chips

- Color: RGB LED

- Type: Surface mount device

- Chip brand: Epistar

- Common Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating			Unit
		Red	Green	Blue

Power Dissipation	Pd	150	205	205	mw
Pulse Forward Current	IFP	200	200	200	mA
Forward Current	IF	60	60	60	mA
Reverse Voltage	VR	5	5	5	V
Junction Temperature	Tj	110			°C
Operating Temperature	Topr	-40 ~ +80			°C
Storage Temperature Range	Tstg	-40 ~ +100			°C
Soldering Temperature	Tsol	260			°C
Electro-Static-Discharge(HBM)	ESD	2000	2000	2000	V
Service life under normal conditions	Time	80000			H
Warranty	Time	5			Years
Antistatic	Piece	2000			Back

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage	Red	VF	1.8	2.0	2.4	V	IF=60mA
	Green		2.8	3.0	3.4
	Blue		2.8	3.0	3.4
Luminous Intensity	Red	IV	1700		2500	mcd	IF=60mA
	Green		3000		5000		IF=60mA
	Blue		1000		1800		IF=60mA
Peak Wavelength	Red	λP		633		nm	IF=60mA
	Green			527
	Blue			462
Dominant Wavelength	Red	λD	618	620	626	nm	IF=60mA
	Green		517	520	525
	Blue		463	465	468
Half Width		Dl		18		nm	IF=60mA
Viewing Half Angle		2q1/2		±60		deg	IF=60mA
Reverse Current		IR			5	uA	VR=5V

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Production -

- SMD RGB LED Use -
