HONY®Bakelite sheet have High voltage insulating orange yellow 3-50mm phenolic resin bakelite plate Imported bakelite, joint venture bakelite Overview: The joint venture bakelite is a bakelite produced by a domestic joint venture. The bakelite is also called bakelite and phenolic laminated paperboard. It is made of high-quality bleached wooden building paper and cotton linter paper as reinforcements, and made of phenolic resin made from high-purity, fully synthetic petrochemical raw materials as a resin binder, with good electrical properties at room temperature , Good machining performance, can be used in variable frequency oil.
Bakelite Sheet Plate Product features: good mechanical strength, anti-static, intermediate electrical insulation, non-absorbent, non-conductive, high temperature resistance
Scope of application: mechanical transmission parts, precision mechanical parts, water-resistant parts, electronic and electrical parts, etc.
Application field: The product is suitable for insulating structural parts in motors and electrical equipment with high mechanical performance requirements, and can be used in transformer oil. With good mechanical strength, it is suitable for drilling backing plates, power distribution boxes, jig boards, mold splints, high and low voltage wiring boxes, packaging machines, combs, etc. in PCB industry. Suitable for motors, mechanical molds, PCBs, ICT fixtures. Forming machine, drilling machine, table polishing pad.
Syndyne Paper Bakelite Color: black, red, etc.
Phenolic Resin Laminate Specification: Plate: thickness × width × length 3-100mm×1000mm×2000mm
Bar: Diameter×Length 8-100mm×1000mm

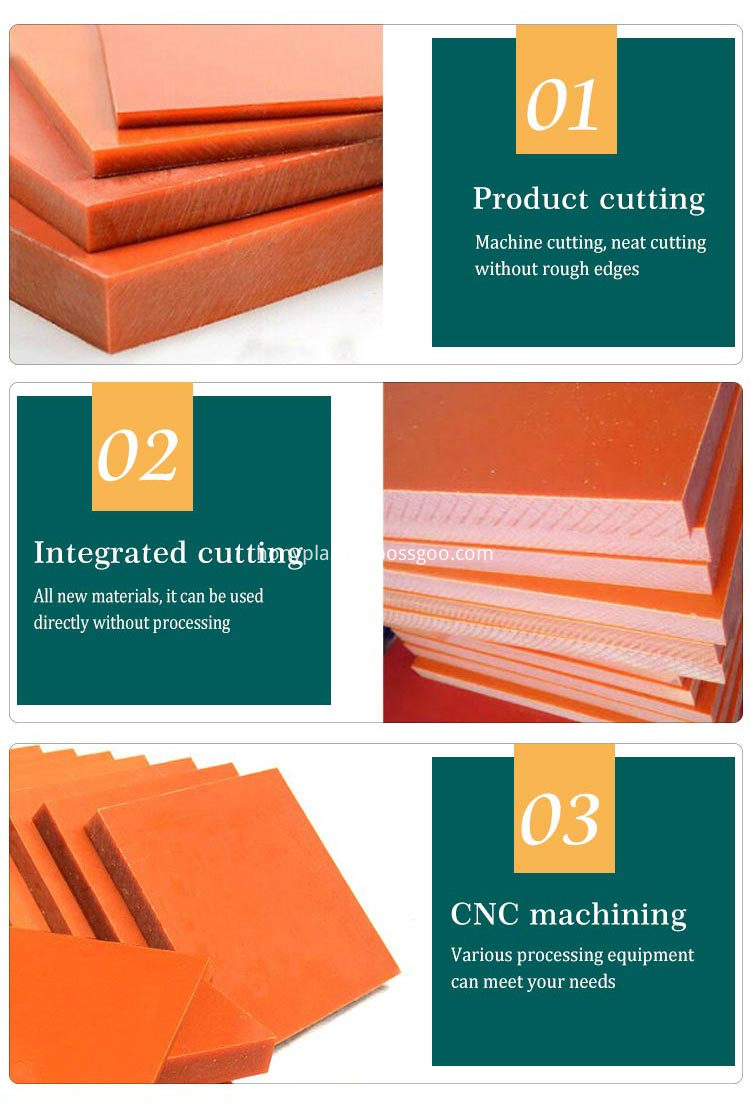

We are confidents to provide with CUSTOMIZED high quality bakelite products by our professional manufacturing team, manufacturing lines and experienced CNC router operators who have been engaged in this industry for more than 10 years.
HONY®Bakelite Properties Data Sheet
| Item | Unit | Value |
| Density | g/cm3 | 1.25-1.4 |
| Water absorption | mg | 180-197 |
| Flexural strength at perpendicular lamination | MPa | ≥120 |
| Dielectric stength at perpendicular lamination(Transformer oil at 90℃) | KV/mm | ≥15.80 |
| Breakdown voltage at parallel lamination (Transformer oil at 90℃） | KV | ≥35 |
| Dielectric constant(50Hz) | - | ≤5.5 |
| Proof tracking index(PTI) | - | ≥100 |
| Thermal index | - | 120 |
Synthetic Resin Main Production
Machine
Package
