3 Ton small Wheel Loader with longer arm YN938G

Product Features

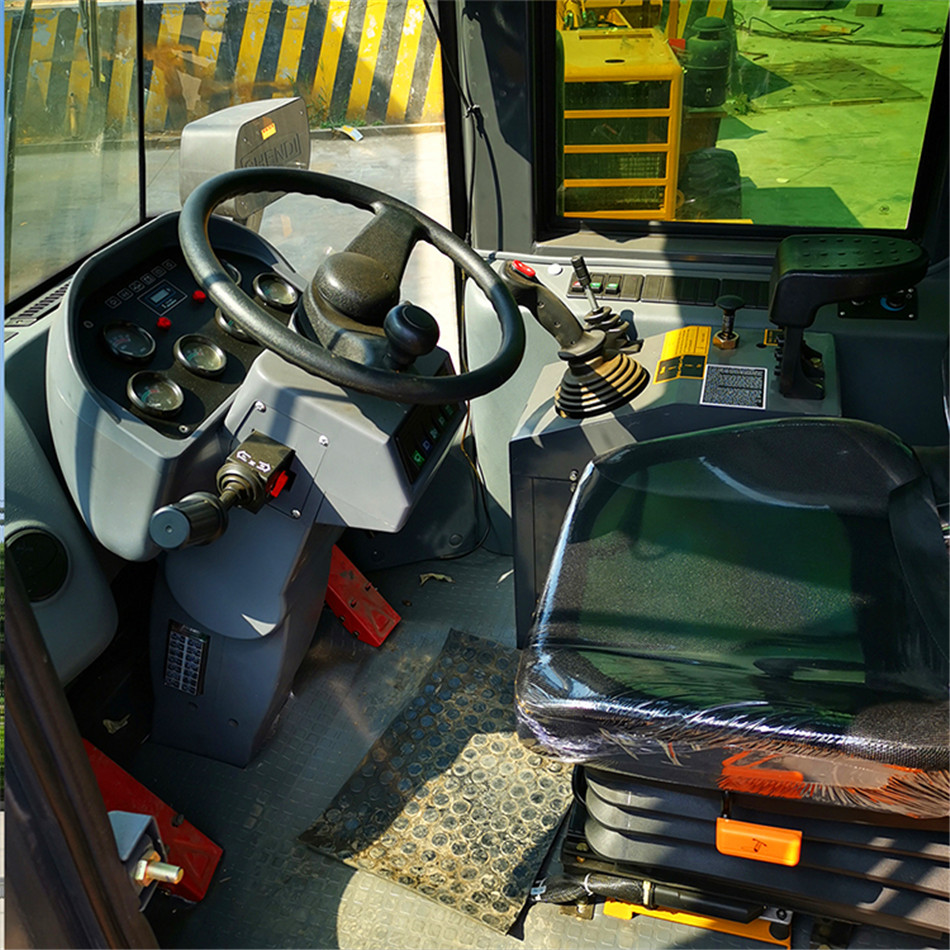

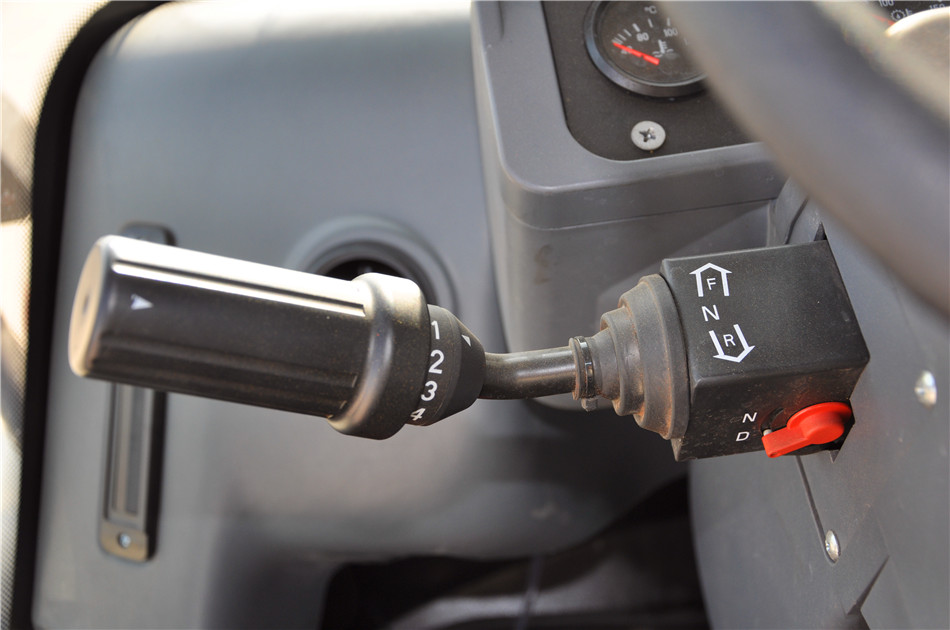

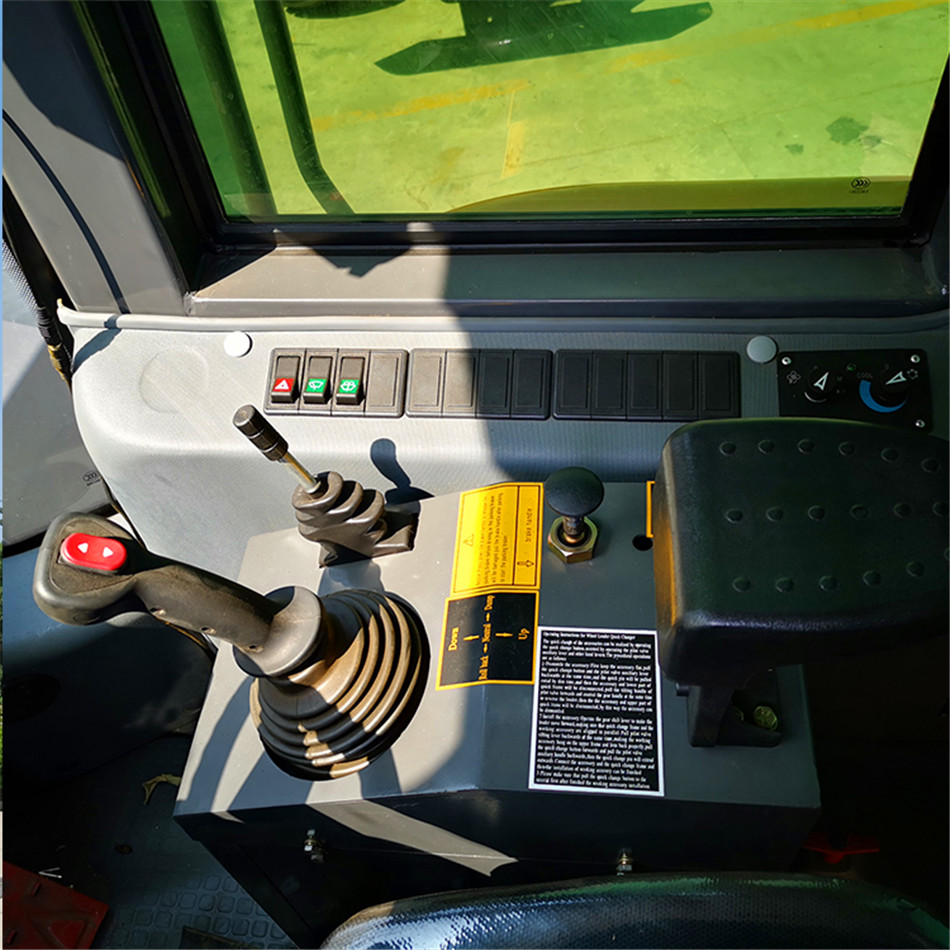

1、Cab can be dismantled for Large space. Noise-isolation and vibration absorber meets all kinds of operation. The Single -handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable. cab is optional.

2.Quick hitches and Customizing design: Quick hitch for special needs according to special request, higher dumping height, simple cab and other special design for different tough conditions is available.

3.Powerful engine: strong power, energy conservation and environmental protection. DF-Cummins engine is optional.

4.Long wheel base design makes the loader more steady, high dumping height and short action cycling time makes the working more efficient.

Yn938g Wheel Loaders 4 Yn966g Wheel Loader 6 Yn966g Wheel Loader 5

Performance	*	Rated load	3300kg
	*	Overall weight	10800kg
	*	Rated bucket capacity	2.0 m³
	*	Maximum tractive force	90KN
	*	Maximum breakout force	≥103KN
	*	Maximum grade ability	28°
	*	Maximum dump height	3000mm
	*	Maximum dump reach	1050mm
	*	Overall dimension(L x W x H)	7020x2510x3300mm
	*	Minimum turning radius	5755mm
	*	Section equipment with steel bushing	Yes
Engine	*	Model	Dongfeng Cummins 6BTA5.9-C130
	*	Type	Inline/Turbocharged
	*	No. of cylinder-bore/stroke	6-102x120mm
	*	Rated power	97kW-2200r/min
	*	Maximum torque	560N.m
	*	Min fuel-consume ratio	≤212g/kw.h
	*	Fuel tank capacity	150L
	*	Large radiator	Yes
Transmission	*	Model	YD13 gearbox
	*	Gear shift	4 forward, 3 reverse Electronic control gear shift
	*	Maximum speed	36km/h
Drive axle	*	Main reducing spiral	Bevel gear grade 1 reduction
	*	Decelerating mode	Planetary reduction, grade 1.
	*	Wheel base (mm)	2845 mm
	*	Wheel tread	1800mm
	*	Minimum ground clearance	375mm
	*	Heavy duty chassis	Yes
Hydraulic system	*	Hydraulic pump	CBGJ2100/1010-XF
	*	System working pressure	17MPa
	*	Boom lifting time	5.5±0.2s
	*	Total time	9.8±0.5s
	*	Hydraulic tank capacity	150L
	*	Leveling automatically	Yes
	*	Cooling system	Yes
Break system	*	Service brake	Air over hydraulic disc brake on 4 wheels
Break system	*	Parking brake	Air break control band brake
Tyre	*	Type specification	17.5-25
	*	Front tyre pressure	0.34Mpa
	*	Rear tyre pressure	0.29Mpa

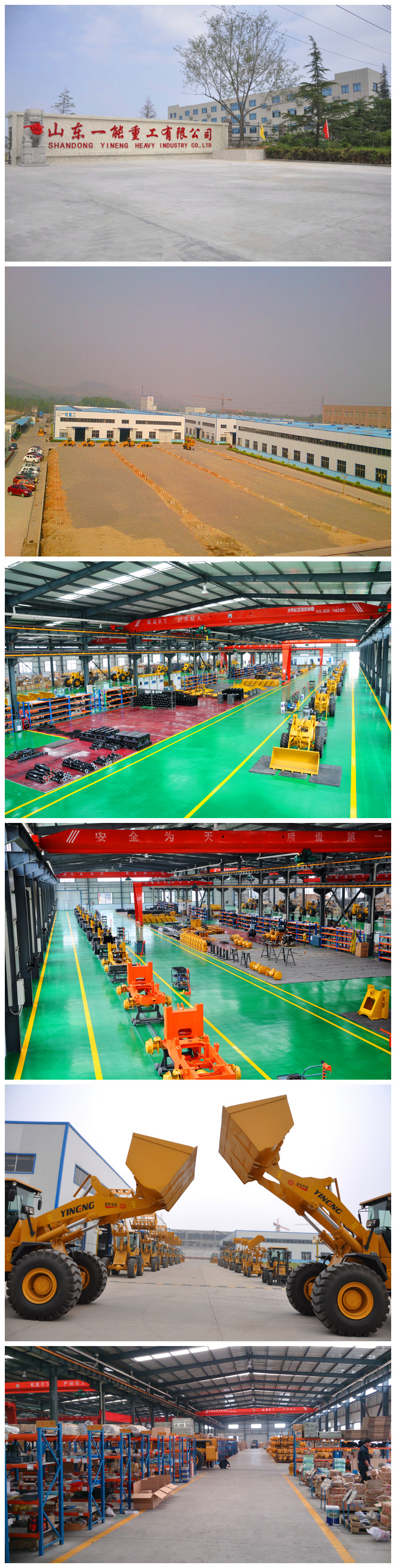

Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.

Company Profile Distribution Channel 2

Certificate
