Product details

The tank belt conveyor type pad printer is equipped with a conveyor belt similar to the track shape of a tank. The conveyor belt adopts an upper and lower structure that rotates counterclockwise, and is generally driven by a motor to drive the chain. Because the conveyor belt rotates up and down, there is no mutual interference between two adjacent products at the corner of the flat turntable conveyor belt, which is more suitable for printing products with larger dimensions. At the same time, the tank belt transmission type pad printer can be wider, longer, and higher when making the fixture, which is also an advantage for some products with higher clamping difficulty. The tank belt conveyor type pad printer is also suitable for installing a robot for unloading, further improving the degree of automation of the pad printer.

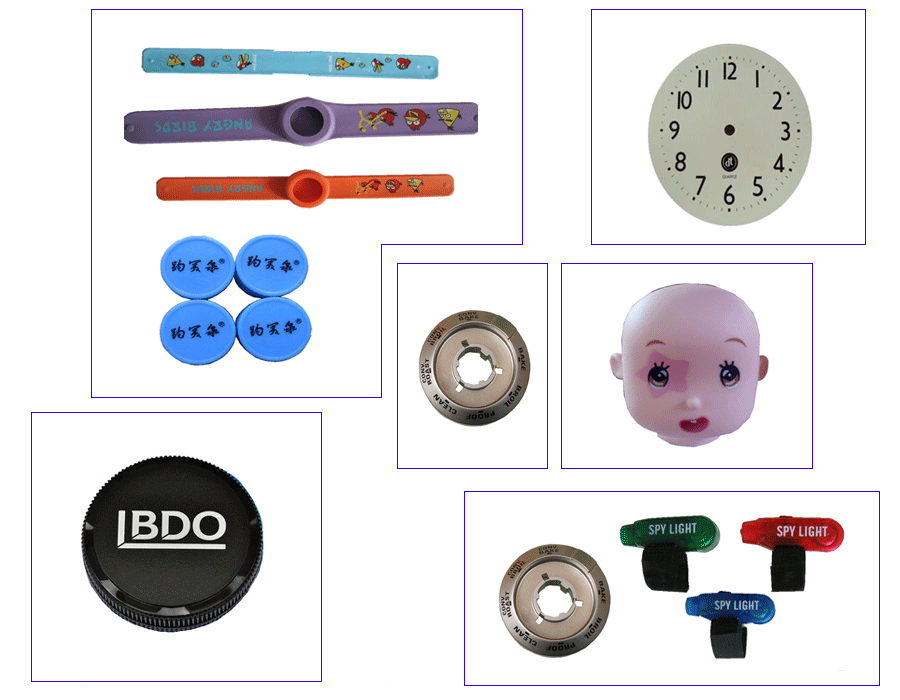

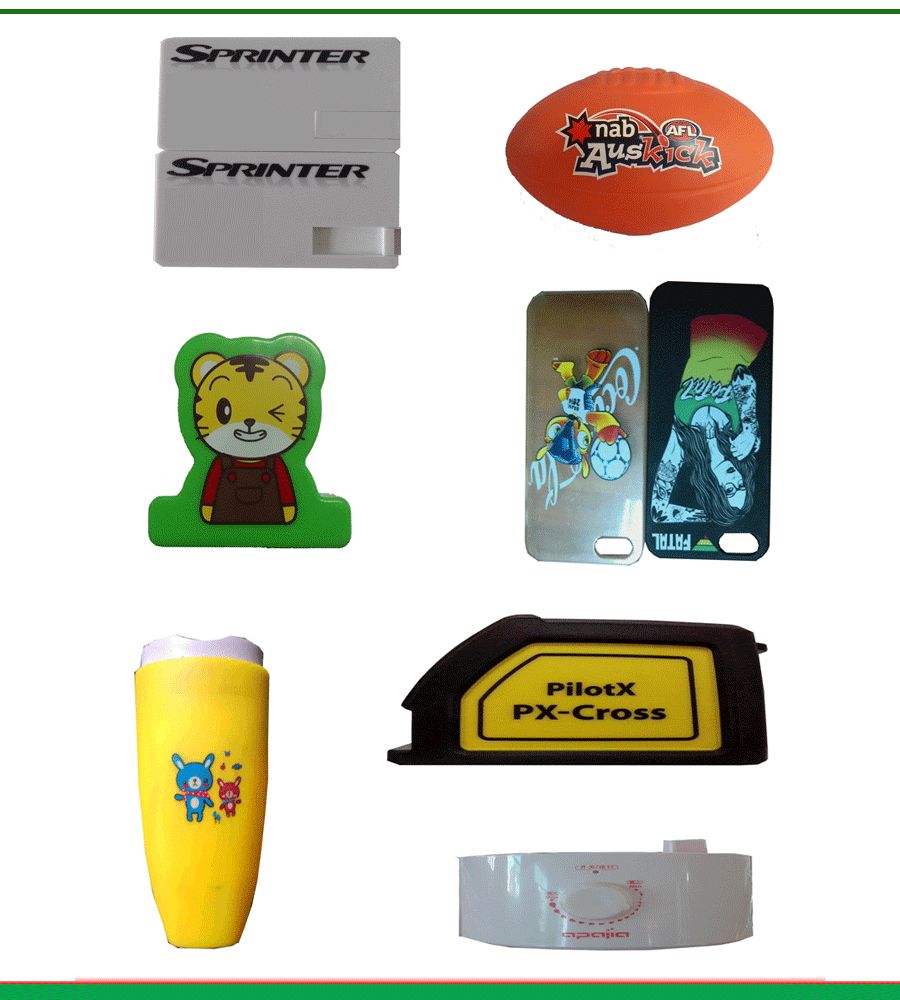

Application-Printed Samples

Machine description

Two colors pad printer with tank belt conveyer //Parameter
Technical parameters	SP2-41016CTK	SP2-41216CTK
	Max. plate size: 100×250mm; Max printing area: 85×130mm; Max. worktable area: 90×125mm; Max. printing speed: 1200pcs/hr; Printable color quantity:2 Cup diameter: Φ90mm. Shuttle stroke: 125mm.	Max. plate size: 100×300mm; Max printing area: 85×170mm; Max. worktable area: 90×125mm; Max. printing speed: 1200pcs/hr; Printable color quantity:2 Cup diameter: Φ90mm. Shuttle stroke: 125mm
Works supply	110V-220VPower supply; 5-7Bar Compress air;
Package list	Package dimension:1150×840×1410mm Gross weight: 185 CBM: 1.362
H.S.Code	8443198000
Certicate	CE

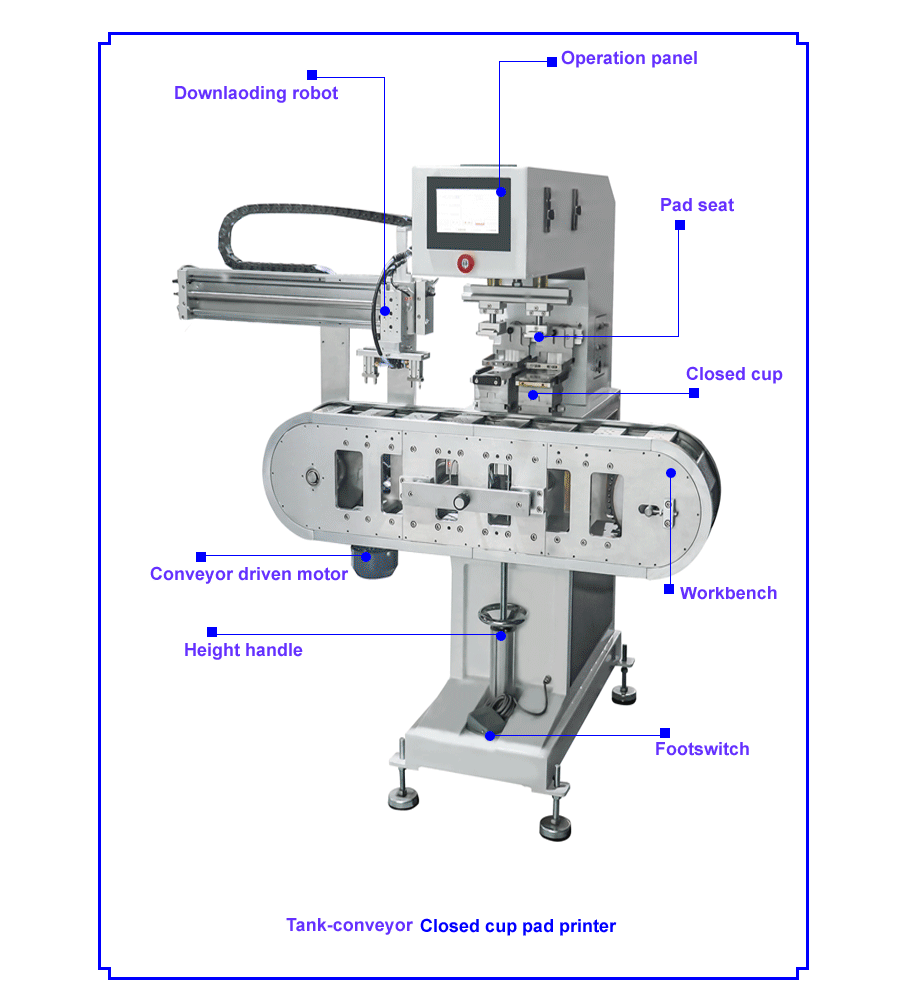

Machine structure-Advantage

PLC program controlling operating technique ;
Streamline design ensure dexterous Appearance impressions;
Coin aluminum structure frame coated Gross-Green color paint;
16-Station conveyer working table installed to get more fast printing speed ;
Independency pressure adjustment of pad press-printing and picking up ink;
Either testing or running mode to operate ;
Closed cup to store and coating ink , save ink and protect environment
Automatism digital count function;
Double colors pad printing with drying through blowing hot air:
Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
Sealed cup driven by independent cylinder , ink remove clean

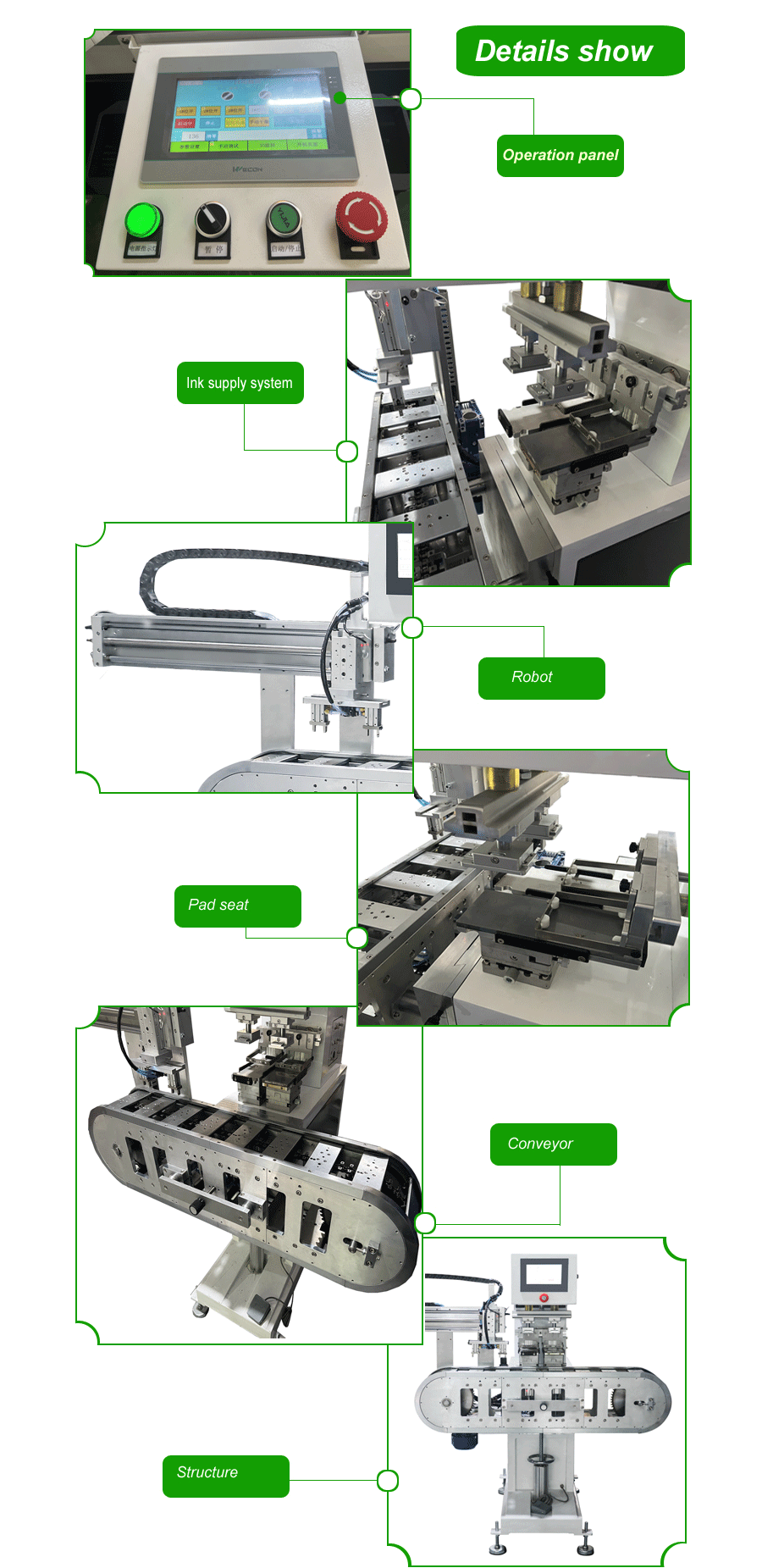

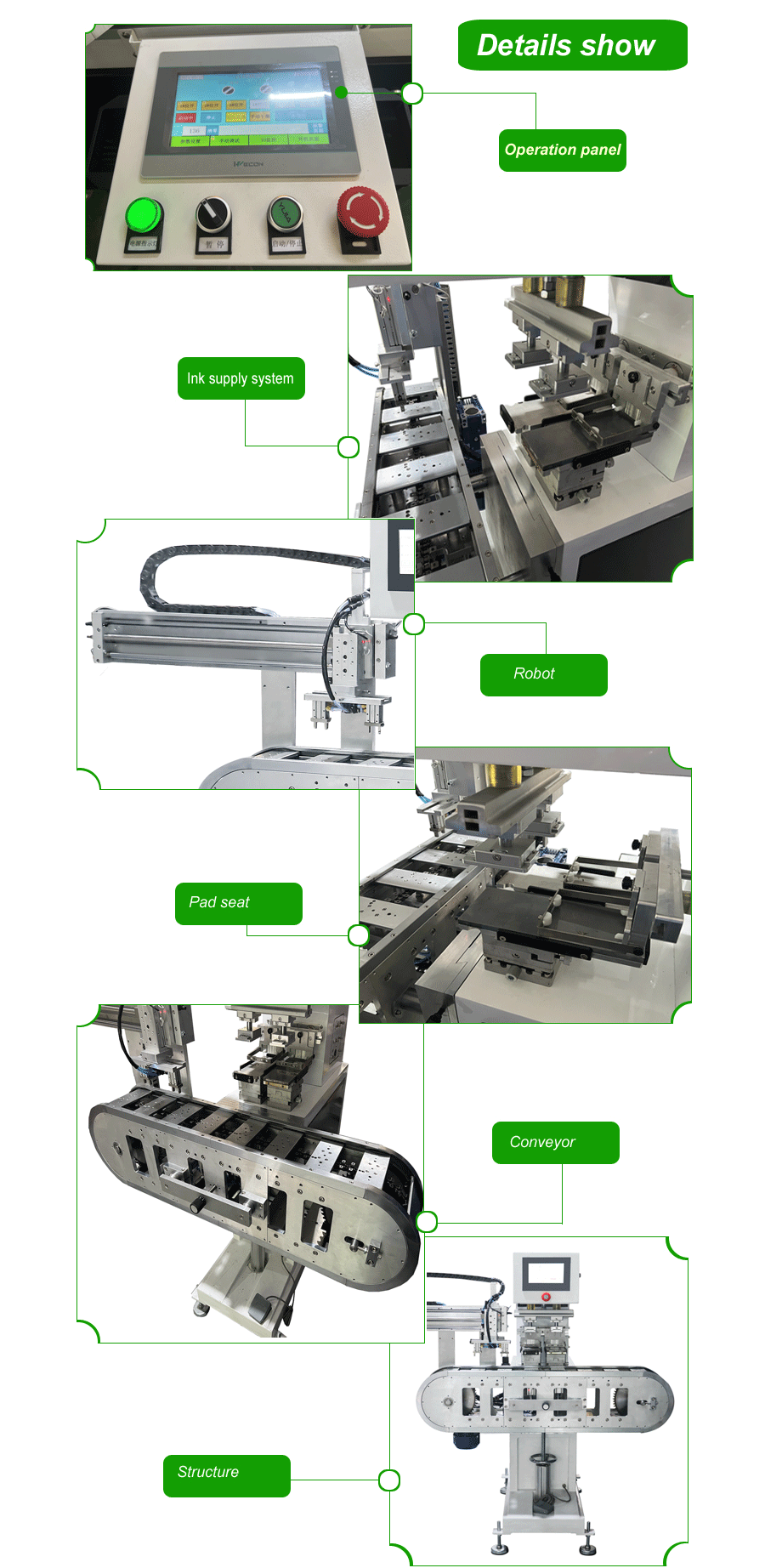

Details photo
