The P2 indoor fine pixel pitch LED video wall is designed to be easy to install and maintain, with a modular design that allows for quick and easy replacement of individual tiles. This ensures that downtime is minimized, and the system remains operational even if a single tile fails.
Overall, the P2 indoor fine pixel pitch LED video wall is a powerful and versatile display system that offers exceptional image quality and reliability. Whether you're looking to create an immersive digital experience or need a high-performance display for your control room, this video wall is an excellent choice.

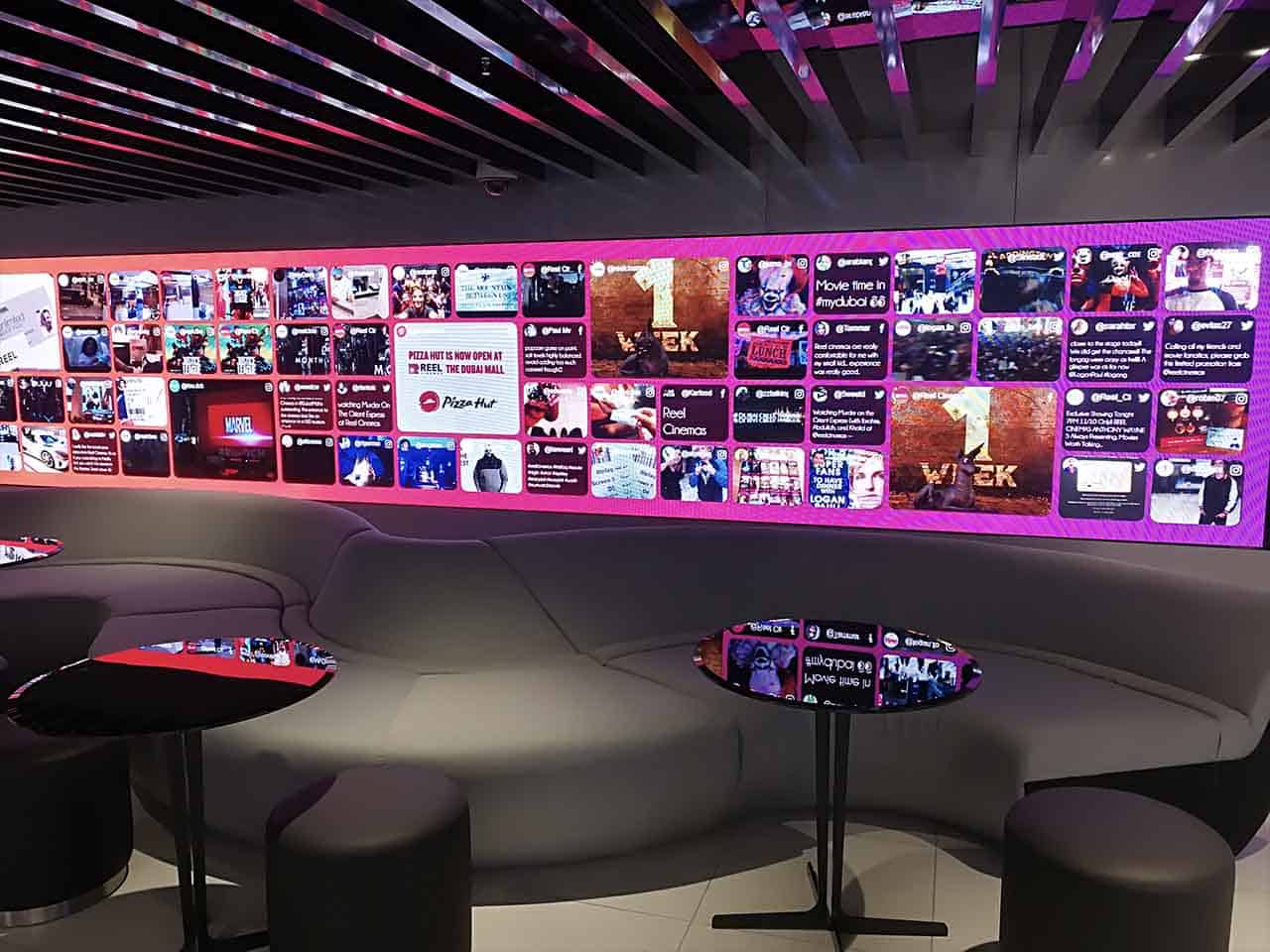

P2 indoor fine pixel pitch LED video wall is a high-resolution display system that utilizes LED technology to create a seamless and vibrant visual experience. With a pixel pitch of just 2mm, this video wall offers incredible detail and clarity, making it ideal for applications where image quality is critical, such as digital signage, broadcast studios, and control rooms.
Packing way: Wooden box / Flight case
|
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH2) |
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
2 |
|
|
（Panel size） |
MM |
L256*H128*T14 |
|
|
（Physical density） |
/M2 |
250000 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/32 Constant current 1/32scan |
|
|
（LED Encapsulation） |
SMD |
1515 |
|
|
（Display resolution） |
DOTS |
128X64=8192 |
|
|
（Module weight） |
KG |
0.18 |
|
|
（Module port） |
|
HUB75 |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
15W |
|
|
Panel Parameter |
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
2-30 |
|
|
（Driving device） |
|
IC:2037/2153 |
|
|
（Every square metre module） |
PCS |
30.5176 |
|
|
（Maximum power） |
W/ M2 |
450 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
≥1920/3840 |
|
|
（Equilibrium brightness） |
CD/ M2 |
900-1200mcd |
|
|
（Working environment temperature） |
0C |
-10~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC46～54HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
8500K-11500K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NOvaStar Linsn Coloright |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP50 |
|
|
（Steel box size） |
mm |
L512Xh512/768X768/640X640/960X960 |
|
