The pneumatic curved surface screen printing machine with up and down movement of the workbench is the best-selling curved surface screen printing machine in the market. It is widely used in monochrome screen printing of various cylindrical products such as cups, bottles, tubes, barrels, rings, etc. The operation procedure is: The working table rises, the screen moves, and the product rotates.
By choosing the right ink, the curved surface screen printing machine can print plastic, glass, wood, ceramics, metal, cloth, leather and other materials;
Curved screen printing machines can also cooperate with pre-press processing equipment and ink curing equipment to realize solvent-based printing and UV printing processes of polyolefin materials.
If overprinting or positioning silk screen printing is required, the product should have handles, holes, grooves, grooves, pins and other marks on it. When making the fixture, control the product to print at a certain angle as the starting point to ensure that the printing position meets the requirements. The second color, the third color and even more colors can be achieved by changing the screen and ink.

S-75S Multi-function screen printing machine//Usage and characters

85mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
You can use the foot switch for automatic operation, the safety factor greatly increased;
Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.

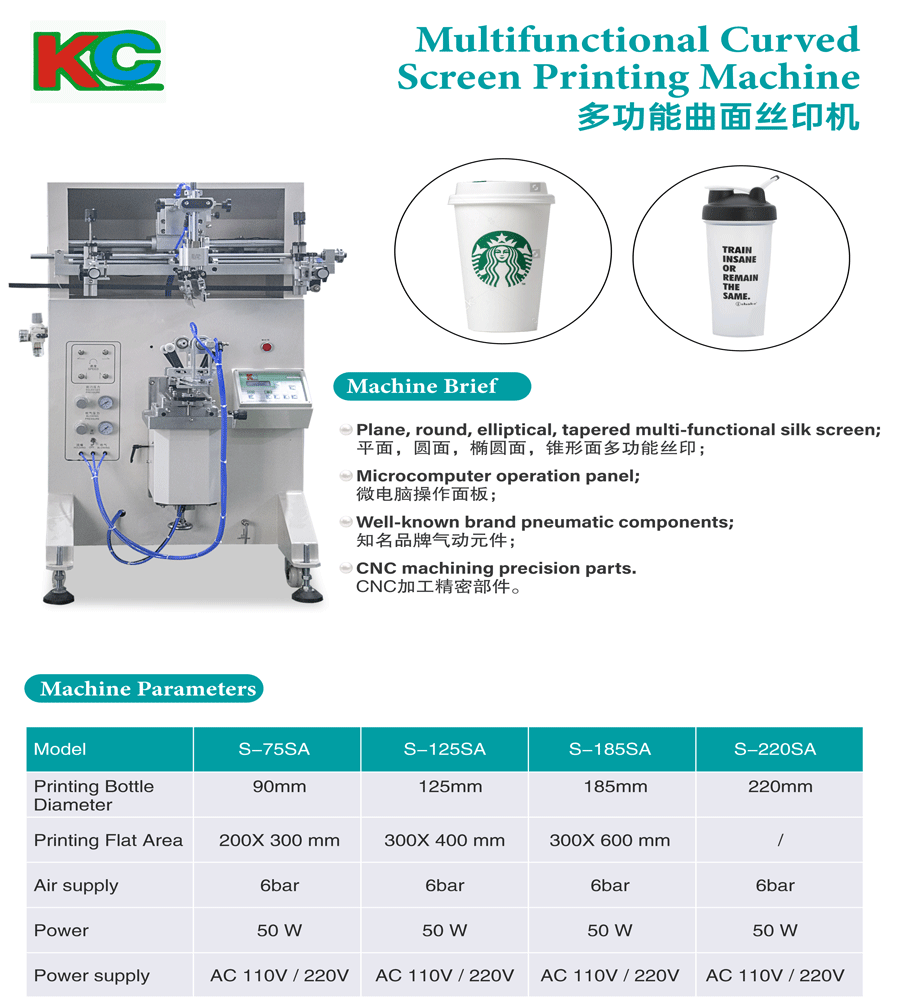

S-75S Multi-function screen printing Machine //Parameters

The max printing thickness: 200 MM;
Air consumption: 75 Lit/Min;
Outline size: 1080×850×1280MM;
The max printing area : 200×250MM;
Dimension of working table: 250mm×300mm;
Max printing speed: 1300Pc/H;
Max frame dimension: 410×350mm;
Stroke of Squeegee: 250mm;
Stroke of Table cylinder: 60mm;
Max Diameter of Products: 75mm`
Max length of Products: 300mm
Works supply: 110V-220V Power supply;5-7Barcompress air;
Outer dimension:0.80m×0.95m×1.26m
Net weight: 138kg
Package dimension:0.88m×0.78m×1.33m
Gross weight: 156kg
CBM: 0.9129
H.S.CODE: 8443198000
Certificate: CE

Catalogue

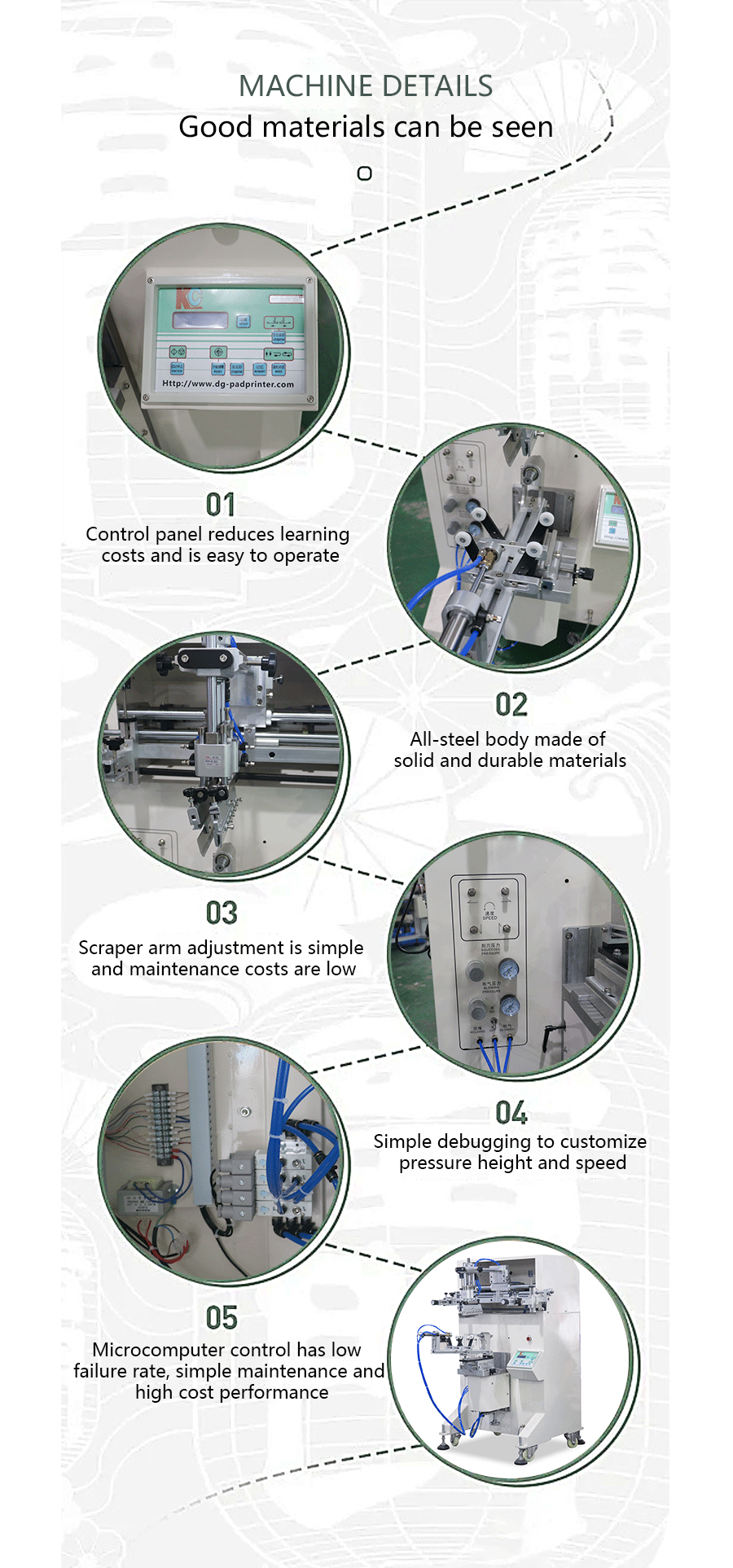

Details-advantage

Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
Microcomputer control program operations, set up a variety of modes;
Four counts digital LED count, high degree of automation;
Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
