DIN43650C IP67 Molded Cable Connector

2 year ago
55 0
Product details

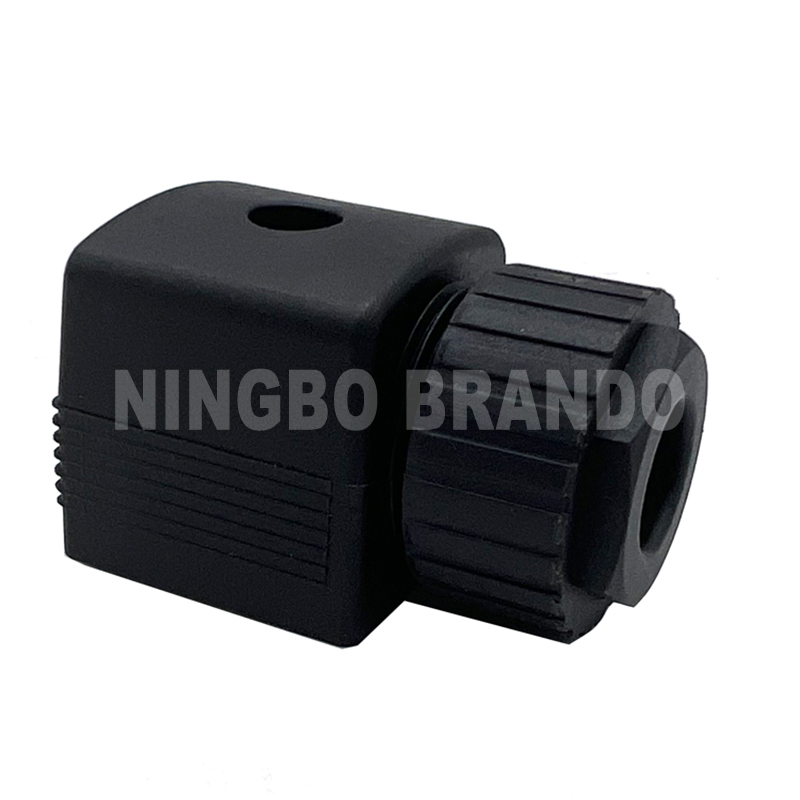

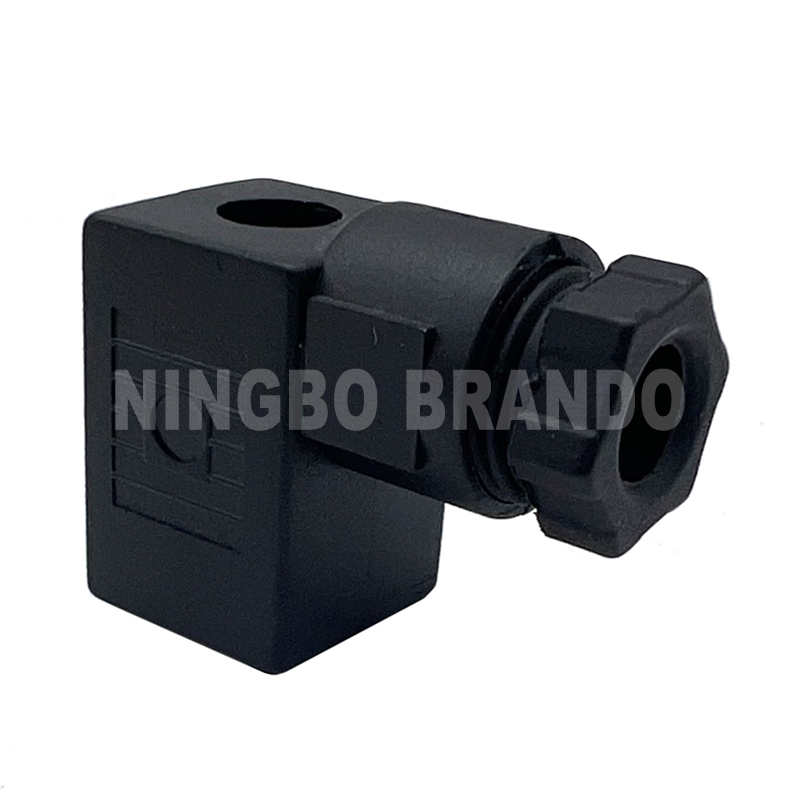

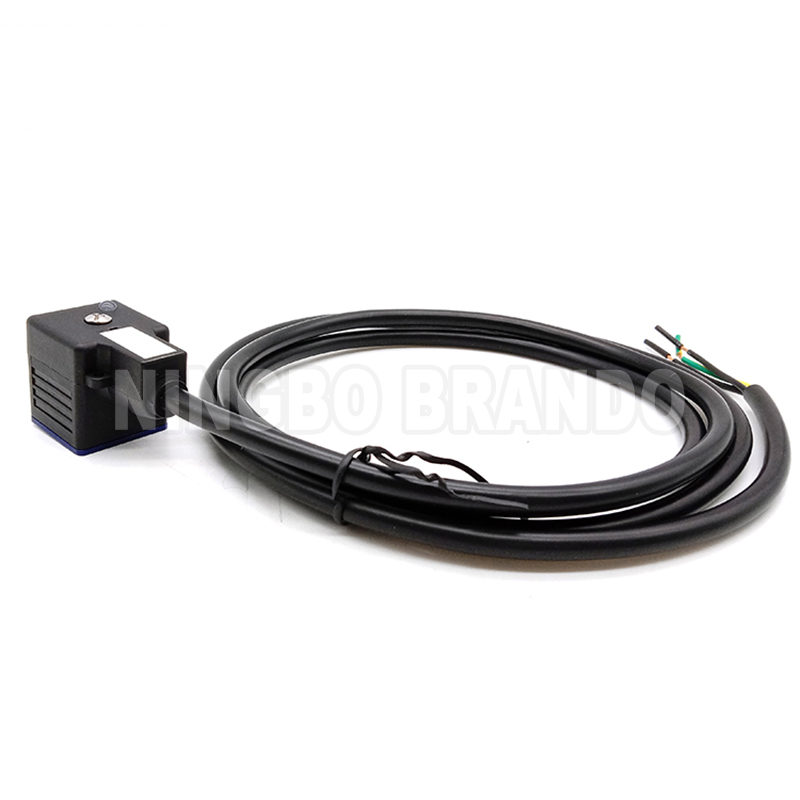

DIN43650C IP67 Molded Cable Solenoid Valve Coil Connector


BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.

Features:
1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent


Technical Data:

DIN Type
DIN43650C
Contact Spacing
9.4mm
Number of Poles
2 Poles + Ground, 3 Poles + Ground
Nomical Current
10A
Contact Resistance
≤5mΩ
Fixing Screw
 M3x28mm
Max Conductor Size
3x0.75mm²
Protection Class
IP67
Working Voltage
DC, AC
Cable Length
1 meter (can be customized)

Main Dimension:

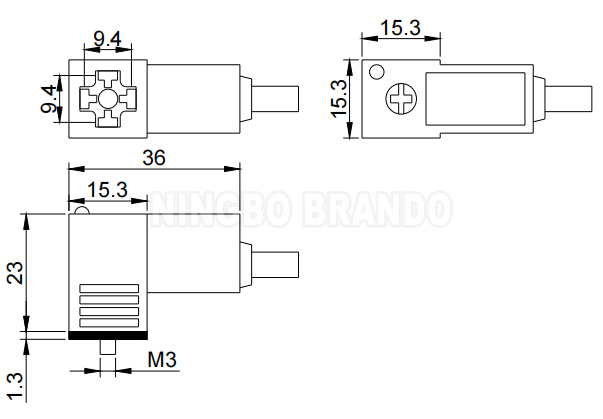

DIN43650C-CB Dimension


More DIN43650 Connectors:

DIN43650A Connector
DIN43650B Connector
DIN43650C Connector
DIN43650A DIN43650B DIN43650C

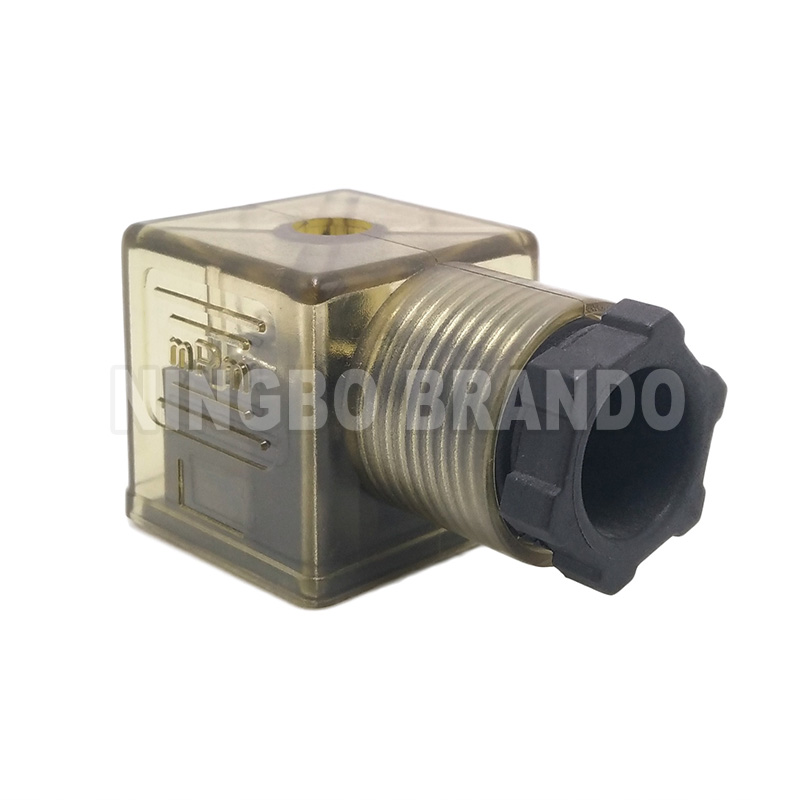

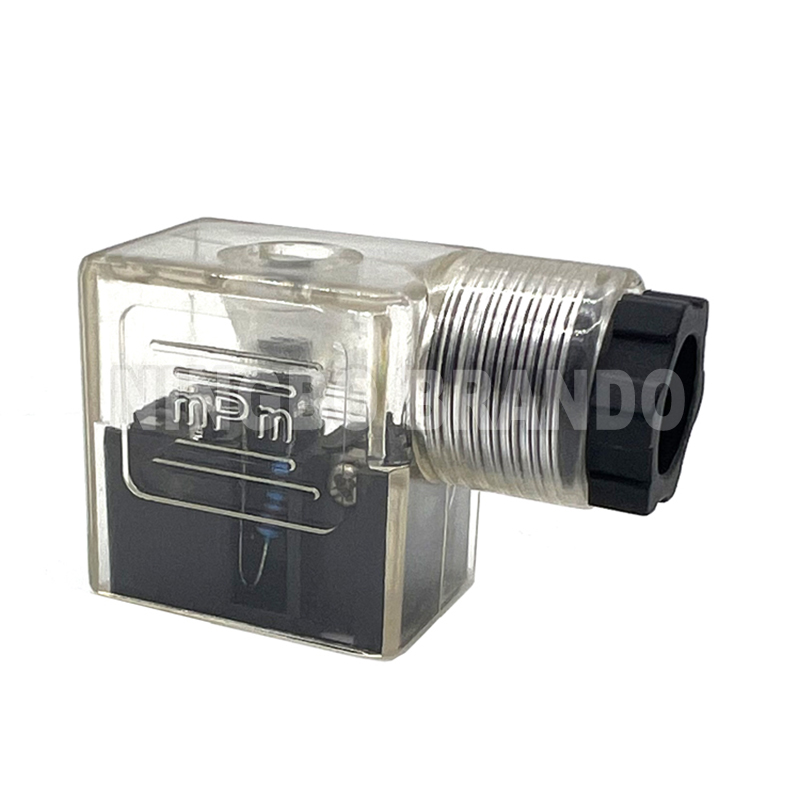

IP67 Waterproof Solenoid Coil Connector
IP67 Waterproof Molded Cable Solenoid Valve Connector
2508 Connector
Waterproof With Cable Others


Related Products:

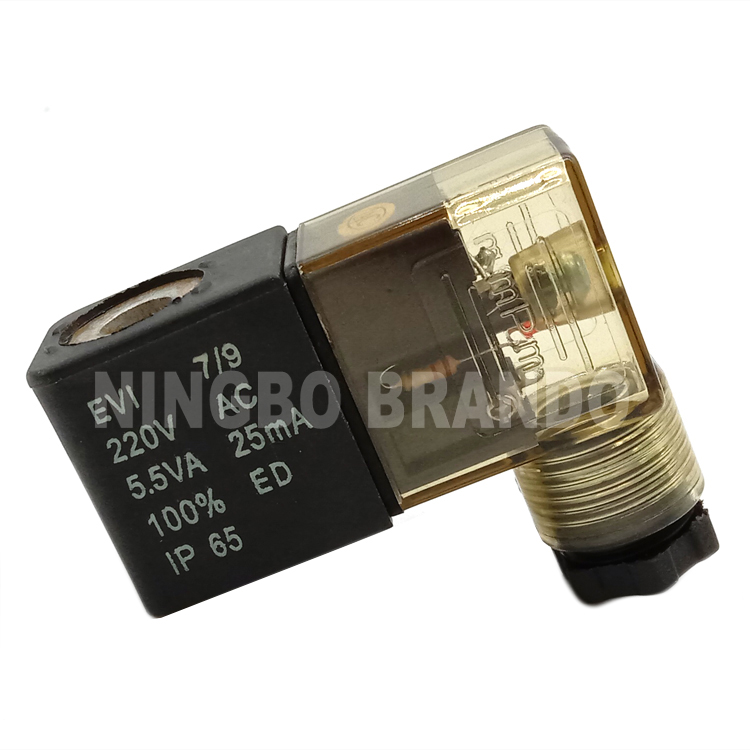

Solenoid Valve Coil 220VAC 5.5VA

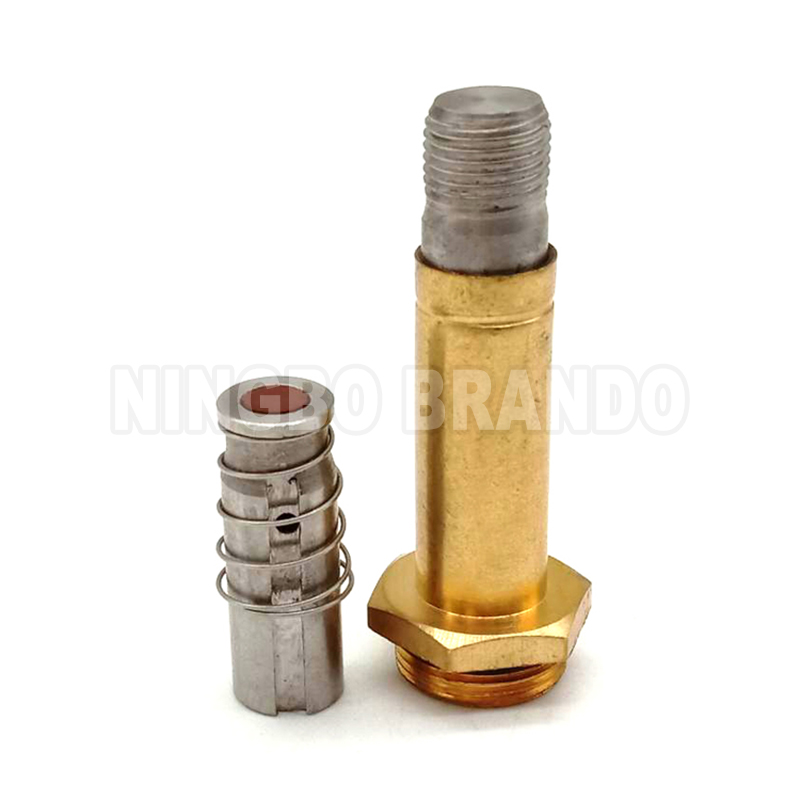

solenoid valve armature

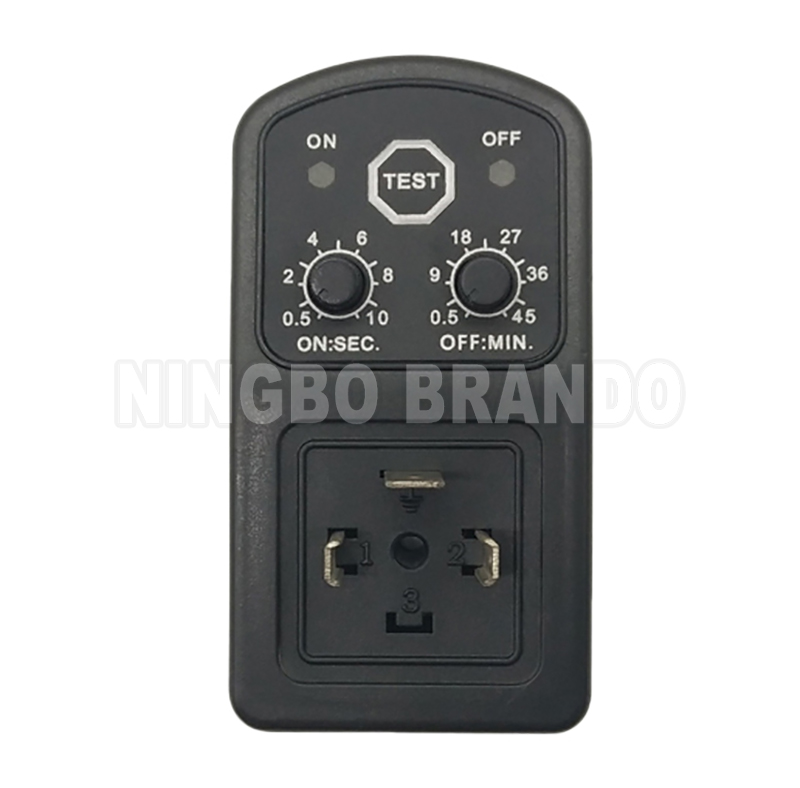

Solenoid Valve Timer

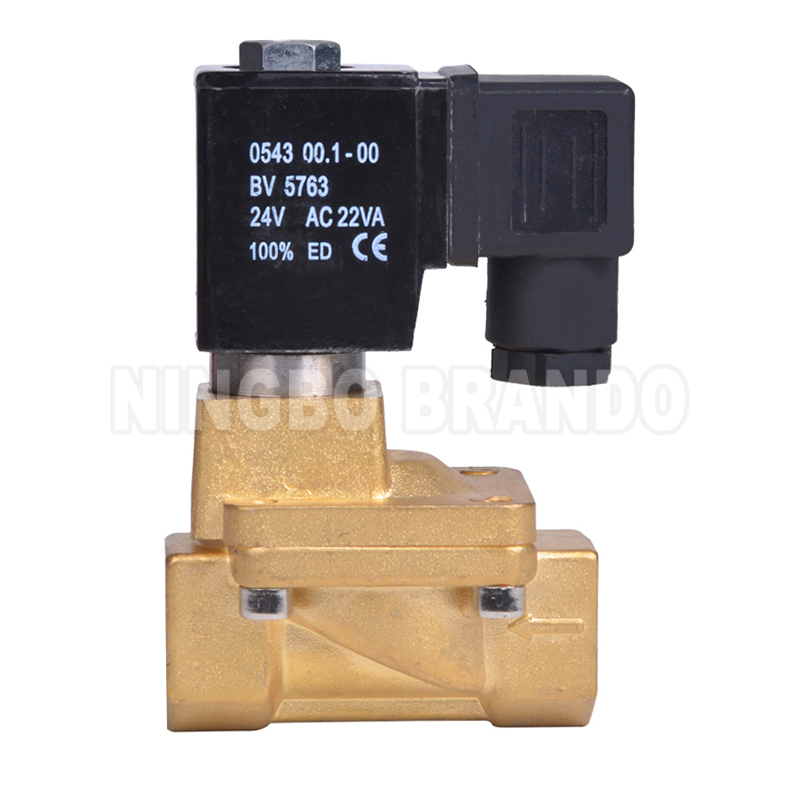

PU225 Solenoid Valve
