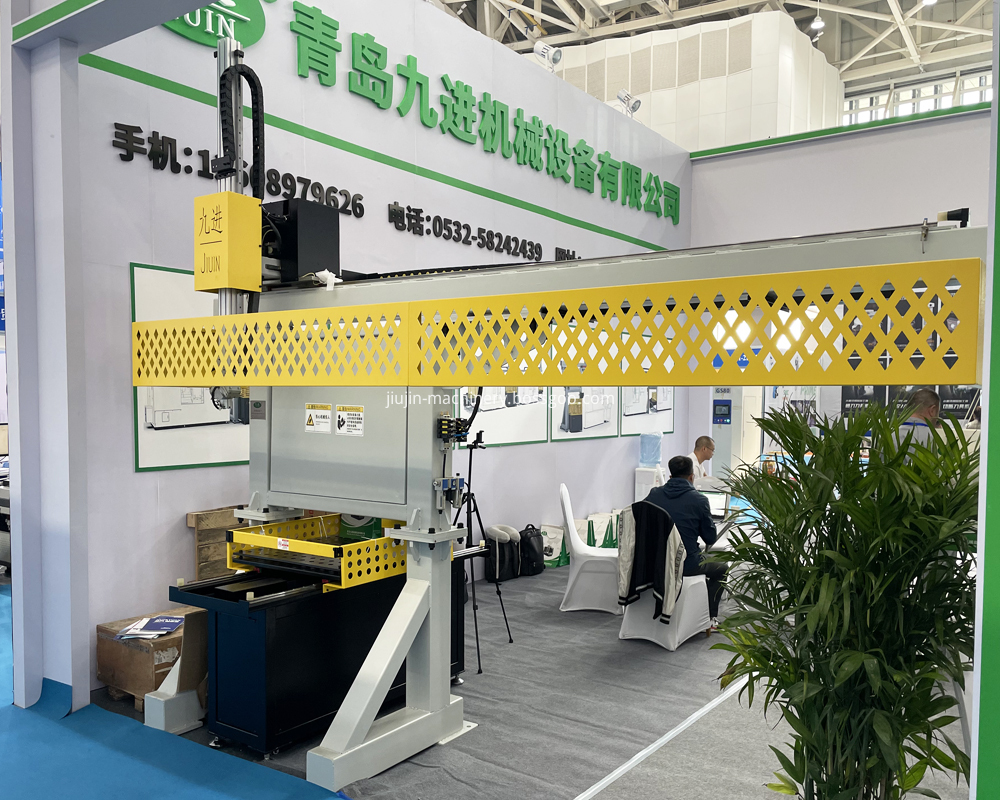

3-Axis One Gantry Robot With One Lathe
Product Advantages
Jiujin Machinery’s 3-Axis Gantry Robot is designed for one CNC Machine Tool and equipped with the automatic loading and unloading for CNC lathe, which has the following advantages.
1. High precision: It can accurately position and operate the workpieces, with high precision characteristics.
2. High efficiency: It can complete a lot of work in a short time and improve production efficiency and work efficiency.
3. Flexibility: It can be programmed and adjusted according to different processing tasks.
4. Safety: It can replace manual operation to reduce the risk of workers and the possibility of injury.
5. Reliability: It can work for a long time with high reliability and stability.
6. Automation: It can realize automated production, reduce labor intervention and management costs, and improve production efficiency and quality.
7. This series of Gantry Robots can combine with stock bin, gripper and claw to realize high automatic in industrial field.
Technical Parameters
|
Technical Parameters |
Unit |
GR325 |
|
Travel of X Axis |
mm |
2500 |
|
Travel of Y Axis |
mm |
200 |
|
Travel of Z Axis |
mm |
1200 |
|
Speed of X Axis |
m/min |
0-120 |
|
Speed of Y Axis |
m/min |
0-90 |
|
Speed of Z Axis |
m/min |
0-90 |
|
Payload |
kg |
0.5-50 |
|
Repeated Positioning Accuracy |
mm |
±0.05 |
|
Stock bin/Silo |
- |
Matrix Type |
|
Drive model |
- |
Servo+ Reducer |
|
Remark |
- |
Technical parameters can be customized on actual situation basis and customer's workpiece. |
