Common knowledge about solenoid diaphragm air pump

1. Working principle

The solenoid diaphragm air pump is a small diaphragm air pump driven by electromagnetism. Its working principle is to use an electromagnetic coil to generate a magnetic field and drive the movement of the diaphragm, thereby changing the gas pressure in the pump and realizing the inhalation and discharge of gas. The electromagnetic diaphragm air pump has the advantages of small size, light weight, simple operation and convenient maintenance, and is widely used in industry, medical treatment, scientific research and other fields.

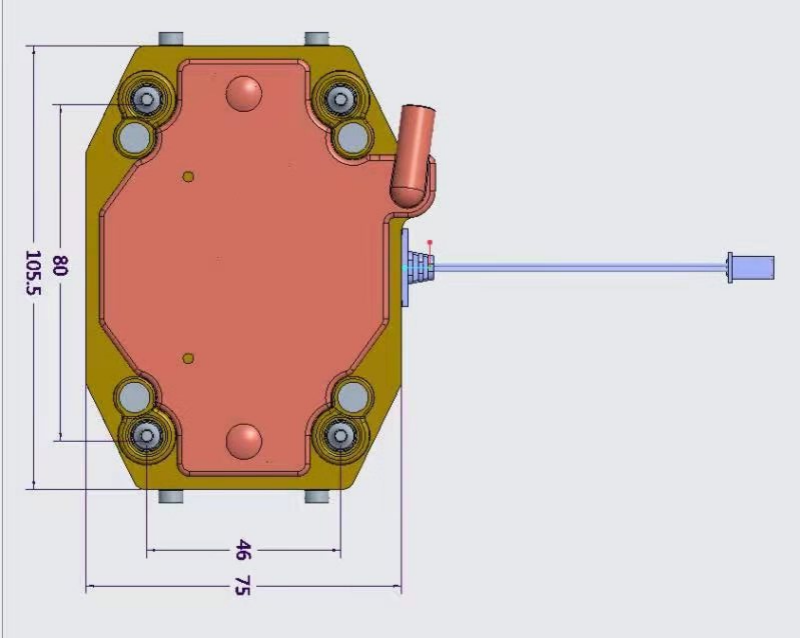

ac solenoid pump structure picture

2. Pump body structure

The pump body structure of the dc solenoid pump is mainly composed of an electromagnetic coil, a diaphragm, a pump shell, an exhaust valve, etc. Among them, the diaphragm is the core component. It is made of high temperature resistant and corrosion resistant materials and can move freely in the magnetic field generated by the electromagnetic coil. When the electromagnetic coil is energized, the magnetic field force drives the diaphragm to move to one side, thereby changing the gas pressure in the pump and realizing the suction and discharge of gas.

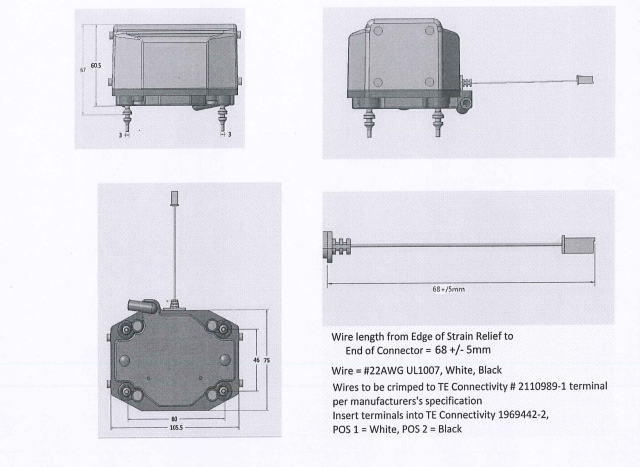

DHB15-24V (6)

3 performance characteristics

The mini solenoid pump has the following performance characteristics:

.High efficiency and energy saving: Because the small dcair pump uses electromagnetic drive, it has high energy conversion efficiency and can effectively reduce energy consumption.

·Small size and light weight: The small diaphragm air pump is small in size and light in weight, making it easy to carry and move.

·Low noise and low vibration: The small dc electric pump operates smoothly, has low noise, and has little impact on the surrounding environment.

·Simple maintenance: The electromagnetic diaphragm air pump has fewer parts, simple maintenance and long service life.

Technical specification

Product model	DHB15-24V	Voltage	DC24V
Diameter	60.575105.5MM	Rated power	6-11W
Suction value	26-36KPA	Flow Rate	>14L/MIN
Noise Level	<60db@30cm	Application	Health and fitness,anti-thrombus and lymphatic circulation therapy

How is the output pressure of the solenoid air pump determined?

Generally speaking, the output pressure of a miniature diaphragm electromagnetic air pump depends on the design of the pump, including the size, material and internal structure of the pump. In addition, the operating environment of the pump will also have an impact on the output pressure, such as the pump's operating temperature, medium viscosity, pump speed, etc.

During the pump design process, designers will optimize based on application requirements and pump performance parameters, determine the pump's internal structure and materials, and predict the pump's output pressure. In actual operation, the output pressure of the pump will also be affected by the actual operating environment, such as operating temperature, medium viscosity, pump speed, etc. These factors may affect the output pressure of the pump.

It should be noted that the output pressure of the mini electric air pump is usually determined under the rated working conditions of the pump, which is to ensure the safe and stable operation of the pump. If actual operating conditions deviate from rated operating conditions, the pump output pressure may change. Therefore, when using a miniature diaphragm electromagnetic air pump, it is necessary to select and adjust it according to the actual situation to ensure the stable operation of the pump and achieve the expected performance indicators.

Solenoid pump application

How to choose a solenoid pump？
Electromagnetic pump types and models are very much involved in the flow and power is different, in the purchase of products at the same time also need to see the product field used, understand the flow and power of the electromagnetic pump can be used for better delivery of fluid material, especially the pump power size determines the power capacity of the entire equipment, Only in the case of sufficient power can ensure that the flow of the pump body is in place.

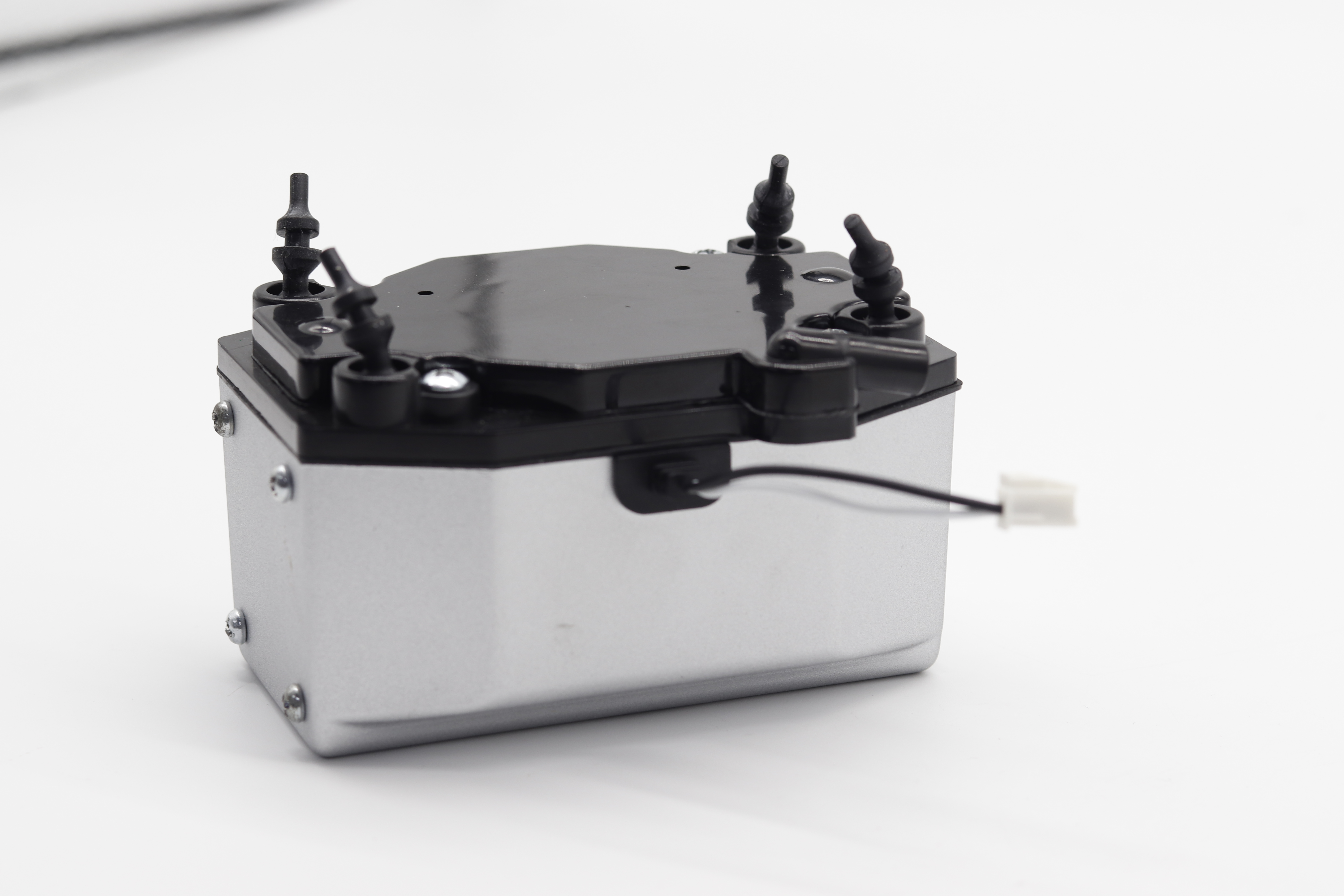

solenoid air pump

In order to maintain the good performance and service life of the electromagnetic diaphragm air pump, regular maintenance is required. Specific measures include:

·Regularly check whether the solenoid coil and diaphragm are working properly. If abnormal sound or vibration is found, stop the machine immediately for inspection and repair.

.Regularly clean the inside of the pump body and the exhaust valve. Care should be taken not to damage components and circuits when cleaning.

·Regularly check the power cord for damage or looseness. If there is any problem, it should be repaired or replaced in time.

.After each use, the pump body should be wiped clean and lubricated to prevent rust and wear.

·If it is not used for a long time, the pump body should be disassembled, cleaned and stored in a dry and ventilated place. At the same time, regularly check its performance status and add lubricating oil and other maintenance measures to extend its service life.
