Product details

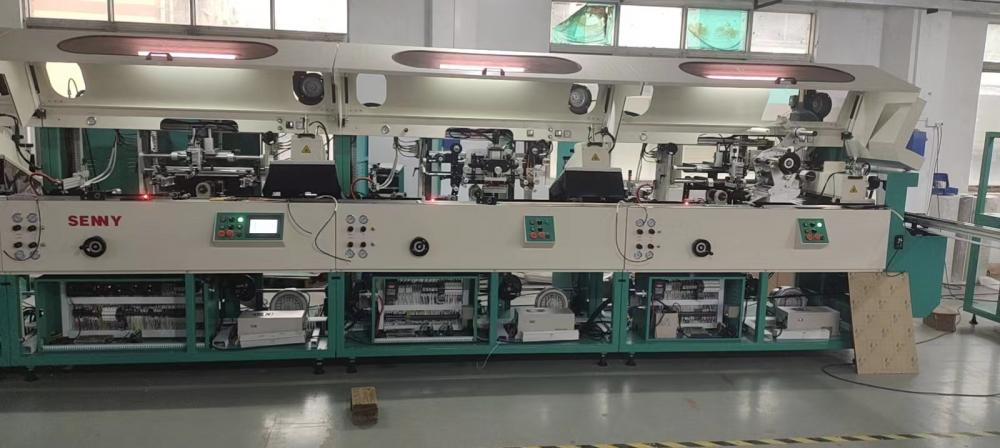

Linear Screen Printing and Hot Stamping Machine

SAFE EFFICIENCY INNOVATIVE

Servo-driven automatic machine for silk-screen printing, hot stamping or labeling of containers in plastic or other materials，having a circular，elliptical，square or rectangular section with centered or off-center neck, and it is easy for changing different shapes on printing section.
Shape changeover: 30 minutes for each machine, from cylindrical format to elliptical or flat format.
Linear unit structure combination: option of adding up to a total of eight in-line colors .
The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
In-feeding parts includes: in-feeding belt and machine hand for side-selection.
The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
Flame treatment for round,elliptical and rectangle container
Device for pre-positioning
Second time positioning for printing.
Electronic lift for squeegee.
UV curing by rotating round container driven by stepper motor.
Electronic UV system :device for adjusting light freely(LED UV curing system can be as a replacement)
Elliptical and square container side-selection for auxiliary machine section*
Out put parts:Machine hand for container standing up and belt
Conform to CE standard.

Optional Configuration:

- Plasma or flame surface treatment system.

- Hot stamping or labeling system.

- LED-UV curing or UV curing system.

Plastic Bottle Printing Machine Parameters:

Machine Model	SL1666	SL1688
Printing Speed	Up to 85pcs/min	Up to 80pcs/min
Round Bottle Diameter	20-100mm	20-100mm
Oval Bottle Radius	X	25-250mm
Oval/Flat Bottle Width	X	20-100mm
Bottle Height	50-280mm	50-280mm
Printing Length	250mm	250mm
Printing Height	200mm	200mm

We are manufacturer of all kinds of printing and packing machines for bottles/jars/tube/flat and round bucket/caps/mobile phone glass, etc, including:

1.Screen printing machine

2. Labelling machine

3. Pad printing machine

4. Offset printing machine

5. Some auxiliary machine and customized machine
