Product details

The size of TENDA 3-axle fence cargo trailer can be customized, 20 feet, 40 feet or 45 feet. We can design any size you need. If you have no idea, we will also recommend the appropriate type according to your needs to meet your transportation needs. This one is the standard size 40 feet and can meet the needs of most customers. Tri axle fence semi trailer generally less expensive compared to other specialized trailers, making them a cost-effective option for businesses that require flexibility in cargo transportation.

Fence semi-trailers are versatile and can be used to transport a variety of goods. The open enclosure design promotes airflow, which is beneficial for transporting goods that require ventilation. It helps maintain proper temperature and air quality for sensitive goods such as fresh produce and livestock.

Specification：

Type	3 axles fence semi trailer
Total Length	Approx 12,500 mm
Total Width	Approx 2,500 mm (including mud guard)
Total Height	Approx 3,850mm, adjustable according to the request
King Pin Location	Approx 972mm from the front face of the front bolster
Wheelbase	Approx 5,110mm+1310mm+1310mm
Landing Gear location	2,420mm behind the king pin location
Fifth wheel (King Pin) Height	Approx 1,350mm with the chassis level
Capacity	60 tons
Tare Weight	Approx 8,100 kg (Tolerance 0~-4%)
Max. Payload	Approx 60,000
Gross Vehicle Weight	Approx 68,100 kg
Main Beam	High strength low alloy steel (700 MPa) is used for welded I-beam and (345MPa) is used for welded fabricated parts. Top 14mm, middle 10mm, bottom 16mm.
Sidewall Dimension	12500x2500x2400(Board 800+ Fence 1600)mm, Floor 3mm, side 1.5mm, adjustable according to request.
Kingpin	2” or 3.5’’ Brand: JOST. Made in China.
Landing Gear	Jost or Goldstone, Lifting capacity 30T and static load 80T.
Suspension	American type mechanical spring suspension, the leaf spring is 8pcs.
Axles	3x13T, Fuwa, BPW, or Chinese famous brand.
Rims	9.0-22.5，12 pieces. 10 holes Steel rim, Made in China.
Tires	315/80R22.5, 12pieces. China First-level Brand, Made in China.
Brake System	Dual air brake system, WABCO or Haldex relay valve, none ABS brake system.
Brake chamber	Type 30/30 on the rear two axles, Type 30 on the first axle.
Electrical System	24 volt lighting system, 7-way receptacle, ISO standard.
Spare tire carrier	One set spare tire carrier
Side guard	None
Tool Box	One
Reflector tape	Side yellow color and rear red color reflector tap
Mudguard	Mudguard on top of tire.
Painting & Logo	As client ‘s request.

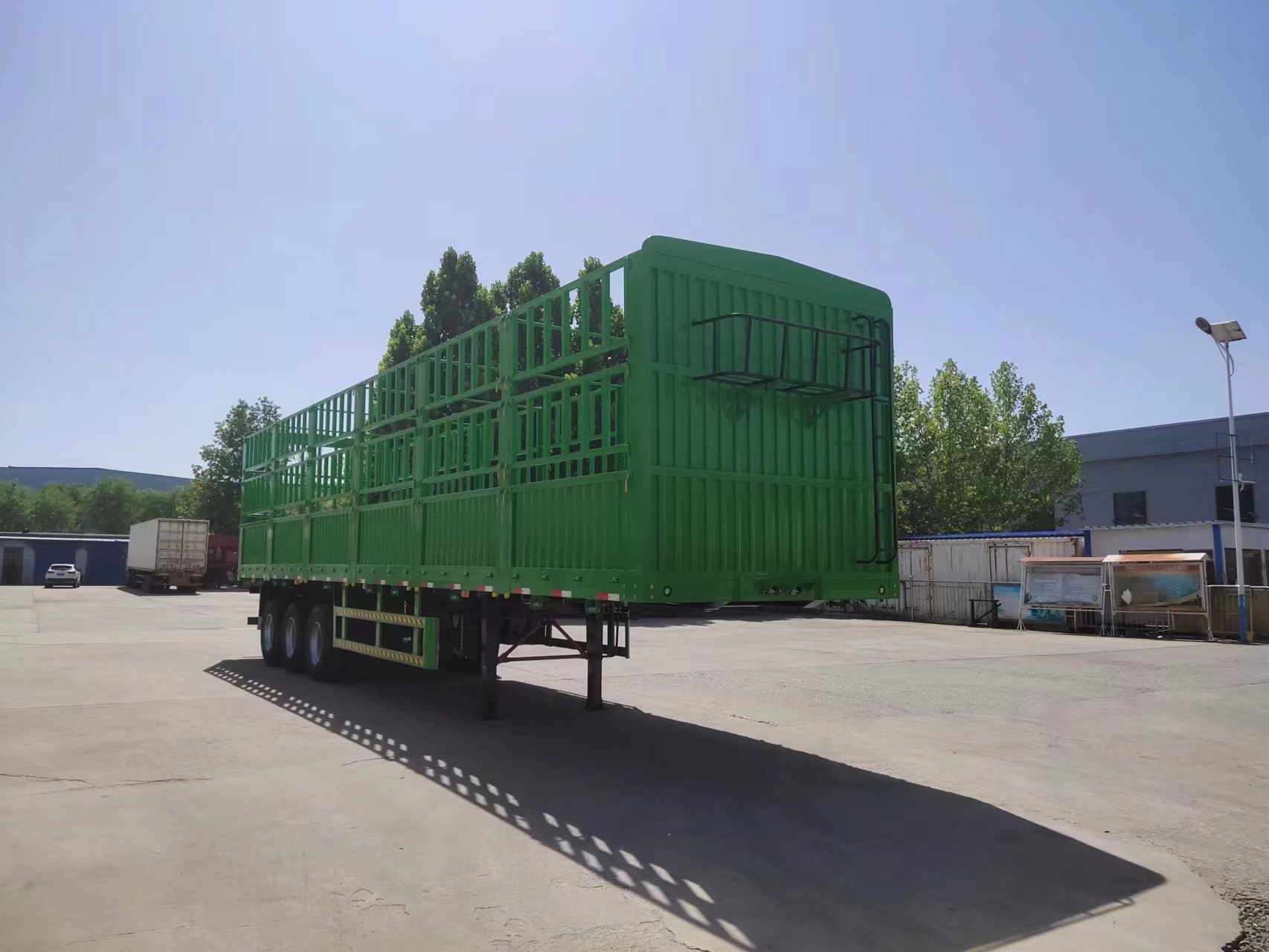

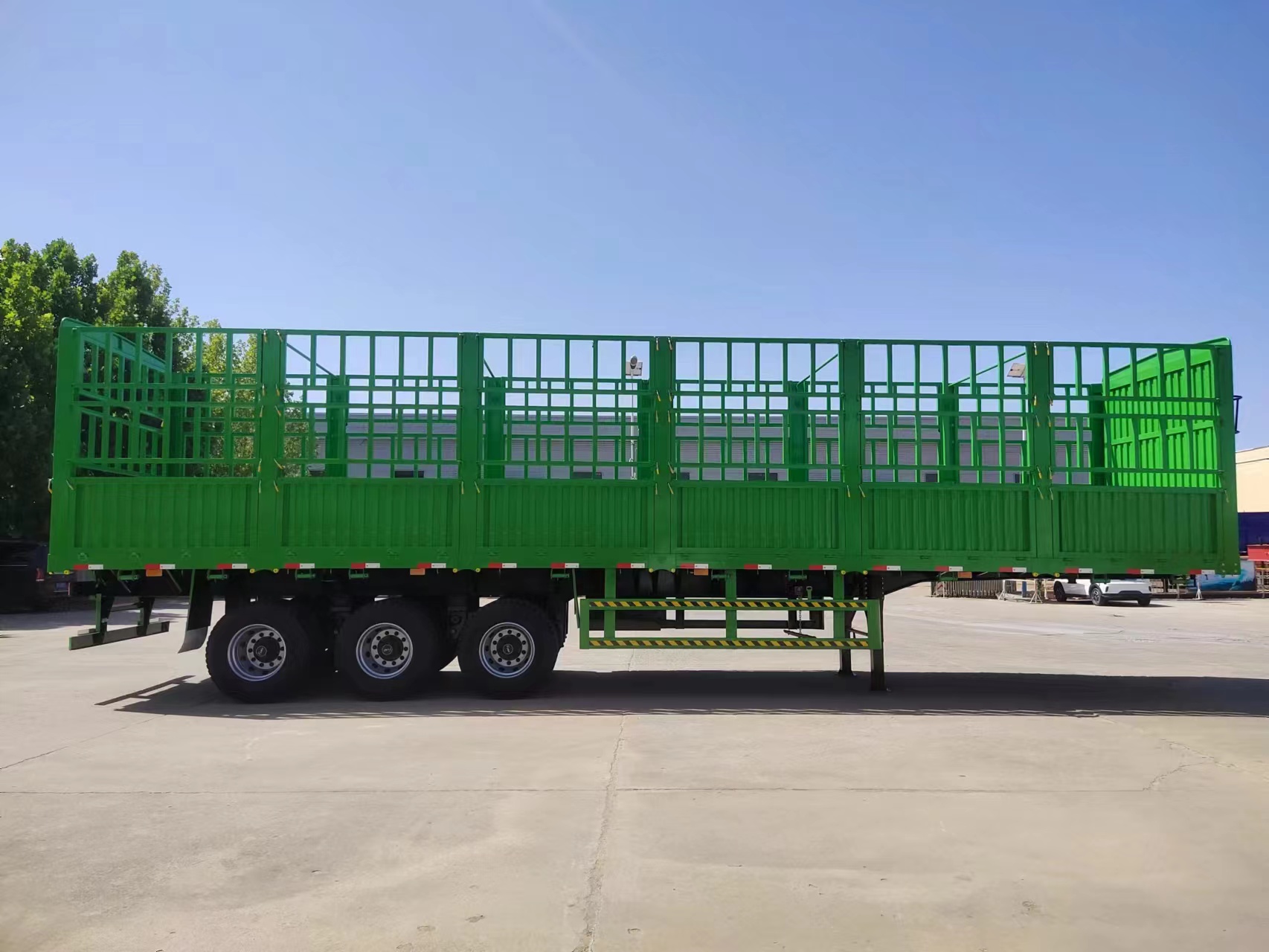

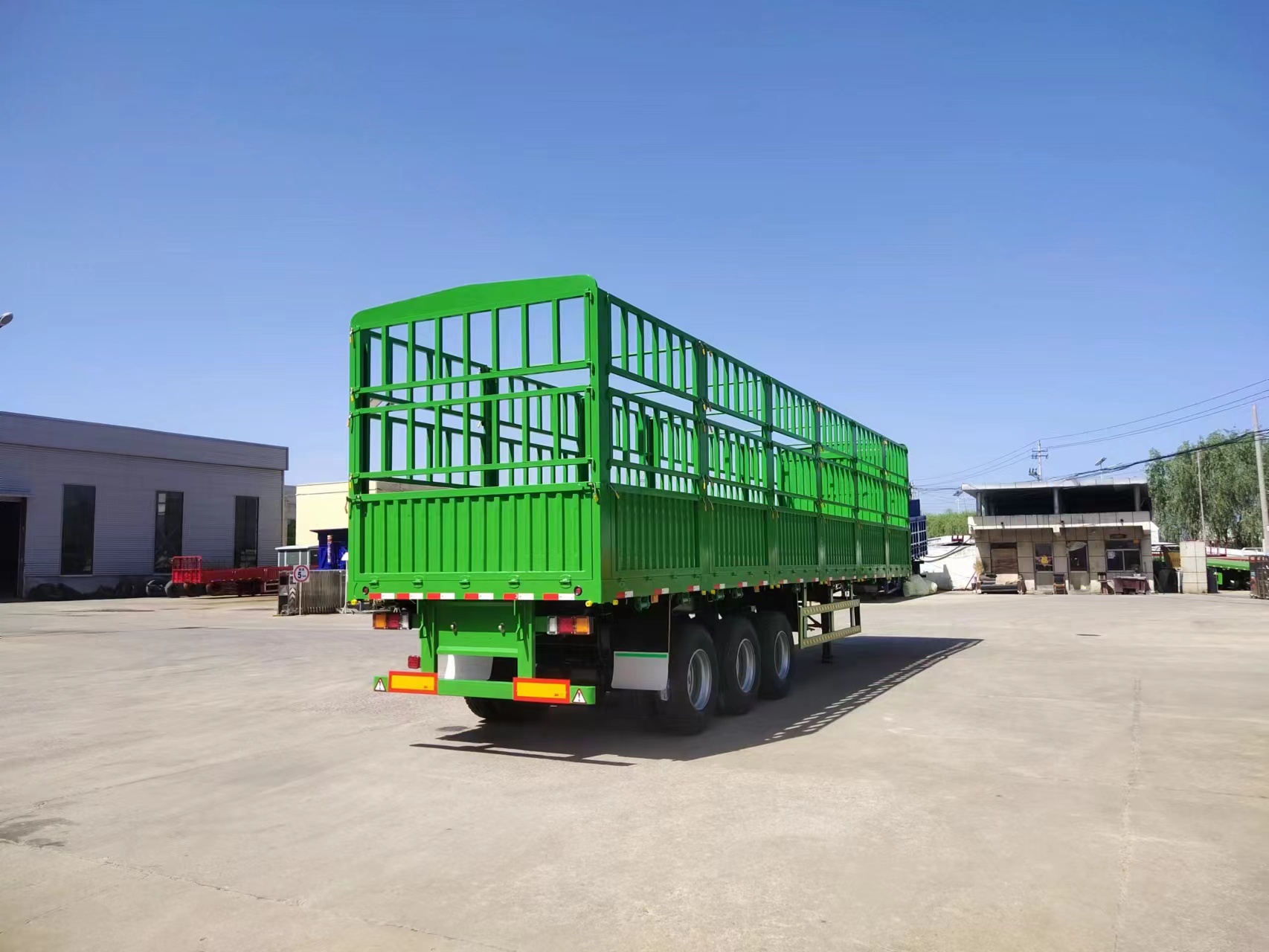

3 Axles Fence Semi Trailer
