SD20U 2 TON MINI CRAWLER EXCAVATOR
SD20U IS THE HIGH END 2 TON MINI EXCAVATORS.IT USES YANMAR ENGINES,HUSCO VALVE,EATON MOTORS;WITH BOOM SWAY & EXPANDING TRACKS.

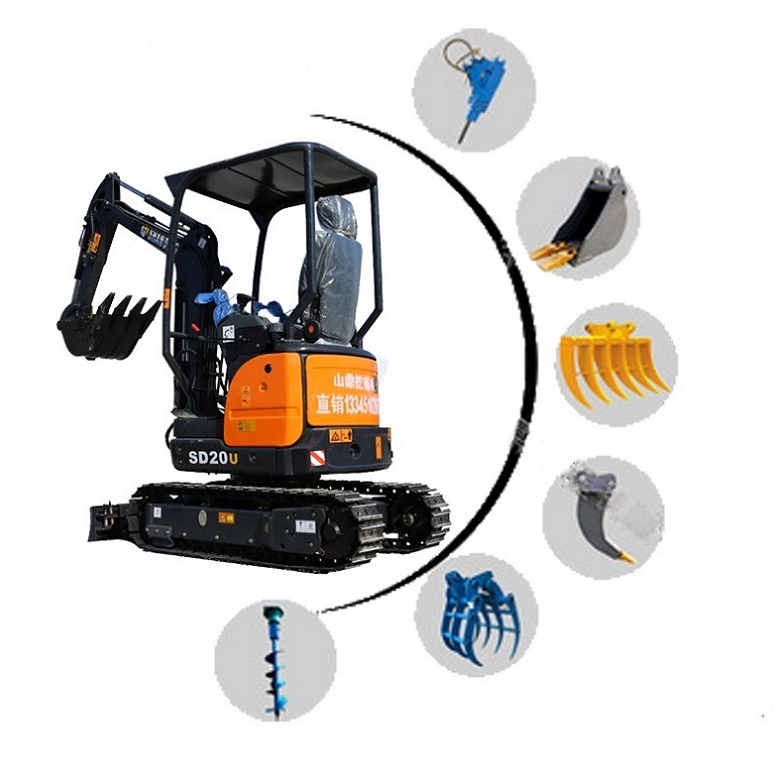

SD20U excavator accesses jobsites where exhausting hand labor is your only other option. You can easily navigate through narrower openings and operate in tighter conditions. Zero Tail Swing offers the greatest flexibility to slew and deposit spoil while offering the most protection against jobsite obstacles.It can work with all the accessories!

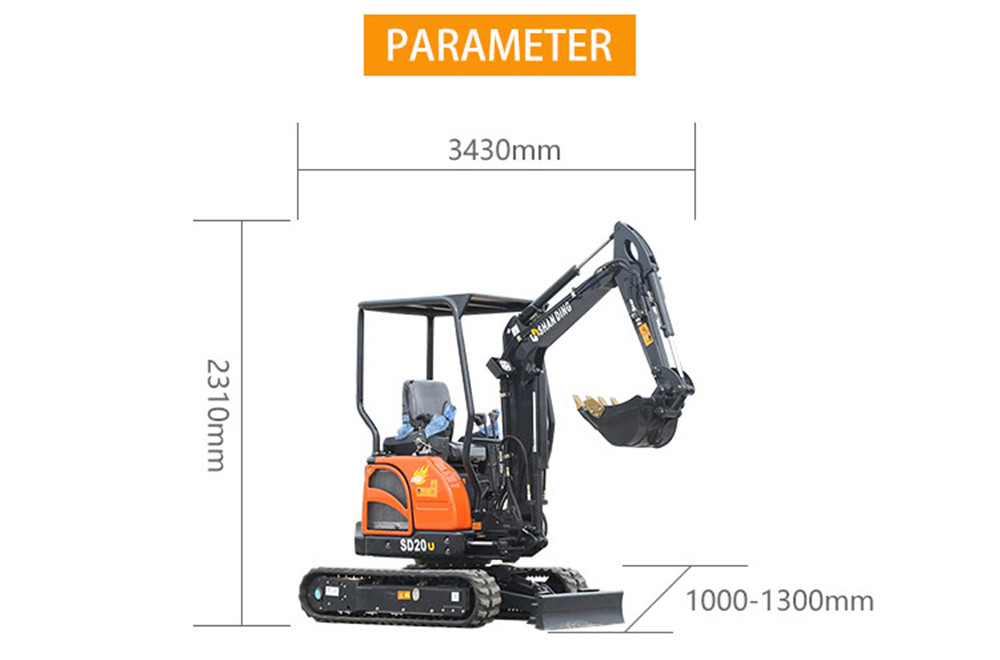

SD20U MAIN PARAMETERS
Overall size
Overall Length
3400mm
Overall Width
1000mm
Overall Height
2280mm
Minimum radius of Tail gyration
670mm
Track Length
1550mm
Track Width
230mm
Min. Ground Clearance
200mm
Platform Width
995mm
Track ground length
1250mm
Platform Height Above Ground
480mm
Transport Length
3400mm
Arm Length
950mm
Boom Length
1700mm
Bucket Width
450mm
Machine parameters
Weight
1980Kg
Bucket Capacity
0.06m³
Rated Power
11.8KW
Cylinders
3
Max Hydraulic Pressure
18MPa
Max. Grade
30°
Ground Pressure
28kpa
Max. Walking Speed
2.5-3.5Km/h
Max. Traction
14.8KN
Max Platform Rotation Speed
10rmp
Max. Bucket Digging Force
16KN
Max Arm Digging Force
19KN
Working range
Max. Digging Height
3400mm
Max. Dumping Height
2400mm
Max. Digging Depth
2050mm
Max Digging Radius
3732mm
Boom cylinder stroke
675mm
Arm cylinder stroke
625mm
Bucket cylinder stroke
525mm
Machine configure
Model No.
SD20U
Engine Model
Main Pump
FUTAI-THREE PUMP SYSTEM
Main Valve
Husco
Walking Motor
EATON
Rotation Motor
EATON
Boom,arm and Undercarriage
Use IHI design
Boom swing
with
Tractable undercarriage
Track Type
Rubber ( steel track optional)
ADVANTAGES:
YANMAR 3TNV74
WITH

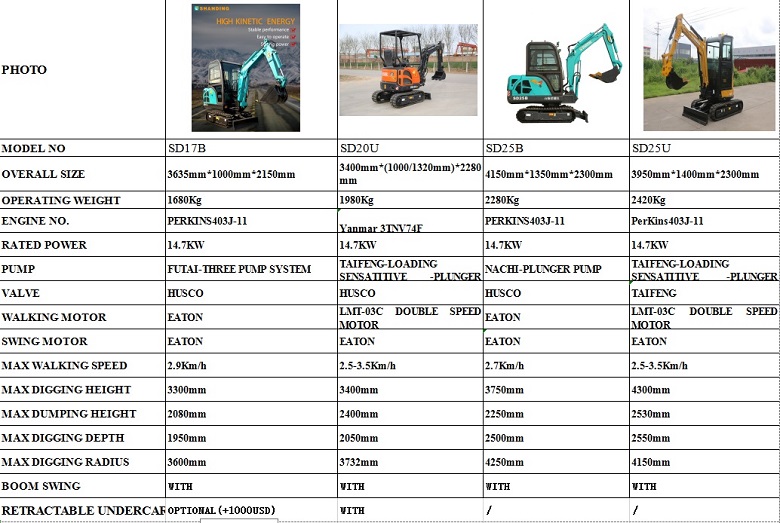

OTHER PRODUCTS:
OUR FACTORY AND CERTIFICATIONS:
