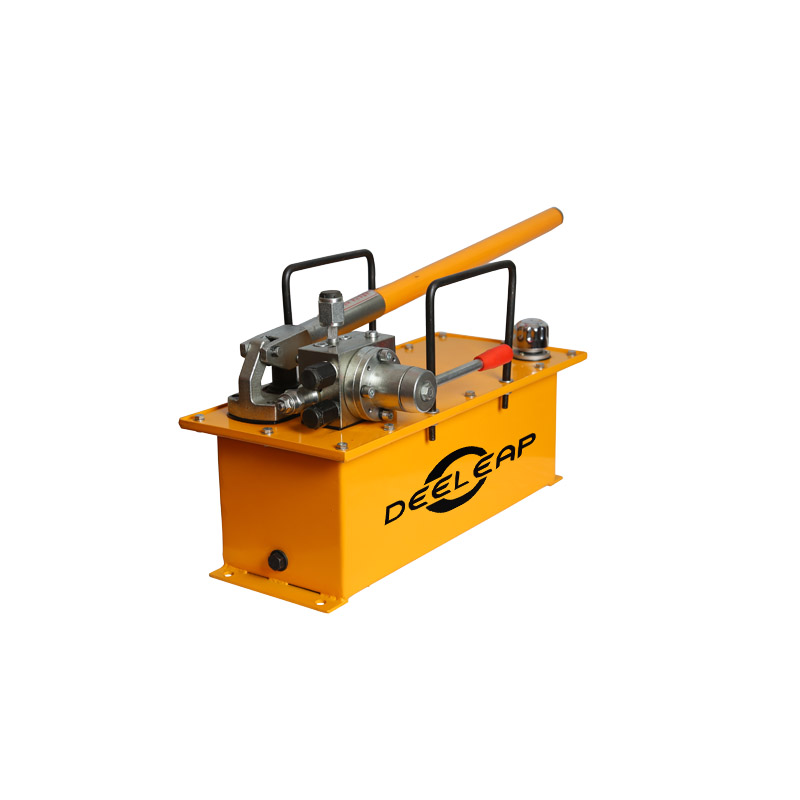

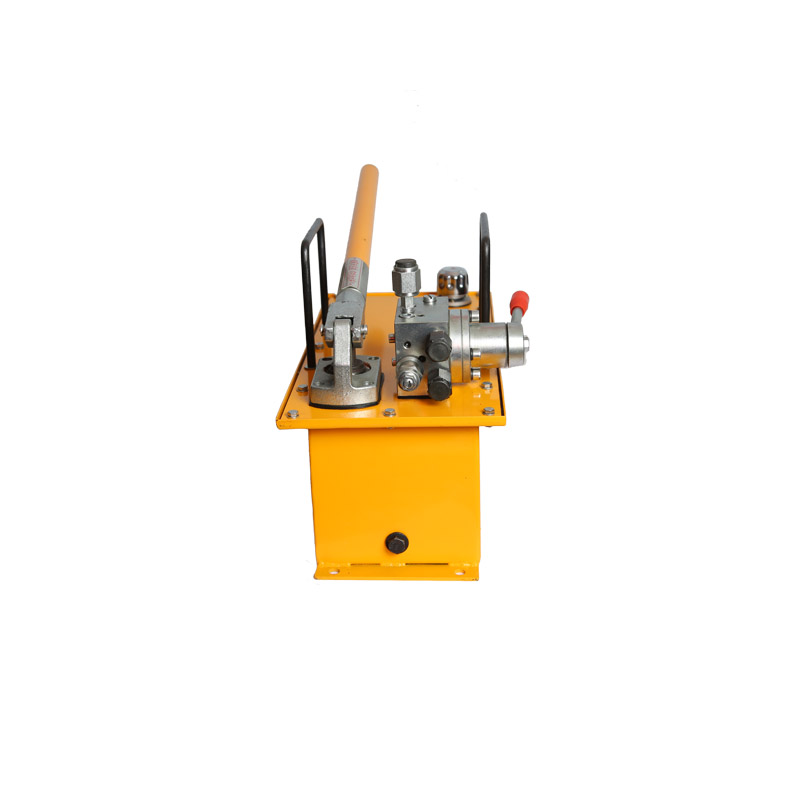

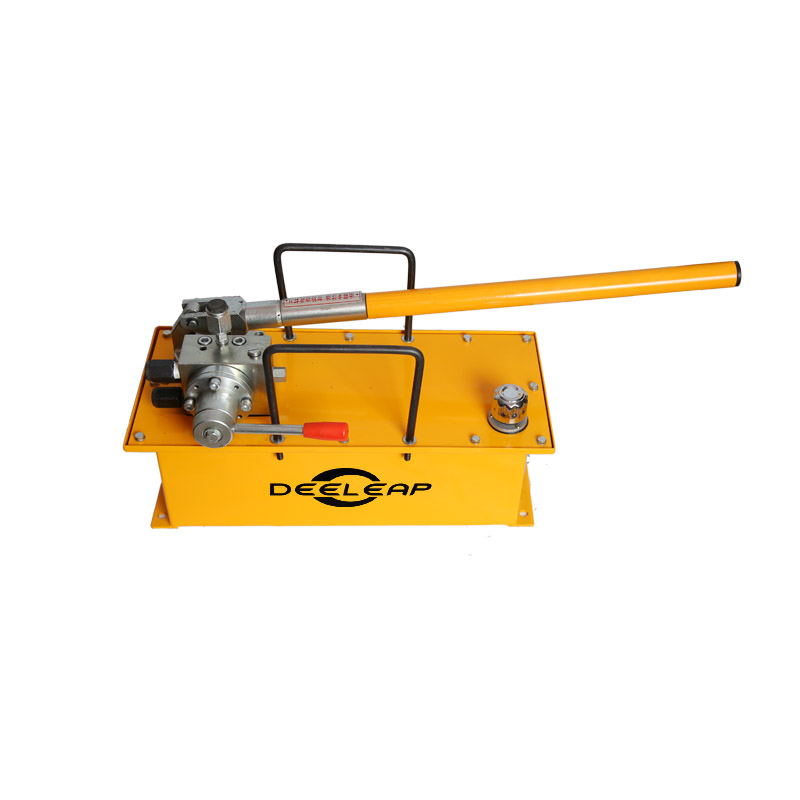

Name: Large displacement single acting manual hydraulic pump PMS-2B
The large displacement single acting manual hydraulic pump is a hydraulic devices that use manual force to generate hydraulic power. These pumps are typically used in applications where a large volume of fluid needs to be moved or where a high amount of force is required. The large displacement of these pumps means that they can move a significant amount of fluid with each stroke, making them suitable for applications where a high flow rate is required. This can be useful in situations such as lifting heavy loads, pressing or clamping operations, or powering hydraulic cylinder. More details about this product, see the following description.
Large displacement Manual hydraulic pump Technical Parameter
NO.3
Large displacement Manual hydraulic pump Technical Parameter 手动液压泵-大排量
Model No.
Preset pressure
Mpa
Rated displacement
ml/time
Maximum
hand crank
N
Capacity
L
Weight(kg)
Remark
high pressure
low pressure
high pressure
low pressure
PMS-2B
63
2
6
45
≤500
10
16
Double pump single oil circuit
PMD-2BS
63
2
6
45
≤500
10
16
Double pump double oil circuit belt
Manual reversing valve

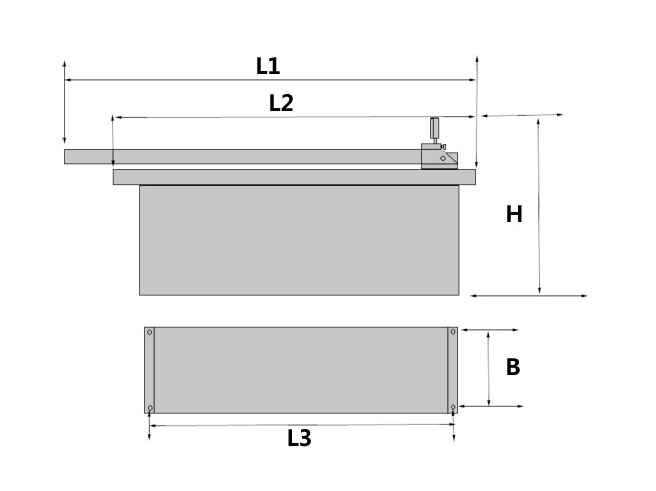

Large displacement Manual hydraulic pump dimension:
Model No.
Pump Station Type
Pump Size
L1
L2
L3
B
H
mm
mm
mm
mm
mm
PMS-2B
Large displacement
740
500
470
130
320
PMD-2BS
Large displacement
740
500
470
130
320

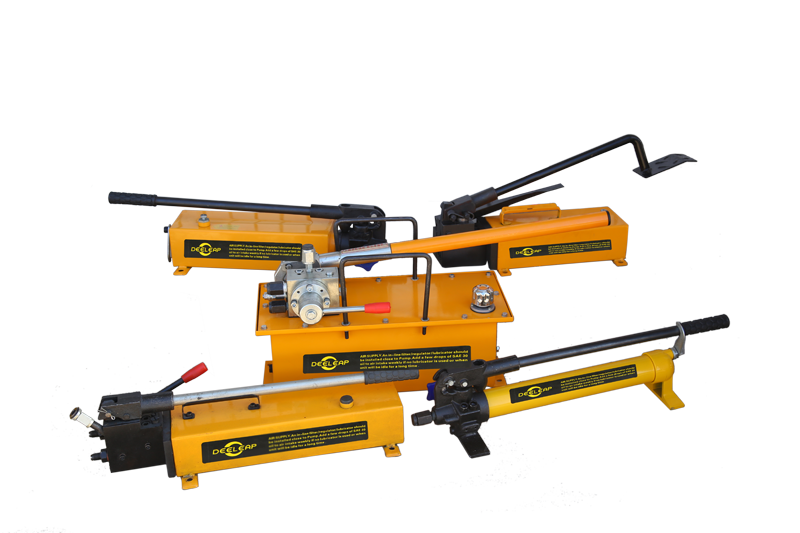

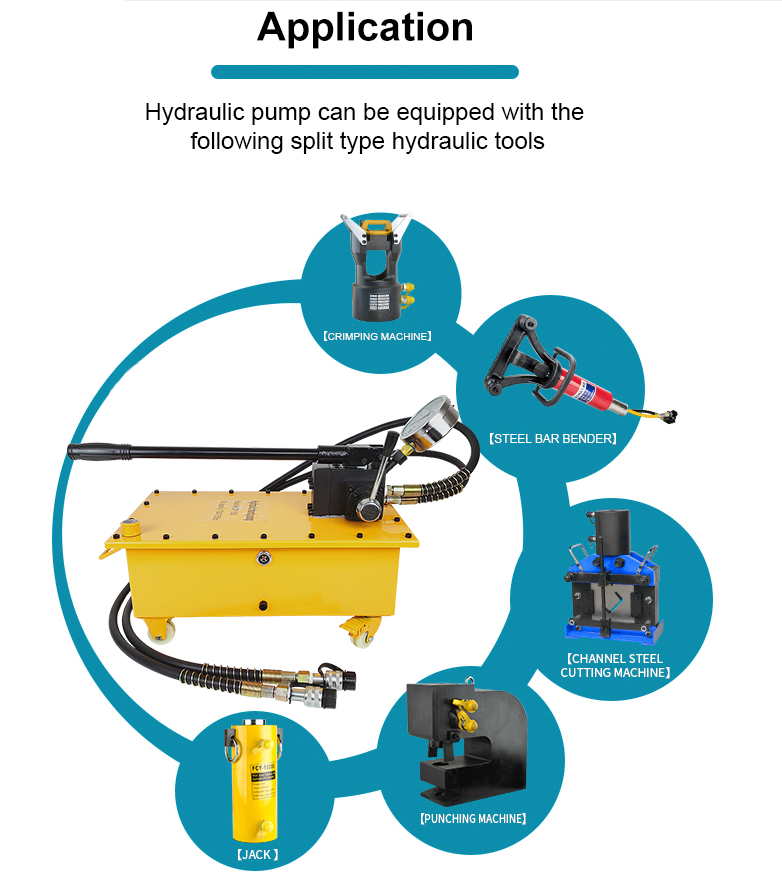

Hydraulic pump application:

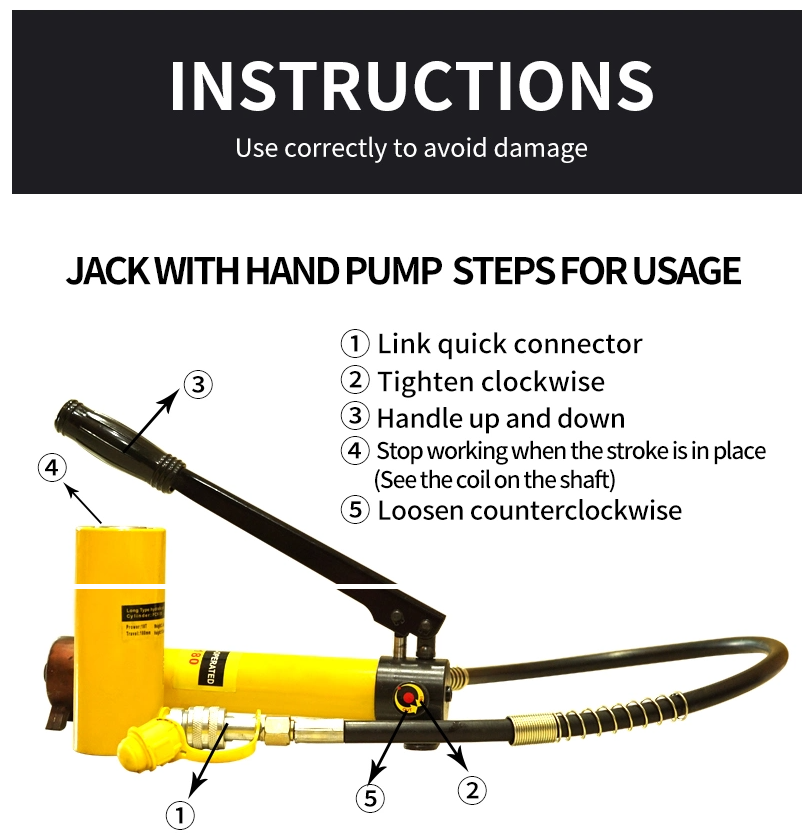

Hydraulic hand pump instrucions:
About us
Yantai Dongyue Hydraulic Technology Co., Ltd. is a reputable manufacturer that specializes in the design and manufacturing of a wide range of high-pressure hydraulic tools and equipment. Our product portfolio encompasses pneumatic hydraulic pumps, electric hydraulic pumps, manual hydraulic pumps, high-pressure jack cylinders, and various other hydraulic tools.
