Two-speed double-acting pneumatic hydraulic pump
A two-speed double-acting pneumatic hydraulic pump is a device that is used to generate hydraulic pressure using compressed air. It has two speed settings, allowing for different levels of pressure generation. The pump is double-acting, meaning it can generate pressure in both directions of its stroke. This type of pump is commonly used in various industrial applications where hydraulic power is required.
Function type: two-speed double-acting
Drive mode: pneumatic
Operation mode: pedal or hand operated.
Medium: L-HM32# or L-HV32# anti-wear hydraulic oil
Performance: high and low pressure two-stage large flow, fast speed and high efficiency.
Applicable tools: suitable for double-acting cylinders and hydraulic tools. Can also be used for single-acting cylinders and hydraulic tools.
Applicable fields: Widely used in automobile maintenance, metallurgy, petroleum, chemical industry, electric power, lifting, construction, mining, railway, ship and many other industries
| Air pressure（kg/cm³） | Air consumption（L/min） | Rated pressureMpa | Flow Rate（L/min） | Air Intake Port | Oil outlet | ||
| low pressure | high pressure | primary flow | Secondary flow | ||||
| 1.7-8.6 | 510 | 25 | 70 | 3 | 0.15 | 1/4"-18NPTF | 3/8"-18NPTF*2 |
| Item No. | Reservoir | Reservoir Type | weight | |
| capacity | usable | |||
| L | L | kg | ||
| PAD25 | 5.2 | 5 | Steel reservoir | 13.9 |

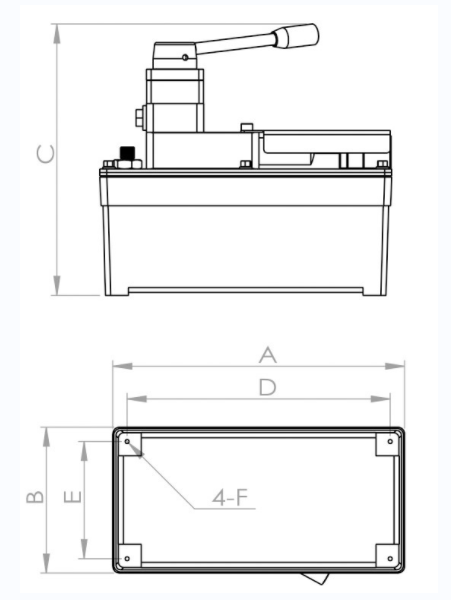

size：
| Model no. | A | B | C | D | E |
| (mm) | (mm) | (mm) | (mm) |
(mm) |
|
| PAD25 | 328 | 206 | 223 |
|
|
Features：
1. Driven by compressed air, there is no danger of electric sparks or flames, which can be used in flammable and explosive working environments.
2. The structure is compact, light and easy to carry with a low price.
3. Low air consumption and low operating cost.
4. High-strength fuel tank and special hydraulic oil can adapt to harsh working environment.
5. The rated pressure is 70MPa, and the built-in safety relief valve is used for overload protection.
6. The threaded hole of the oil outlet is 3/8"NPTF, , which is convenient for oil pipe or joint connection and sealing.
7. There are threaded mounting holes at the bottom of the fuel tank for easy installation and fixation.
8. High-quality seals ensure stable performance and long service life of the pump; simple maintenance and low cost of use.
9. The accessories are with high processing precision, good sealing performance, no leakage and good pressure-holding performance.
