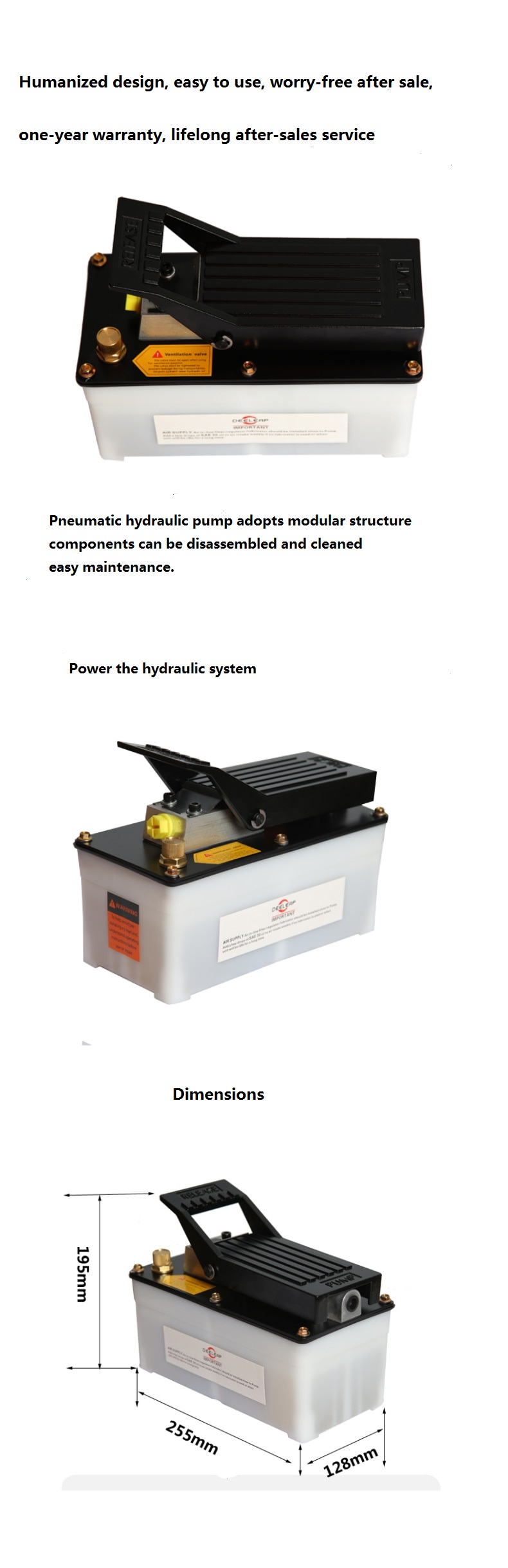

The PAS1 Series Air Over Hydraulic Pumps are known for their durability, user-friendly design, and hassle-free maintenance. This series offers a range of models with different reservoir capacities, air consumption rates, and maximum operating pressures. All models can be operated manually, either by foot or hand, to activate and retract your single-acting hydraulic tool.
Air Hydraulic pump PAS11
Function type: Single speed single acting
Drive mode: pneumatic
Operation mode: foot or hand pressure
Medium: L-HM32# or L-HV32# anti-wear hydraulic oil
Applicable tools: Applicable to single acting hydraulic cylinder and hydraulic tools.
Applicable fields: applied to automobile maintenance, metallurgy, petroleum, chemical, electric power, lifting, construction, mining, railroad, ship and many other industries.
Features
1、Compressed air driven, no danger of electric spark or flame; can be used in flammable and explosive working environment.
2、Compact and light structure, easy to carry; low procurement cost.
3、Low air consumption, low running cost.
4、Industrial material oil tank, 32# anti-wear hydraulic oil, can adapt to the harsh working environment.
5、Rated pressure of 70MPa, built-in safety relief valve, for overload protection.
6、The threaded hole of oil outlet is 3/8 "NPTF with 11° elevation angle, which is convenient for oil pipe or joint connection sealing.
7、There are threaded mounting holes at the bottom of the tank for easy installation and fixing.
8、The choice of seals makes the pump stable and long-lasting; simple maintenance and low cost of use.
9、Fittings are processed with high precision, good sealing performance, no leakage and good pressure retention.
NO.1
Foot operated pneumatic hydraulic pump Technical Parameter
Model No.
Oil Tank material
Oil tank capacity
Available oil capacity
Air pressure
Air consumption
Rated pressure
Output flow (L/min)
Air inlet interface
Oil outlet interface
L
L
Mpa
（L/min）
Mpa
No-load flow
load flow
PAS11
Polyethylene reservoir
1.7
1.6
6-8
255
70
1.16
0.15
1/4''-18NPTF
3/8''-18NPTF
PAS12
Polyethylene reservoir
2.4
2.3
6-8
255
70
1.16
0.15
1/4''-18NPTF
3/8''-18NPTF
PAS14
Aluminum reservoir
1.7
1.6
6-8
255
70
1.16
0.15
1/4''-18NPTF
3/8''-18NPTF
PAS13
Steel reservoir
3.8
3.7
6-8
255
70
1.16
0.15
1/4''-18NPTF
3/8''-18NPTF
PAS15
Steel reservoir
5.1
5
6-8
255
70
1.16
0.15
1/4''-18NPTF
3/8''-18NPTF
PAS16
Steel reservoir
6.1
6
6-8
255
70
1.16
0.15
1/4''-18NPTF
3/8''-18NPTF
For more details, welcome to contact with us.
