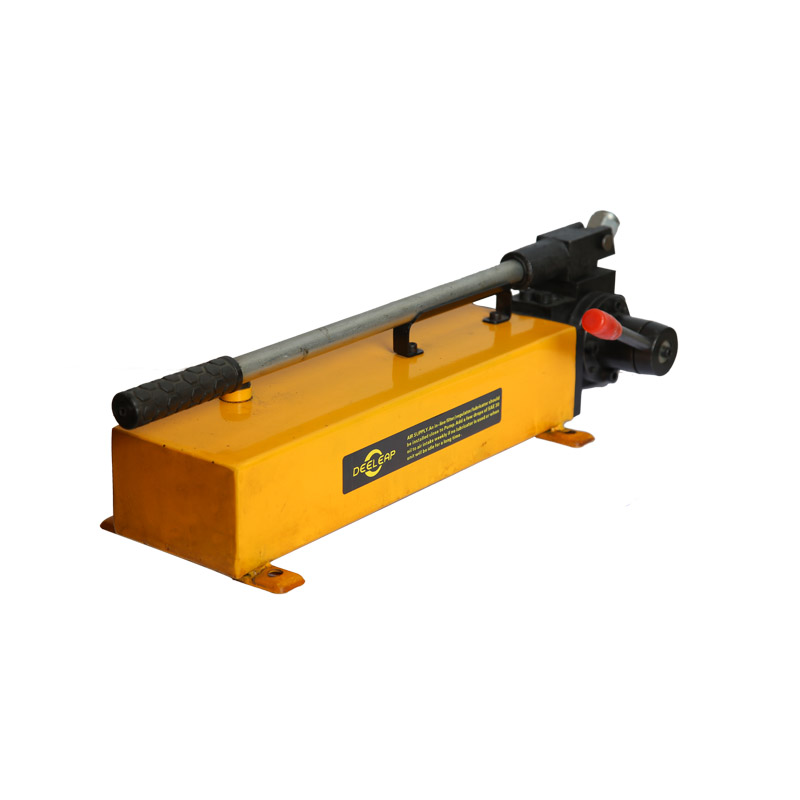

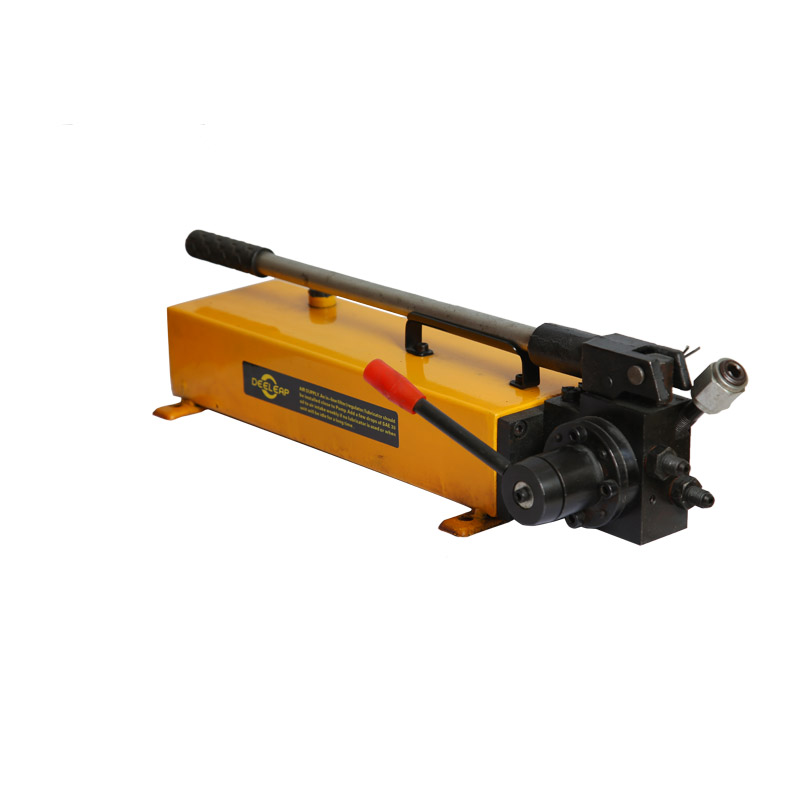

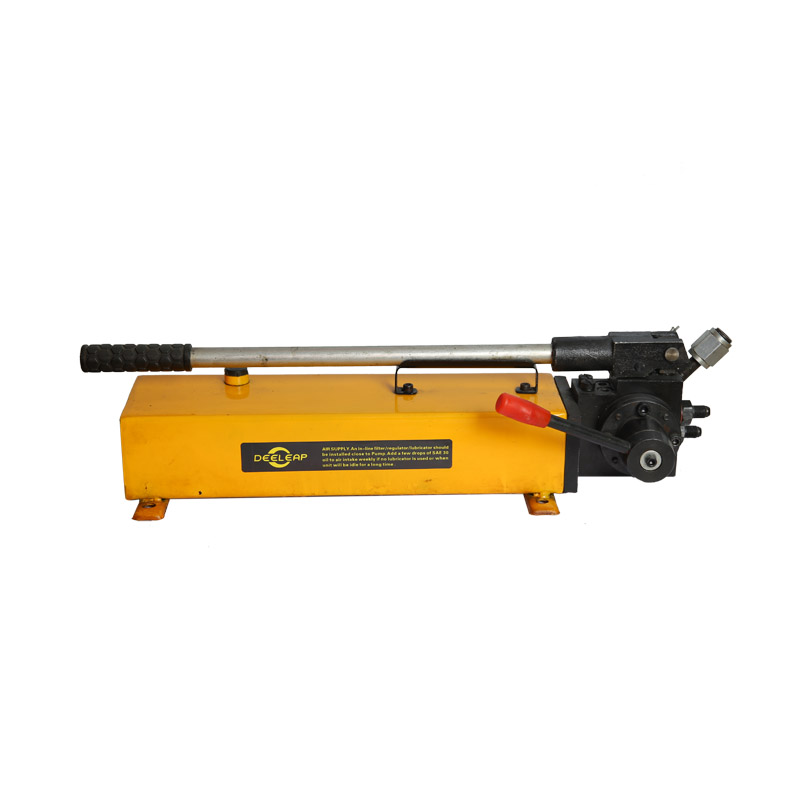

Name: Double acting hydraulic hand pump PMD-2S
Feature:
Light and compact structure, easy to move and carry. Double-speed design, handle stroke than the single-speed operation to save time and effort, reduce the operator's labor intensity.
Hydraulic pump
Maximum working pressure: 700 bar
Double pump double oil circuit belt
Manual reversing valve
Steel structure, durable
Built-in safety valve for overload protection
Application occasions:
Used with single/double acting hydraulic jack and hydraulic tools, can do lifting, jacking, bending, straightening, stretching, punching, riveting, disassembly and other operations. No use of environmental requirements, suitable for field operations.
NO.2
Double acting Manual hydraulic pump Technical Parameter
手动液压泵-双作用
Model No.
Preset pressure
Mpa
Rated displacement
ml/time
Maximum
hand crank
N
Capacity
L
Weight（KG）
Remark
high pressure
low pressure
high pressure
low pressure
PMD-2S
63
1
2.3
12.5
≤450
3
11
Double pump double oil circuit belt
Manual reversing valve

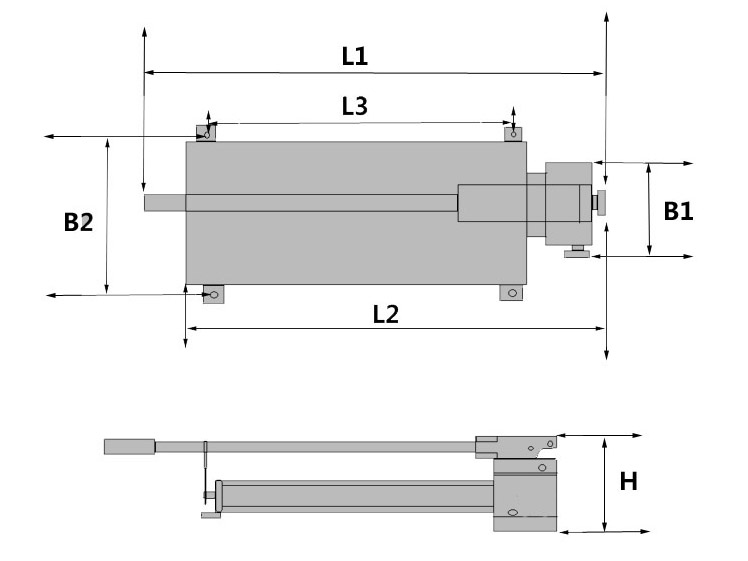

Model
L1
L2
L3
B1
B2
H
mm
mm
mm
mm
mm
mm
PMD-2S
630
600
370
140
145
150
Hydraulic pump types:
| No. | Product name | Type | |||||||
| 1 | Manual hydraulic pump | Single acting | |||||||
| 2 | Manual hydraulic pump | Double acting | |||||||
| 3 | Manual hydraulic pump | Large displacement | |||||||
| 4 | Manual hydraulic pump | Foot pedal | |||||||
Yantai Dongyue Hydraulic Technology Co., Ltd. is a manufacturer engaged in design and manufacturing high pressure hydraulic tools and equipments, such as pneumatic hydraulic pump, electric hydraulic pump, manual hydraulic pump, high pressure jack cylinder and other hydraulic tools,etc.. Our factory was established in 2008, located in Yantai City, Shandong Province, with a registered capital of 5 million.
Our prodcut ranges are as follows:
• Hydraulic pumps, including Pneumatic ,Electric, Manual type (max up to 70 Mpa);
• Hydraulic jack cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Electric Hydraulic /pneumatic hydraulic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486Nm);
• Integrated hydraulic lifting system solutions
Dongyue’s products have been widely used in many fields such as automobile maintenance, metallurgy, oil and gas, chemical industry, wind power, lifting, construction, mining, railroad, shipping, etc.

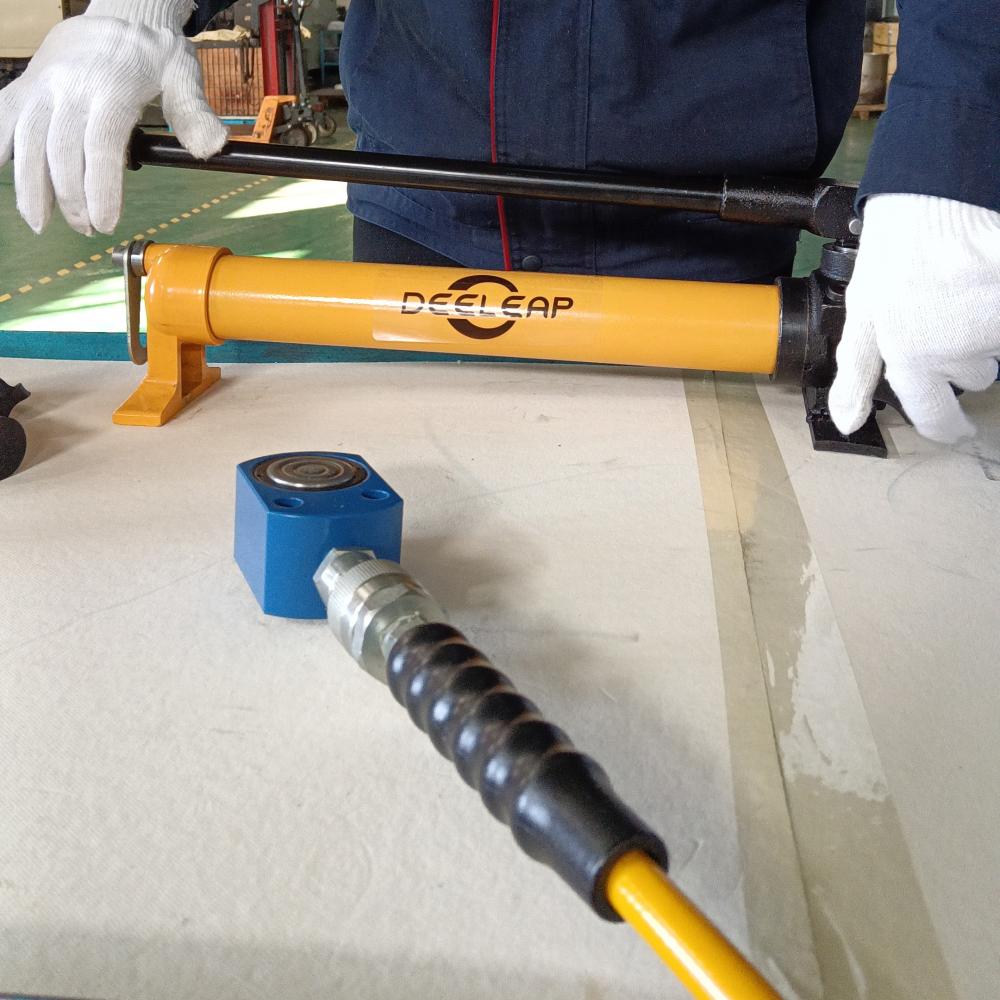

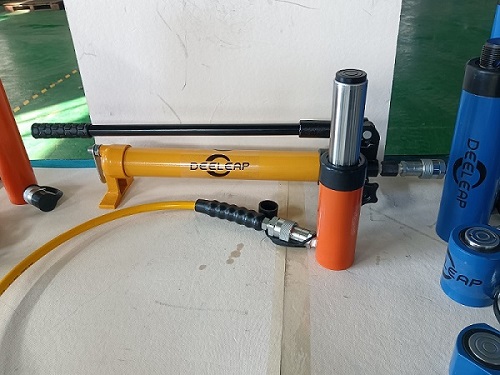

Hydraulic pump application:
Hydraulic hand pump instructions:
Manual hydraulic pump dimension:
If there is any question, feel free to contact with us. Or check our webiste to choose suitable product.
