Product Introduction

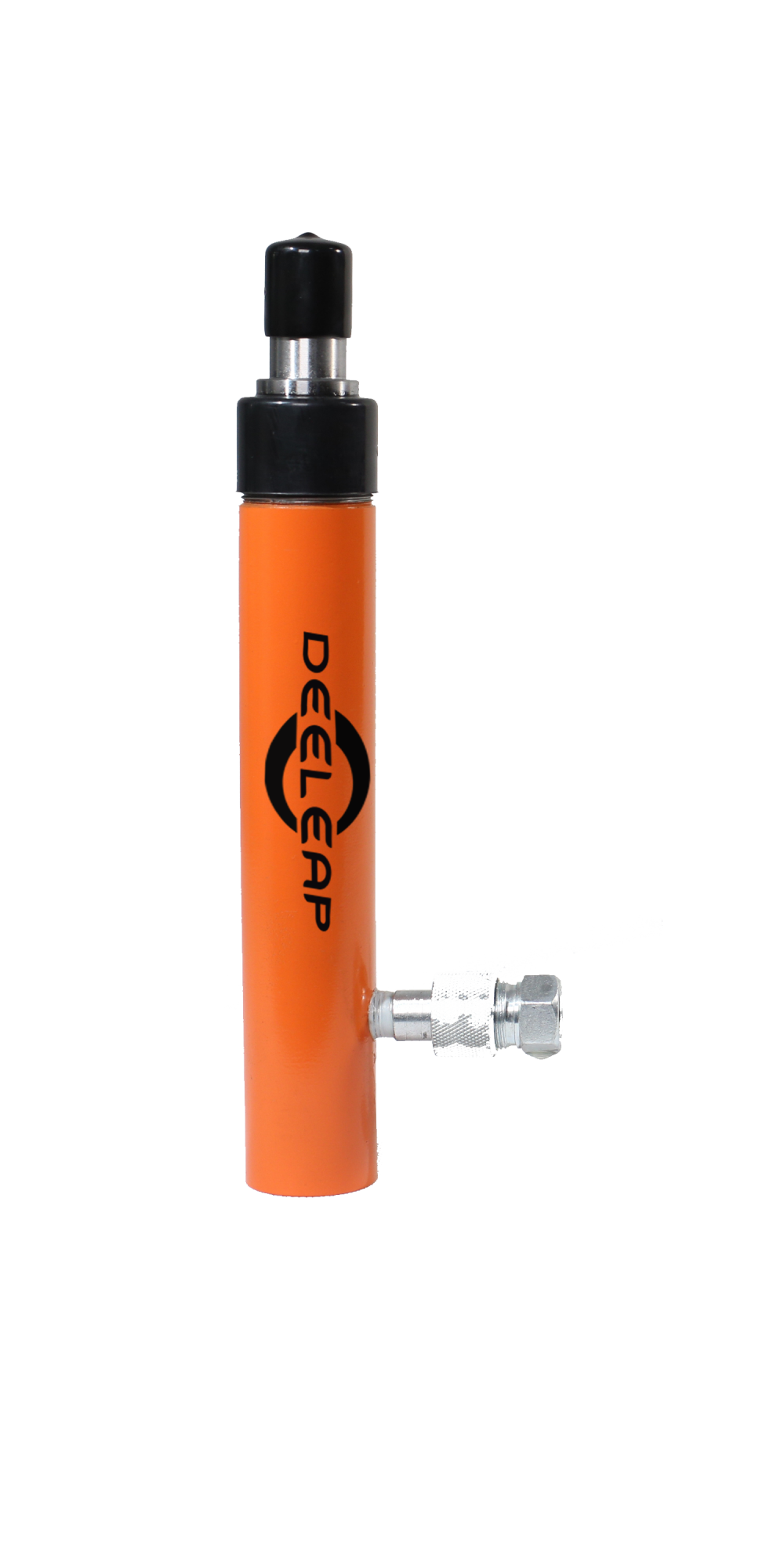

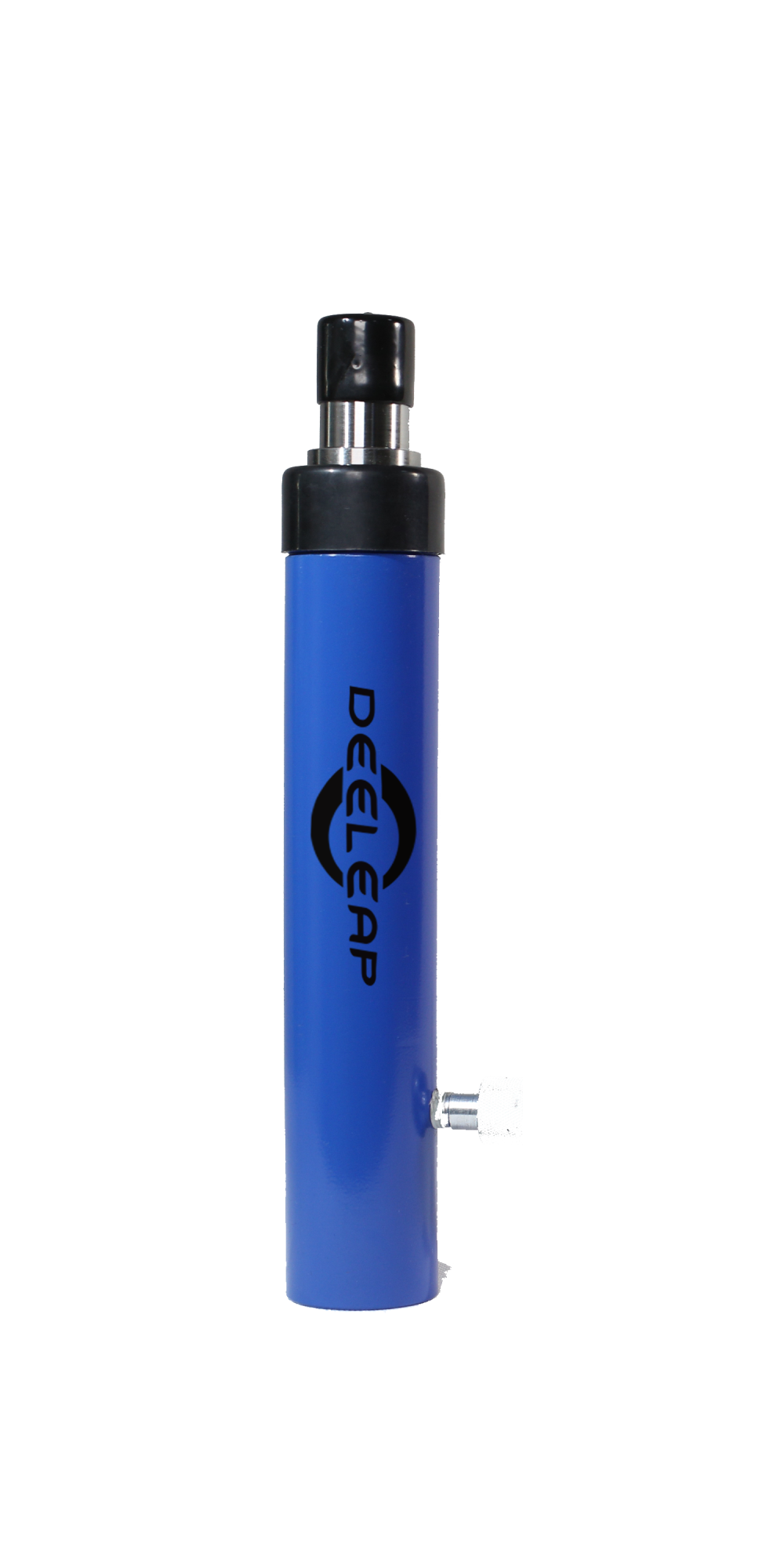

Name: High pressure single acting hydraulic cylinder (PP Series)
Features: PP series sheet metal separating cylinders, with standardized design, are used for automotive sheet metal shaping, jacking, etc. They can be matched with different cartridge tools to achieve a variety of functions, wide use occasions, and easy to move.
Advantage: spring self-return
Wear-resistant hard guide sleeve, with self-lubricating effect, can absorb eccentric load without straining the piston rod.
High-quality sealing ring: international well-known brand sealing ring, wear-resistant and anti-aging, can ensure that the hydraulic cylinder working for a long time.
Cylinder surface treatment, wear resistance and corrosion resistance, prolong service life.
The plunger limit structure is provided with a stop ring to prevent the piston rod from overextending, and can withstand full load.
Parameter
Model No.
Product name / type
Cap. (tons)
Stroke (mm)
Oil Capacity （cm³）
Bore Diameter (mm)
Cylinder Effective Area(cm²)
DY-RC-42PP
Hydraulic cylinder
4
70
50
30
7.1
DY-RC-45PP
Hydraulic cylinder
4
141
100
30
7.1
DY-RC-103PP
Hydraulic cylinder
10
51
81
45
15.9
DY-RC-106PP
Hydraulic cylinder
10
128
204
45
15.9

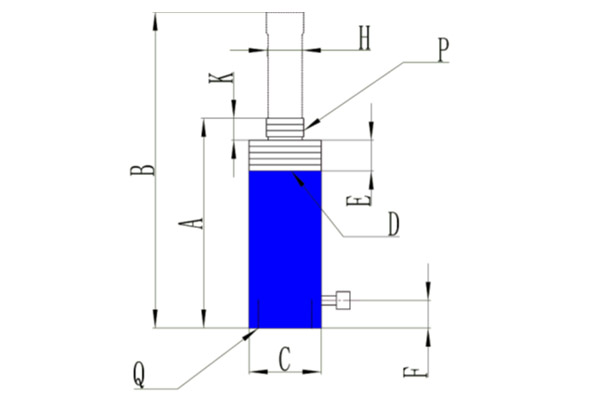

| NO.2 | Single acting hydraulic cylinder (PP Series) Technical Parameter | 单作用油缸 （PP系列） | ||||||
| A | B | C | D | E | F | H | K | |
| Model No. | Retracted Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Collar Thread (inch) | Collar Thread Length (mm) | Base to Port (mm) | Piston Rod Diameter (mm) | Piston Rod Protrusion (mm) |
| DY-RC-42PP | 193 | 244 | 39 | M38*1.5 | 30 | 52 | 26 | 42 |
| DY-RC-45PP | 270 | 398 | 39 | 38*1.5 | 30 | 52 | 26 | 42 |
| DY-RC-103PP | 285.5 | 355.5 | 56.5 | M56*2 | 30 | 70 | 38 | 56.5 |
| DY-RC-106PP | 356.5 | 497.5 | 56.5 | 56*2 | 30 | 70 | 38 | 56.5 |
CERTIFICATES& PATENTS
DEELEAP INTRODUCTION
Yantai Dongyue Hydraulic Technology Co., Ltd. was established in 2008, located in Yantai City, Shandong Province, with a registered capital of 5 million. Our company is a high-tech hydraulic technology enterprise integrating scientific research, design, production and sales.
Dongyue specializes in the research of high pressure hydraulic technology. Our main products: air hydraulic pump, electric hydraulic pump, manual hydraulic pump, high pressure cylinder and other hydraulic components,etc. The products have been widely used in many fields such as automobile maintenance, metallurgy, oil and gas, chemical industry, wind power, lifting, construction, mining, railroad, shipping, etc.
After years of accumulation and exploration in the hydraulic industry, we have risen rapidly in the field of high pressure hydraulics. We are committed to providing high quality and cost-effective ultra-high pressure hydraulic products to customers at home and abroad. With our customer-oriented marketing concept and strong R&D capability, we have developed a series of standard products for customers in various industries and accumulated a large number of technical patents. We have obtained ISO9001 international quality management system certification qualification, and also have CE certificate, etc.
Our factory has a professional R&D team, advanced production and testing equipment, and a strict quality management system, which provides a guarantee for the stability and continuous improvement of product quality.
