◆ Temperature measuring range covers 700℃～2500℃
◆ Temperature measuring accuracy is 0.5%, repeat accuracy is 2℃，resolution is 0.1℃
◆ Response time 5ms～99.99s, adjustable
◆ Use manually adjustable focus lens, a standard focal length is from 0.45m to infinity, a near focal length is adjustable from 0.2m to 0.6m
◆ PID constant temperature control is adopted for the detector, with full range temperature compensation to avoid influence of ambient temperature on the measuring accuracy
◆ 1:1 high-brightness green LED light source or visual eyepiece, clearly show the position and size of the measured target
◆ Both two-color and one-color temperature measurement mode, switchable
◆ In two-color mode,the high-temperature 2-color ratio pyrometer display energy percentage, and has dirty lens detection function
◆ Use industrial grade long life yellow OLED screen as the display interface, and man-machine interface is friendly
◆ Abundant peripheral interfaces: 2 independent analog output, 2 alarm output, 1 level output and 1 RS485 communication interface
◆ Anti-jamming design of software and hardware improve system stability and can resist 2500VDC pulse group interference
◆ Has antioxidant measurement function, and instrument will not be affected by oxides during measurement
◆ Support bus cascade connection of up to 26 pyrometers, and realize network control through PC

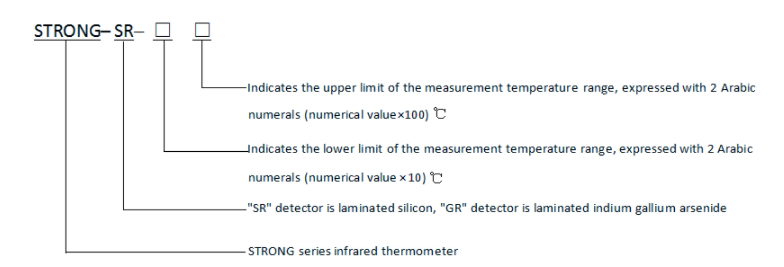

For example：STRONG-SR-6016 stands for a STRONG series two-color ratio pyrometer whose measuring range is 600℃～1600℃ and detector is made of laminated silicon. STRONG-GR-3514 stands for a STRONG series two-color pyrometer whose measuring range is 350℃～1400℃ and detector is made of laminated indium gallium arsenide (InGaAs) detector.
Model Switch
The pyrometer is also uses as high-temperature 1-color pyrometer when switch 1C model by pressing the key unpon specific situations.
