1. General description of Fluid bed granulator
In the fluid bed granulator, the powder in the container (fluidization) appears in the state of fluidization. It is preheated by clean hot air. At the same time, the solution of adhesive solvent is fogged and sprayed into the container, which turns particles into granules containing adhesive. With continuous drying through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally, it forms ideal, uniform and porous granules.

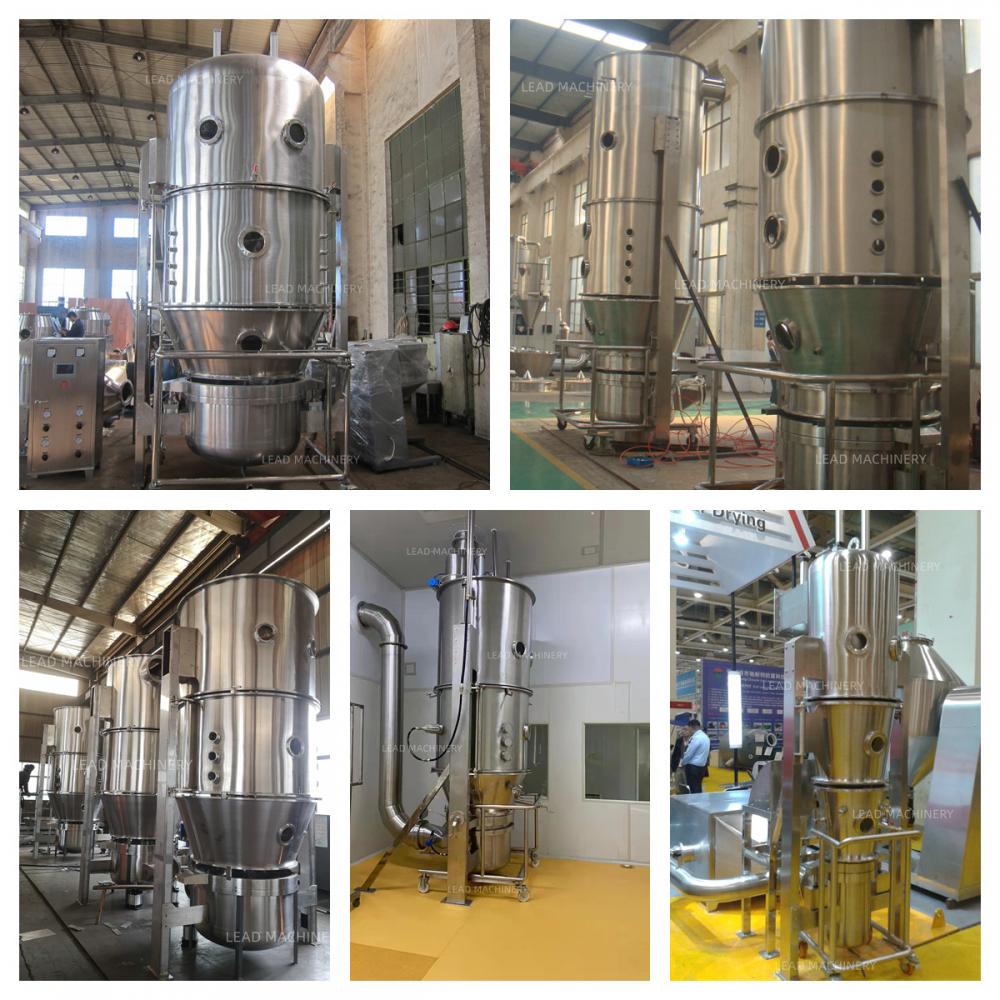

Pictures of Fluid bed granulator
2. Application of Fluid bed granulator
Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
Foodstuff: cocoa, coffee, milk powder, juice, flavoring and so on.
Other industries: pesticide, feed chemical fertilizer, pigment, dyestuff and so on.
Pharmaceutical industry: power or granule material.
Coating: granules coating of pellet, spare color, slow release film, bowel-dissolve, etc.
Granules that made by fluid bed granulator
3. Features of Fluid bed granulator
1, Mixing-granulating-drying in one-step.
2, Adopting double chamber filtering bags system, removing dust completely.
3, Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is low.
4, Can choose 2 bar explosion-proof design
5, Designed, manufactured and laid out by GMP

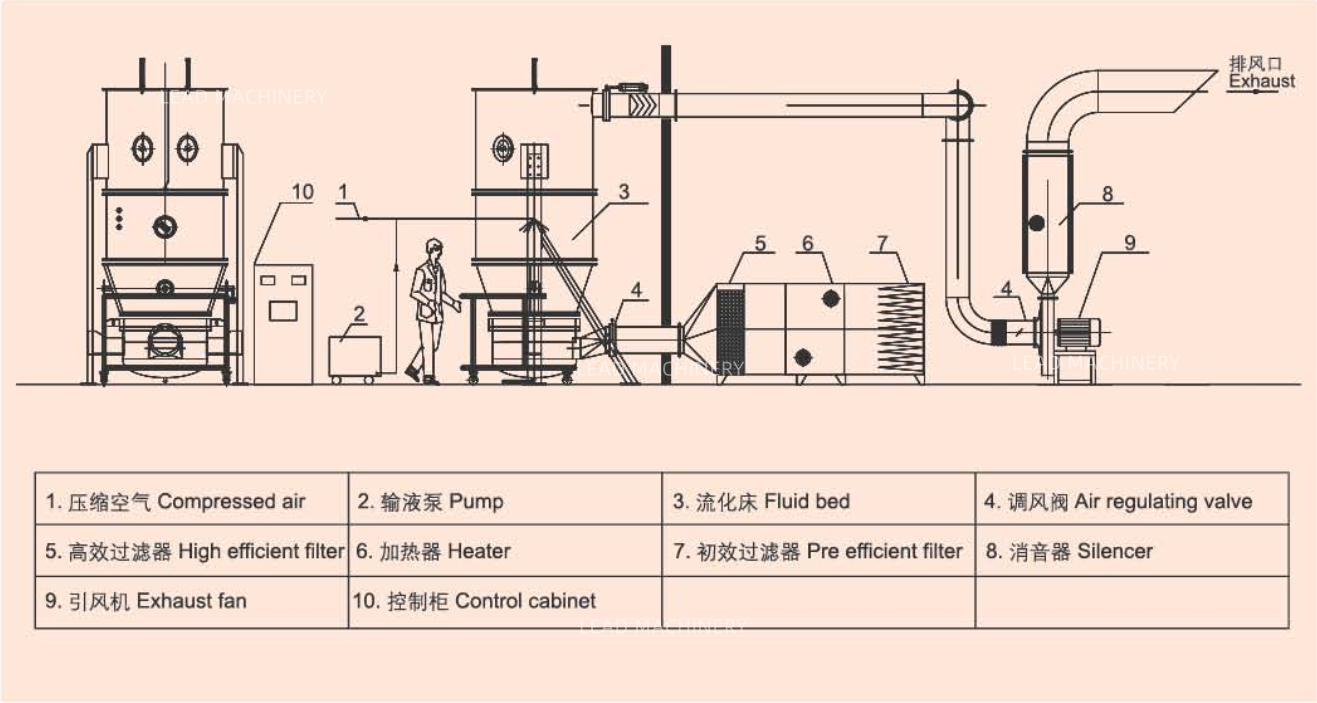

Flow chart of Fluid bed granulator
4. Parameters of Fluid bed granulator
| Model | FL-3 | FL-5 | FL-15 | FL-30 | FL-60 | FL-90 | FL-120 | FL-200 | FL-300 | FL-500 |
|
Volume of container (L) |
12 | 22 | 45 | 100 | 220 | 300 | 420 | 670 | 1000 | 1500 |
| Capacity (kg/batch) | 3 | 5 | 15 | 30 | 60 | 100 | 120 | 200 | 300 | 500 |
| Power of fan (kg) | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 37 | 45 |
|
Steam consumption (kg/h) |
15 | 23 | 42 | 70 | 141 | 180 | 211 | 282 | 366 | 451 |
| Pressure of steam (Mpa) | 0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
|
Consumption of compressed air (m3/min) |
0.6 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 |
| Working temperature (℃) | 40~120 |
40~120 |
40~120 |
40~120 |
40~120 |
40~120 |
40~120 |
40~120 |
40~120 |
40~120 |
| Working time (min/ batch) | 45~90 |
45~90 |
45~90 |
45~90 |
45~90 |
45~90 |
45~90 |
45~90 |
45~90 |
45~90 |
| Product collecting rate | ≥99% |
≥99% |
≥99% |
≥99% |
≥99% |
≥99% |
≥99% |
≥99% |
≥99% |
≥99% |
| Weight of machine (kg) | 500 | 700 | 900 | 1000 | 1100 | 1200 | 1300 | 1500 | 1800 | 2000 |
| Size of output granules (mesh) | 40~100 |
40~100 |
40~100 |
40~100 |
40~100 |
40~100 |
40~100 |
40~100 |
40~100 |
40~100 |
|
Moisture of output granules |
≤1.5% |
≤1.5% |
≤1.5% |
≤1.5% |
≤1.5% |
≤1.5% |
≤1.5% |
≤1.5% |
≤1.5% |
≤1.5% |
