1. General description of Horizontal fluid bed dryer

Continuous Horizontal Fluid Bed Dryer is also called as fluidized-bed. It consists of air filter , heater ,fluidized-bed main machine, feeder , cyclone separator , cloth bag duster (Optional) ,high-pressure centrifuge fan and air pipe ,control chest. Because the properties of raw materials exist difference, when equip the dust removing equipment, it should consider the practical need. It can select cyclone separator and cloth bag duster at the same time or one of them. In general, it needs to select cyclone separator only for raw material that is large in specific gravity and cloth bag duster for powder and small granule raw materials that is light in specific gravity .Meanwhile there is air feeding device (sending air fan) and belt conveyor for selection. Raw material is fed into fluidized-bed drier through feeder. Fresh air through filtering and heating is sent to the bottom of fluidized bed by fan and contacts with solid raw material on distributing plate. In this way the fluidized state is formed and the heat exchange between air and solid is carried out. The dried raw material is discharged from outlet and wasted gas is exhausted from the top of fluidized-bed where catches solid powder through cyclone separator , cloth bag duster. The heating way have different kinds to choice such as steam can be used (it can be supplied as client request).

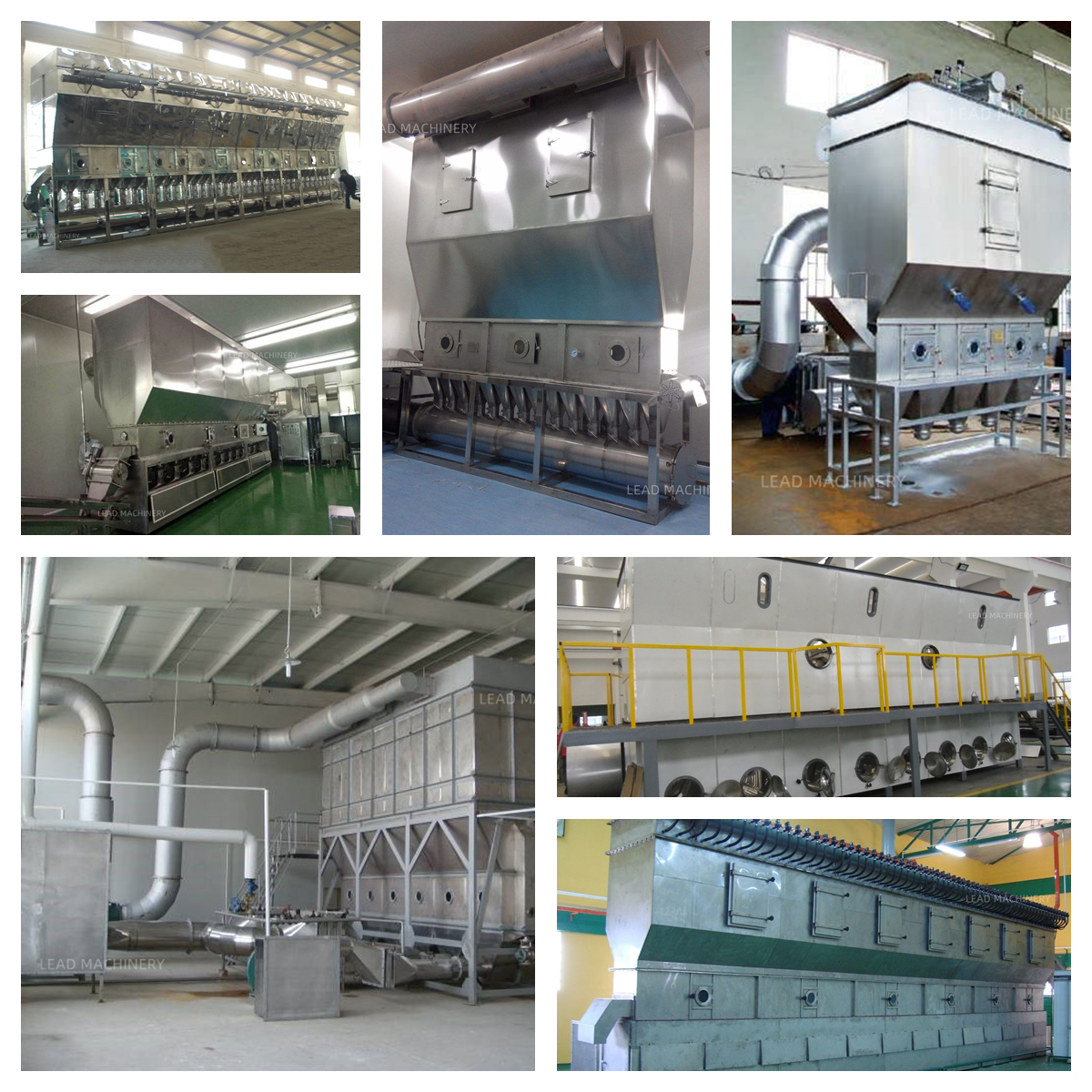

Horizontal fluid bed dryer

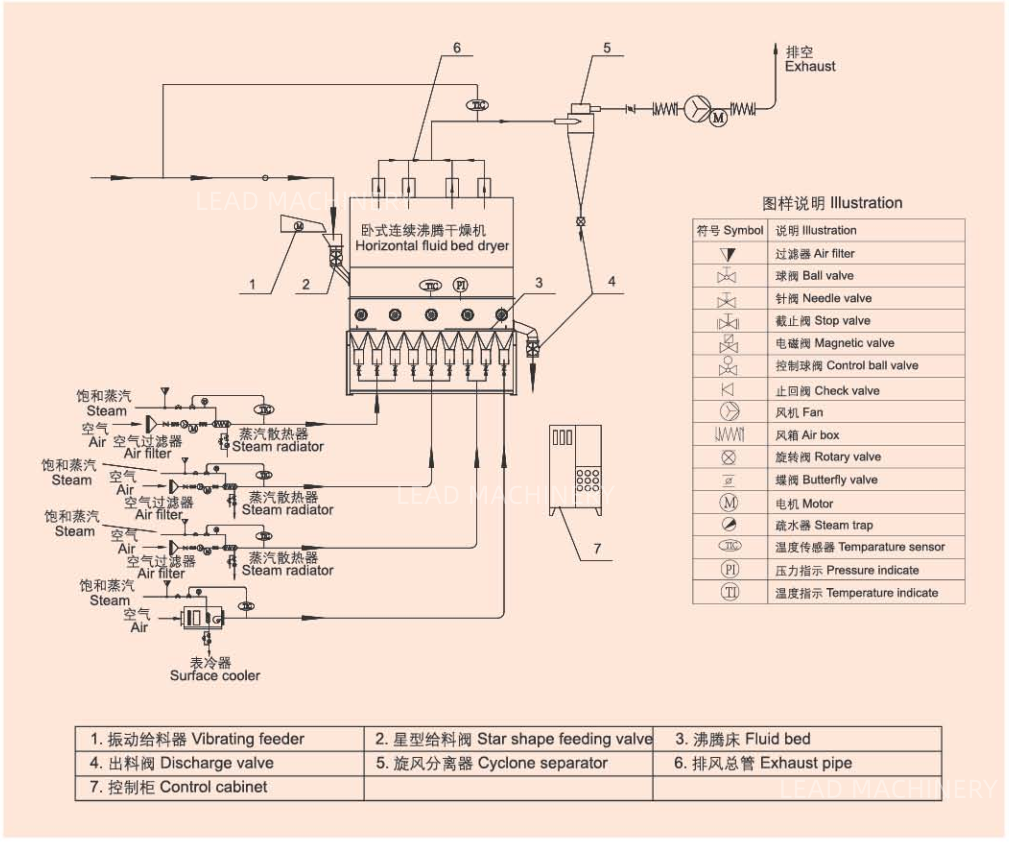

2. Work principle of Horizontal fluid bed dryer

The clean and hot air enters into fluidization bed through distributor of valve plate. The wet material fed from feeder will be
formed a fluidization state by hot air (jumping within the bed like boiling water), so it is called fluidizing dryer(or machine).Because of the large contacting area between hot air and materials, the drying time is short. The air enters from one end of bed, through" boiling" several minutes and then comes out automatically from the other end.

Horizontal fluid bed dryer

3. Features of Horizontal fluid bed dryer:

1. Automatic production can be realized. Continuous Horizontal Fluid Bed Dryer is continuous drying equipment.
2. It is quick in drying speed, Low in drying temperature ,
3. Horizontal Fluidized bed dryer has highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.
4. Horizontal Fluidizing Drying Machine have high collecting rate, high efficiency, fast drying, energy saving.
5. It have not stick onto the wall.
6. Smooth running, reliable performance, easy operation.
7. When oil is used to heat, use automatic constant temperature control. Its temperature of operation can be adjusted form 50-160ºC.
8. Machine materials: AISISUS304 , AISISUS316L, and other material .
9. The feeding system for this machine can be by manual or screw feeder, because the machine is negative pressure drying process, and the feeding materials also can use negative pressure to suck the raw materials into dryer.
10. For the electrical component, we mainly use international brand such as ABB ,Siemens or Schneider.
11. Control system has more choices, such as push button , HMI+PLC and so on.

4. Technical parameters of Horizontal fluid bed dryer

Model	XF0.25×1	XF0.25×2	XF0.25×3	XF0.25×6	XF0.3×2	XF0.3×4	XF0.3×6	XF0.3×8	XF0.3×10	XF0.4×4	XF0.4×6
Drying area (m²)	0.25	0.5	1.0	1.5	0.6	1.2	1.8	2.4	3.0	1.6	2.4
Evaporation capacity (kg/h)	10~15	20~25	30~45	52~75	20~30	42~60	63~90	84~20	105~150	56~80	84~120
Power of fan (kW)	5.5	7.5	15	22	7.5	18.5	30	37	48	30	37
Inlet air temperature (℃)	120~140
Outlet air temperature (℃)	40~60
Size of main machine (mm)	1×0.6×3.35	2×0.6×3.35	4×0.6×3.35	6×0.6×3.35	2×0.7×3.4	4×0.7×3.4	6×0.7×3.4	8×0.7×3.4	10×0.7×3.4	4×1×3.58	6×1×3.58
Occupied area (m²)	18	25	35	40	25	38	45	56	70	18	56
Model	XF0.4×8	XF0.4×10	XF0.4×12	XF0.5×4	XF0.5×6	XF0.5×8	XF0.5×10	XF0.5×12	XF0.5×14	XF0.5×16	XF0.5×18
Drying area (m²)	3.2	4.0	4.8	2.0	3.0	4.0	5.0	6.0	7.0	8.0	9.0
Evaporation capacity (kg/h)	112~160	140~200	168~240	70~100	105~150	140~200	175~250	210~300	245~350	280~400	315~240
Power of fan (kW)	48	70	70	30	48	70	105	140	147	169	197
Inlet air temperature (℃)	120~140
Outlet air temperature (℃)	40~60
Size of main machine (mm)	8×1×3.58	10×1×3.58	12×1×3.58	4×1.2×4.1	6×1.2×4.1	8×1.2×4.1	10×1.2×4.1	12×1.2×4.1	14×1.2×4.1	16×1.2×4.1	18×1.2×4.1
Occupied area (m²)	74	82	96	50	70	82	100	140	180	225	268
