Description of Oscillating granulator:

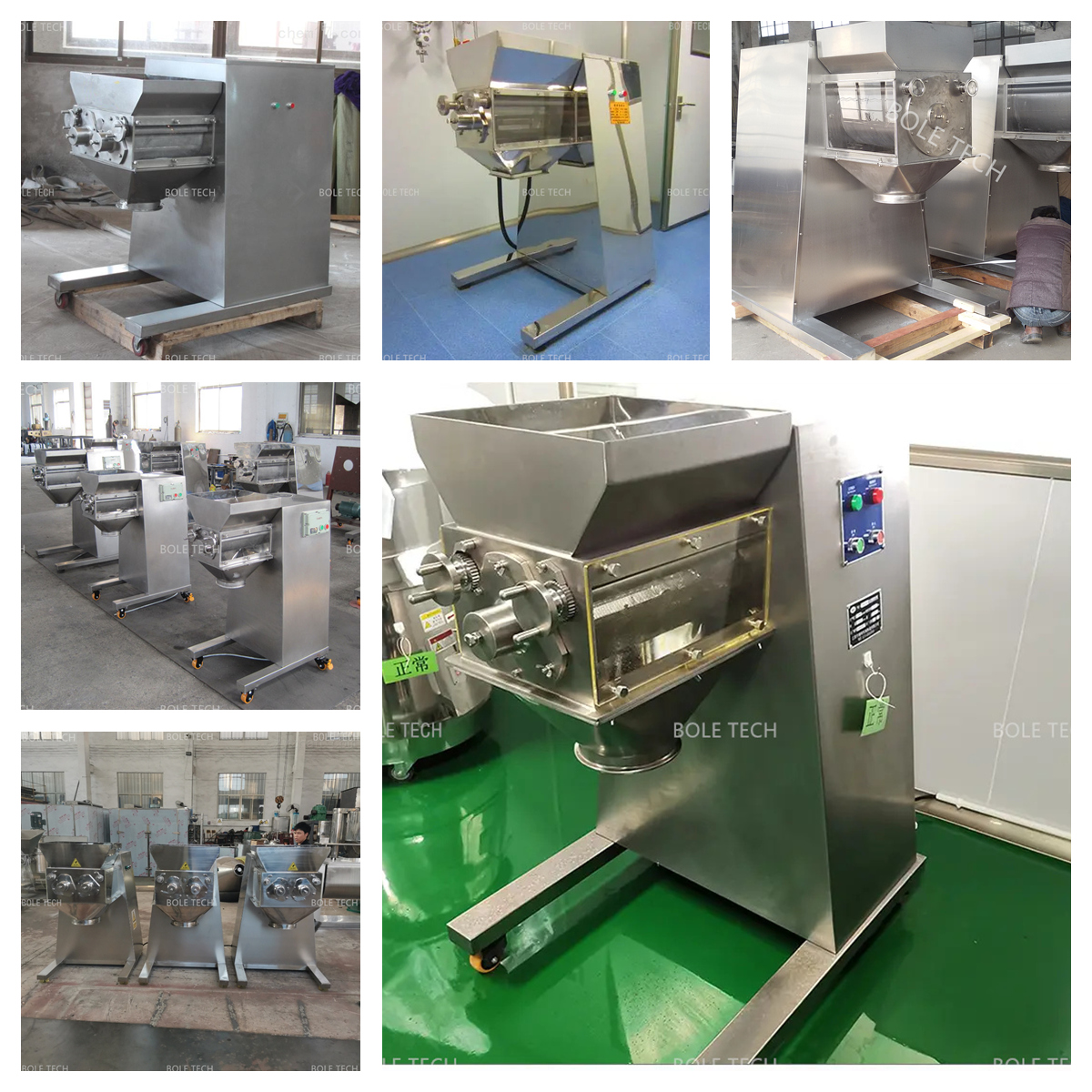

YK series oscillating granulator is mainly consisted of drive motor, feeding hopper, rotor, sieve and discharging chute. Wet mixtures of powders or big granules/agglomerates are fed into the granulating chamber via feeding hopper. The oscillating motion of rotor presses the material through the sieve to get required size of granules. The finished granules is discharged into the barrel via the discharging chute.
YK series oscillating granulator has been extensively used in food feed, health products, solid drinks and chemical industries for making granules with wet mixtures, or as a crusher to crush dried big bumps or granules into required size of granules.
Features of Oscillating granulator:
The machine is suitable for pharmaceutical, foodstuff, chemical, solid drink and so on industries. It can make the stirred raw materials become granule with needed size or crush the blocked raw materials into small granule.
The machine is mainly used for making granule with different specifications of pharmaceutical industry, chemical industry, foodstuff industry, etc. After dried, the granule can be pressed into all kinds of shaped products. The machine can also used for crushing dried raw materials that are cohered.
The place where should be contacted with raw material is made of stainless fully. Its appearance is beautiful and taste and its clean is very convenient and its operation is simple and its energy consumption is low.
The drum is swung repeatedly through mechanical driving, which makes the material extruded from sieve, further granulated or crushed or speedily palletized.
Parameters of Oscillating granulator:
|
Model
|
YK-100
|
YK-160
|
YK-250
|
YK-300
|
|
Rotor diameter (mm)
|
120
|
160
|
250
|
300
|
|
Capacity (kg/h)
|
30~200
|
100~300
|
150~400
|
200~600
|
|
Motor power (kW)
|
1.1
|
2.2
|
4
|
5.5
|
|
Rotor speed (rpm)
|
55
|
55
|
55
|
55
|
|
Oscillating angle degree
|
360
|
360
|
360
|
360
|
|
Dimension (mm)
|
700*400*1050
|
1000*800*1300
|
1200*950*1400
|
1300*1050*1500
|
|
Weight (kg)
|
280
|
380
|
540
|
890
|
