Description of Horizontal ribbon mixer:

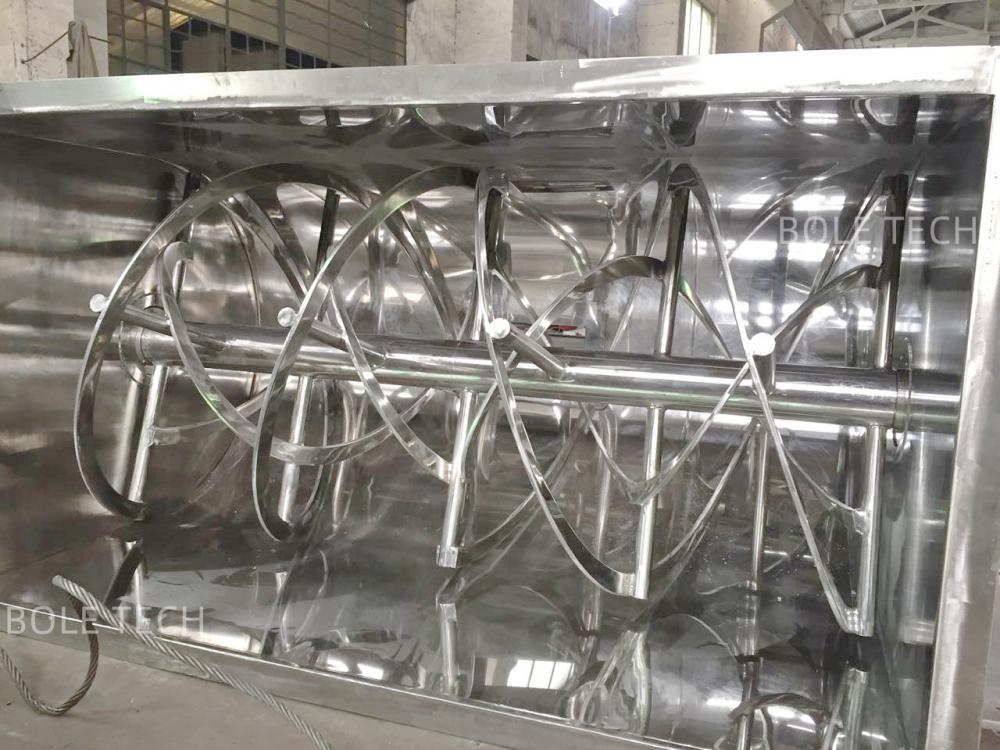

Horizontal ribbon mixer consists of a trough, a spiral agitating blade and a transmission component; the spiral blade is generally made of two or three layers, the outer spiral encloses the material from both sides to the center, and the inner spiral spirals the material from the center to the inside. conveyed to form a convective mix.
Horizontal ribbon mixer consists of three parts: the transmission mechanism, the horizontal cylinder groove and the spiral belt. The mixer is rotated by the inner and outer spiral belts to mix the materials, and the mixture is evenly mixed in a short time.
The ribbon mixer is generally used for the mixing of viscous or cohesive powders and granules, and the mixing of liquid and paste materials in the powder and granules. At the same time, due to the difficulty of cleaning the viscous materials, it is suitable for large-volume production and infrequent replacement of varieties.
Mixing of the previous steps in the production of tablets and granules in the pharmaceutical industry.
Mixing of the food industry, such as condiments, dairy products, spices, cakes, etc.
Mixing of powders and liquids in the chemical industry.
Features of Horizontal ribbon mixer:
1.It is suitable for mixing materials of powder-powder and power-liquid, especially for paste,powder and thick materials, such as putty, stone coatings, metal powders etc.
2.It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low pollution and little destruction to frangible material.

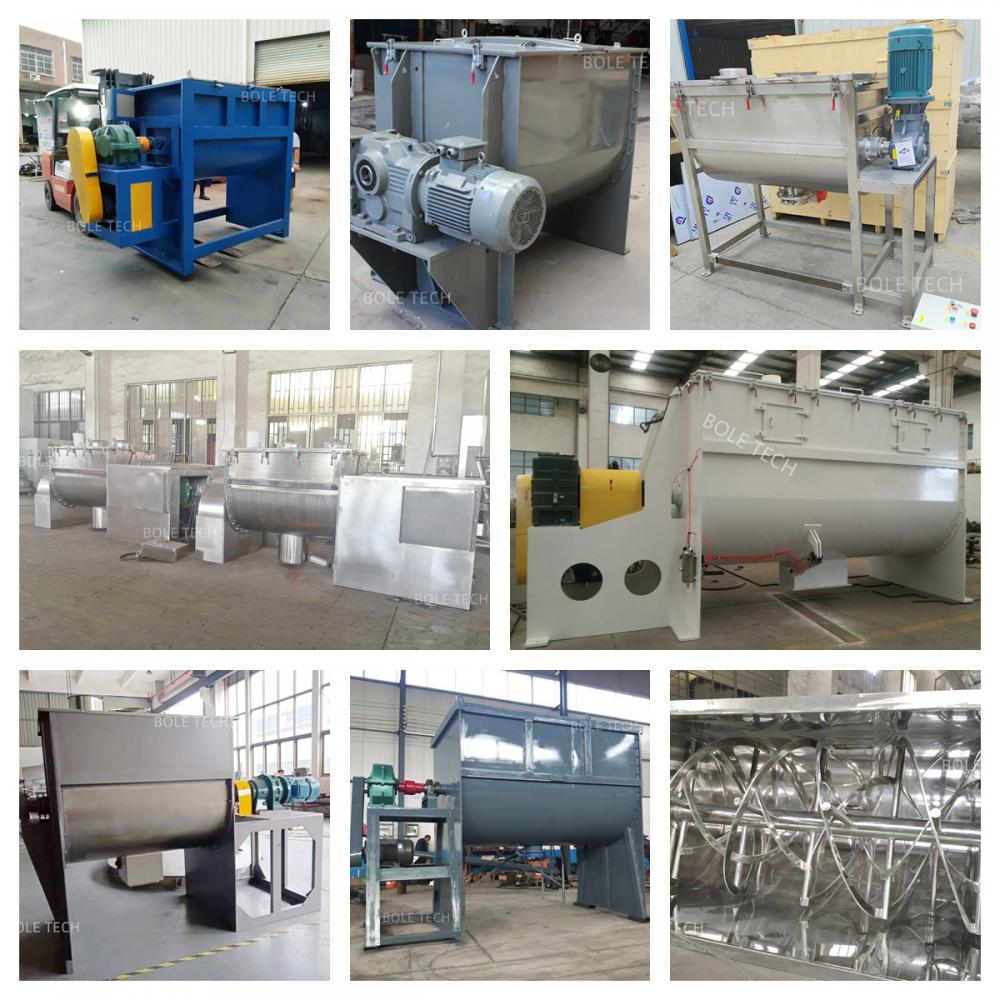

3.The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit.
4.Double ribbon mixer drive the material from two ends to center through the help of the outer ribbon, while the inner ribbon push the material from center to two ends, thus, material achieve a high mixing effect at short time.
5.The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
Parameters of Horizontal ribbon mixer:
|
Model
|
Volume (L)
|
Capacity (kg/batch)
|
Power (kW)
|
Weight (kg)
|
|
WLDH-0.1
|
100
|
30~50
|
1.5~4
|
420
|
|
WLDH-0.3
|
300
|
100~150
|
3~3.7
|
850
|
|
WLDH-0.5
|
500
|
200~300
|
4~11
|
1060
|
|
WLDH-1
|
1000
|
400~600
|
7.5~15
|
1790
|
|
WLDH-1.5
|
1500
|
600~900
|
11~18.5
|
1900
|
|
WLDH-2
|
2000
|
800~1200
|
15~22
|
2750
|
|
WLDH-3
|
3000
|
1200~1800
|
18.5~30
|
3500
|
|
WLDH-4
|
4000
|
1600~2400
|
22~37
|
4280
|
|
WLDH-6
|
6000
|
2400~3600
|
37~55
|
5300
|
|
WLDH-8
|
8000
|
3200~4800
|
37~55
|
6800
|
|
WLDH-10
|
10000
|
4000~6000
|
45~75
|
7800
|
