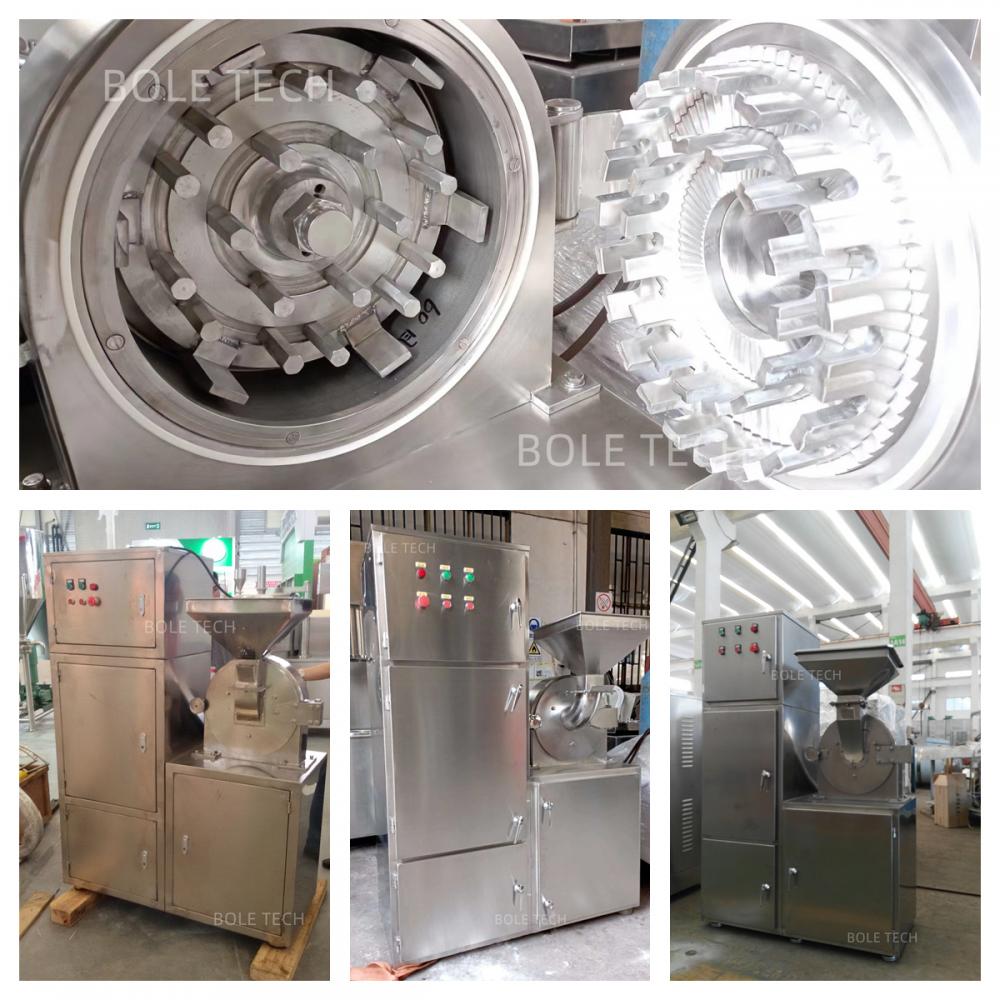

1. General description of universal grinder
The universal grinding machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.
The mill grinder machine is suitable for industries such as chemical industry, food, agriculture and food, especially suitable for crushing dry and brittle materials, and has a wide range of uses.
The mill grinder machine is suitable for all kinds of spices, grains, general chemical raw materials, etc.
2. Features of universal grinder
1. Simple structure, stable operation, low noise, low energy consumption.
2. Fast and efficient crushing and will not raise dust when working.
3. The fineness of material crushing can be adjusted through the aperture of the screen.
4. The inner wall of the casing is smooth, no powder accumulation,easy cleaning.
3. Technical parameters
|
Model |
20B |
30B |
40B |
|
Capacity(kg/h) |
60~150 |
100~300 |
150~500 |
|
Feed size (mm) |
≤6 |
≤6 |
≤6 |
|
Grind mesh (mesh) |
60~120 |
60~120 |
60~120 |
|
Grind motor (Kw) |
4 |
5.5 |
11 |
|
Dusting motor(Kw) |
0.55 |
0.75 |
1.5 |
|
Overall size (mm) |
1000×550×1450 |
1350×700×1700 |
1700×950×1950 |
If you are interested in the product, contact 2bvideo.com for more information for more information
