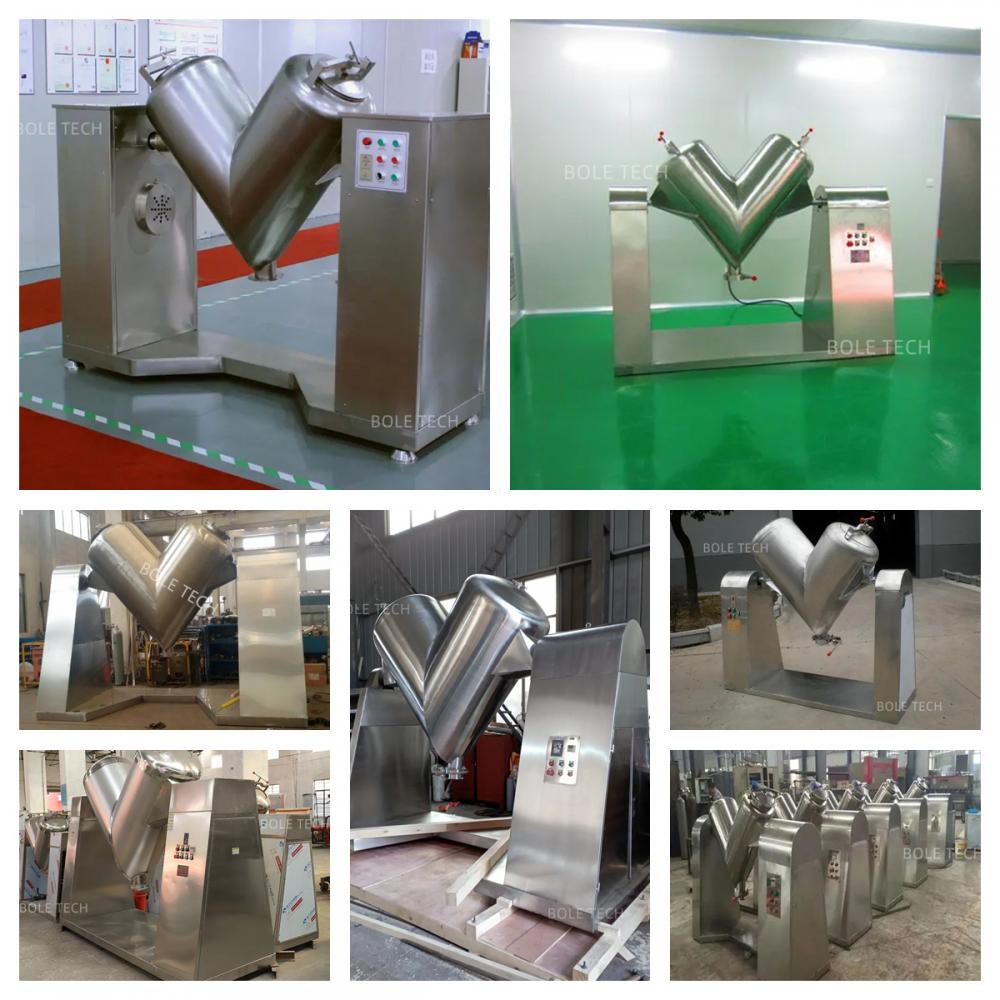

Description of V shape mixer:
V Type mixer blender is mainly used for mixing powder-powder, granule-granule and powder-granule materials in pharmaceutical industry, nutriceutical industry, food industry, animal remedy factory, feed industry and chemical industry. Through mechanical transmission, the machine makes material in asymmetry V shape mixing tank to turn over to-and-fro. Then the purpose of uniform mixing can be got.
The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.
Features of V shape mixer:
1. Mirror polished of inner side of mixing chamber to meet GMP standard.
2. No blind angle in mixing chamber, no accumulation of materials, high mixing efficient and short mixing time.
3. Mixing uniformity can reach 99%
4. Butterfly valve is equipped for discharging
5. Fully integrated motors and controls
6.It can work with vacuum feeding system to create dust-free working condition.
Parameters of V shape mixer:
|
Model
|
V-50
|
V-150
|
V-300
|
V-500
|
V-1000
|
V-1500
|
V-2000
|
V-3000
|
|
Total volume (L)
|
50
|
150
|
300
|
500
|
1000
|
1500
|
2000
|
3000
|
|
Loading volume (L)
|
30
|
90
|
180
|
300
|
600
|
900
|
1200
|
1800
|
|
Loading capacity (kg/batch)
|
15
|
45
|
90
|
150
|
300
|
450
|
600
|
900
|
|
Power of motor (kW)
|
0.55
|
0.55
|
0.75
|
1.5
|
3
|
4
|
5.5
|
7.5
|
|
Max. rotating height (mm)
|
900
|
1300
|
1700
|
1840
|
2030
|
2300
|
2490
|
2850
|
