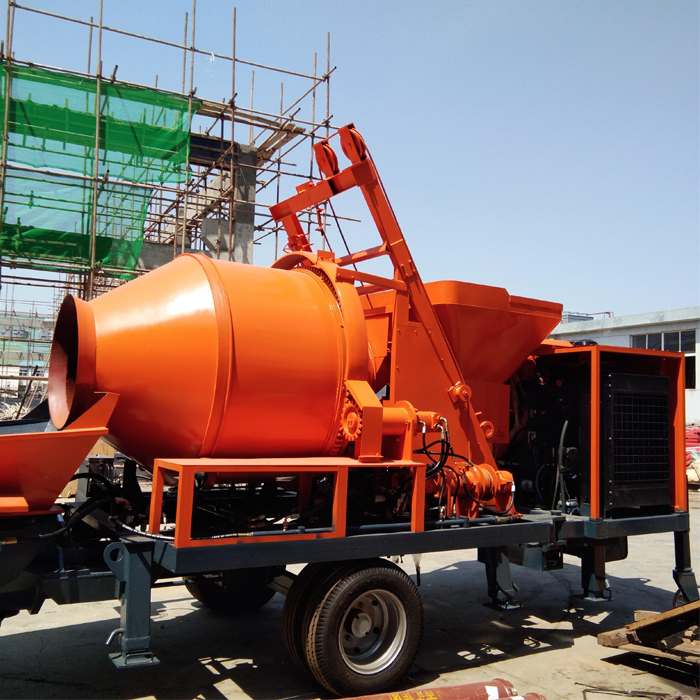

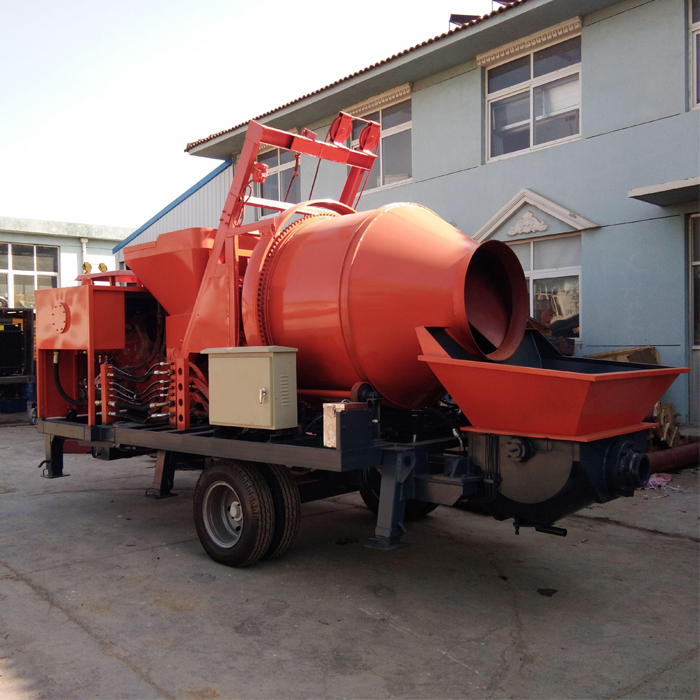

The concrete mixing pump is designed with a wireless remote control, allowing for easy operation by a single person. The language used is clear, concise, and unambiguous, maintaining a formal tone and grammatical correctness.
It also features a stable and reliable PLC control program, ensuring a longer service life.
The hopper is formed in one piece, providing better material suction and reducing the likelihood of pipeline blockages.
Additionally, the mixing system includes an automatic water control system.
The feeding, mixing, turning, and pumping are all controlled by hydraulic power, saving the operator's labor.
Fully automatic lubrication system significantly increases the service life of the equipment.
Strictly carry out pressure testing on equipment before leaving the factory. concrete mixer and cement silo.
|
Items |
Units |
JBTS30 |
|
|
Whole performance of machine |
Max. theo. concrete output |
m3/h |
30 |
|
Max.concrete throughput |
m3/h |
15 |
|
|
Mixer rated feed capacity |
m3 |
0.65 |
|
|
Mixer rated discharge capacity |
m3 |
0.45 |
|
|
Max.concrete pumping pressure |
MPa |
10 |
|
|
Distribution valve type |
|
S Valve |
|
|
Concrete cylinder diameter×stroke |
mm |
Φ140/845 |
|
|
Hopper capacity |
L |
|
|
|
Outlet diameter |
mm |
Ф100 |
|
|
Power system |
Diesel engine model |
|
Weifang 66kw |
|
Electrical engineering power |
kw |
66 |
|
|
Rotate speed |
r/min |
1800 |
|
|
Winding motor power |
kw |
hydro-motor |
|
|
Stir the motor Power |
kw |
||
|
Water pump motor power |
kw |
||
|
Hydraulic system |
Circuit type |
|
Open circuit |
|
Pumping system pressure |
MPa |
32 |
|
|
Mixing system pressure |
MPa |
6-8 |
|
|
Capacity of oil tank |
L |
350 |
|
