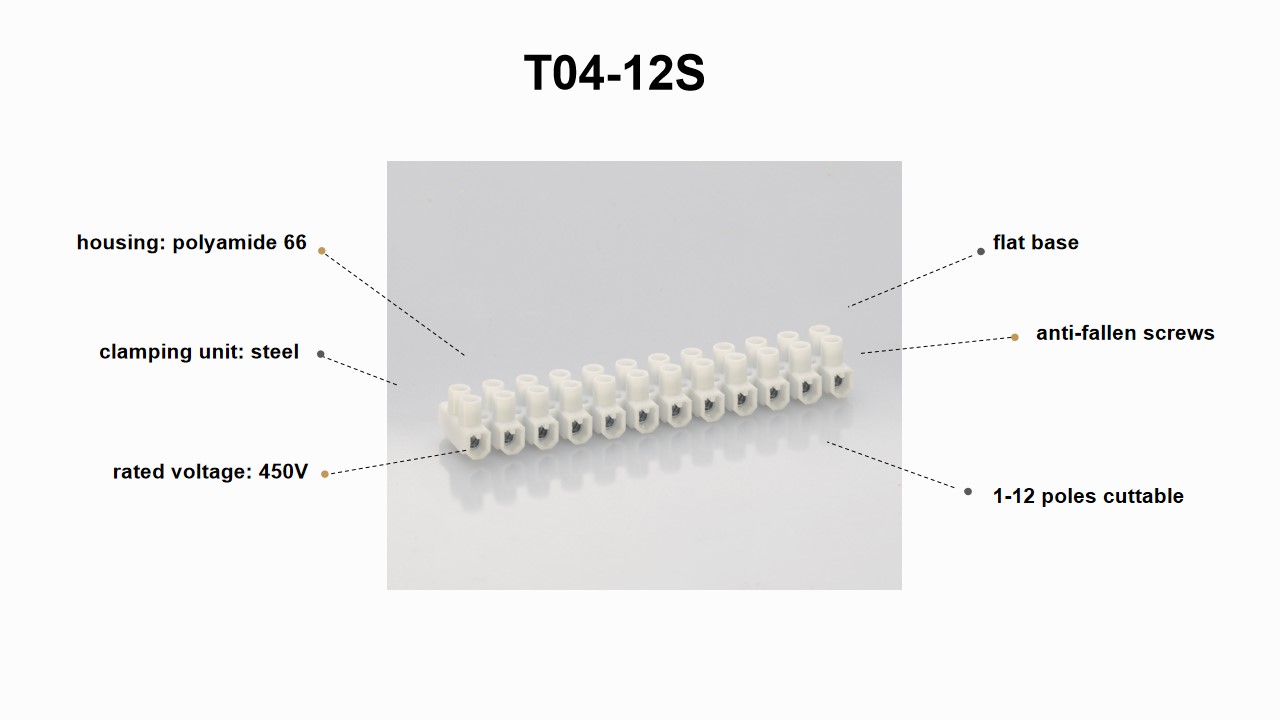

Terminal strip wiring board

10 month ago
39 0
Product details
Introducing our versatile BELEKS T04 series terminal connectors, designed for ease of installation and maintenance, feed through terminal blocks offer a compact and reliable means of connecting multiple wires or cables without the need for complex splicing or additional connectors. They typically feature screw, spring, or clamp-style terminations that ensure a secure and stable connection, even under vibration or high-temperature conditions.

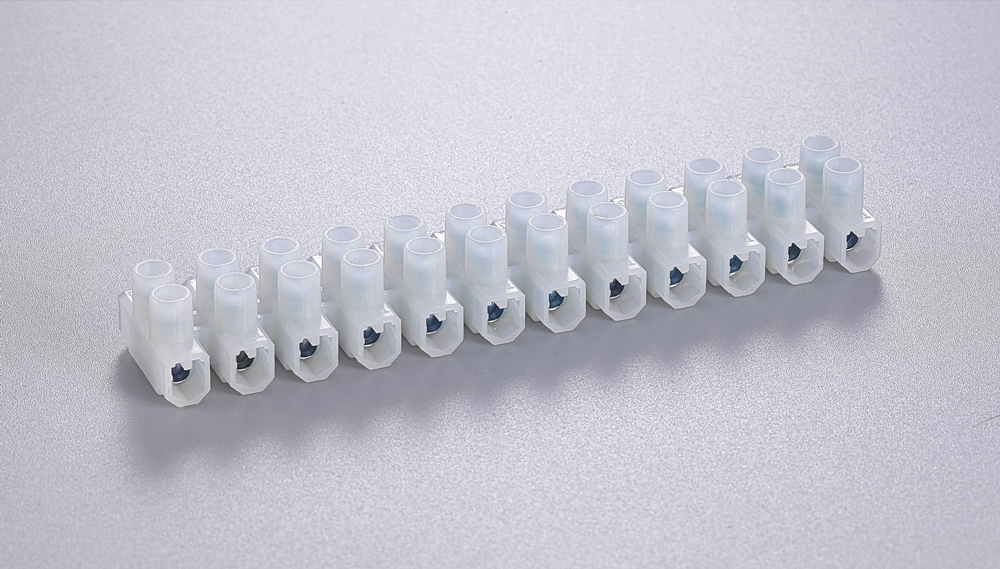

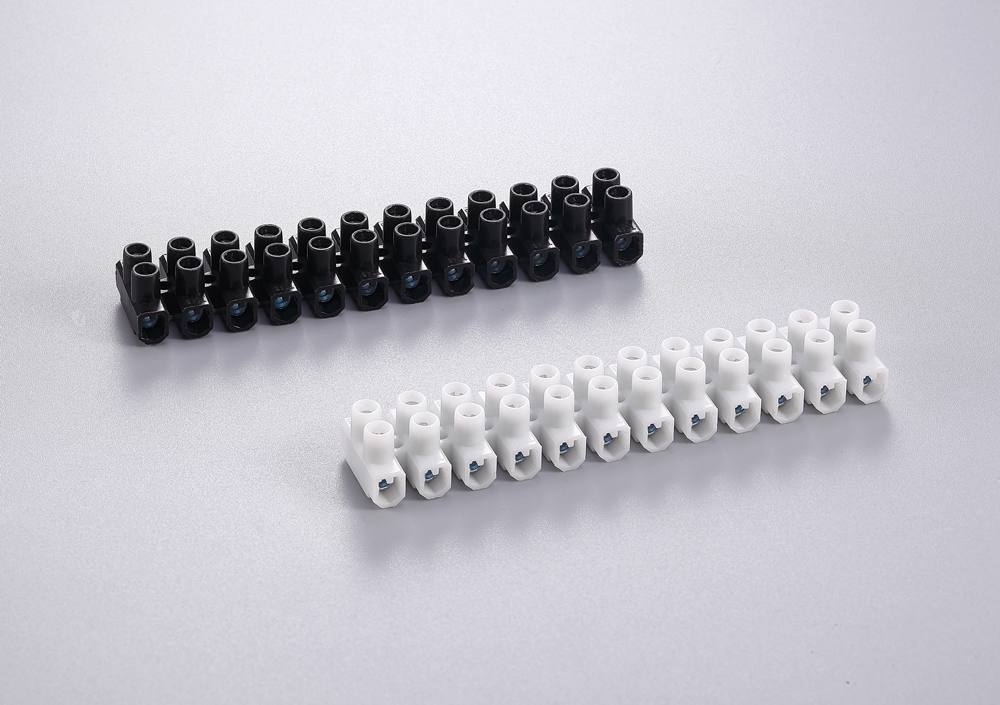

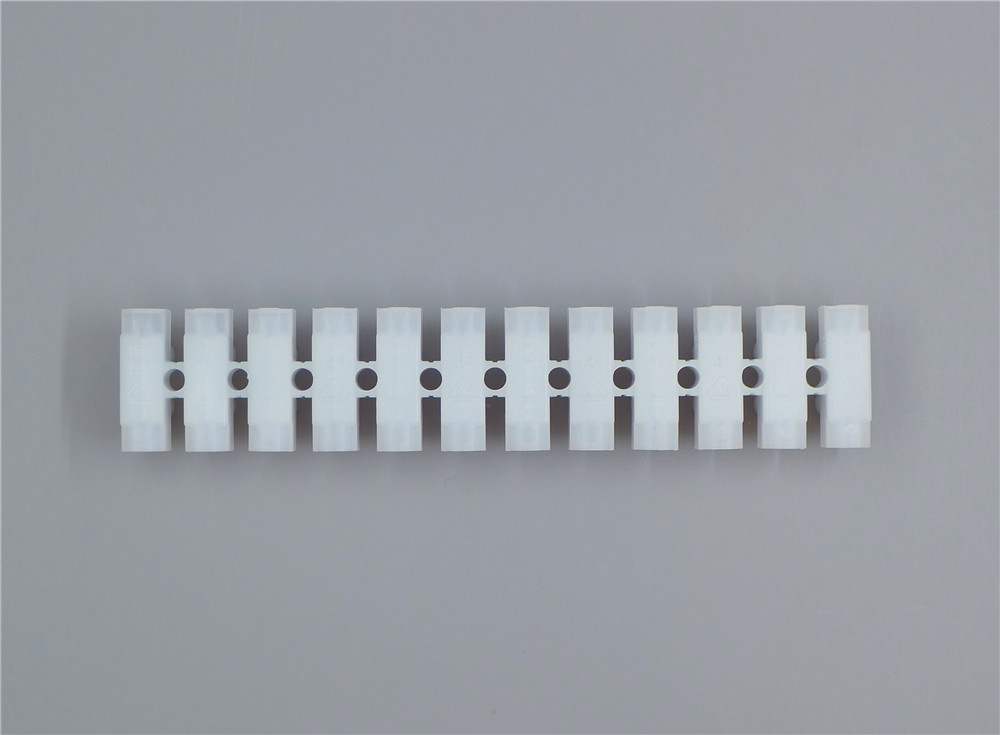

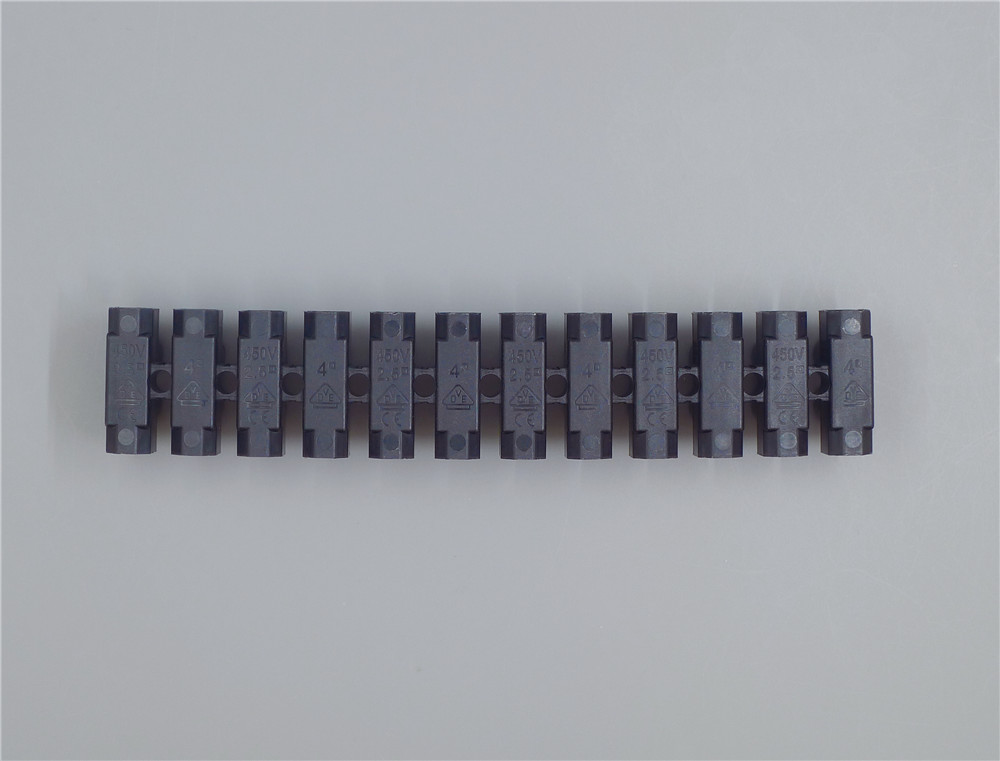

T04-12S(A) (5)T04-12S(P) (8)

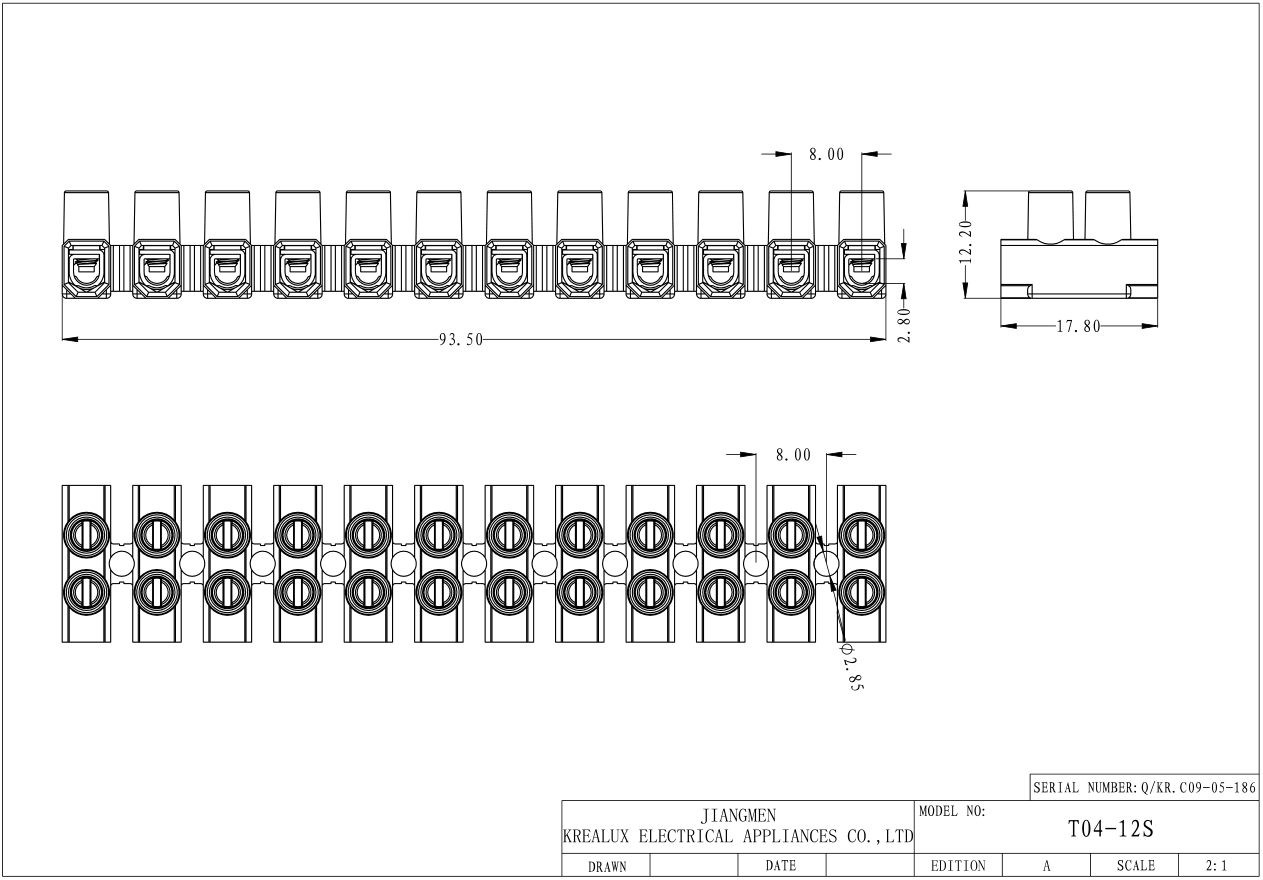

DimensionsE Tqv Zn K Vk2ezgjg L1





Specifications

Item No. T04-12S
Electrical Data
  IEC/EN
Rated Voltage (V) 450
Rated Current (A) 32
Ambient Temperature Polypropylene T85
Polyamide 66 T110
Connection Data
  IEC/EN
Cross Section Solid conductor 0.5-4.0mm²
Stranded conductor 0.5-4.0mm²
Flexible conductor 0.5-4.0mm²
Strip length (mm) 7
Means of connection screw fixed
Screw M2.6
Rewirable
Number of terminals multiway
Number of connection points 1-12
Means of Fixing
screw fixed
Materials
Insulation Materials Designation Polyamide 66 Polypropylene
Flammability class UL 94V-2
Clamping Unit steel
Compatible Products
Junction boxes 405, 413, TB-01
Packing Quantity (pcs/carton)
500







Other ProductsPCB Push Wire Connectors, FT06 Series Fused Terminal Connectors, Push Wire Connectors, Pluggable Connectors and Junction Boxes
