rocker swithches and flexible cord switches

2 month ago
16 0
Product details

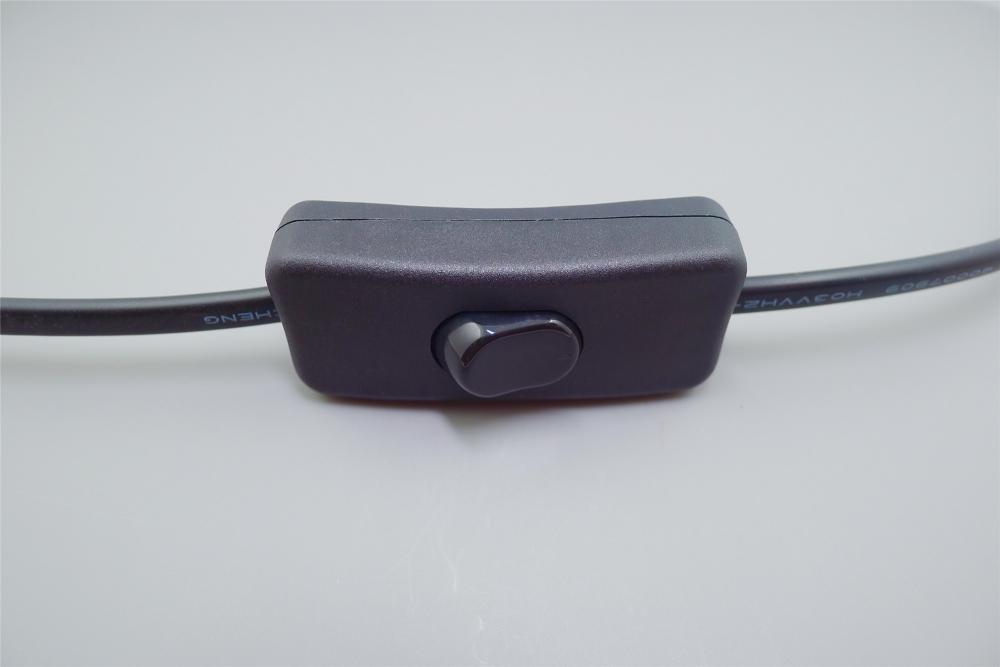

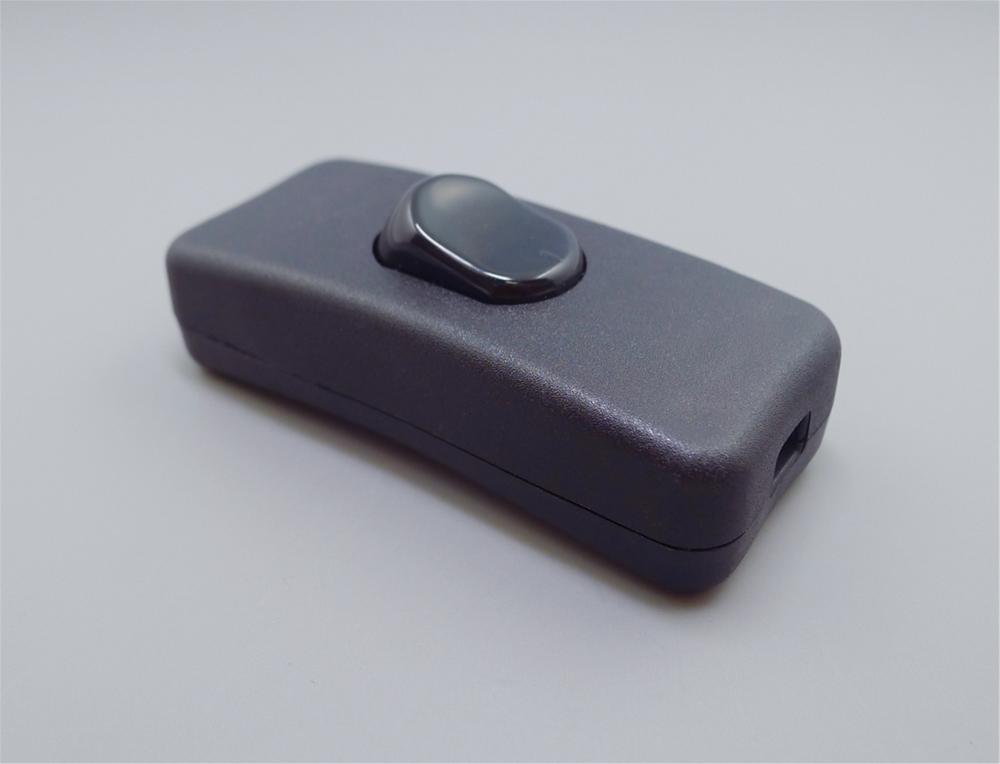

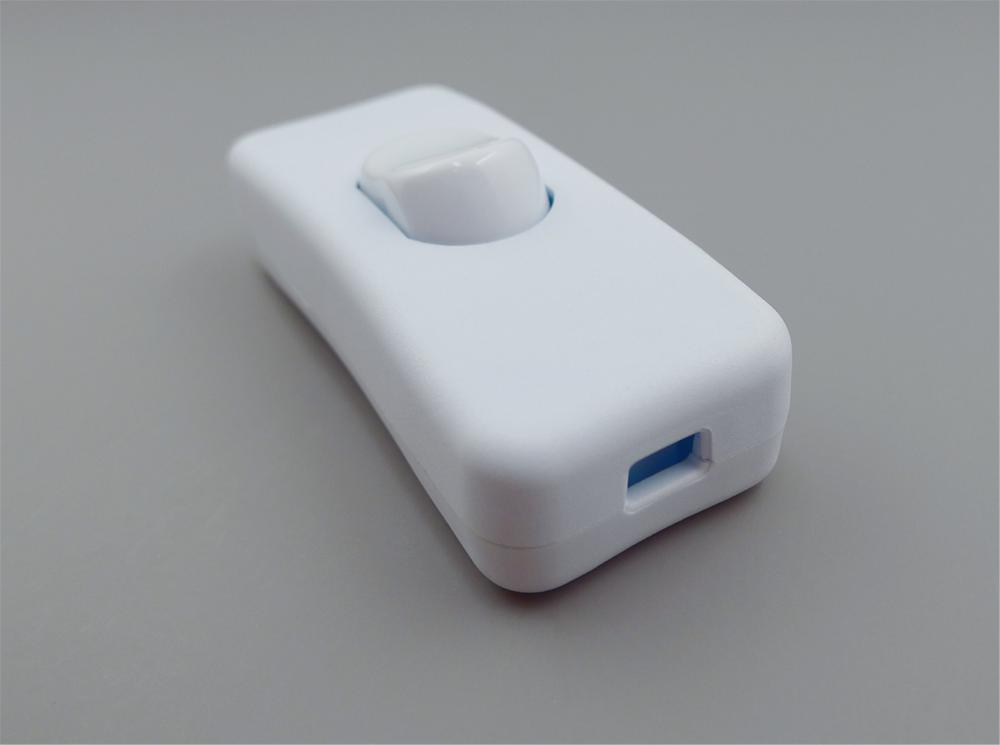

The BELEKS KS3 Series on-off rocker switches are a popular option for a variety of electrical applications, known for their versatility, durability and ease of installation. With a sleek, modern design that blends harmoniously into any interior, these switches are perfect for both residential and commercial environments. Their user-friendly operation ensures a hassle-free experience, while their compatibility with basic electrical knowledge makes them accessible to a wide range of people. The BELEKS KS3 Series Rocker Switch is a reliable and cost-effective upgrade for your electrical systems, enhancing the functionality and aesthetics of your home or business.

KS3KS3-3KS3-1KS3-2

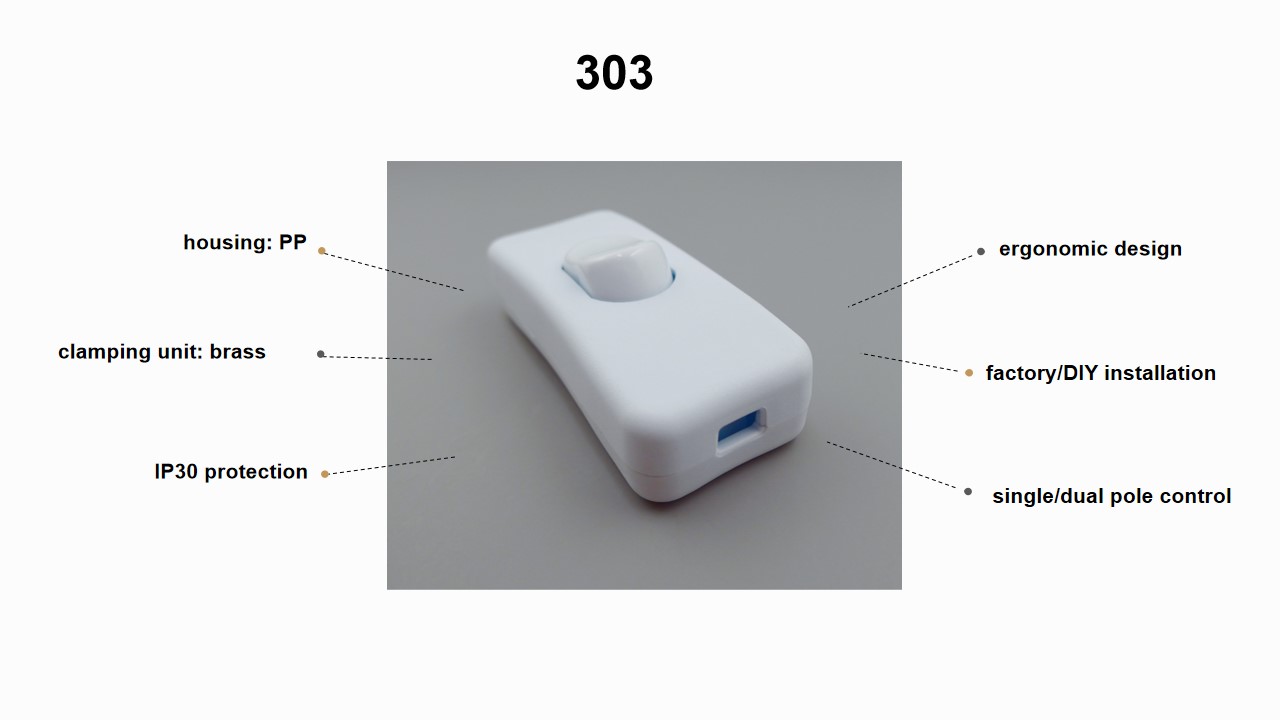

Materials:

housing: polypropylene/polycarbonate(v2)

clamping unit: brass

Packing info:

1000 pcs per carton

carton size: 38×27.5×14.5 cm

net weight: 3.5kg

gross weight: 4kg

Connector specification:

size of connector: 27.00mm×13.50mm×17.00mm

Annual Production:

500000PCS/Year





Product Parameters

Item No. KS3
Electrical Data
  IEC/EN
Rated Voltage (V) 250
Rated Current (A) 0.5
Ambient Temperature Polyamide 66 T85
Connection Data
  IEC/EN
Cross Section Flexible cable 0.75mm²
Strip length (mm)
Means of connection push in
Rewirable
Protection Degree
IP20
Materials
Insulation Materials Designation Polyamide 66
Flammability class UL 94V-2
Packing Quantity (pcs/carton)
1000

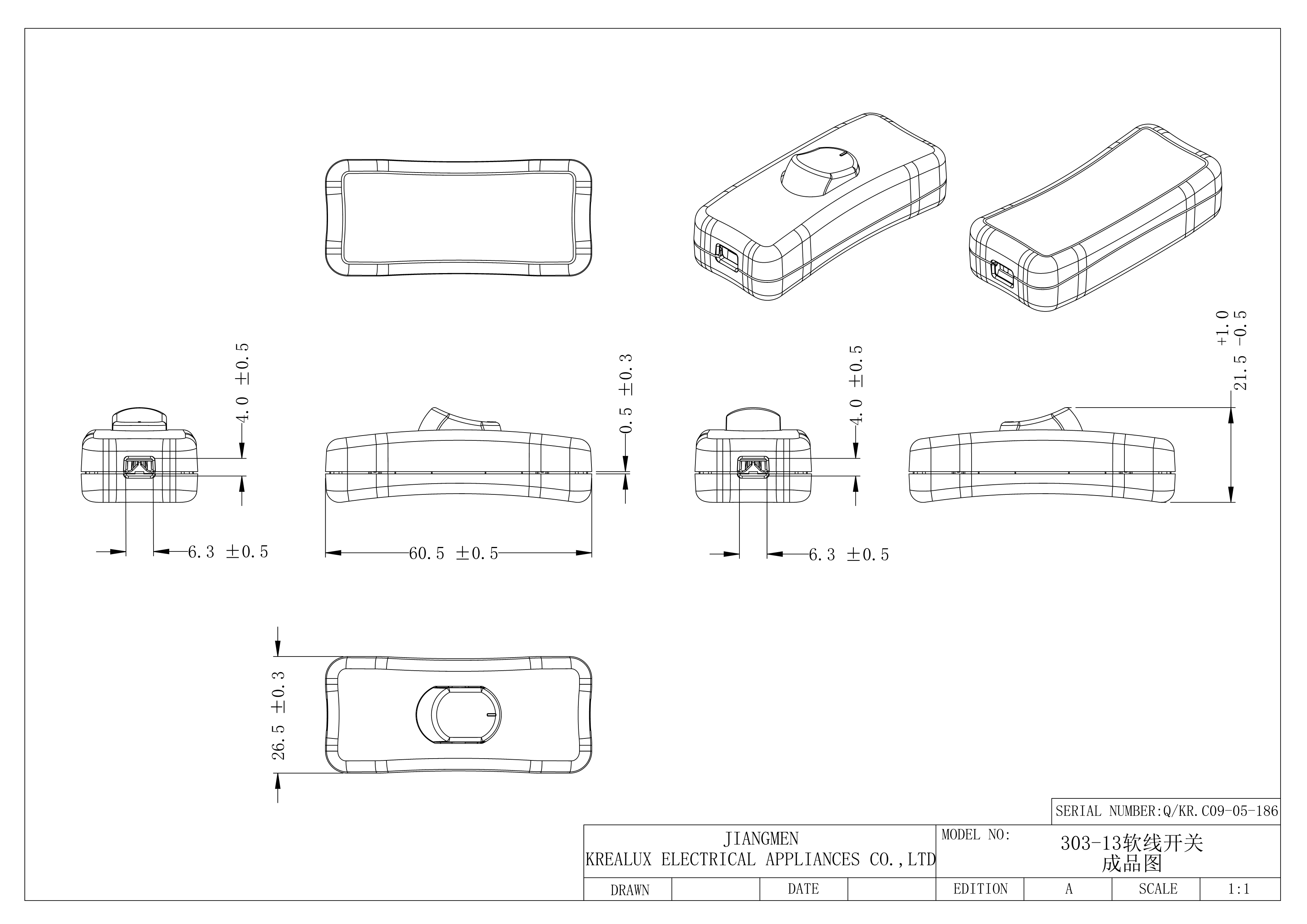

DrawingBeleks Inline On/Off Rocker Switch
