Materials:
Housing & cover: polycarbonate(v2)
lever/button: polyamide(v2)
clamping unit: brass & stainless steel
Packing info:
150 pcs per bag, 20 bags per carton
carton size: 32X27X27.5 cm
net weight: 9.5kg
gross weight: 10kg

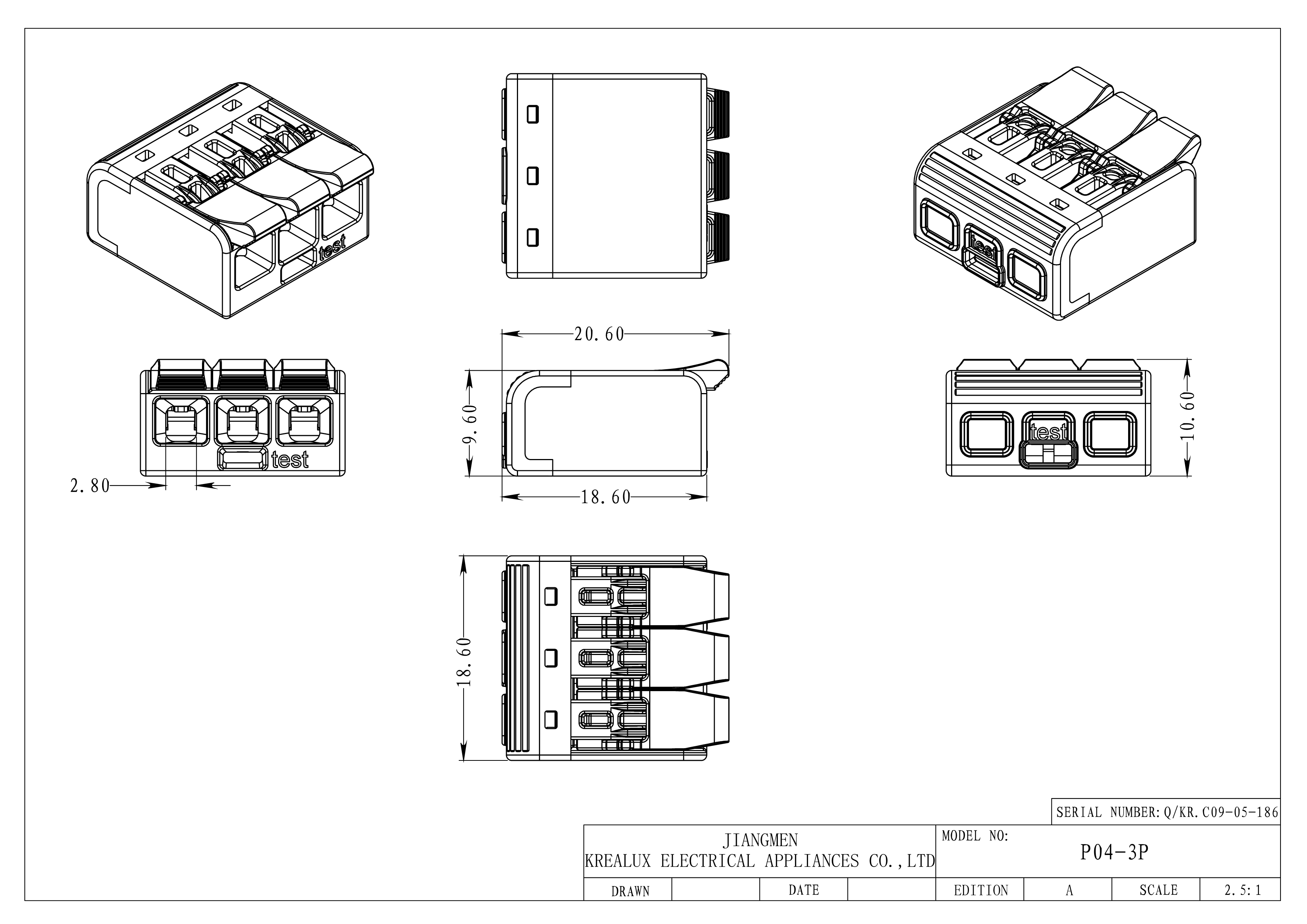

Dimensions
Specifications

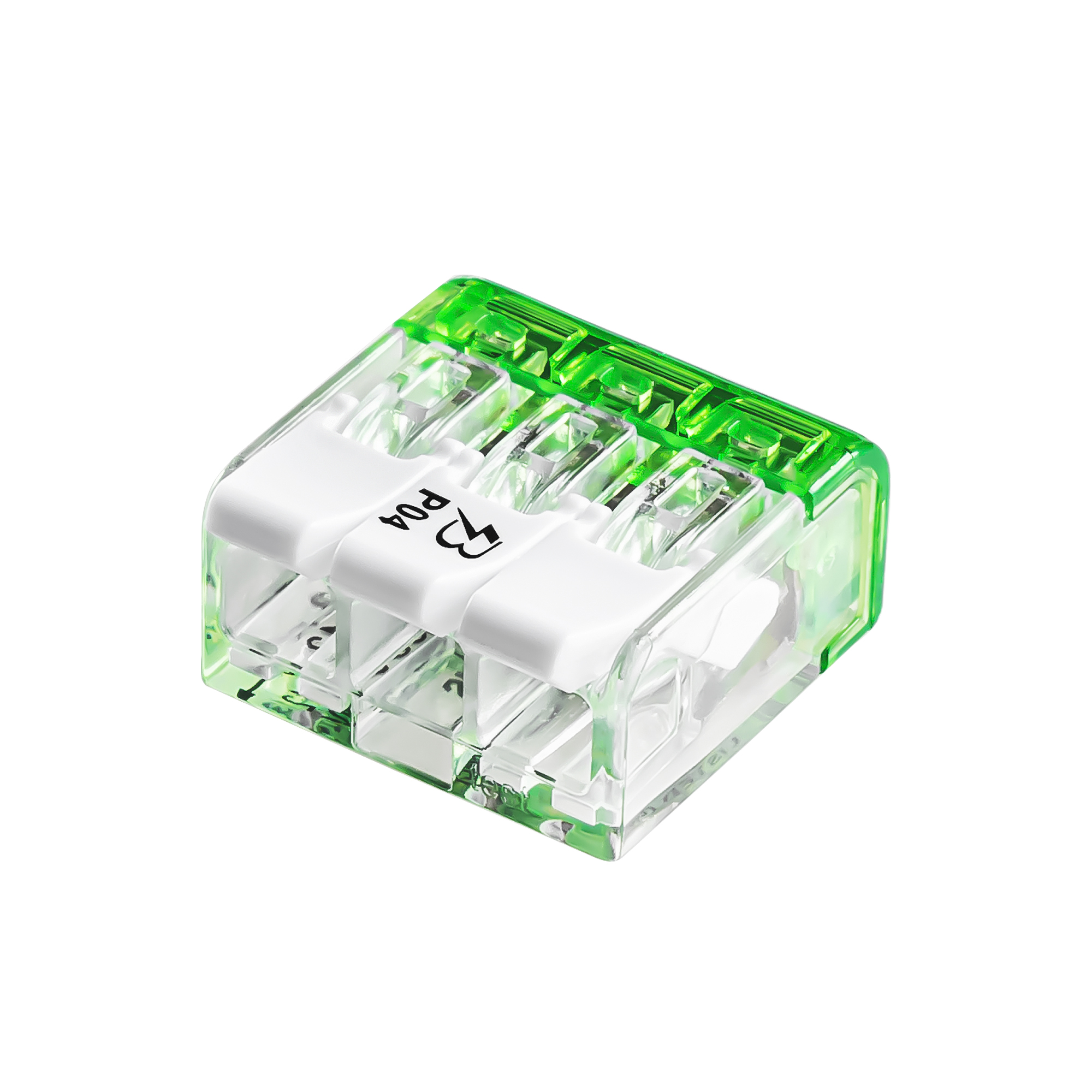

Item No. | P04-3P | ||
Electrical Data | |||
IEC/EN | UL | ||
Rated Voltage (V) | 450 | 600 | |
Rated Current (A) | 32 | ||
Ambient Temperature | Polycarbonate | T85 | 90℃ |
Connection Data | |||
IEC/EN | UL | ||

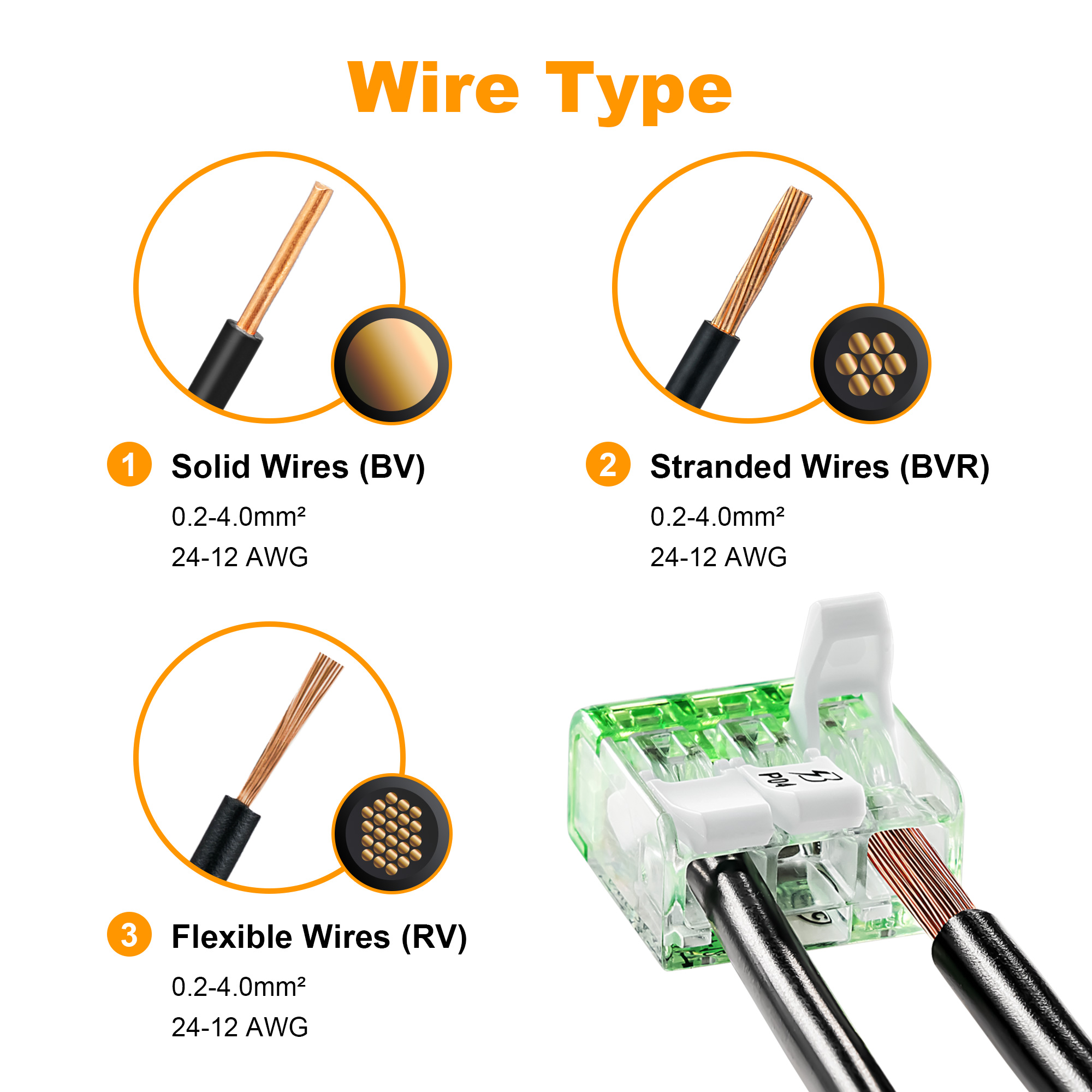

Cross Section | Solid conductor | 0.2-4.0mm² | AWG 12-24 |
Stranded conductor | 0.2-4.0mm² | AWG 12-24 | |
Flexible conductor | 0.2-4.0mm² | AWG 12-24 | |
Strip length (mm) | 13 | ||

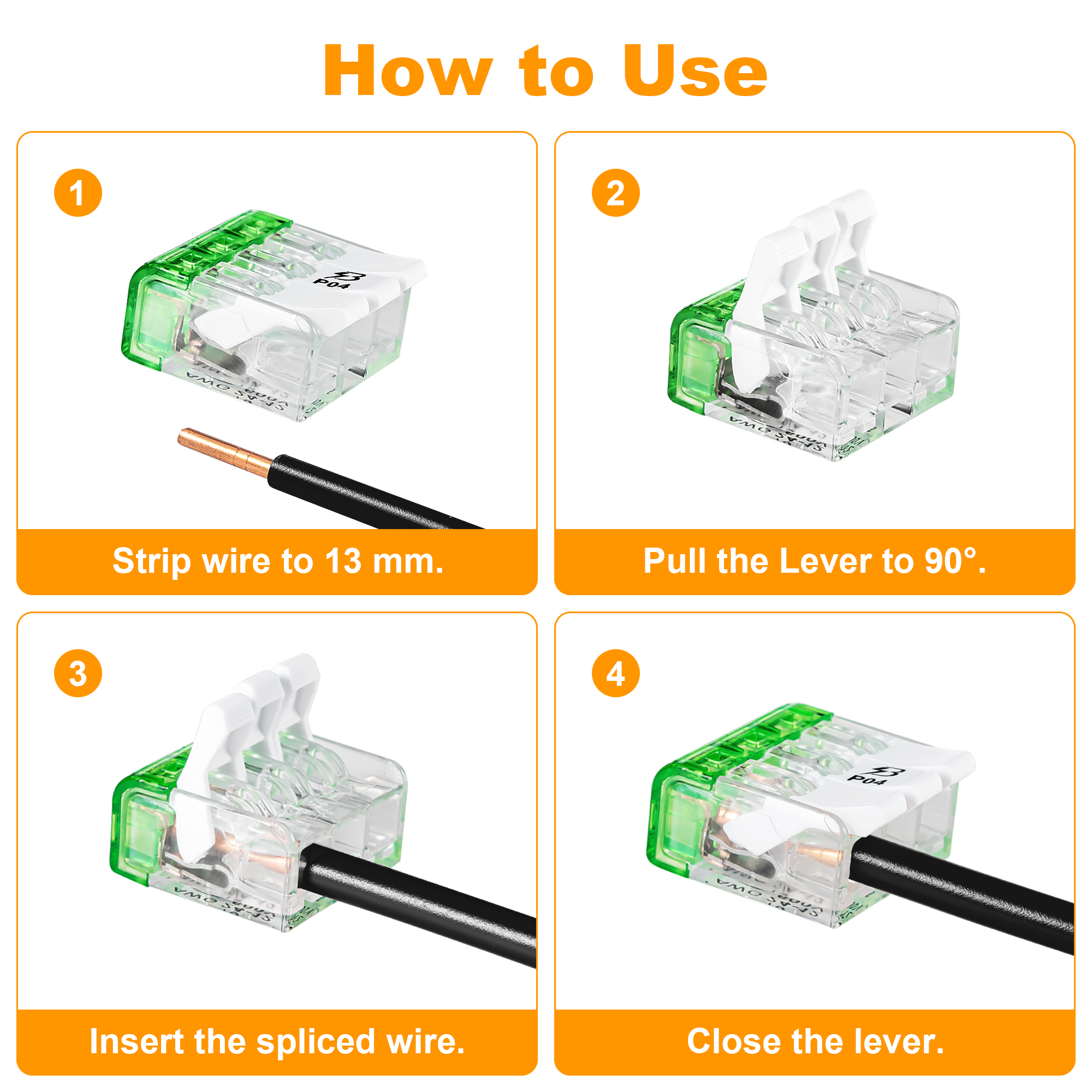

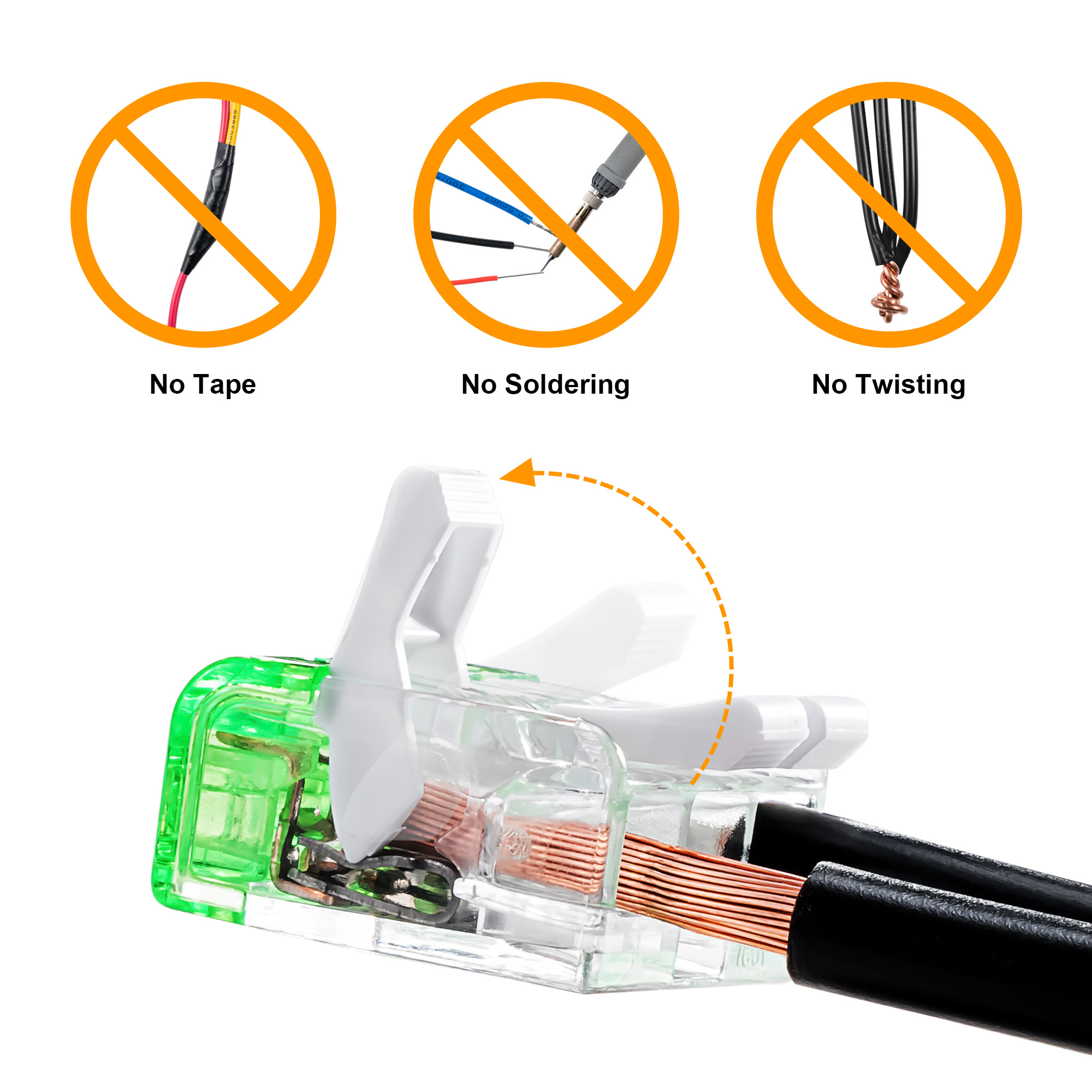

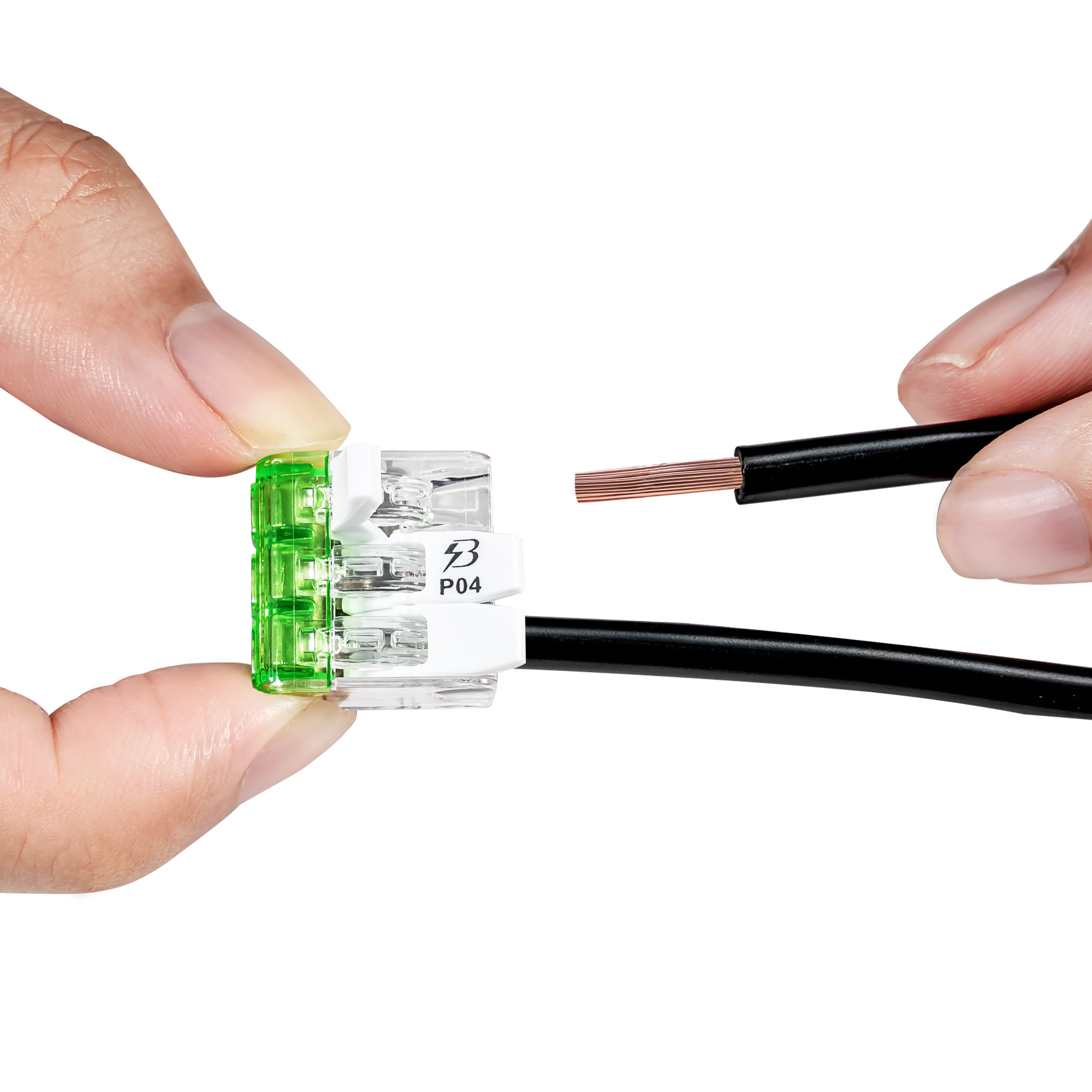

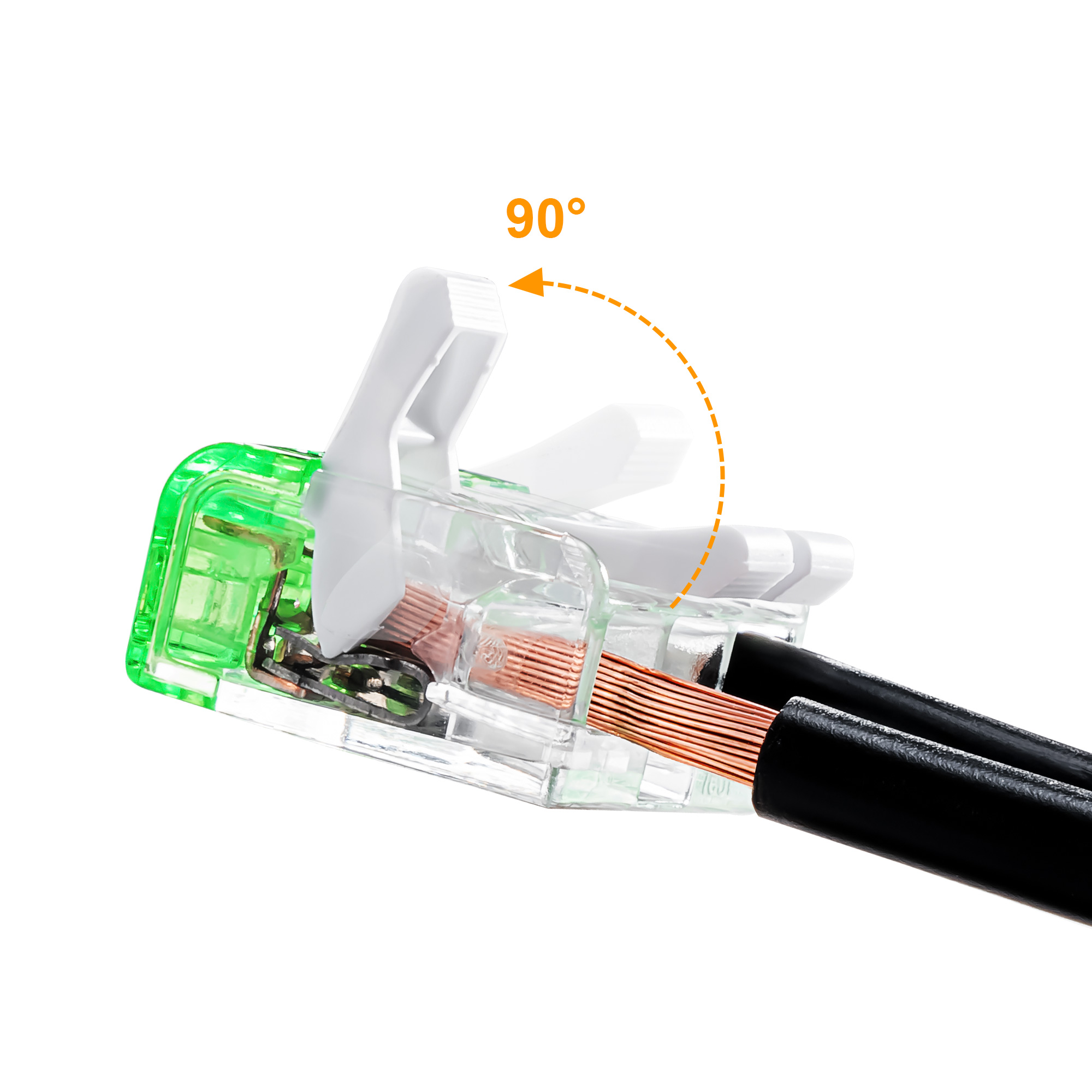

Means of connection | push in | ||
Rewirable | √ | ||
Number of terminals | single | ||
Number of connection points | 3 | ||
Materials | |||
Insulation Materials | Designation | Polycarbonate | |
Flammability class | UL 94V-2 | ||
Packing Quantity (pcs/carton) | |||
3000 |
