Corrugated Steel Plate

9 month ago
28 0
Product details

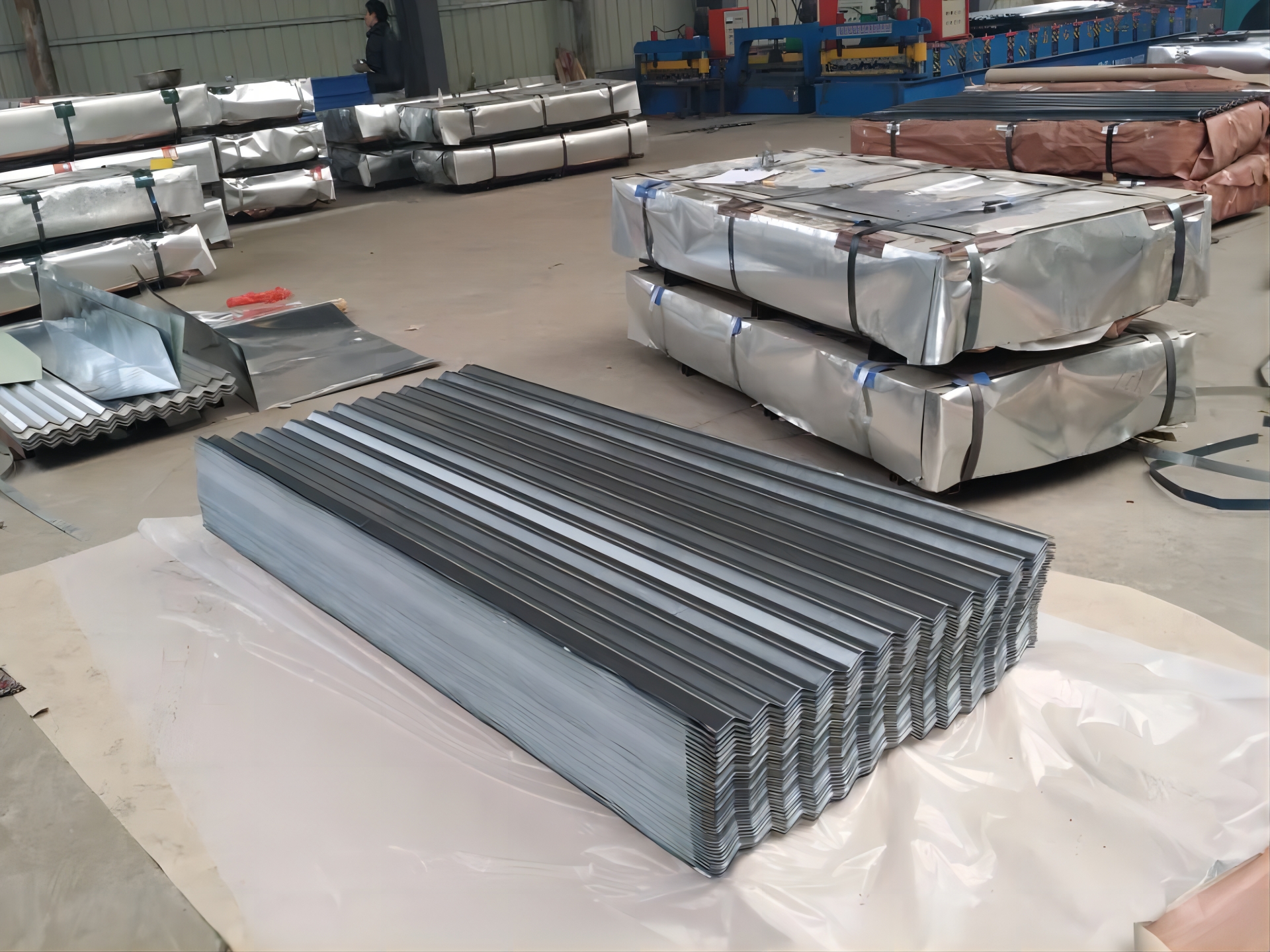

Corrugated Roofing Sheet

Product Description

Color steel tile also known as: color pressure tile, is the use of color coating steel plate, by rolling cold bending into a variety of wave type of pressure plate.
It is suitable for industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, wall and exterior wall decoration, with light weight, high strength, rich color, convenient construction, earthquake, fire, rain, long life, maintenance free and other characteristics, has been widely applied.


Product

Corrugated Roofing Sheet

Base Material

Hot dipped galvanized steel sheet
Hot dipped galvalume steel sheet

Material Grade

CGCC, SGCC, SGCH, G350,G450,G550, DX51D+Z, DX51D+AZ, etc

Thickness

0.12-0.8mm

Width

750-1250mm (before corrugation)
600-1100mm (after corrugation)

Length

1000-6000mm or as require

Tolerance

Thickness: +/-0.02mm
Width: +/-2mm

Length: +/-2mm

Coating Type

Galvanized, Galvalume, Pre painted coating (PE, SMP, HDP, PVDF)

Zinc-coating

60g/m²-275g/m² (G30-G60)

Technique

Raw material: Hot rolled steel coil → Cold rolled  hot dipped galvanized  corrugated

Terms

Raw material width 762mm, after corrugated width 665mm: 9 waves

Raw material width 914mm, after corrugated width 800mm: 11 waves
Raw material width 1000mm, after corrugated 890mm or 900mm: 12-14 waves

Feature

Roofing Steel Sheet have excellent performance of decoration, corrosion resistance etc.

Export Package

Waterproof paper, galvanized steel covered and steel strip packed


Steel Grades

Chemical Composition%

<Residual Element>

Tensile Strength
(MPa)

Yield Strength(MPa)

C%<

Si%<

Mn%<

P%<

S%<

Alt<

SGCC, DX51D+Z

0.07

0.03

0.5

0.025

0.025

0.02

 Cu<0.10, Ni<0.08, Cr<0.10, As<0.05, Sn<0.05

270-500

140-280

DX52D+Z

0.06

0.03

0.45

0.025

0.025

0.02

270-420

140-300

DX53D+Z

0.03

0.03

0.4

0.020

0.020

0.02

270-380

140-260

S220GD+Z

0.17

0.3

1.0

0.035

0.300

0.02

300-440

>220

S250GD+Z

0.17

0.3

1.0

0.035

0.300

0.02

330-470

>250

S350GD+Z

0.2

0.55

1.6

0.035

0.300

0.02

420-560

>350


Grade

Yield Strength MPa

Tensile Strength MPa not less than

Elongation after breaking b(l=80mm, b=20mm) % not less than Nominal thickness mm

rvalue is not less than

nvalue is not less than



0.70-

1.0-

≥1.6

DC01(St12)

130~260

270

28

30

32

34



-

DC03(St13)

120~240

270

32

34

35

36

-

-

DC04(St14, St15)

120~210

270

36

38

39

40

1.5

0.18

DC05(BSC2)

110~190

260

38

39

40

41

1.8

0.2

DC06(St16,St14-T, BSC3)

100~180

250

39

40

41

42

2

0.22

Grade

Yield Strength MPa no greater than

Tensile Strength MPa not less than

Elongation after breaking b(Lo=50mm, b=25mm) % not less than Nominal thickness mm



0.25-

0.40-

0.60-

1.0~

≥1.6

SPCC

-

270

30

32

34

36

37

38

SPCD

-

270

32

34

36

38

39

40

SPCE, SPCEN

210

270

34

36

38

40

41

42

Grade

Chemical Component %

C

Mn

P

s

Alta

Tib

DC01(St12)

C0.10

≤0.50

≤0.035

≤0.025

≥0.020

-

DC03(St13)

≤0.08

≤0.45

≤0.030

≤0.025

≥0.020

-

DC04(St14,St 15)

≤0.08

≤0.40

≤0.025

≤0.020

≥0.020

-

DC05(BSC2)

≤0.008

≤0.30

≤0.020

≤0.020

≥0.015

≤0.20

DC06(St16,SH4-T,BSC3)

≤0.006

≤0.30

≤0.020

≤0.020

≥0.015

≤0.20

SPCC

≤0.12

≤0.50

≤0035

≤0.025

≥0,020



SPCD

≤0.10

≤0.45

≤0.030

≤0.025

≥0.020



SPCE. SPCEN

≤008

U0.40

W0.025

≤0.020

≥0,020



Alt greater than or equal to 0.015 when C is less than or equal to 0.01 for all grades

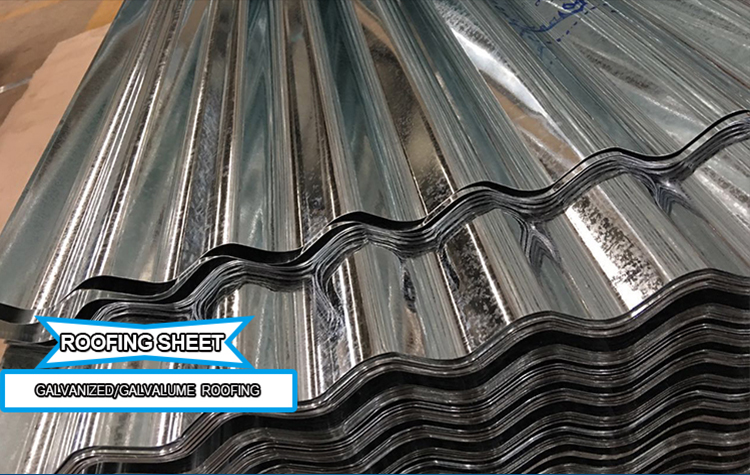

Galvanized Corrugated Sheet

Corrugated Sheet

Roofing Sheet

Corrugated Roofing Sheet

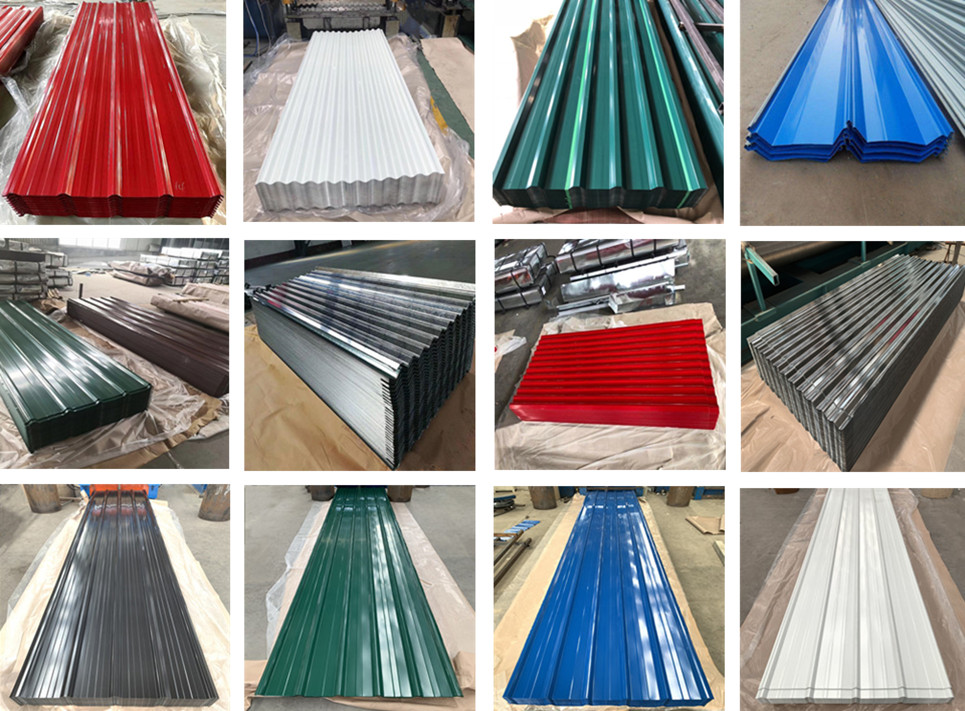

Product Display

We can produce different sizes, thicknesses, widths and materials according to your requirements

Corrugated Roofing Sheet

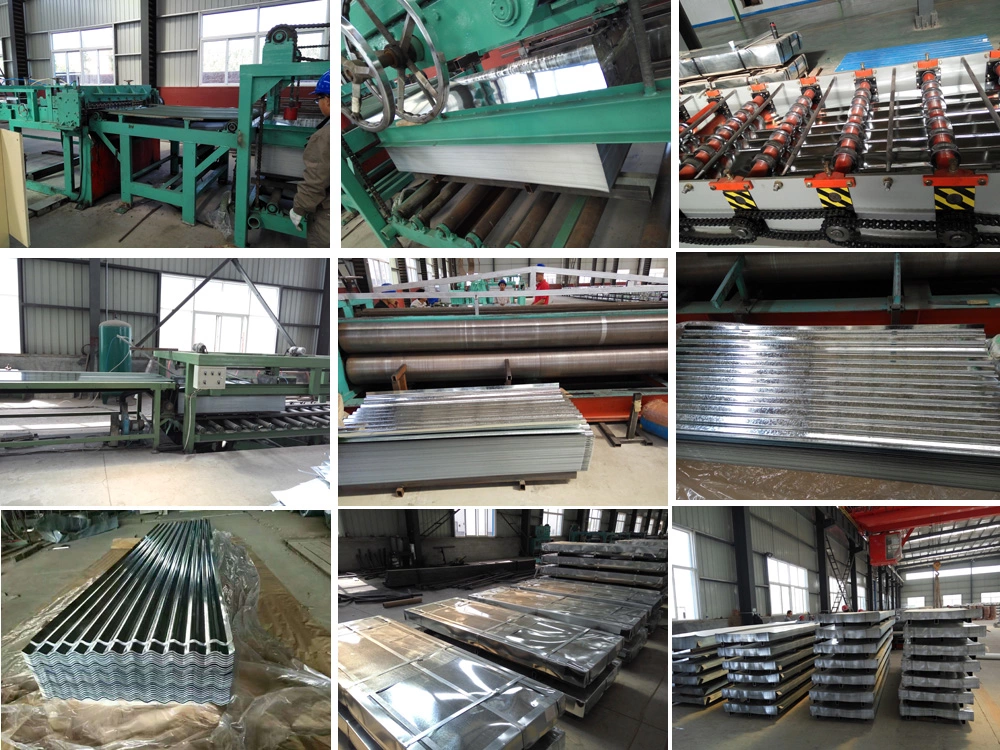

Our factory

Corrugated Roofing Sheet

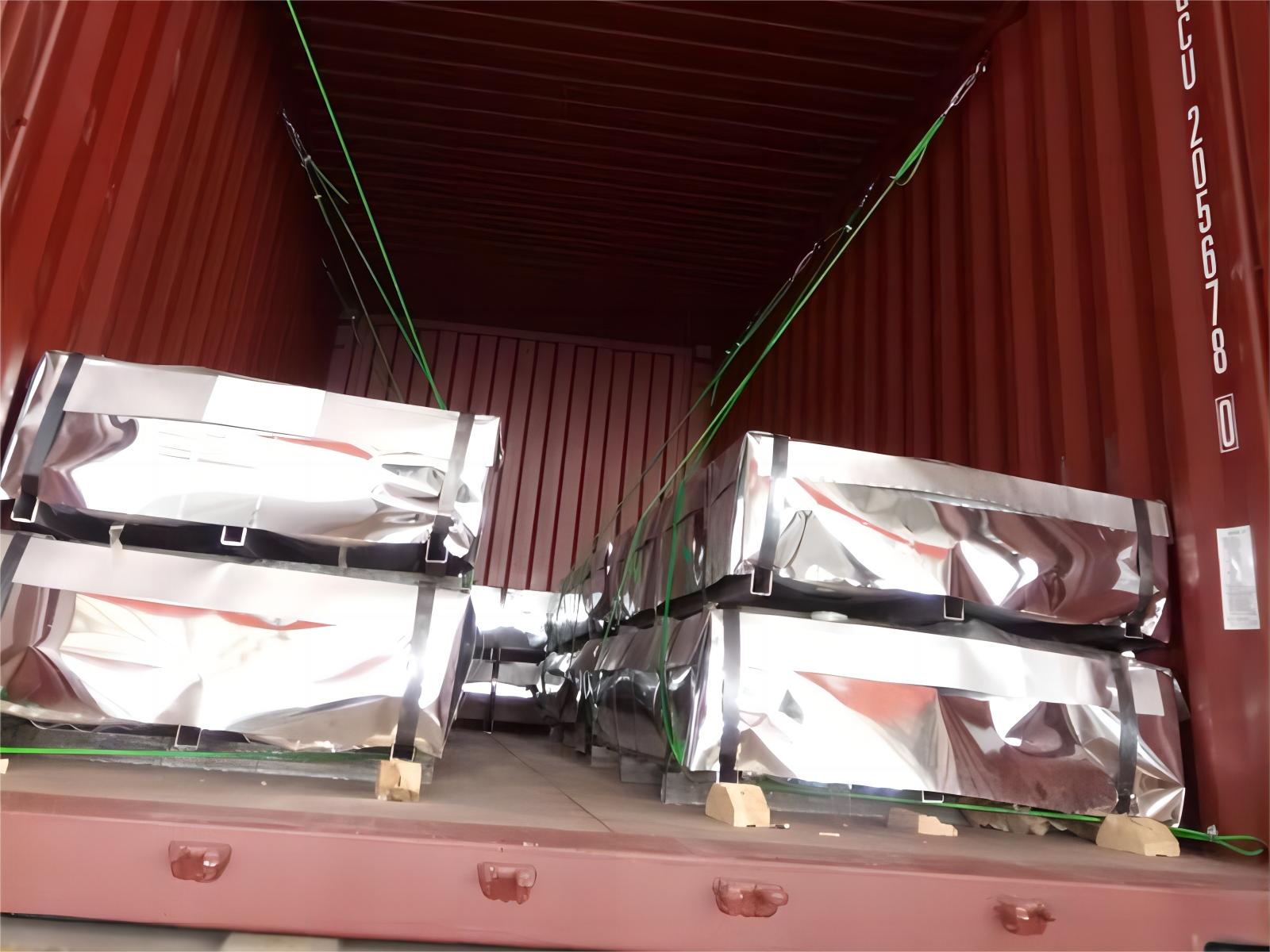

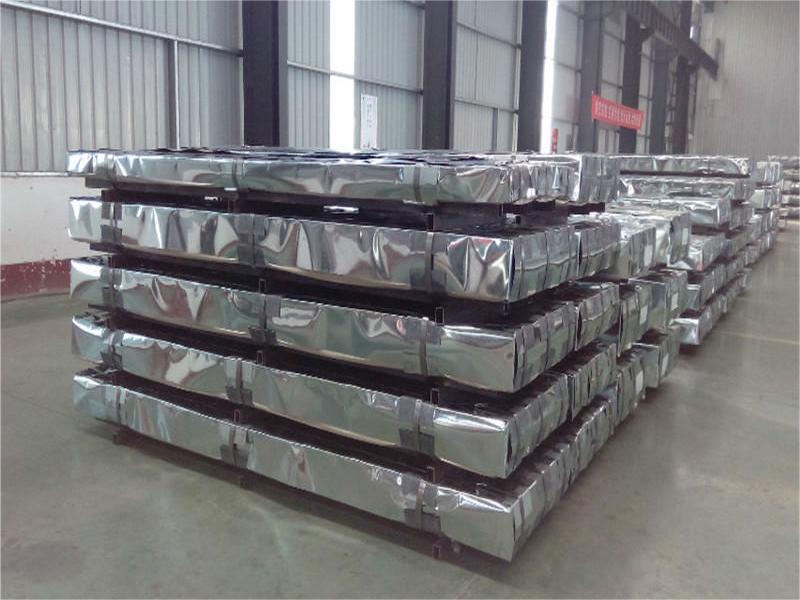

Packaging And Transportation

We offer different modes of transport depending on the customer's destination: rail transport and ship transport, etc. The packaging is: export sea worthy package + water proof paper + wooden pallet or as customers' requirements. The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.

Corrugated Sheet Corrugated Sheet

Corrugated Roofing Sheet
