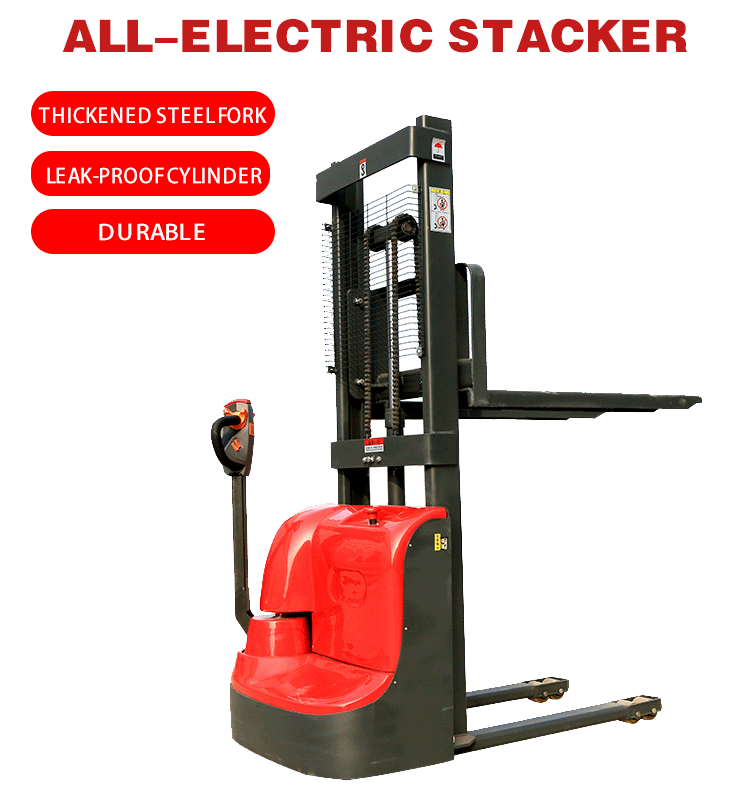

Best Electric Forklift On The Market
Advantages: simple operation, powerful function, safe use, higher lifting capacity and heavier, durable battery life, no noise, daily maintenance-free, to a certain extent,
it can replace truck operations, and it is more cost-effective than forklifts, which can increase 2 tons For heavy objects within, the lifting height can reach more than 6 meters.
Electric stacker CDD15 Parameter table
Basic parameters
Performance
Product number
CDD15
Driving speed laden/unladen
4/5Km/h
Drive form
electric
Maximum lifting speed without load
100mm/s
Driving style
Walking
Maximum lifting speed with full load
50mm/s
Rated load
1500KG
Maximum gradeability full load/unloaded
3/5%
Wheelbase
1241mm
Braking method
Electromagnetic brake
Weight (including battery)
545KG
Electric machine
Basic size
Drive motor power
0.75Kw
Total height (when the fork is lowest)
2080/1580/1830/2080/2330mm
Increase motor power
2.2Kw
Total height (when the fork is highest)
2080/2560/3060/3560/4060mm
Battery voltage/capacity
2*12V/80Ah
Lifting height
1600/2000/2500/3000/3500mm
wheel
Height of forks from the ground (at the lowest time)
85mm
Tires
Polyurethane wheel
The height of the operating handle from the ground
1230/750mm
Drive wheel size
210*70
Vehicle length
1791mm
Front wheel size
80*70
Vehicle width
822mm
Balance wheel size
125*50
Fork size
60/160/1100
Number of wheels
1x+1/4
Outer width of fork
680mm
Front track
520mm
Minimum ground clearance
30mm
Rear track
513mm
Right-angle stacking channel width, pallet 1000*1200
2305mm
Turning radius
1431mm
