Parameters

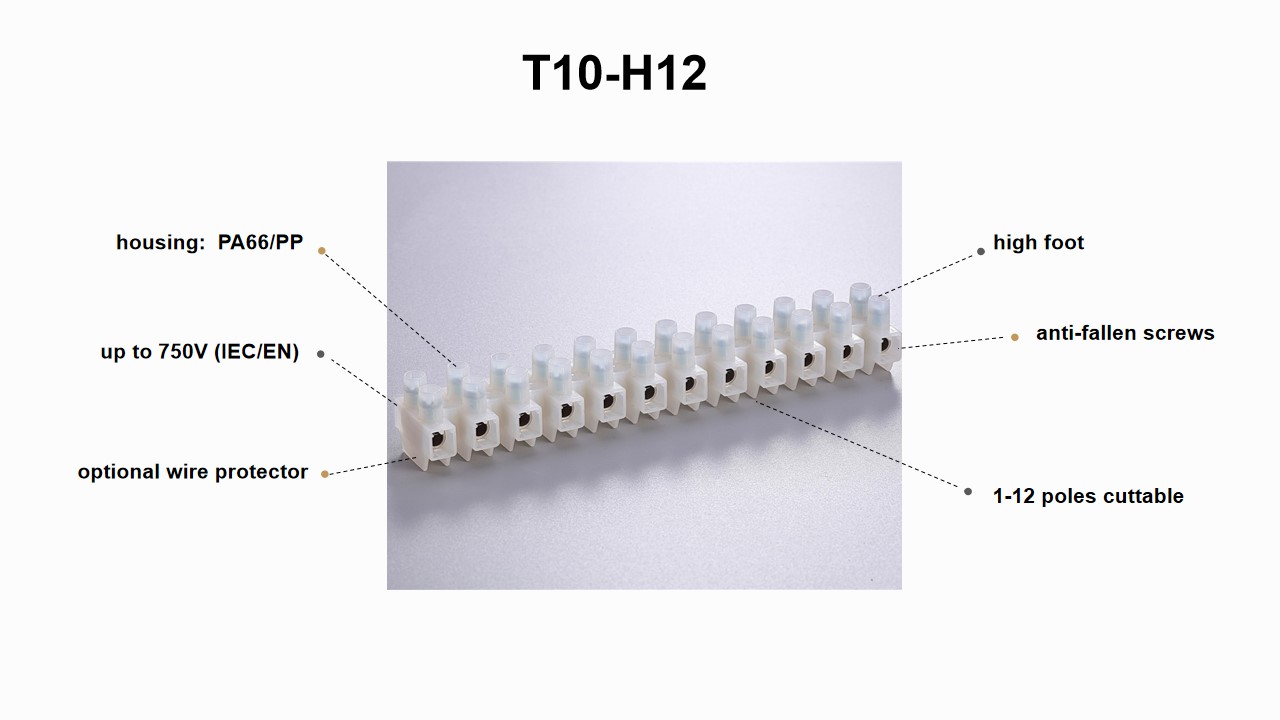

| Item No. | T10-H12 | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 750 | 300 | |
| Rated Current (A) | 57 | FW1: 35 | |
| FW2: 30 | |||
| Ambient Temperature | Polypropylene | T85 | |
| Polyamide 66 (V2) | T110 | 105℃ | |
| Connection Data | |||
| IEC/EN | UL | ||
| Cross Section | Solid conductor | 4.0-10.0mm² | AWG 10-20 |
| Stranded conductor | 4.0-6.0mm² | AWG 10-20 | |
| Flexible conductor | 4.0-6.0mm² | - | |
| Strip length (mm) | 7 | ||
| Means of connection | screw fixed | ||
| Screw | M3.5 | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 1-12 | ||
| Means of Fixing | |||
| screw fixed | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Clamping Unit | brass, stainless steel (wire protector) | ||
| Packing Quantity (pcs/carton) | |||
| 400 | |||
Drawing
