Electromagnetic flow meter for sewage

8 month ago
25 0
Product details

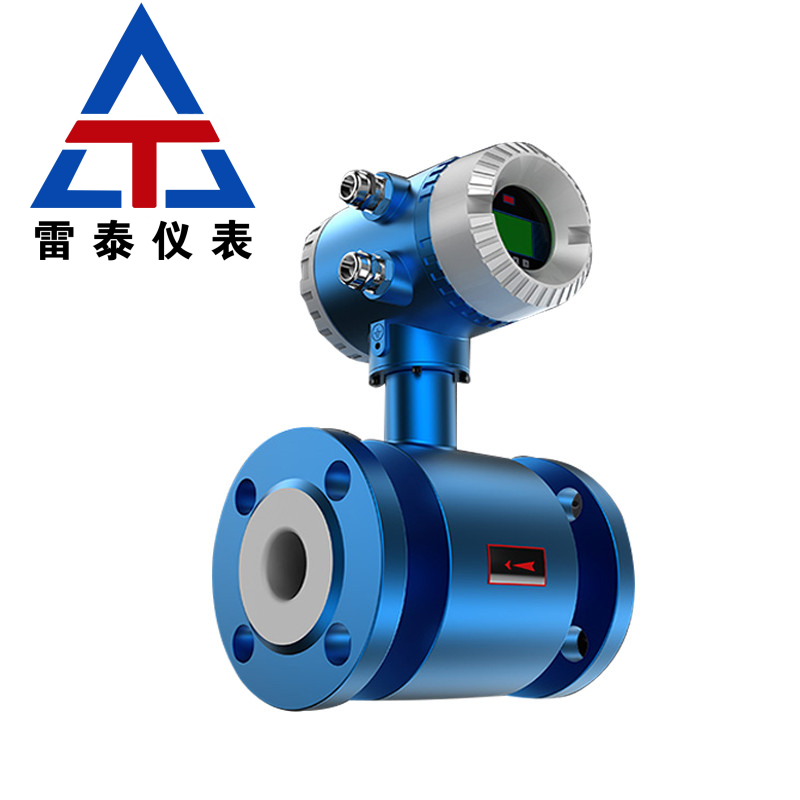

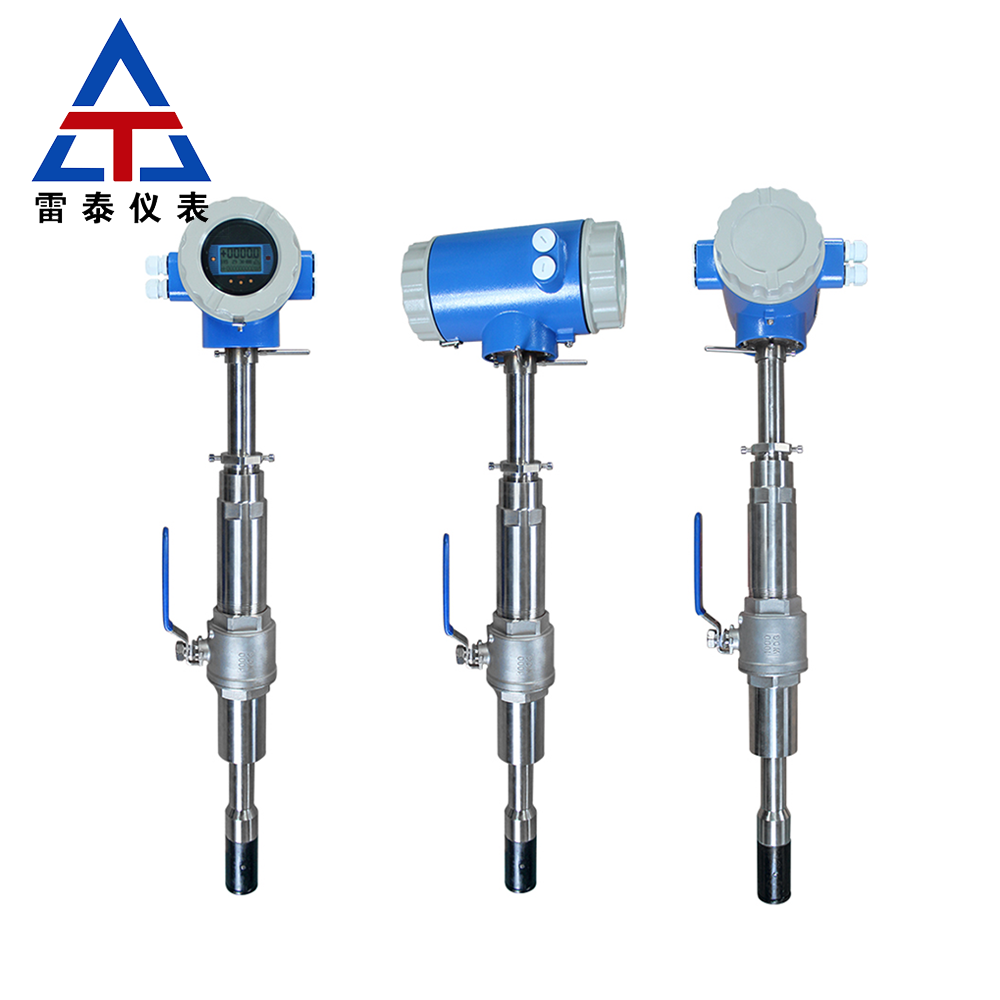

The electromagnetic flowmeter is a instrument that can measure liquid flow in the pipeline. Its working principle is Faraday electromagnetic induction. It is not affected by factors such as fluid density, viscosity, temperature, and has the advantages of high measurement accuracy and good stability. Therefore, it is widely used in chemical industry, metallurgy, light textile, paper, environmental protection, food, domestic sewage, industrial sewage, cooling water, tap water plant and other industrial fields.
Electromagnetic flowmeterElectromagnetic flowmeter
Flow diameter control table :
Diameter (mm) Range (m³/h)  Diameter (mm) Range (m³/h)
DN10 0.16~2.5 DN400 250~4000
DN15 0.4~6 DN500 400~6000
DN20 0.6~12 DN600 600~10000
DN25 1.0~16 DN700 800~12000
DN32 1.6~25 DN800 1000~16000
DN40 2.5~40 DN900 1200~20000
DN50 4.0~60 DN1000 1600~25000
DN65 6.0~120 DN1200 2500~30000
DN80 10~160 DN1400 3000~50000
DN100 16~250 DN1600 3000~60000
DN125 25~400 DN1800 5000~60000
DN150 40~600 DN2000 6000~100000
DN200 60~1000 DN2200 1367.78~136778.4
DN250 100~1600 DN2400 1627.78~162777.6
DN300 160~2500 DN2600 1910.38~191037.6
DN350 200~3000 DN2800 2306.56 ~ 236062.8
Electromagnetic flowmeters are small in size, light weight, convenient transportation, and installation, which can achieve continuous maintenance and disassembly, and there are many materials for the sensor body and electrode to choose from. In addition, our main products are: Electromagnetic flowmeter, Energy meter, Vortex flowmeter, Pressure transmitters, Level gauge, Magnetic flap level gauge.
