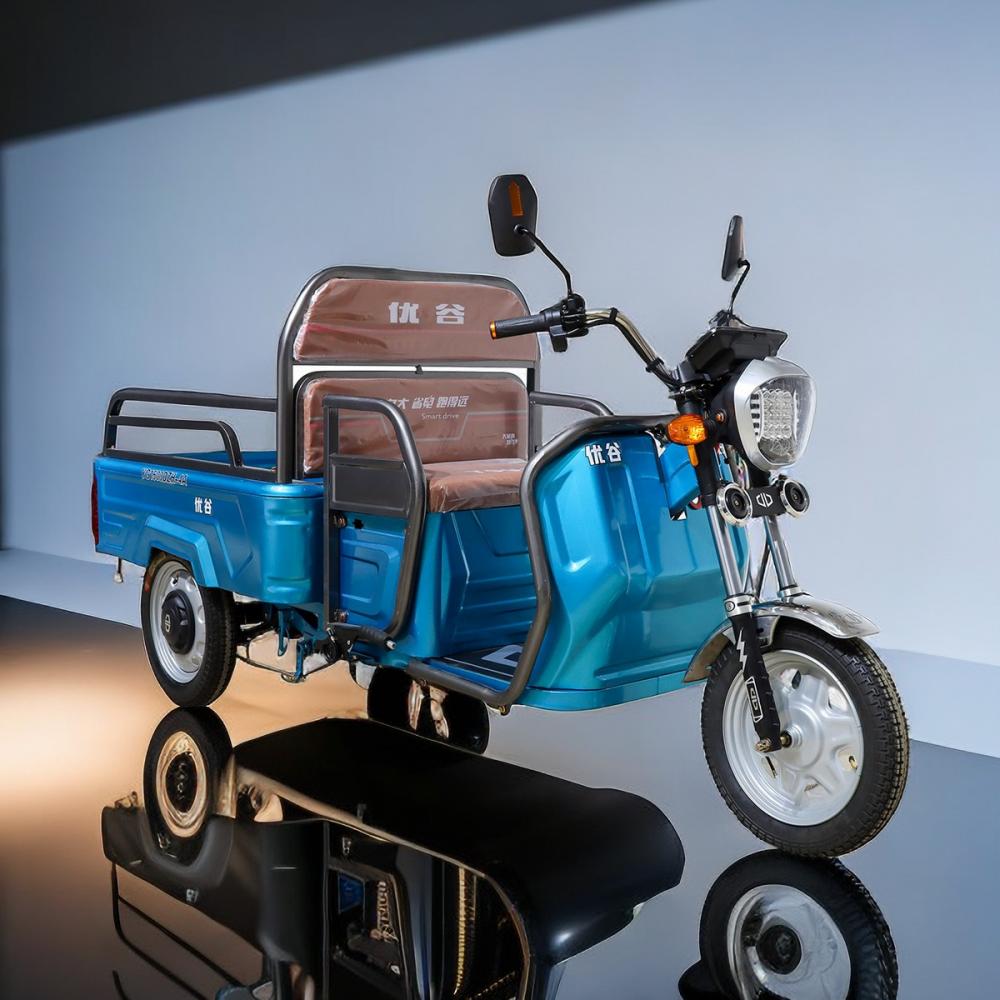

Three-wheeled electric commuter vehicle
The Electric Passenger Tricycle uses a large capacity battery for remote protection, providing stable, long-lasting, and reliable power output to accompany you on your journey. The front of the Electric Cargo Tricycle is equipped with high brightness convex mirror headlights, which have a wide illumination range and uniform light, enhancing your driving safety and illuminating the road ahead, providing you with protection.

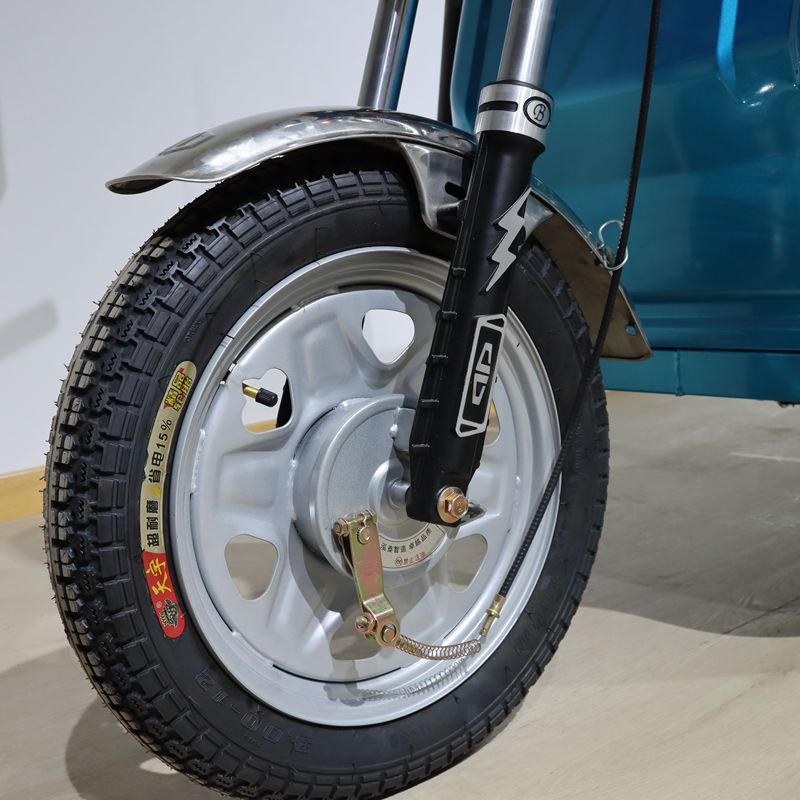

The Household Transportation Vehicle uses vacuum tires with deep tread patterns, strong grip, strong resistance to vacuum impact, comfortable driving, and the ability to easily handle various road conditions. The freight electric tricycle is equipped with multiple service brakes, and the entire vehicle is equipped with two types of braking devices: foot brake and parking handbrake, making your riding safer.
Specification
| Technical parameter sof electric tricycle | Number | Item | specification |
| Finished vehicle body | 1 | Wholecar | |
| 2 | Climb slope | ≤35° | |
| 3 | Height off ground | ≤200mm | |
| 4 | Bearing weight | ≥500kg | |
| 5 | Wheel track | 900mm | |
| 6 | Wheel base | 2000mm | |
| 7 | Battery position | Frame battery box | |
| 8 | Boundary dimension | 3000*1000*1550mm | |
| 9 | Maximum speed | ≤26Km/h | |
| 10 | Astern speed | ≤12Km/h | |
| 11 | endurance mileage | ≥50Km/h | |
| 12 | Tyre type | Front:375-12Rear:400-12 | |
| 13 | configuration | integrated 160 gear shifting，37 shock absorption，two beams, drum brake | |
| Carriage | 1 | material | 1.1 mm iron plate electro phoretic baking paint |
| 2 | Carriage size | 1500*1000mm | |
| Recharge battery | 1 | Battery type | maintenance-free |
| 2 | Battery capacity | Selective configuration | |
| 3 | Battery voltage | 60V | |
| motor | 1 | Output power | 800W |
| 2 | Motorvoltage | 60V | |
| controller | 1 | Specification requirements | 18 tubes double row |
| 2 | Rated voltage | 60V | |
| Rearview mirror | 1 | type | specific |
