Product details

Galvanized Iron Wire is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, craft makers, building and constructions,ribbon manufacturers, jewelers and contractors.Its aversion to rust makes it extremely useful around the shipyard,in the backyard, etc.

Galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g/sqm. With zinc coating thickness, corrosion resistance and other characteristics.

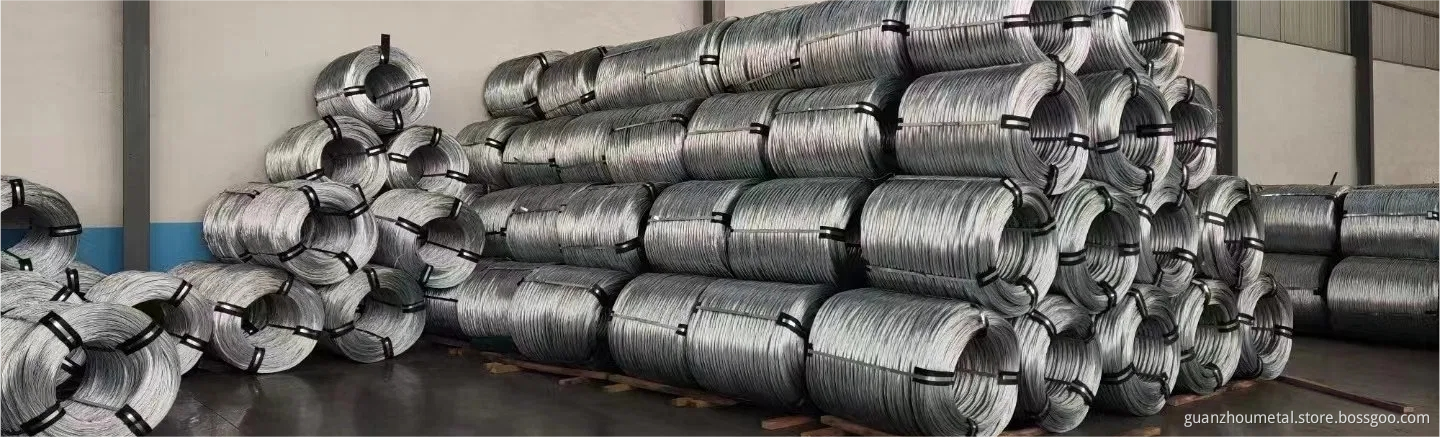

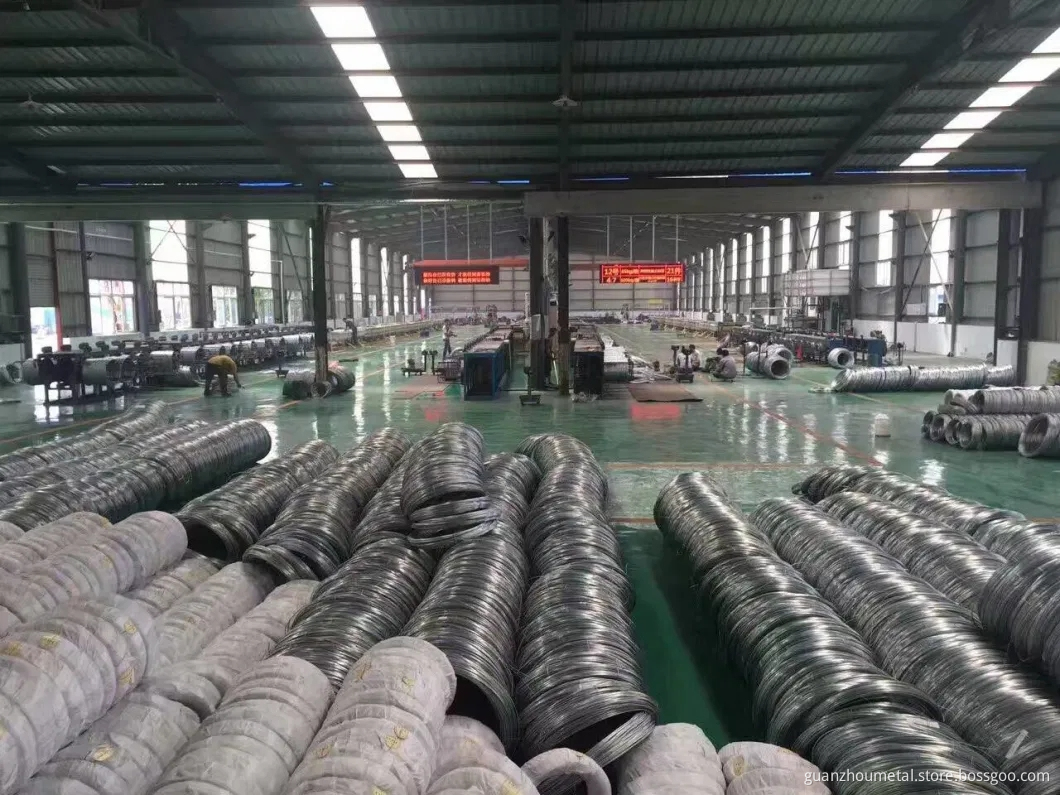

factory (6)(1)

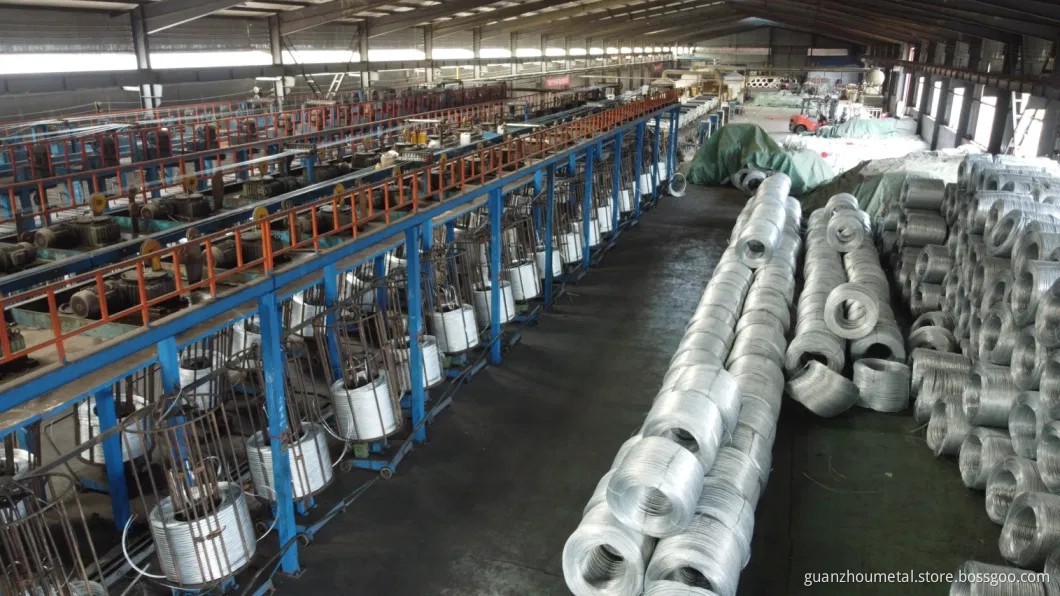

factory (4)

Specifications

1.Diameter range: 0.2-4.5mm
2.Tensile Strength: 300~1850 N/mm²
3.Standard: GB4357, DIN17223, JIS G 3521, A227, EN10270

4.Main application: making spring, mattress, wire rope.
5.Packing: pack in plastic spool, reel, bag, drum, carton and so on
Steel wire material:

SAE1006, SAE1008, SAE1010, Q195, Q235, C45, C50, C55, C60, C65, 65Mn, C72A, C72B, C80, C82B, CT9A, GCr15, AND SO ON
The Raw Material: (45#, 60#, 65#, 62A, 72A, 65Mn, 70#, 82A, 82B, T9A, SAE1008, SAE1006, 18A, 22A)

Steel Grade GB Standard	Carbon %	Silicon %	Manganese %	Phosphorus %	Sulphur %	Chromium %	Nickel %	Cuprum %
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17

Galvanized Iron Wire

Galvanized Steel Wire

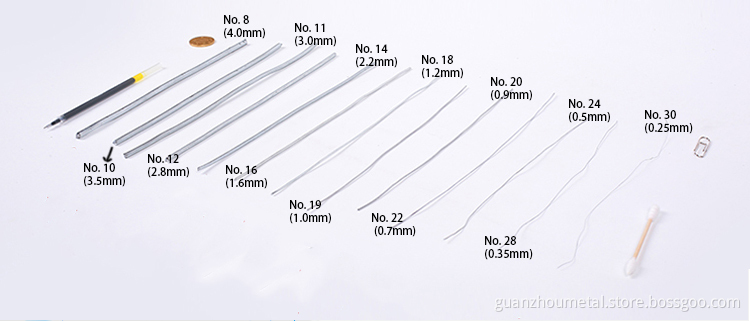

Gauge	SWG		BWG		AWG
Gauge	Inch	mm	Inch	mm	Inch	mm
8	0.16	4.046	0.165	4.191	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.032	0.812
21	0.032	0.813	0.032	0.831	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01594	0.405

BWG
Gauge	Diameter(mm)	Tensile Strength(n/mm2)	Zinc Thickness(g/m2)	Weight of unit coil(kg)
5.5~6#	5.00	300~1500	30~100	400~600
7#	4.57	300~1500	30~100	400~600
8#	4.19	300~1500	30~100	400~600
9#	3.76	300~1500	30~100	400~600
10#	3.40	300~1500	30~100	400~600
11#	3.05	300~1500	30~100	400~600
12#	2.77	300~1500	30~80	400~600
13#	2.41	300~1500	30~80	400~600
14#	2.11	300~1500	30~80	400~600
15#	1.83	300~1500	30~80	400~600
16#	1.65	300~1500	30~80	25~500
17#	1.47	300~1500	30~80	25~500
18#	1.24	300~1500	≥12	25~500
19#	1.07	300~1500	≥12	25~500
20#	0.89	300~1500	≥12	25~400
21#	0.81	300~1500	≥12	25~400
22#	0.71	300~1500	≥12	25~200
23#	0.64	300~1500	≥12	25~150
24#	0.56	300~1500	≥12	10~150
25#	0.51	300~1500	≥12	10~100
26#	0.46	300~450	≥12	10~50
27#	0.41	300~450	≥12	10~50
28#	0.36	300~450	≥12	10~50
29#	0.33	300~450	≥12	10~50
30#	0.30	300~450	≥12	5~20
30.5#	0.28	300~450	≥12	5~20

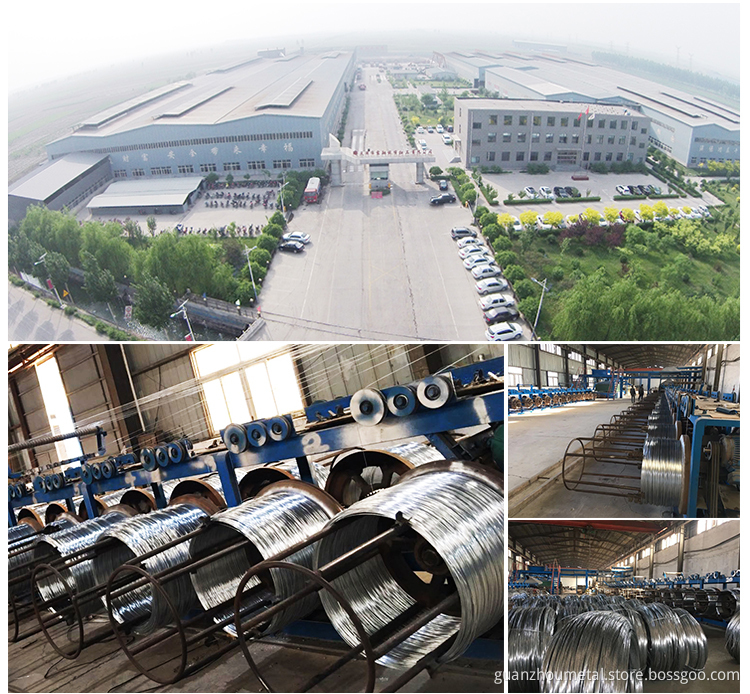

factory (1)

factory (5)

Contact us

If you have any question, please feel free to contact me by the email or telephone!

Mainly products cover Carbon Steel Plate, Mild Steel Plate, Ship Building Steel Plate, Pressure Vessel Steel Plate, Wear Resistant Steel Plate, Weather Resistant Steel Plate, Galvanized Steel Coil and Prepainted Steel Coil, Carbon Steel Coil, Carbon Steel Pipe, Honed Tube, Steel Section, etc.
