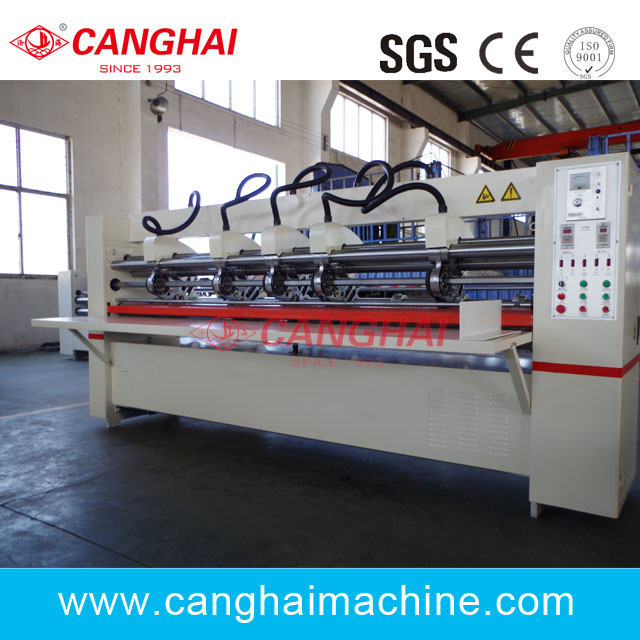

Function and Features:
1. Electric adjusted the apace of slitter blade, auto pneumatic locking, easy to operate, improve the efficiency.
2. Double guide optical axis, stable operation; inlay PU ring sela, clean and dust-proof.
3. Slitter part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
4. Scorer part:adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
5. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining.
6. Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
7. Adopt China famous brand or imported electric element, dependable performance.
Technical parameters:
|
Model |
3000 |
|
Effective width |
2800mm |
|
Total power |
5kw |
|
Min.Slitter-spacing |
130mm |
|
Min.Scorer-spacing |
30mm |
|
Min.Paper length |
260mm |
|
Machine dimensions |
3650*770*1700mm |
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Carton box making machinery,
carton box folder gluer machine,
Flat bed die cutting machine,
Flexo printing slotting die cutting machine,
Stitching machine,
corrugated cardboard production line
