In gear manufacturing, high speed dry hobbing machine technology greatly reduces cutting time and manufacturing cost while improving workpiece quality and environmental protection. YIEN CNC hobbing machine is a
new generation of CNC high speed dry cutting automatic hobbing machine with today's international advanced level designed and developed for gear dry hobbing processing technology, which is the latest generation of dry cutting products.It represents the development trend of environmental protection, automation, flexibility, high speed and high efficiency in the world manufacturing industry, and reflects the design concept of human-oriented and green manufacturing. It is especially suitable for high volume and high precision ultra-dry hobbing processing of automobile and car transmission gears.
CNC Hobbing Machine Series is a type of CNC lathe, and we also provide Machining Centers, Universal Lathes, and so on.

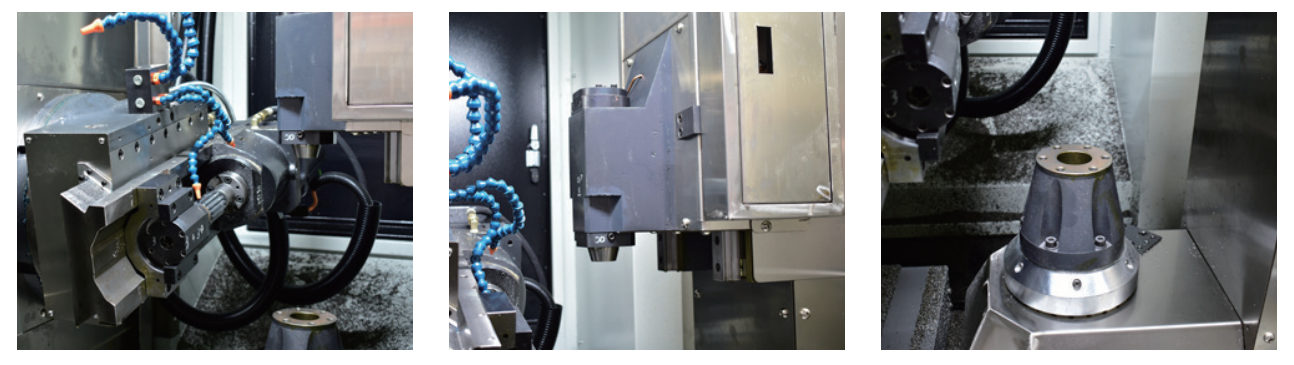

The machine is highly rigid，One size fits all 8 mode
| ltem | Unit | Y-3150 |
| Max. machining diameter | mm | 500 |
| Max. modulus | mm | 10 |
| Max. axial travel | mm | 420 |
| Max.rotation angle of hob (A-axis) | deg | +45 |
| Max. diameter x length of hob | mm | Φ200x230 |
| Distance between hob center to table center | mm | 30-360 |
| Distance from hob center to worktable | mm | 200-620 |
| Distance from tailstock center to worktable | mm | 365-765 |
| Max. speed of hob shaft (B axis) | rpm | 800 |
| Hob spindle power | Kw | 15 |
| Max. axial distance of tool string | mm | 200 |
| Max. speed of table (C-axis) | rpm | 100 |
| Radial feed rate (X-axis) | mm/min | 4000 |
| Tangential feed rate (Y axis) | mm/min | 4000 |
| Axial feed rate (Z axis) | mm/min | 2000 |
| Hob bar diameter | mm | Φ27/ Φ32/ Φ40 / Φ50 |
| Machine weight | t | 18 |
| Control system |
Fanuc |
| Standard | |
| 1 | Full enclosure |
| 2 | Color displayer |
| 3 | Centralized quantitative lubrication system |
| 4 | Hydraulic system |
| 5 | Pneumatic system |
| 6 | Circulating cooling system |
| 7 | Electric cabinet air conditioner |
| 8 | Water chiller |
| 9 | Hob bar unit |
| 10 | Hob clamping unit |
| 11 | Chip conveyor and accessories |
| Option | |
| 1 | Customized workpiece fixture |
| 2 | Oil mist separate |
| 3 | Customized automatic production |
| 4 | Precision tool setting device |
| 5 | Customized hob bar |
| 6 | Tool rest adjustment without the machine |
